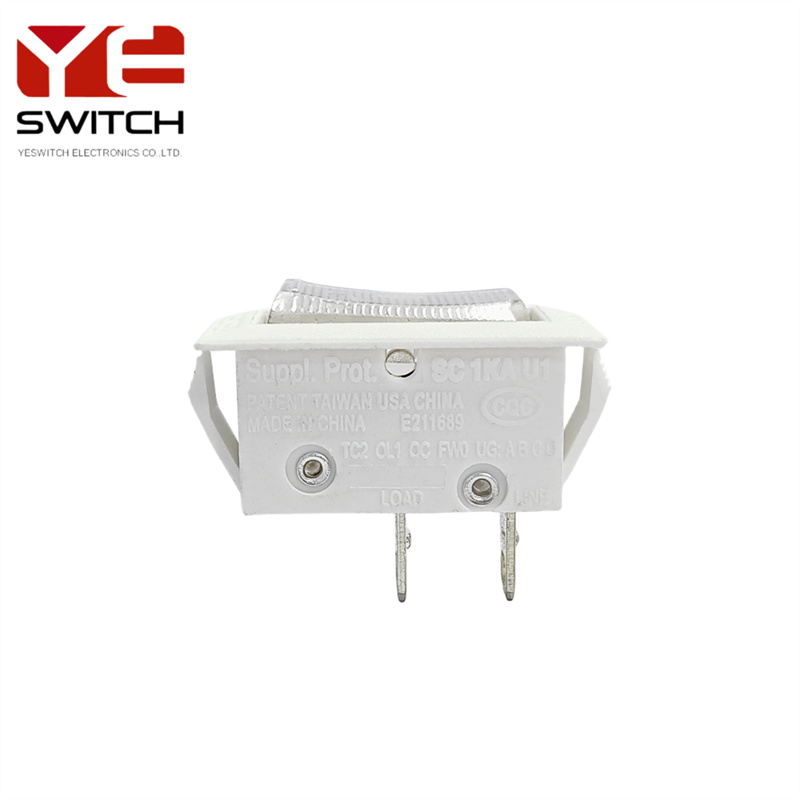

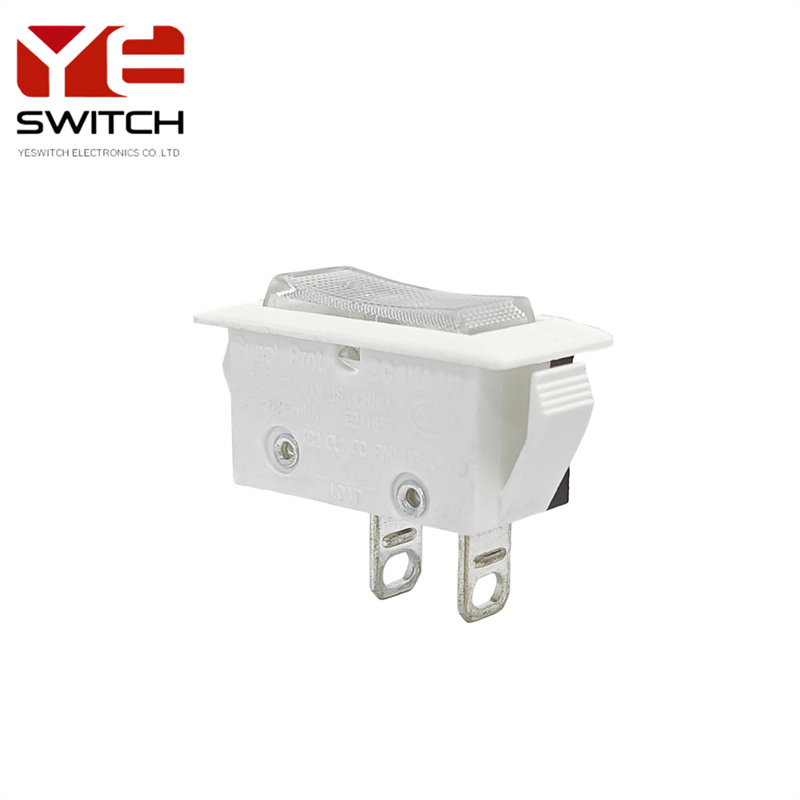

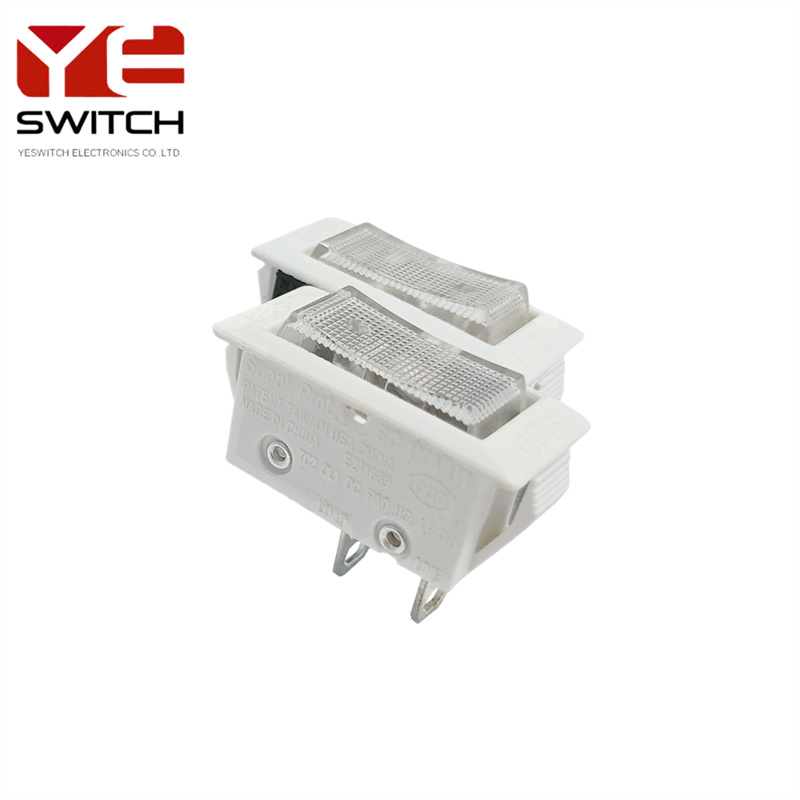

15A Overload Protector Circuit Breaker Illuminated Rocker Switch

The 15A overload protector circuit breaker illuminated rocker switch all kinds of forbutton are available to choose,meet the installation requirements of most customers in the market.The 15A 125VAC reset breaker rocker switch housing is made of phenolic,which has good corrosion resistance.And alloy sheet is imported EMS bimetal sheet, the quality is more stable.

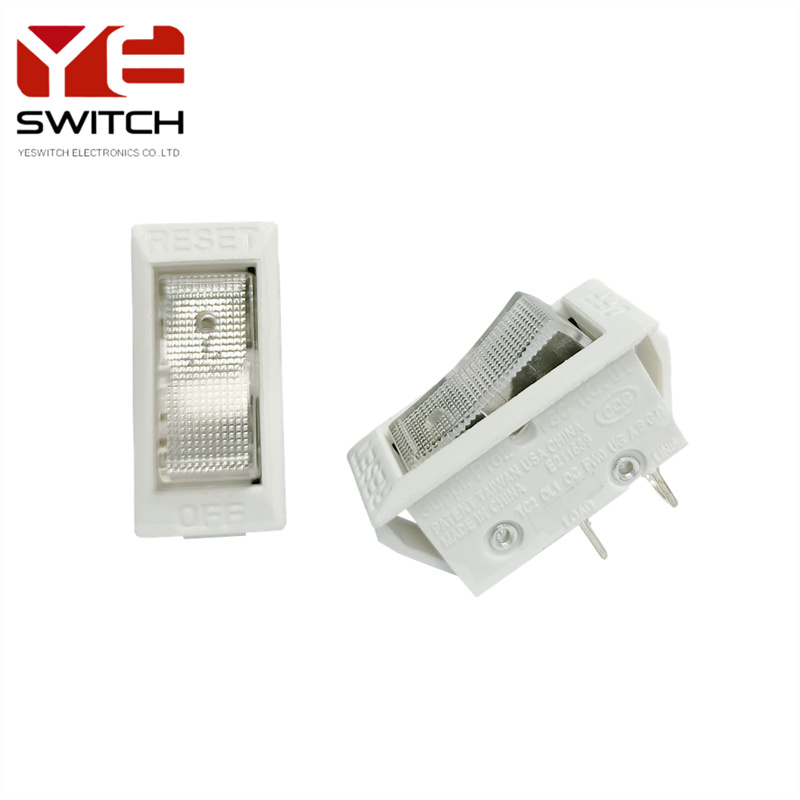

15A rated 250VAc rated rocker switches and thermal trip circuit breaker within the same housing allowing on off switching and circuit protection.Panel mountable with "off" "reset" marked on the bezel. Reset time 1 minute. Connection is by 6.3mm quick connect terminals.

When the overload protector is too large, the 15A overload protector circuit breaker illuminated rocker switch sensor detects the abnormal current,and the control unit determines whether it is overloaded after receiving the signal.If it is,the cut-off device is triggered and the power supply is cut off to protect the electrical equipment.If the end product is abnormally hot causing its temperature to be too high,the thermal circuit breaker will heat up and jump away, thus protecting the product.

The 15A overload protector circuit breaker illuminated automotive rocker switch is mainly used in power tools,medical and laboratory equipment,industrial appliances,equipment for construction, cleaning equipment,commercial and household kitchen appliances,industrial power and industrial lighting arrays.

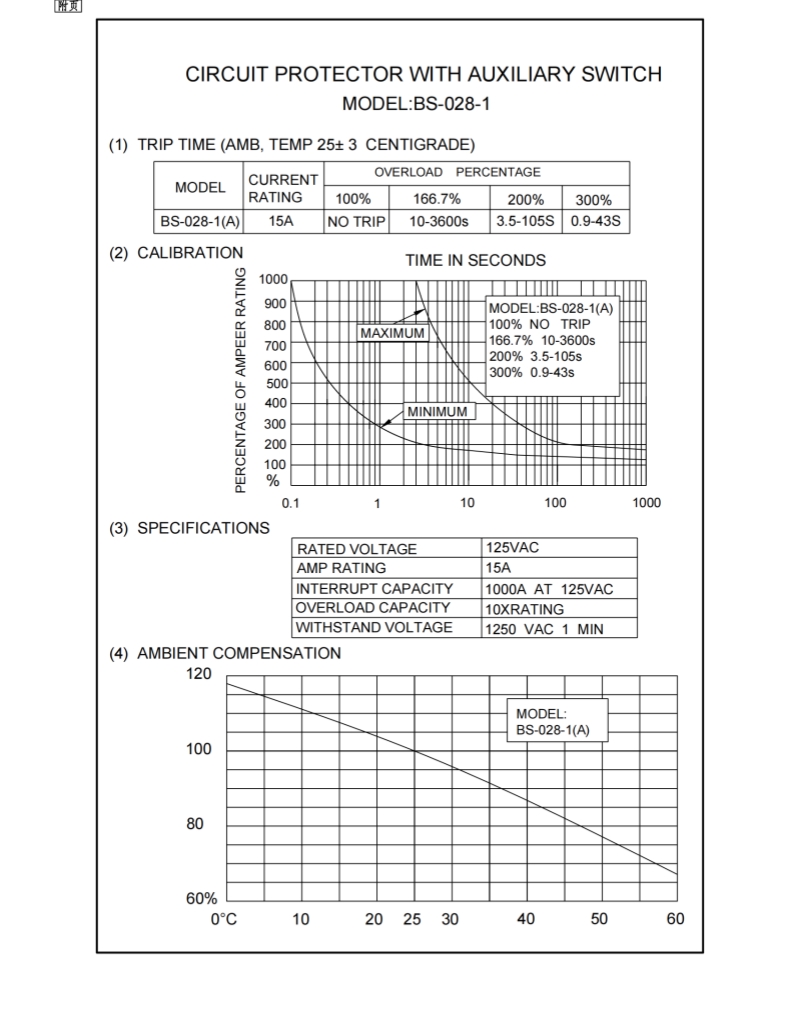

SPECIFICATION

MODEL:BS-028-1
RATED VOLTAGE:125VAC
AMP RATING:15A
INTERRUPT CAPACITY:1000A AT 125VAC
OVERLOAD CAPACITY:10X RATING
WITHSTAND VOLTAGE:1250 VAC 1 MIN
TEMPERATURE:-40~85 Degrees
HOUSING:PA66
BUTTON:PC
TERMINAL:COPPER
