The role of electronic transformers

In the electronics profession, you can often see the figure of transformers, the most common is used in the power supply as a conversion voltage, isolation:

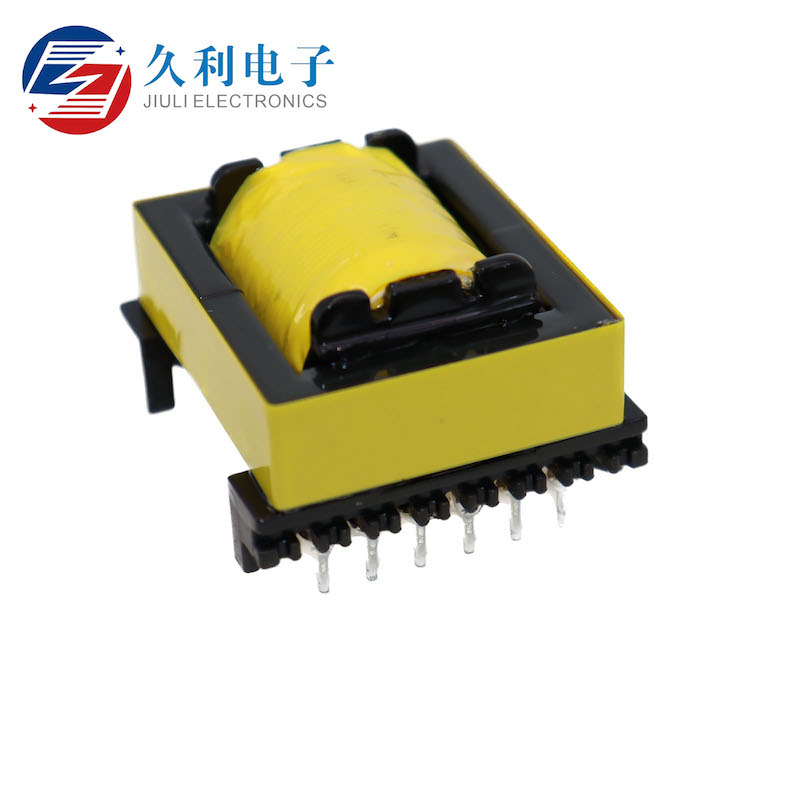

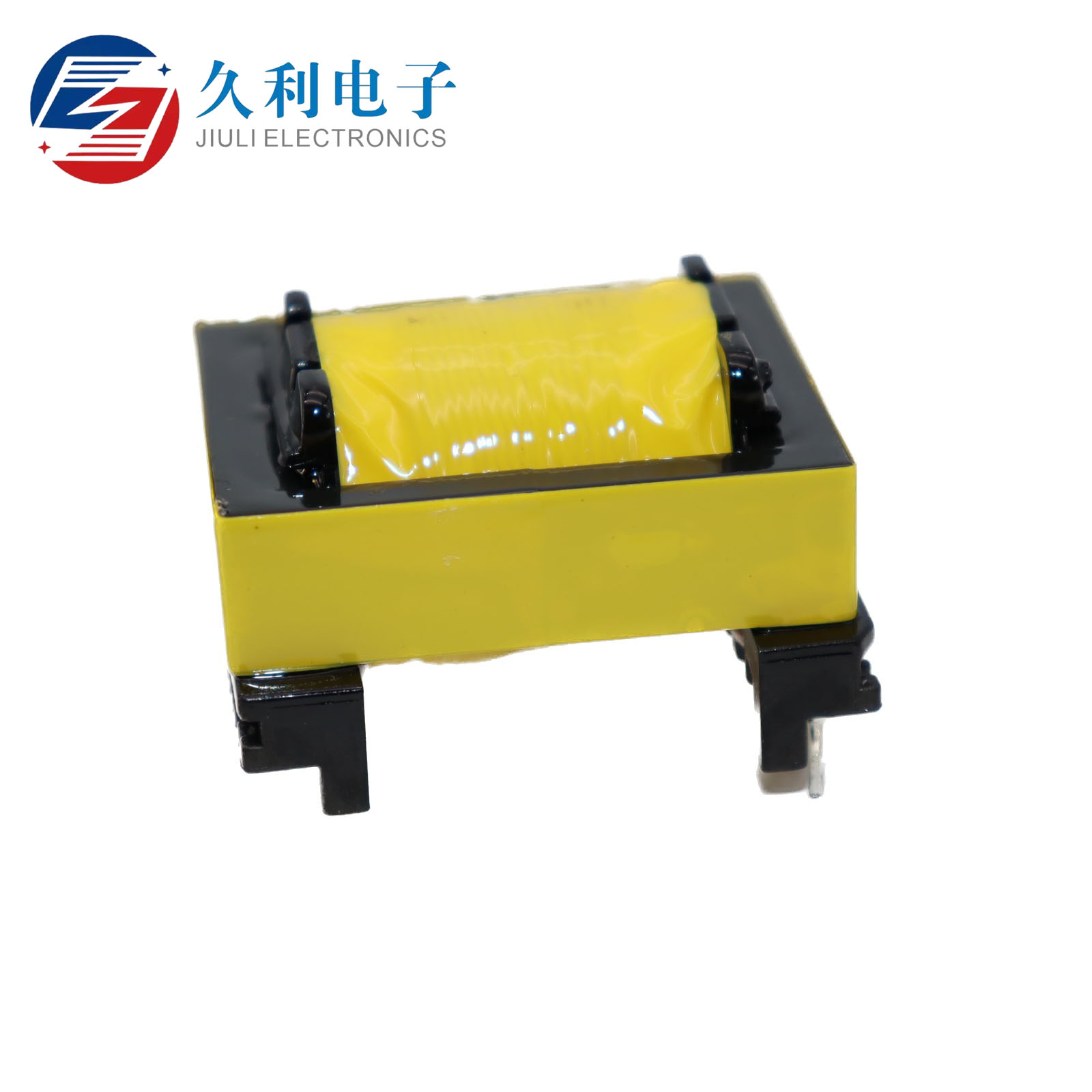

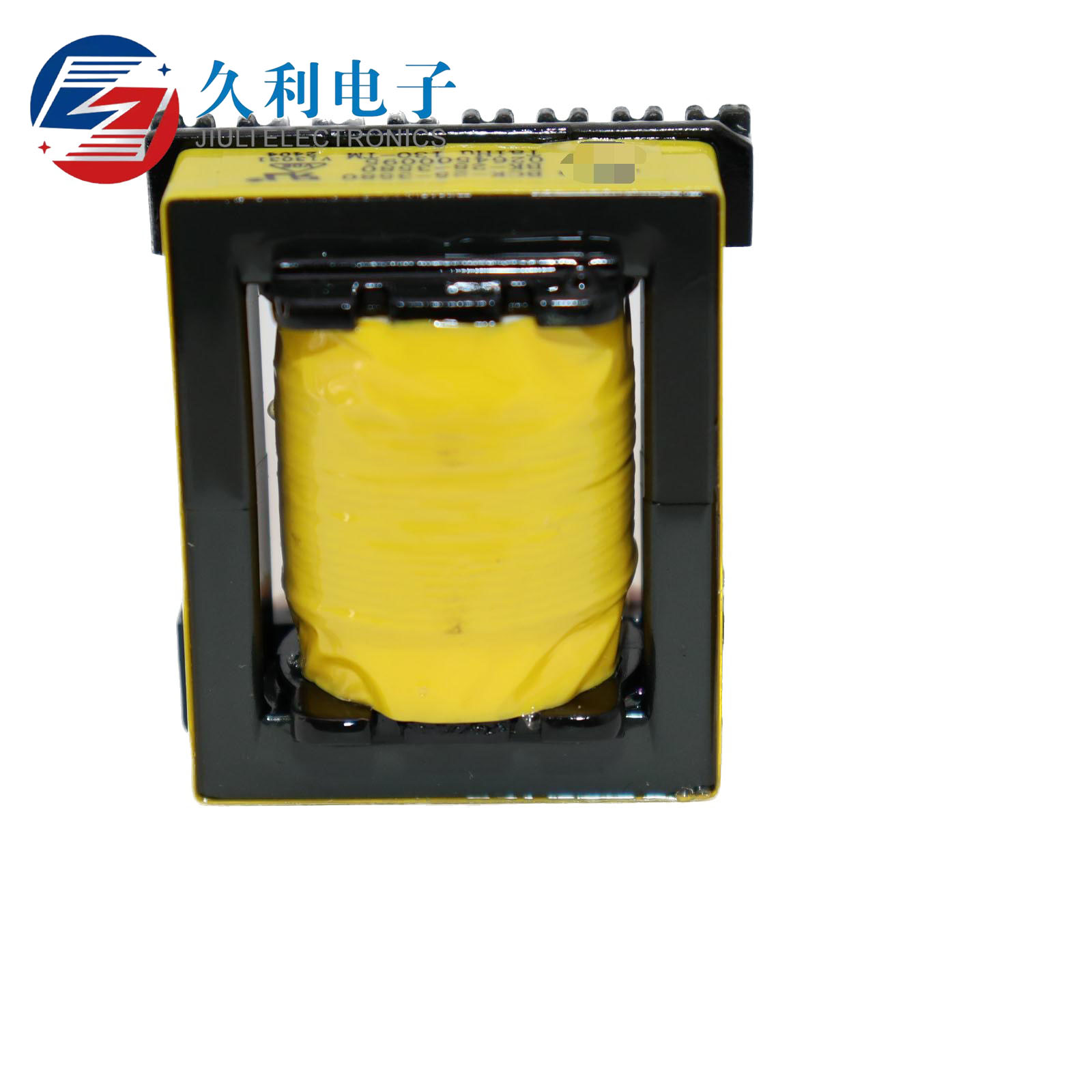

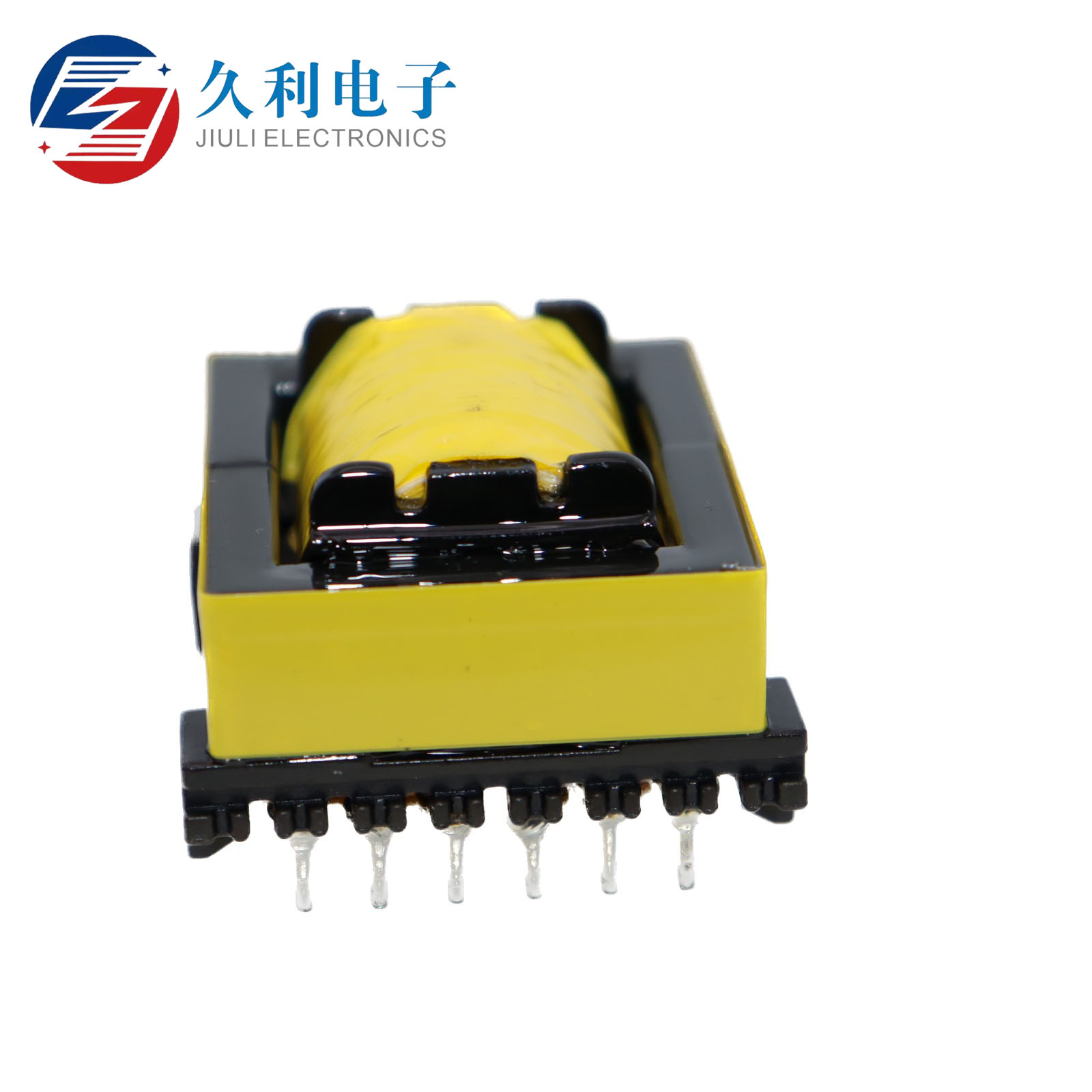

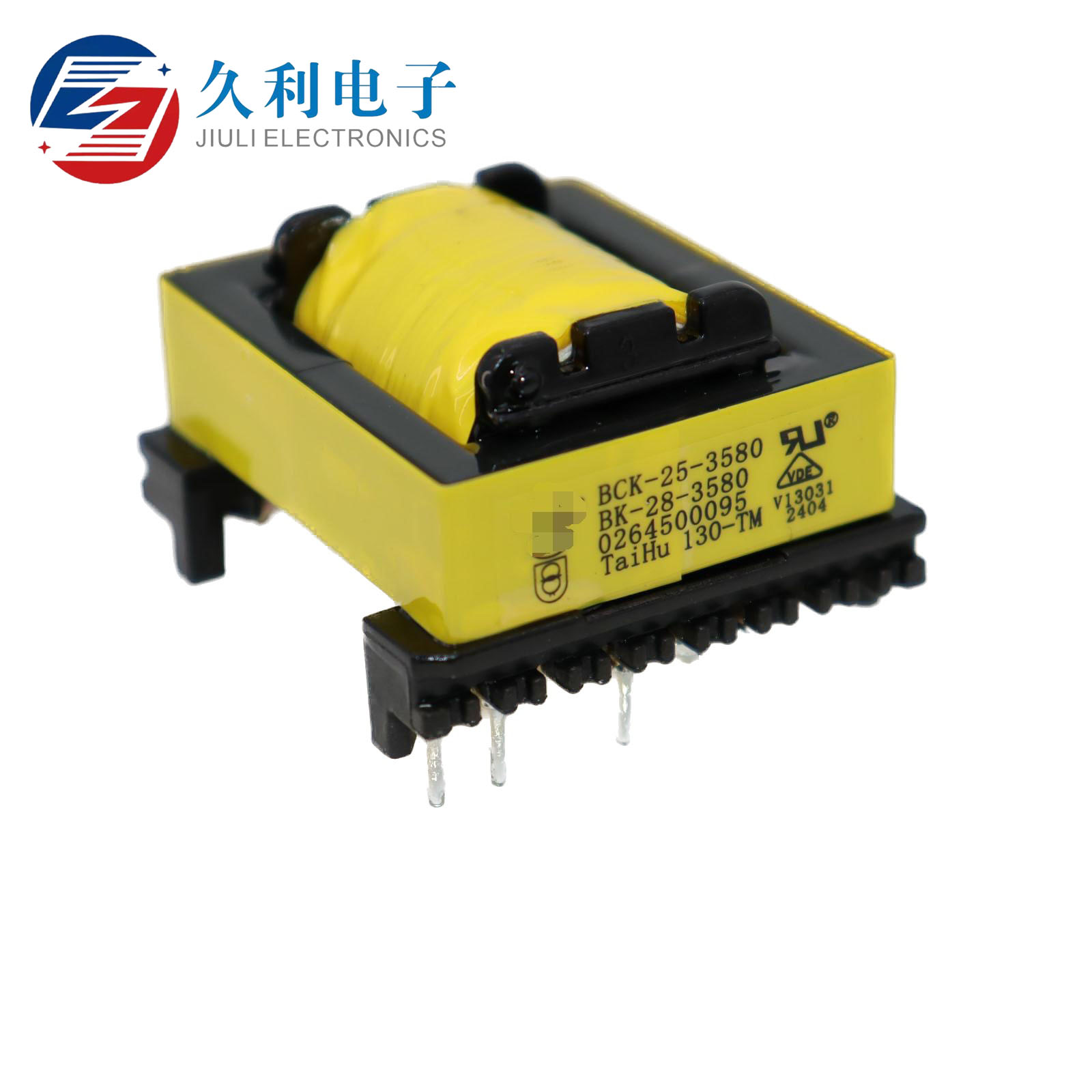

Switching power supply transformerSwitching power supply transformer

① : Transformer can be divided into two kinds of boost and buck, most of the switching power supply is buck. Such electronic products are usually used in desktop power supplies, notebook adapters, mobile phone chargers, TV power supplies, rice cookers, refrigerators, induction cookers, power supplies, etc. These are AC input through the rectifier bridge, large capacitor rectifier filter, to get a high voltage direct current.

② : The boost voltage is generally used in the inverter power supply or DC-DC line, there is an emergency power supply, the battery 12V to 220V output, power supply equipment.

③: The isolation of high-frequency switching transformers is a safety requirement, in order to ensure the safety of electrical equipment. In the AC input, the switching transformer must have a safe distance to achieve the isolation between the primary AC input and the secondary power, the primary winding of the transformer is isolated with insulation tape, the primary stage on both sides of the skeleton is isolated, and the AC power passes through the human body and forms a loop with the earth, causing the human body to conduct electricity. There are high voltage tests for transformers, generally requiring 3KV.

Our main products are Electronic Transformer、I-type Inductor、Common Mode Inductor and so on.

Please contact us if necessary. Look forward to your sincere cooperation.
