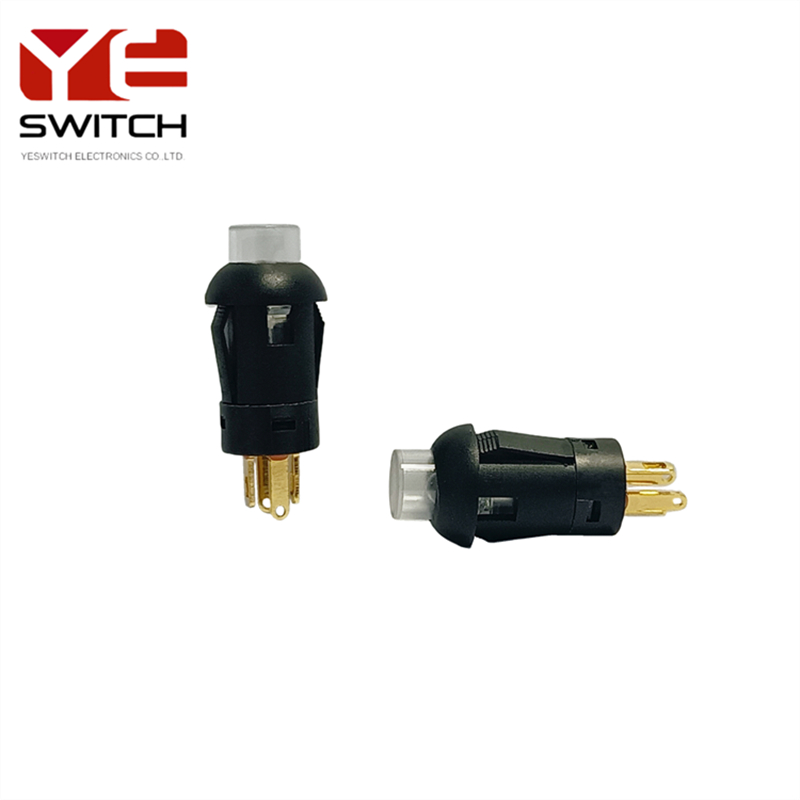

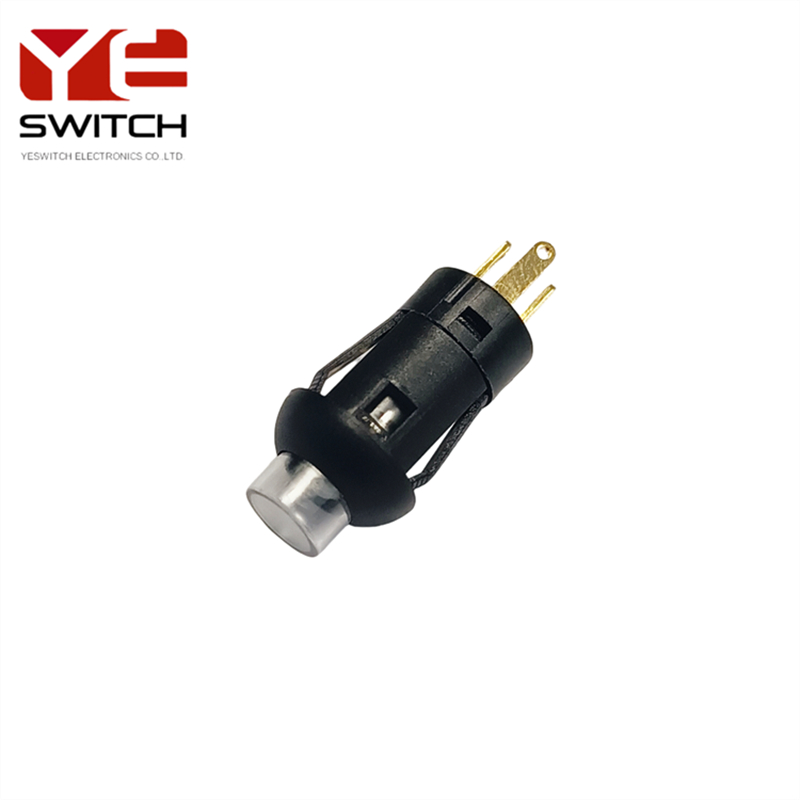

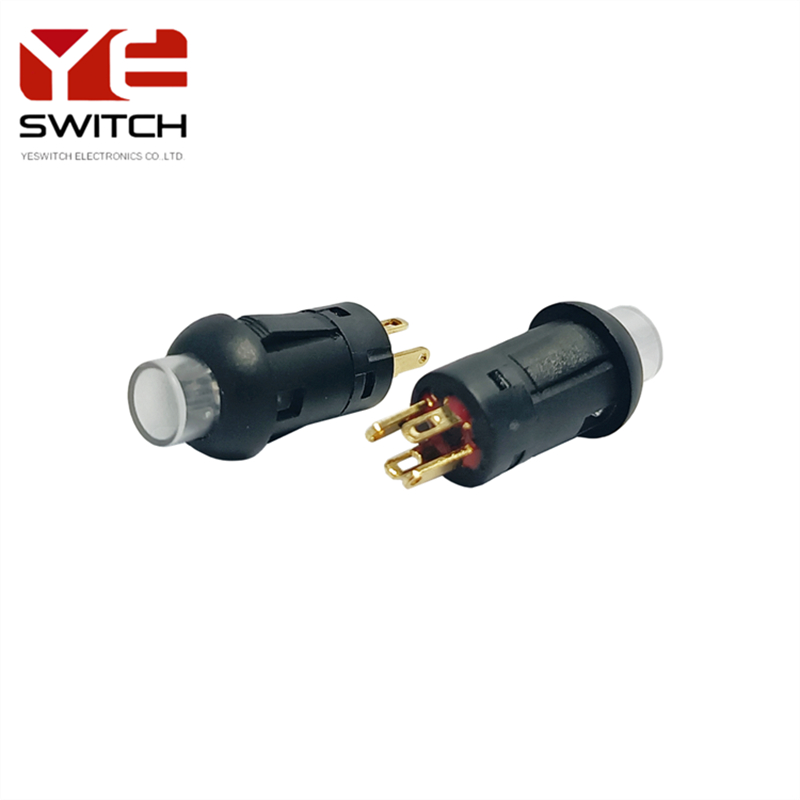

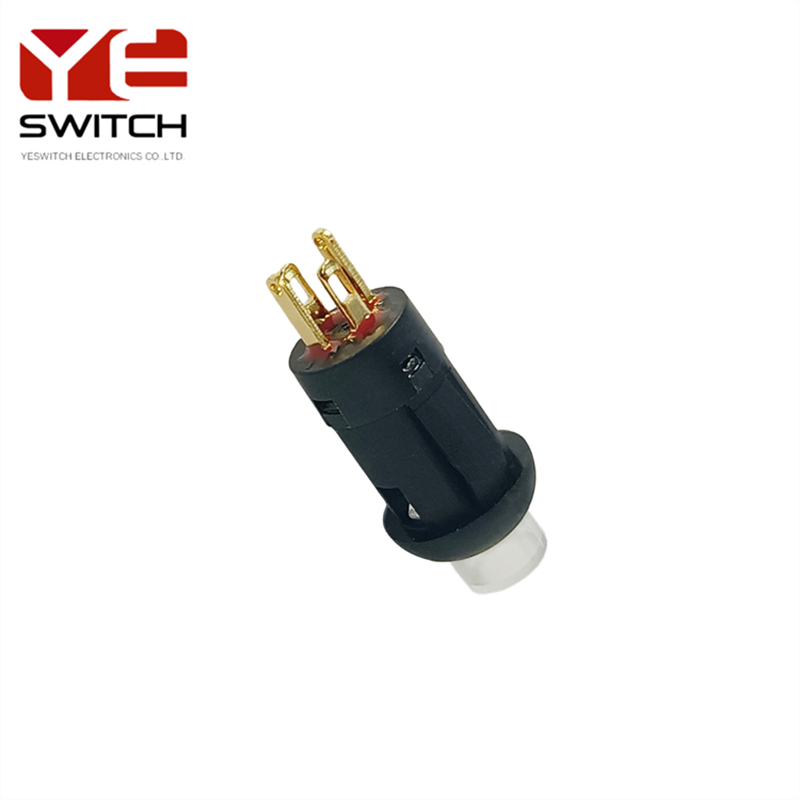

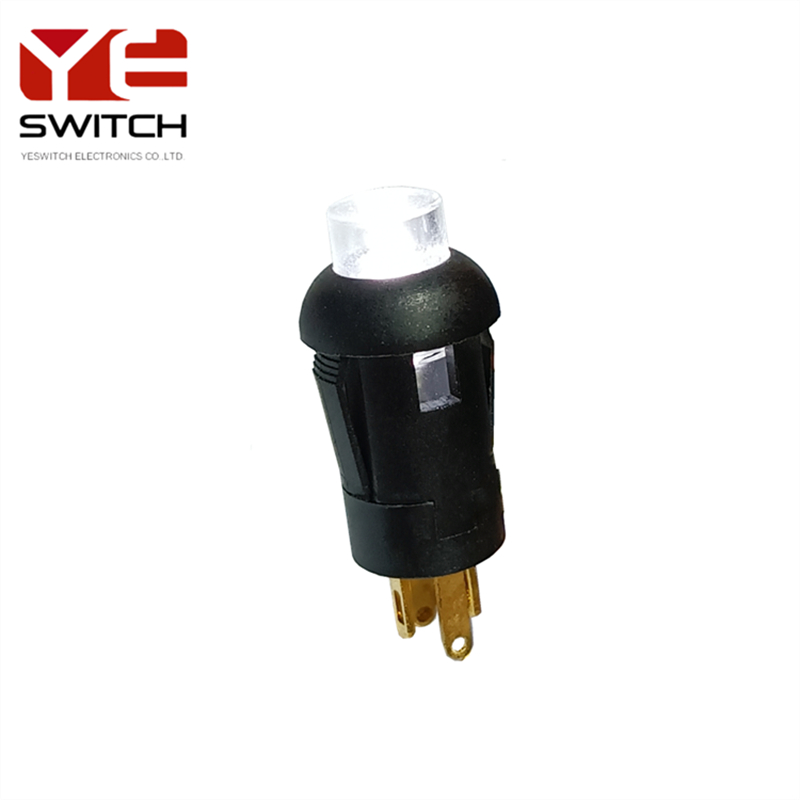

8mm Illuminated Round Momentary SPST Push Button Switch

The PBL Series illuminated round push button switch performs momentary contact pushbutton functions with a single-pole,single-throw (SPST) circuit.The push button switches are a panel mount pushbutton meant for a round cutout sized 8mm in diameter.And the push button switch types rating is 30VDC 0.1A.

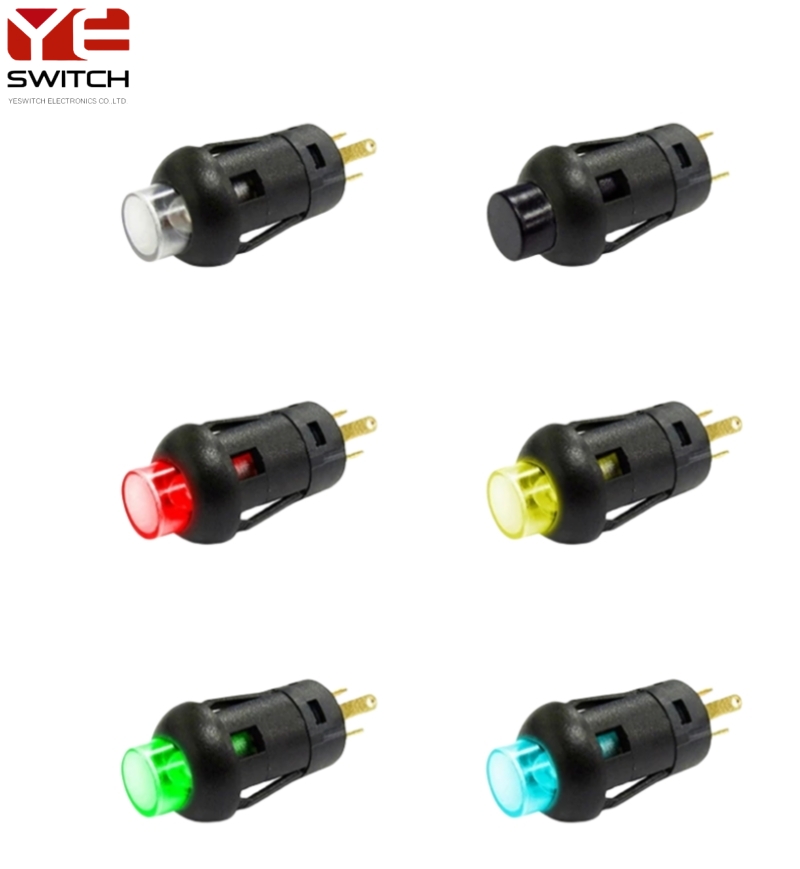

The PBL Series illuminated switches come in multiple LED colors:blue,green,red,white and yellow.Besides,the push button switch have double color LED:blue+green. The distinctive features are small size,long electrical life and high brightness LED.Button surface are illuminated.The push button switch types operate in temperatures ranging from -40 to 85°C and can be stored within that same range. These LED illuminated switches have an electrical and mechanical life expectancy of 50,000 cycles.

The 8mm Illuminated Round Momentary SPST Push Button Switch is widely used in computer servers/peripherals,performance audio,instrumentation,telecommunications,networking and more.

FEATURES

Full LED illumination options in multiple colors
Operates in and can be stored at -40 to 85°C
Panel mount,round cutout of 8mm
SPST, momentary pushbuttons

SPECIFICATIONS

POLE-POSITION : Momentary Type, SPST with LED
CONTACT RATING : 30V DC, 0.1A
CONTACT RESISTANCE : 50mΩ max. 1.5V DC;
100mA by Method of Voltage DROP.
INSULATION RESISTANCE : 100MΩ min. 500V DC.
DIELECTRIC STRENGTH : 500V AC for 1 Minute.
OPERATING FORCE : 250± 100gf.
OPERATING LIFE : 50, 000 cycles.
OPERATING TEMPERATURE RANGE : -40°C ~ 85°C.
TOTAL TRAVEL : 1.2± 0.3mm.

MATERIALS

CAP : PC.
CASE & HOUSING : Nylon 6/6.
TERMINALS : Copper alloy with gold plated.
