55-inch Z8 conference all-in-one machine

7 month ago
17 0
Product details
System Features:

- Equipped with the Android 13.0 intelligent operating system, featuring a unique 4K UI design; all interface UI resolutions are ultra-high definition 4K;

- High-performance CPU comprised of 4*A76 (Max: 2.4GHz) + quad-core 4*A55 (Max: 1.8GHz);

- High-performance GPU utilizing ARM Mali-G610 MC4 (Max: 1.0GHz).

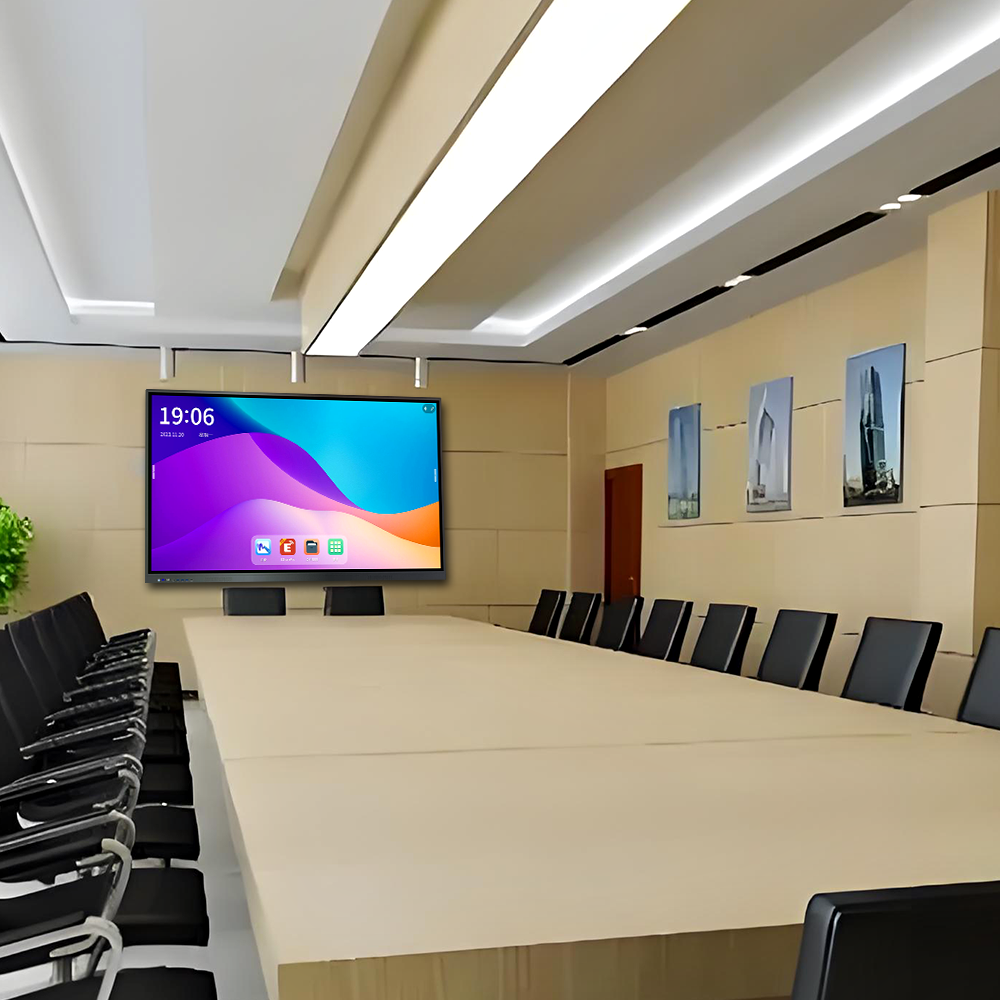

4K Window 55-inch Interactive Conference Board generally refers to a large HD display designed for collaborative meetings and presentations in corporate environments. 4K resolution (3840 x 2160 pixels) provides four times the detail of a Full HD display, providing clear visuals even when viewed from a distance.

The "interactive" aspect means that users can interact with the display using touch or stylus, allowing annotation, drawing, and other collaborative activities directly on the screen. This is particularly useful for brainstorming sessions, designing presentations, or working on documents together.

The 55-inch screen provides ample space to view content without crowding the conference room. It's large enough for everyone in a typical conference room environment to see, but not so large that it takes up too much physical space.

As a major electronic product production company, our company, in addition to Interactive Conference Board, also produces a variety of products for various scenarios: Education Interactive Board, Memory Blackboard, Multimedia All-in-One PC, etc. are all our main products.

55-inch Z8 conference all-in-one machine55-inch Z8 conference all-in-one machine

Overview of specifications
Face plate Screen size 55"
Backlit type D-LED
Resolution ratio 3840*2160
Luminance ≥350cd/m²
Screen contrast 5500:1
Response time 6ms
Pixel point distance 0.315×0.315 mm (H×V)
Frame frequency 60 Hz
Angle of view 178°(H) / 178°(V)
Color saturation (x% NTSC) 72%
Visual area 1209.6×680.4 mm (H×V)
Color degree 1.07B(8bit)
Life span 30,000hrs
Project Slug RK3588
System Properties System version Android 13.0
CPU 4*A76(Max:2.4GHz)+Quad-4*A55 (Max:1.8GHz)
GPU ARM Mali-G610 MC4 (Max:1.0GHz)
Internal cache capacity (RAM) 4GBDDR4
Internal Storage Capacity (ROM) 32GB Standard
Power parameters Voltage 100 V ~ 240 V/AC, 50/60 Hz
Maximum power (without OPS) ≦96W
OPS source 19V(DC)/5A
Power parameters Standby power consumption <0.5W
Power supply (AC) input *1
Front interface Switch button * 1 Light sense is optional
USB (shared) * 3 Standard USB Type-A interface
Type-c USB*1    Standard USB2.0 Type-C interface
HDMI IN*1    Standard HDMI Type-A interface, and the HDMI input is displayed
TOUCH_OUT*1 Standard USB2.0 Type-B interface
Structure Net weight    33Kg±1.5Kg
Rough weight    40Kg±1.5Kg (Heavy-duty carton)
Bare machine size (length * width * thick) 1273.4mm*773mm*92.4mm
Packaging size (length * width * height) 1395mm * 901mm * 190mm (heavy duty carton)
VESA hole site 4-M8 screw hole 400mmx400mm
Housing Material (face frame / rear housing) Aluminum profile / sheet metal
Shell color (face frame / rear shell)    Black (upper / lower silver / all silver optional)
Language OSD menu Simplified Chinese / Traditional / English / Korean
Main specifications and parameters

Touch parameters


Touch specifications
Infrared touch box
Glass specifications
General Glass / anti-glare toughened glass
response speed
≤6ms
Touch accuracy
The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm
Power dissipation The USB 2.0 is at full speed

Touch parameters

Touch the diameter
≥3mm
input mode
Finger or special pen
Number of theoretical clicks
Infinite times
Touch parameters
4.75~5.25V
Interface type
≤2 W


Display:
55-inch Z8 conference all-in-one machine
