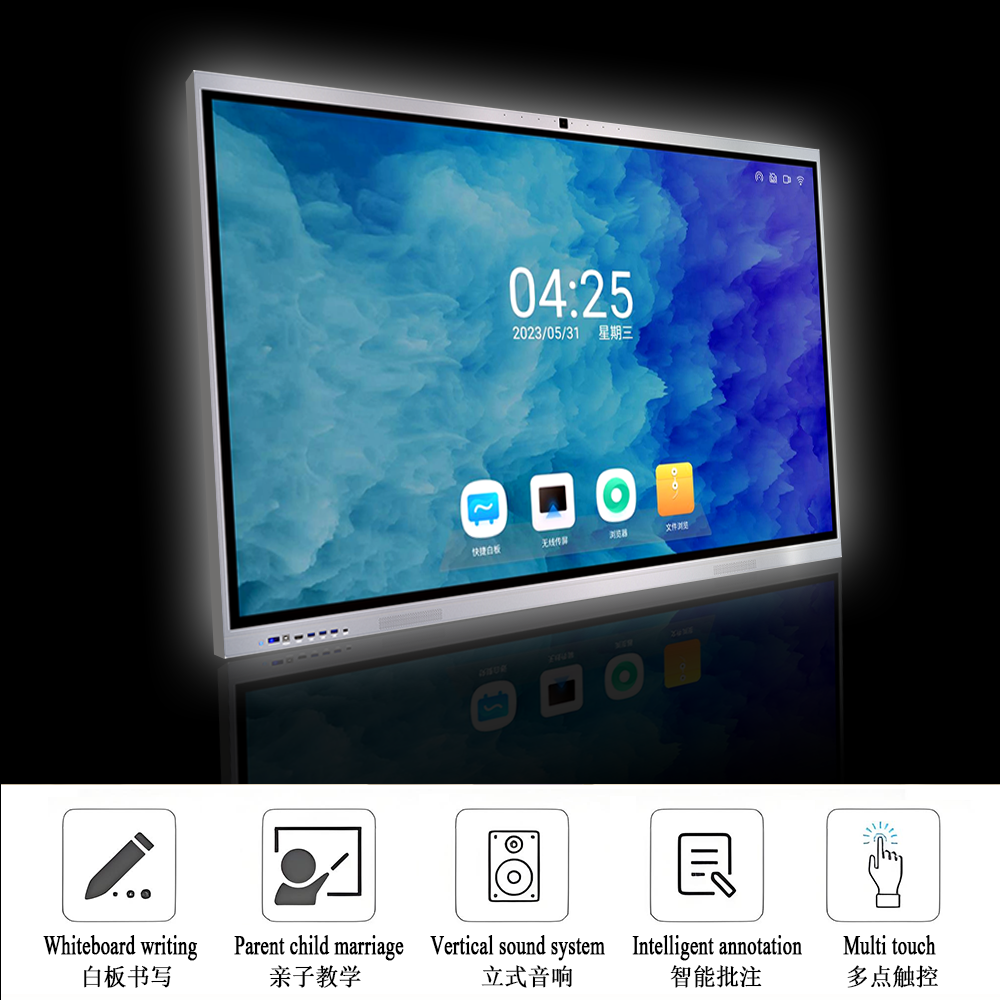

55-inch conference all-in-one machine with camera
7 month agoWith the continuous development of technology, the equipment in modern conference rooms is also constantly upgrading. Among them, meeting smart board, as an intelligent conference equipment, have become the first choice for many enterprises and organizations.
Firstly, as the core equipment of modern conference rooms, meeting smart board have multiple functions and can meet the needs of different meetings. Compared with traditional projectors and whiteboards, the meeting smart board integrates multiple functions such as projection, computer, and audio, which can achieve a more efficient and convenient conference experience. In the meeting, we can use the meeting smart board for various activities such as PPT presentations, video conferences, interactive discussions, etc., making the meeting content more vivid and visual, and improving the efficiency and participation of the meeting.
Secondly, the meeting smart board has the characteristic of intelligence, which can realize functions such as remote video conferencing and interactive discussions. Through Internet technology, we can connect conference rooms in different places together to realize remote video conference, so that participants from all over the world can exchange and share information in real time. At the same time, the meeting smart board also supports wireless screen casting, intelligent voice recognition and other functions, which facilitates interactive discussions and information exchange during the conference, further improving the efficiency and quality of the conference.
Thirdly, the meeting smart board also has the characteristic of environmental protection, which can reduce the use of resources such as fibers and lower conference costs. In traditional meetings, we require a large amount of paper, pens, and other items, which not only wastes resources but also increases meeting costs. The meeting smart board can record and transmit information electronically, reducing the use of resources such as documents and lowering conference costs. At the same time, the energy-saving and environmental protection characteristics of the meeting smart board also conform to the sustainable development concept of modern enterprises.
Finally, I believe that using meeting smart board in the conference room can also help enhance the company's image and brand value. A high-end and intelligent meeting smart board can showcase the modern image and strength of the enterprise, enhance the trust and favor ability of the enterprise among customers and partners. At the same time, using meeting smart board can also improve the office efficiency and management level of enterprises, thereby enhancing their market competitiveness.
In short, applying meeting smart board to conference rooms can bring many benefits. It not only improves the efficiency and participation of conferences, but also has characteristics such as environmental protection and intelligence, which helps to enhance the image and brand value of enterprises. In the future, with the continuous development of technology, it is believed that the functions and application scenarios of meeting smart board will be further expanded and optimized.
Faceplate | Screen size | 55" |
Backlit type | D-LED | |
Resolution ratio | 3840*2160 | |
Luminance | ≥350cd/m² | |
Screen contrast | 5500:1 | |
Response time | 6ms | |
Pixel point distance | 0.315×0.315 mm (H×V) | |
Frame frequency | 60 Hz | |
Angle of view | 178°(H) / 178°(V) | |
Color saturation (x% NTSC) | 72 % | |
Visual area | 1209.6×680.4 mm (H×V) | |
Color degree | 1.07B(8bit) | |
Life span | 30,000 hrs | |
Programmatic | Slug | T982 |
System Properties | System version | Android 11.0 |
CPU | Quad-core ARM Cortex-A55 | |
GPU | Mali-G52 MP2(2EE) | |
Internal cache capacity (RAM) | 4 GB DDR4 | |
Internal Storage Capacity (ROM) | 32 GB Standard | |
Power parameters | Voltage | 100 V ~ 240 V/AC, 50/60 Hz |
Maximum power (without OPS) | ≦96W | |
OPS source | 19V(DC)/5A | |
Power parameters | Standby power consumption | <0.5W |
Power supply (AC) input | *1 | |
Built-in camera / pickup mic | Maximum effective pixel | 3840 * 3380 (13 megapixels, downward compatible |
Camera dual system follow recognition | Including 8 built-in array sound pickup mic, support the camera module | |
Pickup valid receiving distance | 10 m (high sensitivity [-38 dB of 94 dB SPL @ 1 KHz] | |
Signal-to-noise ratio of the pick up | 61dB of(94 dB SPL@1KHz,A-weighted) | |
Support function | Echo cancellation / beamforming / removal conference room mixing to maintain voice reduction and voice recognition / automatic gain-AGC gentle high voice enhanced bass provides a consistent near and far call experience | |
Front interface | Switch button * 1 | (Light sense optional) |
USB(Shared) * 3 | Standard USB Type-A interface | |
Type-c USB*1 | Standard USB3.0 Type-C interface | |
HDMI IN*1 | Standard HDMI Type-A interface, and the HDMI input is displayed | |
TOUCH_OUT*1 | Standard USB2.0 Type-B interface | |
Structure | Net weight | 33Kg±1.5Kg |
Rough weight | 40Kg±1.5Kg(Heavy Carton) | |
Bare machine size (length * width * thick) | 1273.4mm*788mm*92.4mm | |
Packaging size (length * width * height) | 1395mm*901mm*190mm(Heavy Carton) | |
VESA hole site | 4-M8 screw hole 400mmx400mm | |
Housing Material (face frame / rear housing) | Aluminum profile / sheet metal | |
Shell color (face frame / rear shell) | Black (upper / lower silver / all silver optional) | |
Touch parameters | Touch specifications | Infrared touch box |
Glass specifications | General Glass / anti-glare toughened glass is available | |
Response speed | ≤6ms | |
Touch accuracy | The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm | |
Touch parameters | Touch diameter | ≥3mm |
Input mode | Finger or special pen | |
Number of theoretical clicks | Infinite times | |
Interface type | The USB 2.0 is at full speed | |
Operating voltage | 4.75~5.25V | |
Power wastage | ≤2 W |
