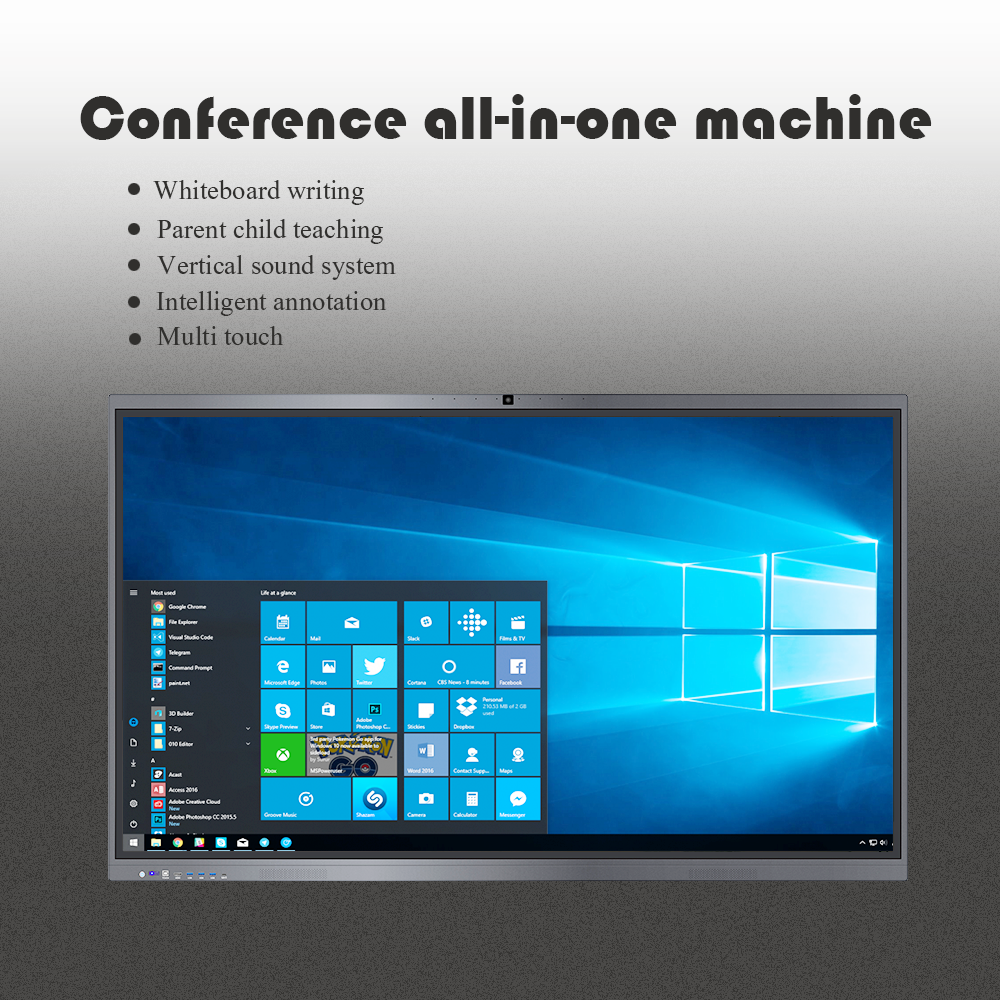

65-inch conference all-in-one machine with camera

7 month ago
18 0
Product details
Advantages of Implementing Interactive smart panel in Education

In the wake of smart campus initiatives, an increasing number of schools are transitioning from traditional teaching methods to the use of interactive teaching machines. What has prompted this shift? What benefits does the use of these machines bring to kindergarten education? Qilong will share four significant benefits of employing interactive teaching machines in kindergartens:

1. Innovation and Convenience

Interactive smart panel utilize teaching software, such as digital whiteboard pens, to enhance the teaching experience. They captivate children's interest and boost their classroom attention by showcasing videos, images, music, and other innovative mediums.

2. Environmentally Friendly and Dust-free

Interactive smart panel allow teachers to write and annotate directly on the screen, eliminating the need for chalk and creating a dust-free teaching environment. This is particularly beneficial for children's health. For kindergarten children, the paramount concerns are their happiness and health, aligning with the expectations of parents and teachers.

3. Promotes Interaction Between Teachers and Students

Interactive smart panel foster a dynamic interaction between teachers and students, facilitating effective learning for a greater number of children.

4. Simplicity and Convenience

Qilong interactive smart panel is an all-in-one teaching device that simplifies operations, optimizes the environment, and circumvents complex wiring issues. It not only enhances teachers' efficiency but also brings immense joy to children. These are the benefits of using QEOYO's interactive smart panel in kindergarten teaching.
Kindergartens serve as the nurturing ground for children's foundational education. Careful consideration should be given to the selection of teachers and the allocation of school infrastructure resources. A conducive teaching environment is the best playground for children's growth.

Qilong is a professional manufacturer specializing in advertising machines. Their product range includes LCD splicing screens, smart conference tablets, touch all-in-one machines and more. Since its inception, Qilong has developed a series of versatile LCD display devices in response to market needs. With their unique technology and superior service, they strive to provide customers with increasingly refined products.

Jiangsu Qilong Electronic Technology Co.,LTD.is a factory located in China. Specialized in producing Education Interactive Board, such as Interactive conference board, Memory blackboard, Smart blackboard,Training Interactive Board,etc.

Main specification parameters

1.  Overview of specifications


Faceplate Screen size 65"
Backlit type D-LED
Resolution ratio 3840*2160
Luminance ≥350cd/m²
Screen contrast 4000:1
Response time 6ms
Pixel point distance 0.372×0.372 (H×V) (mm)
Frame frequency 60 Hz
Angle of view 178°(H) / 178°(V)
Color saturation (x% NTSC) 72 %
Visual area 1428.48(H) × 803.52(V) (mm)
Color degree 1.07B(8bit)
Life span 30,000 hrs
Programmatic Slug T982
System Properties System version Android 11.0
CPU Quad-core ARM Cortex-A55
GPU Mali-G52 MP2(2EE)
Internal cache capacity (RAM) 4 GB DDR4
Internal Storage Capacity (ROM) 32 GB Standard
Power parameters Voltage 100 V ~ 240 V/AC, 50/60 Hz
Maximum power (without OPS) ≦172W
OPS source 19V(DC)/5A
Power parameters Standby power consumption <0.5W
Power supply (AC) input *1
Built-in camera / pickup mic Maximum effective pixel 3840 * 3380 (13 megapixels, downward compatible
Camera dual system follow recognition Including 8 built-in array sound pickup mic, support the camera module
Pickup valid receiving distance 10 m (high sensitivity [-38 dB of 94 dB SPL @ 1 KHz]
Signal-to-noise ratio of the pick up 61dB of(94 dB SPL@1KHz,A-weighted)
Support function Echo cancellation / beamforming / removal conference room mixing to maintain voice reduction and voice recognition / automatic gain-AGC gentle high voice enhanced bass provides a consistent near and far call experience
Front interface Switch button * 1    (Light sense optional)
USB(Shared) * 3 Standard USB Type-A interface
Type-c USB*1 Standard USB3.0 Type-C interface
HDMI IN*1 Standard HDMI Type-A interface, and the HDMI input is displayed
TOUCH_OUT*1 Standard USB2.0 Type-B interface
Structure Net weight 38Kg±1.5Kg
Rough weight 45Kg±1.5Kg(Heavy Carton)
Bare machine size (length * width * thick) 1488.4mm*907mm*92.4mm
Packaging size (length * width * height)    1610mm*1020mm*190mm(Heavy Carton)
VESA hole site    4-M8 screw hole 400mmx400mm
Housing Material (face frame / rear housing) Aluminum profile / sheet metal
Shell color (face frame / rear shell) Black (upper / lower silver / all silver optional)
Touch parameters Touch specifications Infrared touch box
Glass specifications General Glass / anti-glare toughened glass is available
Response speed    ≤6ms
Touch accuracy The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm
Touch parameters Touch diameter ≥3mm
Input mode Finger or special pen
Number of theoretical clicks Infinite times
Interface type The USB 2.0 is at full speed
Operating voltage 4.75~5.25V
Power wastage ≤2 W

Display:
65-inch Z8 conference all-in-one machine with built-in camera
