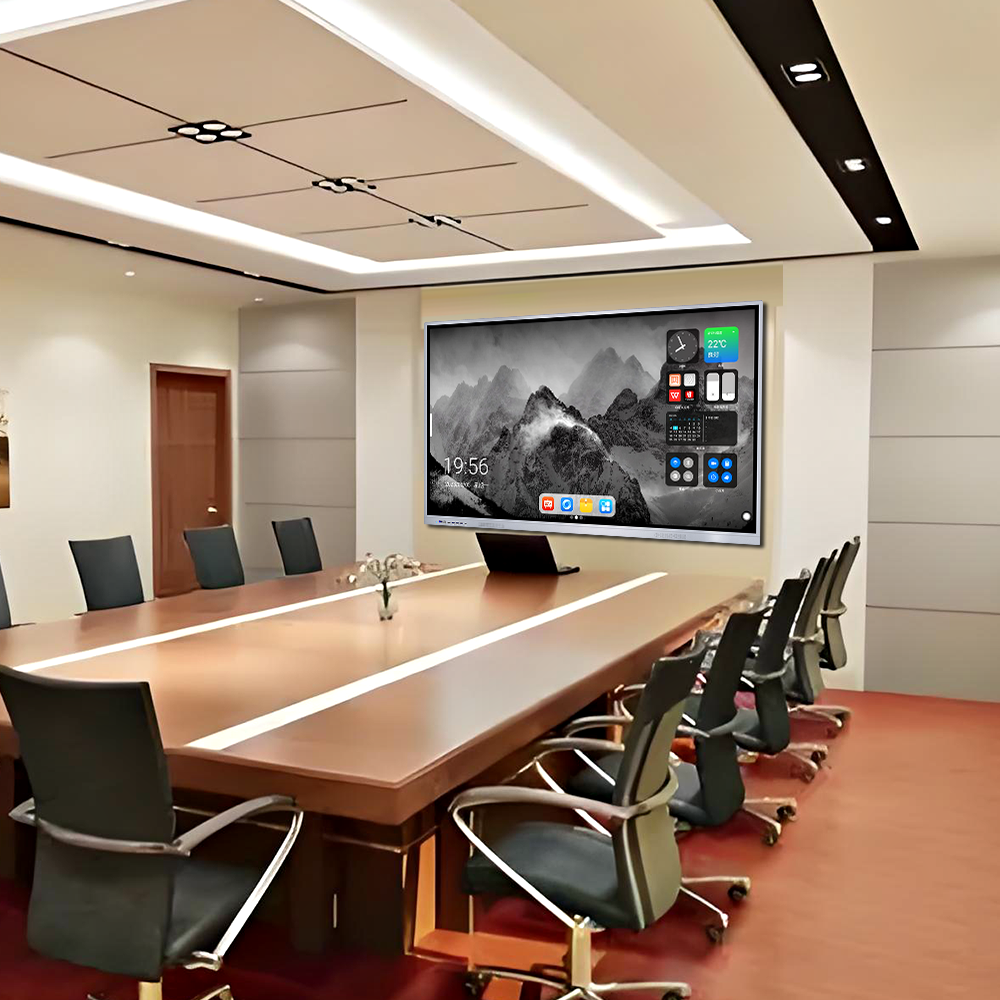

75-inch conference all-in-one machine

7 month ago
17 0
Product details
Product Overview:
Our 75-inch interactive multimedia whiteboard is a high-tech educational tool that integrates high-definition display, interactive teaching, and multimedia display. It not only provides an intuitive and vivid teaching experience for the classroom, but also meets the needs of various occasions such as corporate meetings and training. This whiteboard uses advanced touch technology. Users can operate on the screen with just their fingers or a special pen to achieve actions such as writing, drawing, moving, and zooming, which greatly improves the efficiency and interactivity of information transmission.

Main Features:

1. High-definition display: The 75-inch large screen provides ultra-clear image display, ensuring that the audience can get the best visual experience at different locations, whether it is teaching content or presentations.

2. Interactivity: Through touch screen technology, users can write, draw, drag, zoom in or out directly on the screen without any physical contact with the device, which greatly increases the interactivity of teaching and meetings.

3. Multi-touch: Supports multi-touch, allowing multiple people to operate on the screen at the same time, which is very suitable for team collaboration and group discussion.

4. Strong compatibility: Compatible with various software and applications, such as Office suites, PDF readers, video players, etc., and can be seamlessly integrated into existing teaching or office environments.

5. Built-in audio system: Equipped with a high-quality audio system, it can provide a clear and smooth sound experience whether playing background music or giving voice explanations.

6. Easy to install and maintain: The product design takes into account ease of use and convenience, simple installation, low maintenance cost, and is suitable for rapid deployment in different environments.

7. Durability: High-quality materials and processes are used to ensure long-term stable operation, reduce failure rate, and extend service life.

8. Environmental protection and energy saving: High-efficiency LED backlight technology is used, which is more energy-saving and environmentally friendly than traditional lamps.

Applicable to:

- Education field: schools, training institutions, online education platforms, etc., as a teaching auxiliary tool to improve teaching effectiveness.

- Corporate meetings: internal company training, product demonstrations, remote meetings, etc., to enhance meeting interactivity and efficiency.

- Public places: libraries, exhibition centers, museums, etc., for information display and interactive experience.

Jiangsu Qilong Electronic Technology Co.,LTD.is a factory located in China. Specialized in producing Education Interactive Board, such as Interactive conference board, Memory blackboard, Smart blackboard,Training Interactive Board,etc.
Main specification parameters

1.  Overview of specifications

Faceplate Screen size 75"
Backlit type D-LED
Resolution ratio 3840*2160
Luminance ≥350cd/m²
Screen contrast 5000:1
Response time 6ms
Pixel point distance 0.42975×0.42975 mm (H×V) mm
Frame frequency 60 Hz
Angle of view 178°(H) / 178°(V)
Color saturation (x% NTSC) 72 %
Visual area 1650.24×928.26 mm (H×V) mm
Color degree 1.07B(8bit)
Life span 30,000 hrs
Project Slug GK6760V100
System Properties System version Android 12.0
CPU 8*A55
GPU Mali-G52 MP2(2EE)
Internal cache capacity (RAM) 4 GB DDR4
Internal Storage Capacity (ROM) 32 GB Standard
Power parameters Voltage 100 V ~ 240 V/AC, 50/60 Hz
Maximum power (without OPS) ≦228W
OPS source 19V(DC)/5A
Power parameters Standby power consumption <0.5W
Power supply (AC) input *1
Structure Net weight 54Kg±1.5Kg
Rough weight 60Kg±1.5Kg (Heavy-duty carton)
Bare machine size (length * width * thick) 1710mm*1022.6mm*89.6mm
Packaging size (length * width * height) 1850mm * 1150mm * 205mm (heavy duty carton)
VESA hole site 4-M8 screw hole 500mmx400mm
Housing Material (face frame / rear housing) Aluminum profile / sheet metal
Shell color (face frame / rear shell) Black (upper / lower silver / all silver optional)
Front interface Switch button * 1    (Light sense optional)
USB(Shared) * 3 Standard USB Type-A interface
Type-c USB*1 Standard USB3.0 Type-C interface
HDMI IN*1 Standard HDMI Type-A interface, and the HDMI input is displayed
TOUCH_OUT*1 Standard USB2.0 Type-B interface
Touch parameters Touch specifications Infrared touch box
Glass specifications General Glass / anti-glare toughened glass is available
Response speed    ≤6ms
Touch accuracy The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm
Touch parameters Touch diameter ≥3mm
Input mode Finger or special pen
Number of theoretical clicks Infinite times
Interface type The USB 2.0 is at full speed
Operating voltage 4.75~5.25V
Power wastage ≤2 W

Display:
75-inch Z8 conference all-in-one machine
