65-inch conference all-in-one machine with carema

7 month ago
19 0
Product details
Product Description:

In modern education and office environments, the integration of technology is gradually changing traditional teaching and working methods. Our 65-inch LCD touch screen integrated interactive whiteboard is designed to meet this demand. It is a smart device that integrates display, touch and interaction functions, aiming to provide a more efficient and convenient interactive experience.

Product Features:

1. High-definition display: Using advanced 65-inch LCD panel technology, it provides up to 1920x1080 full HD resolution, ensuring clear images and rich colors, whether it is displaying multimedia content or conducting remote meetings, it can bring excellent visual enjoyment.

2. Touch sensing: Supports multi-touch, allowing users to operate with natural gestures, such as dragging, zooming, rotating, etc., which greatly enhances interactivity and fun, and is suitable for various application scenarios.

3. Integrated design: It integrates multiple functions such as computers, projectors, writing boards, etc., which not only saves space, but also simplifies equipment management, making the entire work or learning environment more neat and orderly.

4. Multi-function interface: Equipped with rich input and output interfaces, including USB, HDMI, VGA, etc., it is convenient to connect a variety of external devices to meet the needs of different scenarios.

5. Intelligent software: Pre-installed professional interactive software, supporting handwriting recognition, electronic whiteboard, screen recording and other functions, and compatible with multiple operating systems, which is convenient for different user groups to use.

6. Durability and easy maintenance: It adopts industrial-grade design standards, has high durability and stability, is easy to install and maintain, and can maintain good performance after long-term use.

Application scenarios:

- Education field: Suitable for classrooms, training centers, and online education platforms, supporting real-time interaction between teachers and students, improving teaching efficiency and student participation.

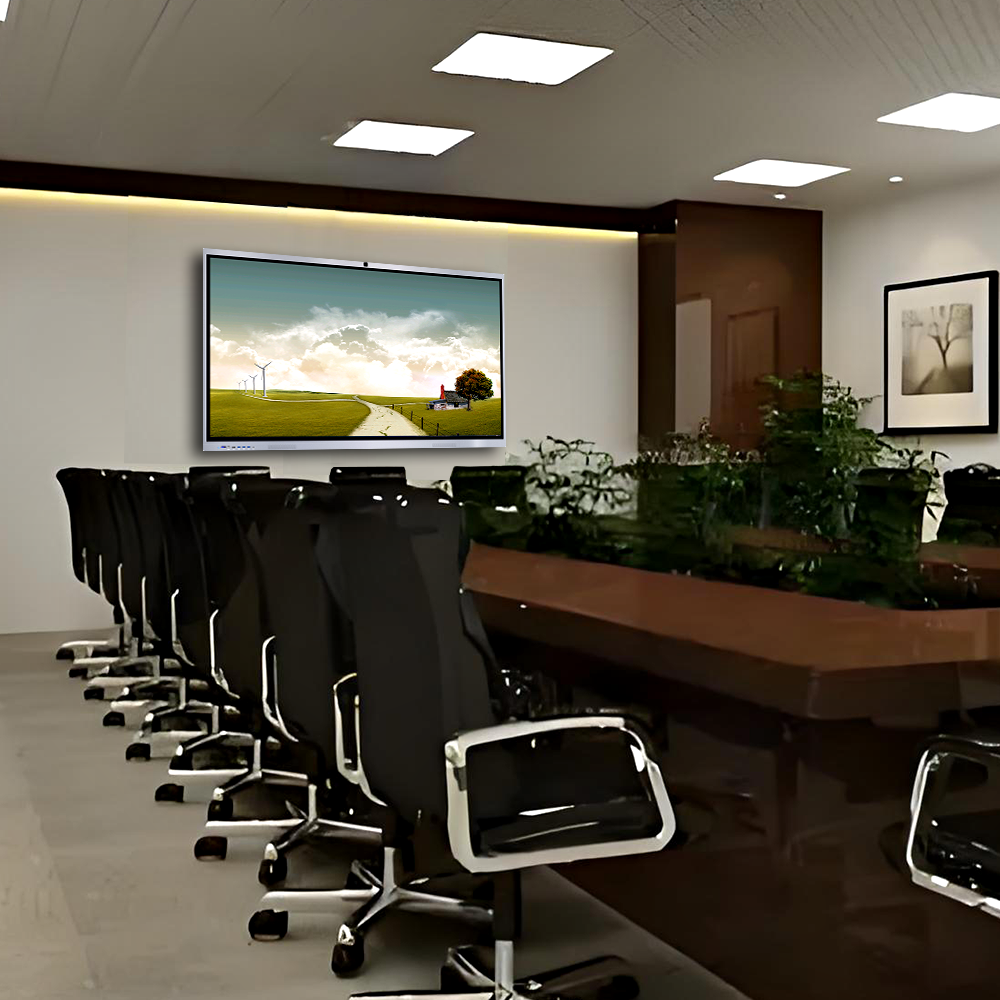

- Enterprise office: Suitable for conference rooms, demonstration halls, and remote collaboration platforms to promote team communication and project collaboration and improve work efficiency.

- Public display: Suitable for exhibition halls, museums, libraries and other places, providing rich and intuitive information display methods to enhance the audience's visiting experience.

This 65-inch LCD touch screen all-in-one interactive whiteboard can achieve efficient, interactive and intelligent solutions in both education and office environments, leading the new trend of future digitalization.

Jiangsu Qilong Electronic Technology Co.,LTD.is a factory located in China. Specialized in producing Education Interactive Board, such as Interactive conference board, Memory blackboard, Smart blackboard,Training Interactive Board,etc.

Main specification parameters

1.  Overview of specifications


Faceplate Screen size 65"
Backlit type D-LED
Resolution ratio 3840*2160
Luminance ≥350cd/m²
Screen contrast 4000:1
Response time 6ms
Pixel point distance 0.372×0.372 (H×V) (mm)
Frame frequency 60 Hz
Angle of view 178°(H) / 178°(V)
Color saturation (x% NTSC) 72 %
Visual area 1428.48(H) × 803.52(V) (mm)
Color degree 1.07B(8bit)
Life span 30,000 hrs
Project Slug GK6760V100
System Properties System version Android 12.0
CPU 8*A55
GPU Mali-G52 MP2(2EE)
Internal cache capacity (RAM) 4 GB DDR4
Internal Storage Capacity (ROM) 32 GB Standard
Power parameters Voltage 100 V ~ 240 V/AC, 50/60 Hz
Maximum power (without OPS) ≦172W
OPS source 19V(DC)/5A
Power parameters Standby power consumption <0.5W
Power supply (AC) input *1
Built-in camera / pickup mic Maximum effective pixel 3840 * 3380 (13 megapixels, downward compatible
Camera dual system follow recognition Including 8 built-in array sound pickup mic, support the camera module
Pickup valid receiving distance 10 m (high sensitivity [-38 dB of 94 dB SPL @ 1 KHz]
Signal-to-noise ratio of the pick up 61dB of(94 dB SPL@1KHz,A-weighted)
Support function Echo cancellation / beamforming / removal conference room mixing to maintain voice reduction and voice recognition / automatic gain-AGC gentle high voice enhanced bass provides a consistent near and far call experience
Front interface Switch button * 1    (Light sense optional)
USB(Shared) * 3 Standard USB Type-A interface
Type-c USB*1 Standard USB3.0 Type-C interface
HDMI IN*1 Standard HDMI Type-A interface, and the HDMI input is displayed
TOUCH_OUT*1 Standard USB2.0 Type-B interface
Structure Net weight 38Kg±1.5Kg
Rough weight 45Kg±1.5Kg (Heavy-duty carton)
Bare machine size (length * width * thick) 1488.4mm*907mm*92.4mm
Packaging size (length * width * height)    1610mm * 1020mm * 190mm (heavy duty carton)
VESA hole site    4-M8 screw hole 400mmx400mm
Housing Material (face frame / rear housing) Aluminum profile / sheet metal
Shell color (face frame / rear shell) Black (upper / lower silver / all silver optional)
Touch parameters Touch specifications Infrared touch box
Glass specifications General Glass / anti-glare toughened glass is available
Response speed    ≤6ms
Touch accuracy The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm
Touch parameters Touch diameter ≥3mm
Input mode Finger or special pen
Number of theoretical clicks Infinite times
Interface type The USB 2.0 is at full speed
Operating voltage 4.75~5.25V
Power wastage ≤2 W


Display:
65-inch Z8 conference all-in-one machine with built-in camera
