Product details

Product Description:

In the wave of modern technology, we launched this innovative 98-inch interactive integrated machine, which is not only a display screen, but also a smart device that integrates multiple functions. With its ultra-large screen, advanced interactive technology and built-in camera, this machine brings users unprecedented usage experience and rich application scenarios.

Product Highlights:

1. Ultra-large screen experience: The 98-inch high-definition display provides a wide field of view and delicate picture performance, whether watching movies, playing games or conducting remote meetings, making users feel as if they are on the scene.

2. Interactivity and entertainment: Supports multi-touch operation, allowing users to interact with the screen through gestures or dedicated devices, enhancing the sense of participation and fun. In addition, the integrated camera supports functions such as video calls and live sharing, making remote communication more convenient and vivid.

3. Multi-functional application: Suitable for a variety of scenarios such as home entertainment centers, educational institutions, and corporate conference rooms. Whether it is watching 4K videos, online learning, team collaboration, or hosting online events, it can be easily handled, providing an efficient and immersive experience.

4. Intelligent system: Built-in high-performance processor and operating system to ensure smooth operation of various applications and multimedia content. Support AI voice assistant, you can control the device with simple voice commands, and the operation is more convenient.

5. Security and privacy protection: Advanced encryption technology is used to protect data security, and the built-in camera has a privacy mode. Users can choose to turn it on or off as needed to ensure that personal privacy is not violated.

6. Energy-saving and environmentally friendly design: Adopt an efficient energy management system to reduce energy consumption, reduce the impact on the environment, and extend the service life of the product.

Application scenarios

- Home entertainment: As the center of the home theater, it provides a high-quality viewing experience and supports family members to share videos, music, games and other content.

- Education: It plays an important role in remote teaching and online courses, supports real-time interaction between teachers and students, and enhances teaching effectiveness.

- Business meetings: In internal corporate meetings or remote collaboration, it provides clear images and smooth video call experience to improve work efficiency.

With this 98-inch interactive integrated machine, whether it is work, study or entertainment, you can enjoy high-quality audio-visual experience and convenient interaction. It is not only a high-tech product, but also a bridge connecting people with information and the world, and is committed to providing users with a smarter and more efficient lifestyle.

Jiangsu Qilong Electronic Technology Co.,LTD.is a factory located in China. Specialized in producing Education Interactive Board, such as Interactive conference board, Memory blackboard, Smart blackboard,Training Interactive Board，etc.

Main specification parameters

1. Overview of specifications

Faceplate	Screen size	98"
	Backlit type	D-LED
	Resolution ratio	3840*2160
	Luminance	≥350cd/m²
	Screen contrast	1200:1
	Response time	6ms
	Pixel point distance	0.5622×0.5622 mm (W×H)
	Frame frequency	60 Hz
	Angle of view	178°(H) / 178°(V)
	Color saturation (x% NTSC)	72 %
	Visual area	2158.85(W)×1214.35(H) mm
	Color degree	1.07B(8bit)
	Life span	30,000 hrs
Project	Slug	GK6760V100
System Properties	System version	Android 12.0
	CPU	8*A55
	GPU	Mali-G52 MP2(2EE)
	Internal cache capacity (RAM)	4 GB DDR4
	Internal Storage Capacity (ROM)	32 GB Standard
Power parameters	Voltage	100 V ~ 240 V/AC, 50/60 Hz
	Maximum power (without OPS)	≦449W
	OPS source	19V(DC)/5A
Power parameters	Standby power consumption	<0.5W
Power parameters	Power supply (AC) input	*1
Built-in camera / pickup mic	Maximum effective pixel	3840 * 3380 (13 megapixels, downward compatible
	Camera dual system follow recognition	Including 8 built-in array sound pickup mic, support the camera module
	Pickup valid receiving distance	10 m (high sensitivity [-38 dB of 94 dB SPL @ 1 KHz]
	Signal-to-noise ratio of the pick up	61dB of（94 dB SPL@1KHz,A-weighted）
	Support function	Echo cancellation / beamforming / removal conference room mixing to maintain voice reduction and voice recognition / automatic gain-AGC gentle high voice enhanced bass provides a consistent near and far call experience


Front interface	Switch button * 1	(Light sense optional)
	USB(Shared) * 3	Standard USB Type-A interface
	Type-c USB*1	Standard USB3.0 Type-C interface
	HDMI IN*1	Standard HDMI Type-A interface, and the HDMI input is displayed
	TOUCH_OUT*1	Standard USB2.0 Type-B interface
Structure	Net weight	110Kg±1.5Kg
	Rough weight	120Kg±1.5Kg (Heavy-duty carton)
	Bare machine size (length * width * thick)	2218.4mm1321.7mm93.2mm
	Packaging size (length * width * height)	2325mm * 1445mm * 220mm (heavy duty carton)
	VESA hole site	4-M8 screw hole 800mmx500mm
	Housing Material (face frame / rear housing)	Aluminum profile / sheet metal
	Shell color (face frame / rear shell)	Black (upper / lower silver / all silver optional)
Touch parameters	Touch specifications	Infrared touch box
	Glass specifications	General Glass / anti-glare toughened glass is available
	Response speed	≤6ms
	Touch accuracy	The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm
Touch parameters	Touch diameter	≥3mm
	Input mode	Finger or special pen
	Number of theoretical clicks	Infinite times
Interface type	The USB 2.0 is at full speed
Operating voltage	4.75～5.25V
Power wastage	≤2 W

Display:

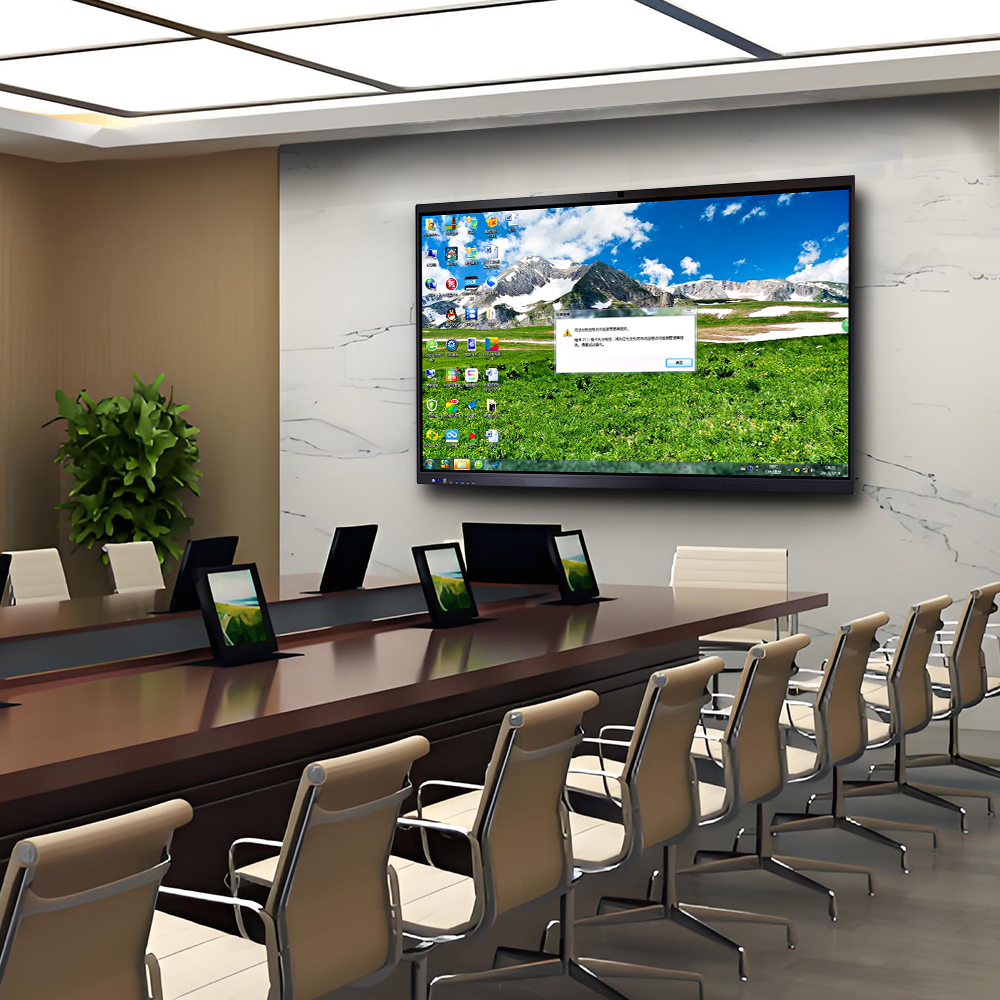

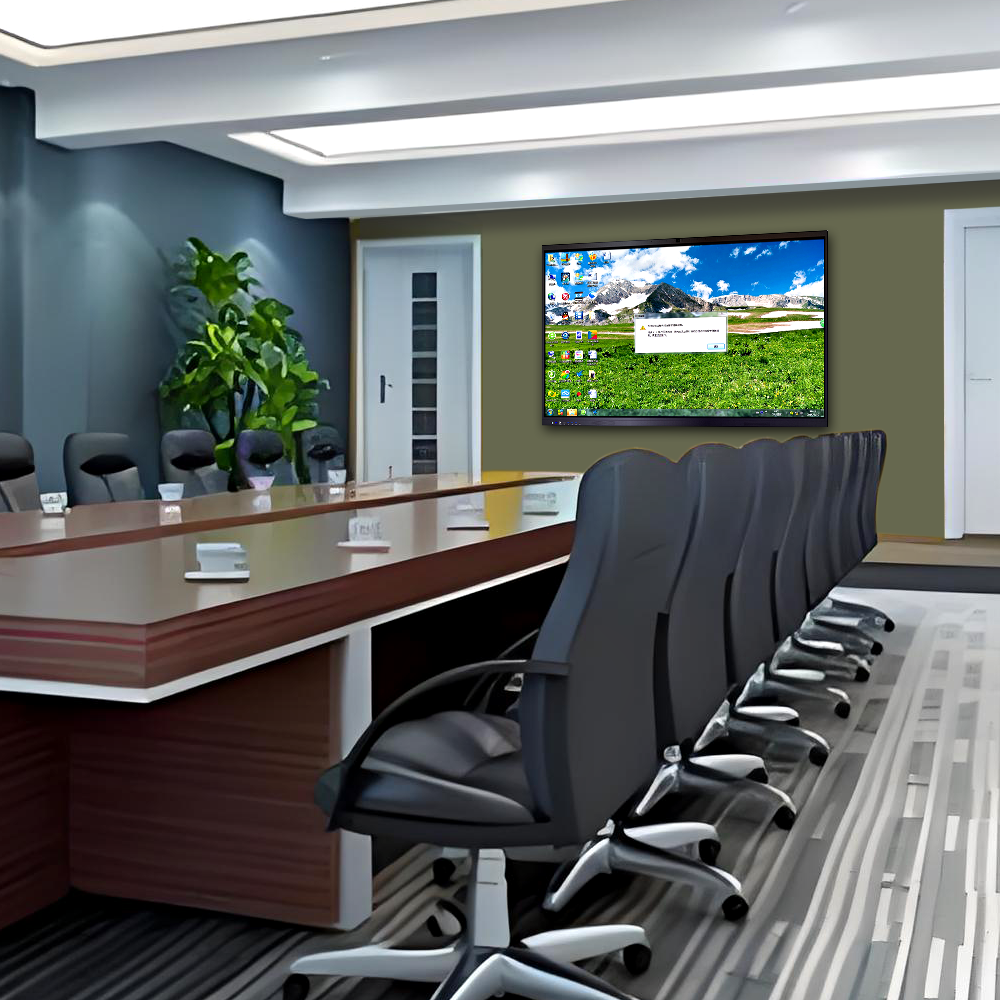

98-inch Z8 conference all-in-one machine with built-in camera
