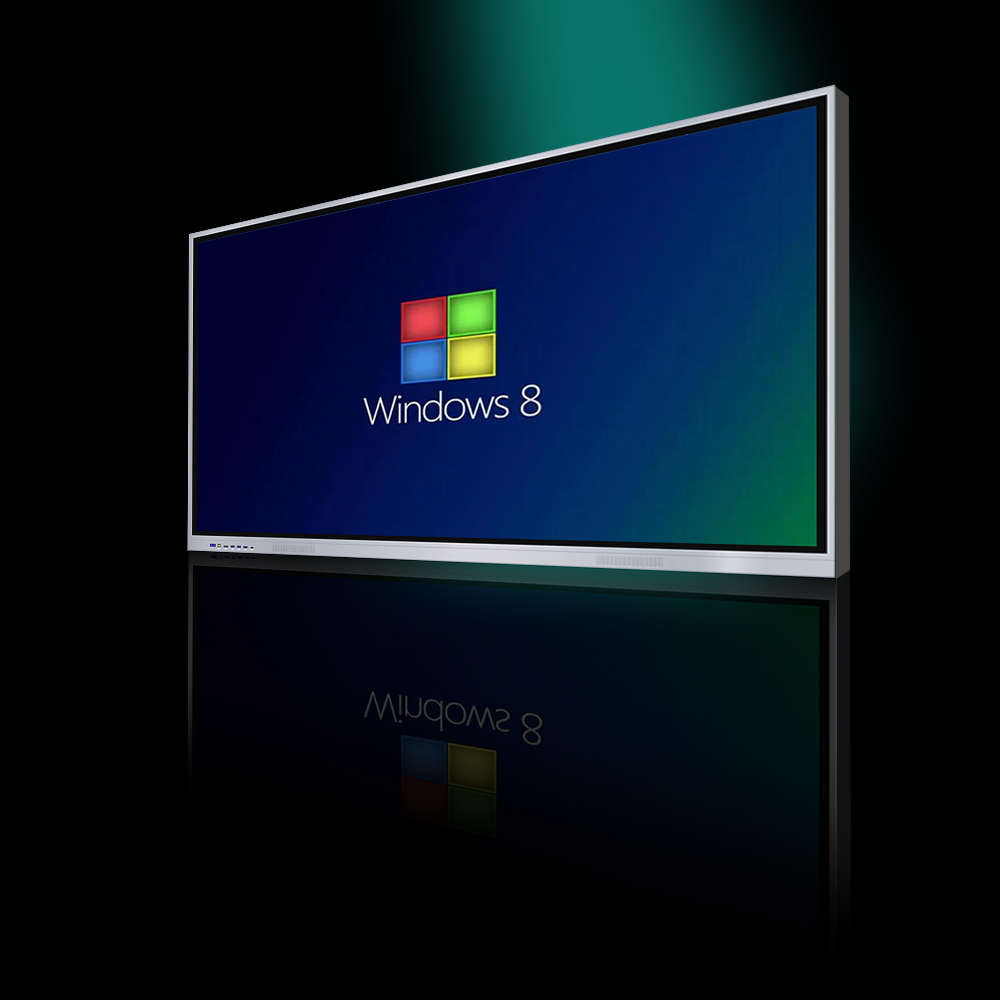

65-inch conference all-in-one machine

7 month ago
18 0
Product details
Product Description:

In the fields of education, conferences and offices, efficient information transmission and interactivity are the key to improving productivity and learning efficiency. To meet this demand, we have carefully created this Multi Touch 65-inch interactive smart whiteboard, which integrates the latest touch technology and intelligent functions to provide users with an unprecedented interactive experience.

Specification highlights:

- Size and resolution: Equipped with a 65-inch ultra-large screen with a resolution of 4K UHD (3840x2160), ensuring that both the details and the overall layout can be clearly seen.

- Multi-touch: Supports ten-point touch, allowing multiple users to operate at the same time, whether it is drawing, writing or multi-finger gestures, it can respond smoothly and achieve true multi-person collaboration.

- Integrated intelligent system: Built-in Android or Windows operating system, which can be flexibly selected according to different needs, supports a variety of application software, such as Office suites, online education platforms, multimedia players, etc., to meet various work and learning scenarios.

- Wireless projection: Supports wireless device connection via Wi-Fi or Bluetooth, and easily realizes real-time sharing and display of mobile phone, tablet or computer content.

- Precision positioning technology: Using advanced infrared positioning technology to ensure accurate touch, even fast sliding or fine operation can be accurately captured.

- Environmentally friendly and energy-saving design: Using low-power display technology to extend the use time while reducing energy consumption, in line with the concept of green office and environmental protection.

- Durability and maintainability: The high-strength scratch-resistant glass panel is used, with industrial-grade structural design to ensure the durability and easy cleaning of the product, and it can still maintain high clarity and smooth operation after long-term use.

Application scenarios:

- Education: As a classroom interactive tool, it supports real-time interaction between teachers and students, improves teaching effectiveness, and is suitable for schools, training institutions and other places.

- Conference center: As an efficient conference discussion and demonstration platform, it supports multiple participants to operate simultaneously and improve meeting efficiency. It is suitable for enterprises, government agencies, academic seminars and other occasions.

- Office: As a daily collaboration and information sharing tool, it supports multiple application scenarios such as file editing, project discussion, and remote meetings to enhance team collaboration capabilities.
Jiangsu Qilong Electronic Technology Co.,LTD.is a factory located in China. Specialized in producing Education Interactive Board, such as Interactive conference board, Memory blackboard, Smart blackboard,Training Interactive Board,etc.
Main specification parameters

1.  Overview of specifications

Faceplate Screen size 65"
Backlit type D-LED
Resolution ratio 3840*2160
Luminance ≥350cd/m²
Screen contrast 4000:1
Response time 6ms
Pixel point distance 0.372×0.372 (H×V) (mm)
Frame frequency 60 Hz
Angle of view 178°(H) / 178°(V)
Color saturation (x% NTSC) 72 %
Visual area 1428.48(H) × 803.52(V) (mm)
Color degree 1.07B(8bit)
Life span 30,000 hrs
Project Slug MSD6190

Power parameters Voltage 100 V ~ 240 V/AC, 50/60 Hz
Maximum power (without OPS) ≦172W
OPS source 19V(DC)/5A
Power parameters Standby power consumption <0.5W
Power supply (AC) input *1
Structure Net weight 38Kg±1.5Kg
Rough weight 45Kg±1.5Kg (Heavy-duty carton)
Bare machine size (length * width * thick) 1488.4mm*892mm*91.55mm
Packaging size (length * width * height) 1610mm * 1020mm * 190mm (heavy duty carton)
VESA hole site 4-M8 screw hole 400mmx400mm
Housing Material (face frame / rear housing) Aluminum profile / sheet metal
Shell color (face frame / rear shell) Black (upper / lower silver / all silver optional)
Front interface Switch button * 1    (Light sense optional)
USB(Shared) * 3 Standard USB Type-A interface
Type-c USB*1 Standard USB3.0 Type-C interface
HDMI IN*1 Standard HDMI Type-A interface, and the HDMI input is displayed
TOUCH_OUT*1 Standard USB2.0 Type-B interface
Touch parameters Touch specifications Infrared touch box
Glass specifications General Glass / anti-glare toughened glass is available
Response speed    ≤6ms
Touch accuracy The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm
Touch parameters Touch diameter ≥3mm
Input mode Finger or special pen
Number of theoretical clicks Infinite times
Interface type The USB 2.0 is at full speed
Operating voltage 4.75~5.25V
Power wastage ≤2 W

Display:
65-inch Z8 conference all-in-one machine
