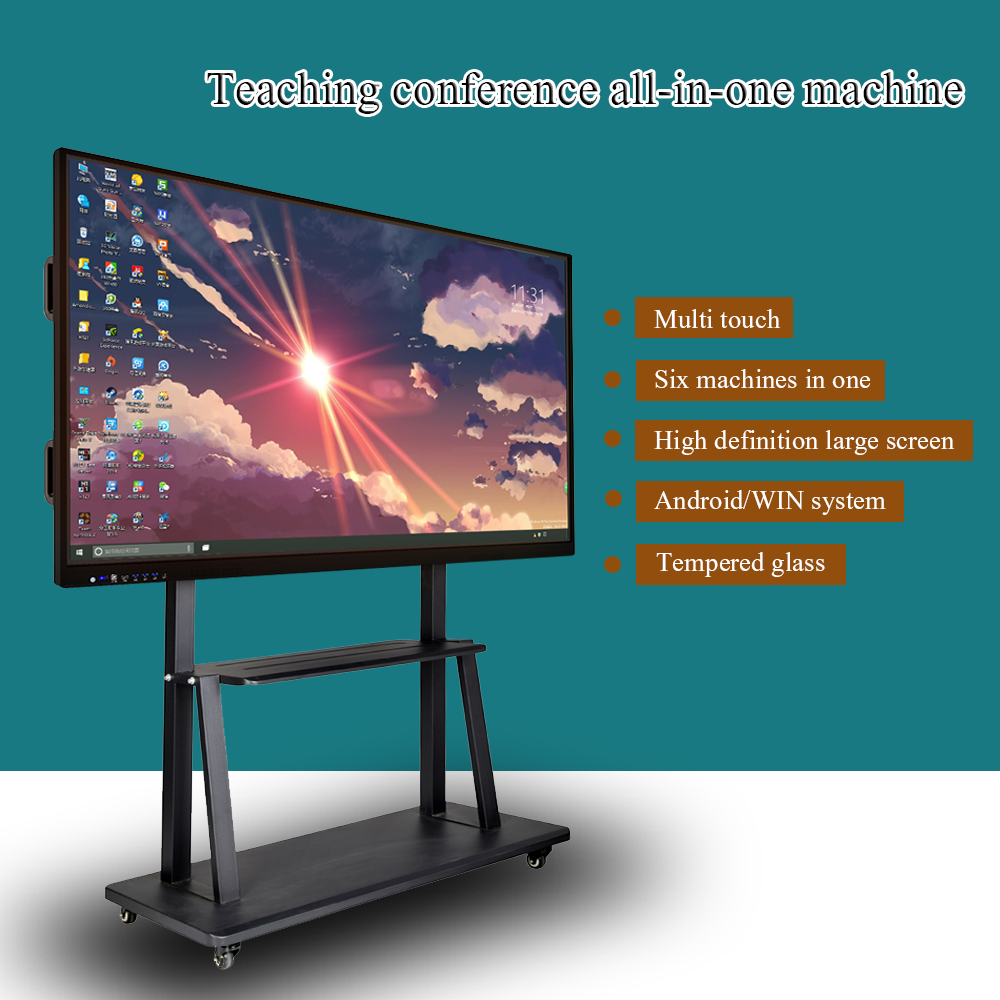

86-inch conference all-in-one machine
7 month agoThe smart whiteboard also uses advanced capacitive touch technology and supports multi-touch. Users can operate it in various ways such as fingers and pens. It has very high sensitivity and fast response speed. At the same time, it is also equipped with a variety of input and output interfaces, such as HDMI, USB, VGA, etc., which can easily connect external devices such as computers and projectors to achieve multiple functions.
In addition, 98 Inch Interactive Smart Board also has a variety of practical functions, such as file transfer, screen recording, remote control, etc., which can improve the efficiency and quality of conferences, teaching and other activities. In addition, it also supports multiple people to use at the same time, which can realize multi-person collaboration, making conferences, teaching and other activities more vivid and interactive.
In short, Conference Solution 98 Inch Interactive Smart Board is a large-screen interactive smart whiteboard with complete functions, easy operation and excellent effects. It is suitable for various occasions and is an ideal choice for improving the efficiency of meetings, teaching and other activities.
Faceplate | Screen size | 98" |
Backlit type | D-LED | |
Resolution ratio | 3840*2160 | |
Luminance | ≥350cd/m² | |
Screen contrast | 1200:1 | |
Response time | 6ms | |
Pixel point distance | 0.5622×0.5622 mm (W×H) | |
Frame frequency | 60 Hz | |
Angle of view | 178°(H) / 178°(V) | |
Color saturation (x% NTSC) | 72 % | |
Visual area | 2158.85(W)×1214.35(H) mm | |
Color degree | 1.07B(8bit) | |
Life span | 30,000 hrs | |
Project | Slug | MSD6190 |
Power parameters | Voltage | 100 V ~ 240 V/AC, 50/60 Hz |
Maximum power (without OPS) | ≦449W | |
OPS source | 19V(DC)/5A | |
Power parameters | Standby power consumption | <0.5W |
Power supply (AC) input | *1 | |
Structure | Net weight | 110Kg±1.5Kg |
Rough weight | 120Kg±1.5Kg (Heavy-duty carton) | |
Bare machine size (length * width * thick) | 2218.4mm*1306.7mm*93.2mm | |
Packaging size (length * width * height) | 2325mm * 1445mm * 220mm (heavy duty carton) | |
VESA hole site | 4-M8 screw hole 800mmx500mm | |
Housing Material (face frame / rear housing) | Aluminum profile / sheet metal | |
Shell color (face frame / rear shell) | Black (upper / lower silver / all silver optional) | |
Front interface | Switch button * 1 | (Light sense optional) |
USB(Shared) * 3 | Standard USB Type-A interface | |
Type-c USB*1 | Standard USB3.0 Type-C interface | |
HDMI IN*1 | Standard HDMI Type-A interface, and the HDMI input is displayed | |
TOUCH_OUT*1 | Standard USB2.0 Type-B interface | |
Touch parameters | Touch specifications | Infrared touch box |
Glass specifications | General Glass / anti-glare toughened glass is available | |
Response speed | ≤6ms | |
Touch accuracy | The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm | |
Touch parameters | Touch diameter | ≥3mm |
Input mode | Finger or special pen | |
Number of theoretical clicks | Infinite times | |
Interface type | The USB 2.0 is at full speed | |
Operating voltage | 4.75~5.25V | |
Power wastage | ≤2 W |
