Product details
Product Description:

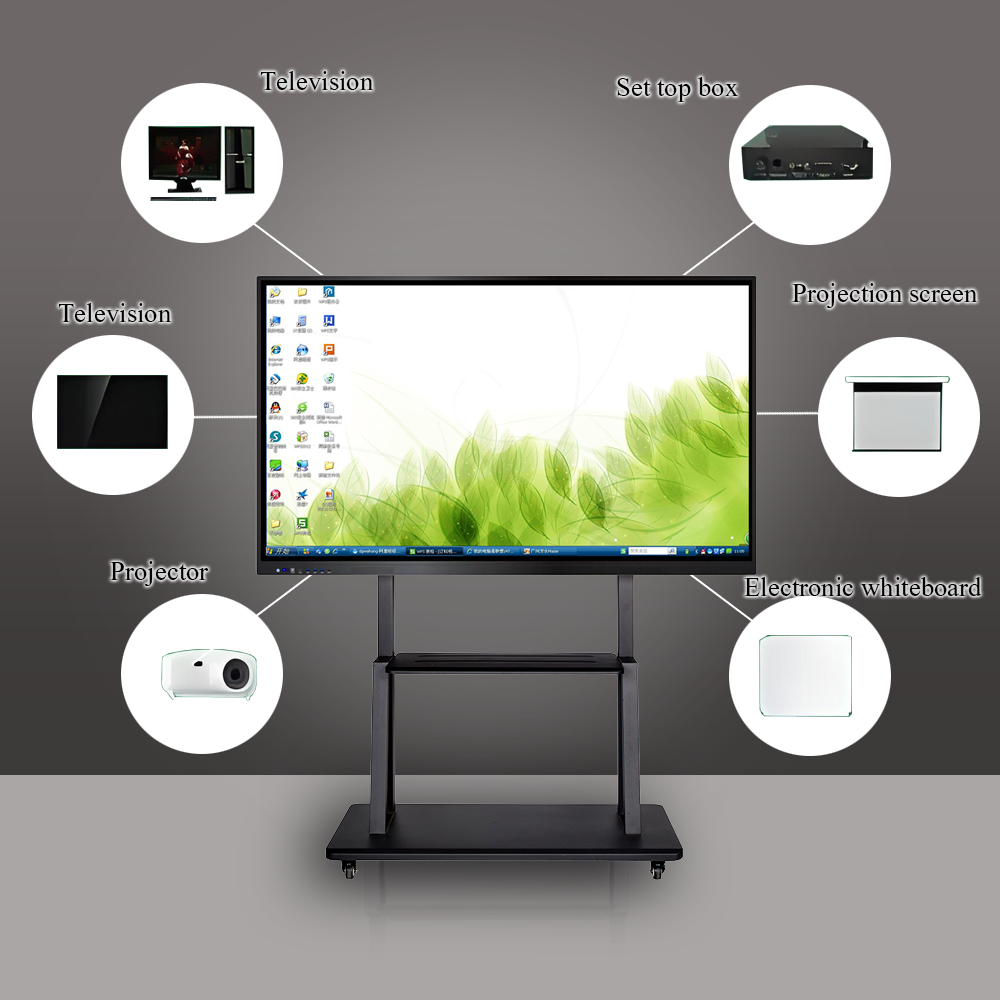

The 86-inch interactive touch all-in-one machine is a powerful conference device that integrates a variety of advanced technologies and provides full support for conferences. This device has a large 86-inch touch screen, which can achieve high-definition display effects, making the conference content clearer and more concise. At the same time, it also has a touch function, which can achieve multi-touch and facilitate user operation.

This all-in-one machine is also equipped with a high-performance processor and large-capacity storage space, which can meet a variety of complex conference needs. Users can use this device to perform video conferencing, file sharing, demonstrations and other functions to improve meeting efficiency and quality. In addition, it also supports a variety of connection methods, such as wireless networks, Bluetooth, USB, etc., which is convenient for users to connect and transfer data with other devices.

In general, the 86-inch interactive touch all-in-one machine is a fully functional and superior performance conference device, which can provide comprehensive support for meetings in various occasions and improve meeting efficiency and experience.
Jiangsu Qilong Electronic Technology Co.,LTD.is a factory located in China. Specialized in producing Education Interactive Board, such as Interactive conference board, Memory blackboard, Smart blackboard,Training Interactive Board,etc.
Main specification parameters

1.  Overview of specifications

Faceplate Screen size 86"
Backlit type D-LED
Resolution ratio 3840*2160
Luminance ≥350cd/m²
Screen contrast 6400:1
Response time 6ms
Pixel point distance 0.4875 mm x 0.4875 mm (H×V)
Frame frequency 60 Hz
Angle of view 178°(H) / 178°(V)
Color saturation (x% NTSC) 72 %
Visual area 1872(H)x1053(V)mm
Color degree 1.07B(8bit)
Life span 30,000 hrs
Project Slug MSD6190

Power parameters Voltage 100 V ~ 240 V/AC, 50/60 Hz
Maximum power (without OPS) ≦326W
OPS source 19V(DC)/5A
Power parameters Standby power consumption <0.5W
Power supply (AC) input *1
Structure Net weight 70Kg±1.5Kg
Rough weight 78Kg±1.5Kg (Heavy-duty carton)
Bare machine size (length * width * thick) 1934.8mm*1149.1mm*89.6mm
Packaging size (length * width * height) 2080mm * 1280mm * 205mm (heavy duty carton)
VESA hole site 4-M8 screw hole 500mmx400mm
Housing Material (face frame / rear housing) Aluminum profile / sheet metal
Shell color (face frame / rear shell) Black (upper / lower silver / all silver optional)
Front interface Switch button * 1    (Light sense optional)
USB(Shared) * 3 Standard USB Type-A interface
Type-c USB*1 Standard USB3.0 Type-C interface
HDMI IN*1 Standard HDMI Type-A interface, and the HDMI input is displayed
TOUCH_OUT*1 Standard USB2.0 Type-B interface
Touch parameters Touch specifications Infrared touch box
Glass specifications General Glass / anti-glare toughened glass is available
Response speed    ≤6ms
Touch accuracy The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm
Touch parameters Touch diameter ≥3mm
Input mode Finger or special pen
Number of theoretical clicks Infinite times
Interface type The USB 2.0 is at full speed
Operating voltage 4.75~5.25V
Power wastage ≤2 W

Display:
85-inch Z8 conference all-in-one machine
