65 inch Infrared touch one machine

7 month ago
19 0
Product details
Product Description:

The 75-inch touch smart interactive conference whiteboard is a high-end conference equipment that uses the latest electronic technology and has multiple functions and advantages.

First, the whiteboard has a large screen display function with a screen size of 75 inches, which can provide clear and bright visual effects in the conference room, allowing participants to see the meeting content and presentations more clearly. In addition, the whiteboard also has a high-resolution display effect, which can present more delicate pictures and more realistic colors in high definition, making the meeting content more vivid and interesting.

Secondly, the whiteboard has a touch screen function, which can be operated by fingers or special touch pens to realize multiple operations such as editing, marking, and erasing the meeting content, making the meeting process more flexible and efficient. In addition, the whiteboard also supports multi-touch, which can support multiple people to operate at the same time, facilitating multi-person collaboration.

Third, the whiteboard has intelligent functions, and can perform multiple operations through the built-in computer and software, such as file transfer, video playback, network connection, etc., which facilitates participants to communicate and collaborate in various ways. In addition, the whiteboard also supports intelligent functions such as voice recognition and gesture control, which can be operated and controlled more conveniently.

Fourth, the whiteboard has efficient interactive performance, and can conduct video and voice conferences through the built-in camera and microphone, which is convenient for participants to communicate and collaborate remotely. In addition, the whiteboard also supports the import and export of multiple file formats, which can facilitate file sharing and communication.Our Interactive Whiteboard is our main product, and the Interactive Conference Board has multiple sizes to choose from.

In summary, the 75-inch touch smart interactive conference whiteboard has many advantages and characteristics such as large screen, high resolution, touch screen, intelligence, and efficient interaction. It is a high-end conference equipment that can easily display, edit, communicate and collaborate on conference content, and improve meeting efficiency and quality.
In addition, Educational interactive tablet, Conference interactive tablet, Training interactive tablet, etc. are all our company's main products. If you need them, please contact us.
Overview of specifications
Face plate Screen size 75"
Backlit type D-LED
Resolution ratio 3840*2160
Luminance ≥350cd/m²
Screen contrast 5000:1
Response time 6ms
Pixel point distance 0.42975mm x 0.42975mm (H×V)
Frame frequency 60 Hz
Angle of view 178°(H) / 178°(V)
Color saturation (x% NTSC) 72%
Visual area 1650.24×928.26 mm (H×V) mm
Color degree 1.07B(8bit)
Life span 30,000hrs
System Properties System version Android 13.0
CPU 4*A76(Max:2.4GHz)+Quad-4*A55 (Max:1.8GHz)
GPU ARM Mali-G610 MC4 (Max:1.0GHz)
Internal cache capacity (RAM) 4GBDDR4
Internal Storage Capacity (ROM) 32GB Standard
Power parameters Voltage 100 V ~ 240 V/AC, 50/60 Hz
Maximum power (without OPS) ≦228W
OPS source 19V(DC)/5A
Power parameters Standby power consumption <0.5W
Power supply (AC) input *1
Front interface Switch button * 1 Light sense is optional
USB (shared) * 3 Standard USB Type-A interface
Type-c USB*1    Standard USB2.0 Type-C interface
HDMI IN*1    Standard HDMI Type-A interface, and the HDMI input is displayed
TOUCH_OUT*1 Standard USB3.0 Type-B interface
Structure Net weight    54Kg±1.5Kg
Rough weight    60Kg±1.5Kg (Heavy-duty carton)
Bare machine size (length * width * thick) 1710mm*1022.6mm*89.6mm
Packaging size (length * width * height) 1850mm * 1150mm * 205mm (heavy duty carton)
VESA hole site 4-M8 screw hole 500mmx400mm
Housing Material (face frame / rear housing) Aluminum profile / sheet metal
Shell color (face frame / rear shell)    Black (upper / lower silver / all silver optional)
Language OSD menu Simplified Chinese / Traditional / English / Korean
Main specifications and parameters

Touch parameters


Touch specifications
Infrared touch box
Glass specifications
General Glass / anti-glare toughened glass
response speed
≤6ms
Touch accuracy
The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm

Touch parameters

Touch the diameter
≥3mm
input mode
Finger or special pen
Number of theoretical clicks
Infinite times
Interface type
USB 2.0  full speed
Touch parameters
4.75~5.25V
Interface type
≤2 W

Display:

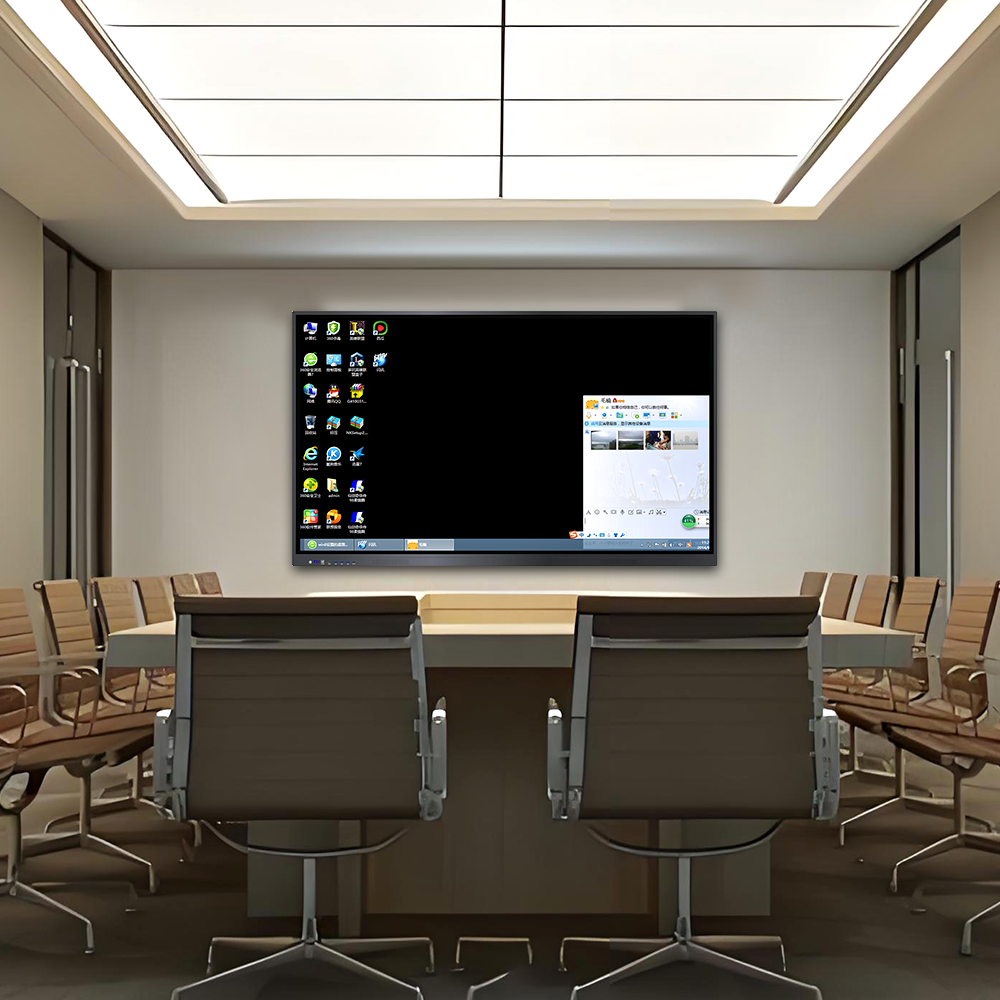

75-inch Z8 conference all-in-one machine
