86 inch Infrared touch one machine

7 month ago
20 0
Product details
Product Description:

The 86-inch touch digital interactive whiteboard with camera is a high-end digital education device that integrates a variety of advanced technologies to provide users with a new teaching and display experience.

The product uses a high-definition display with a resolution of 4K, which can present clear and delicate images and texts, making the teaching content more vivid, intuitive, and easier to attract students' attention.

In addition, the whiteboard is also equipped with multi-touch technology, which supports multiple people to operate at the same time, can realize multi-person collaborative teaching, and improve teaching efficiency and interactivity.

At the same time, the whiteboard also has a built-in high-definition camera, which can realize functions such as video conferencing and remote teaching, making it convenient for users to conduct remote teaching and online communication.

In addition, the whiteboard also has anti-glare and anti-reflection functions, which effectively reduce light interference, allowing users to clearly see the screen content in any environment.

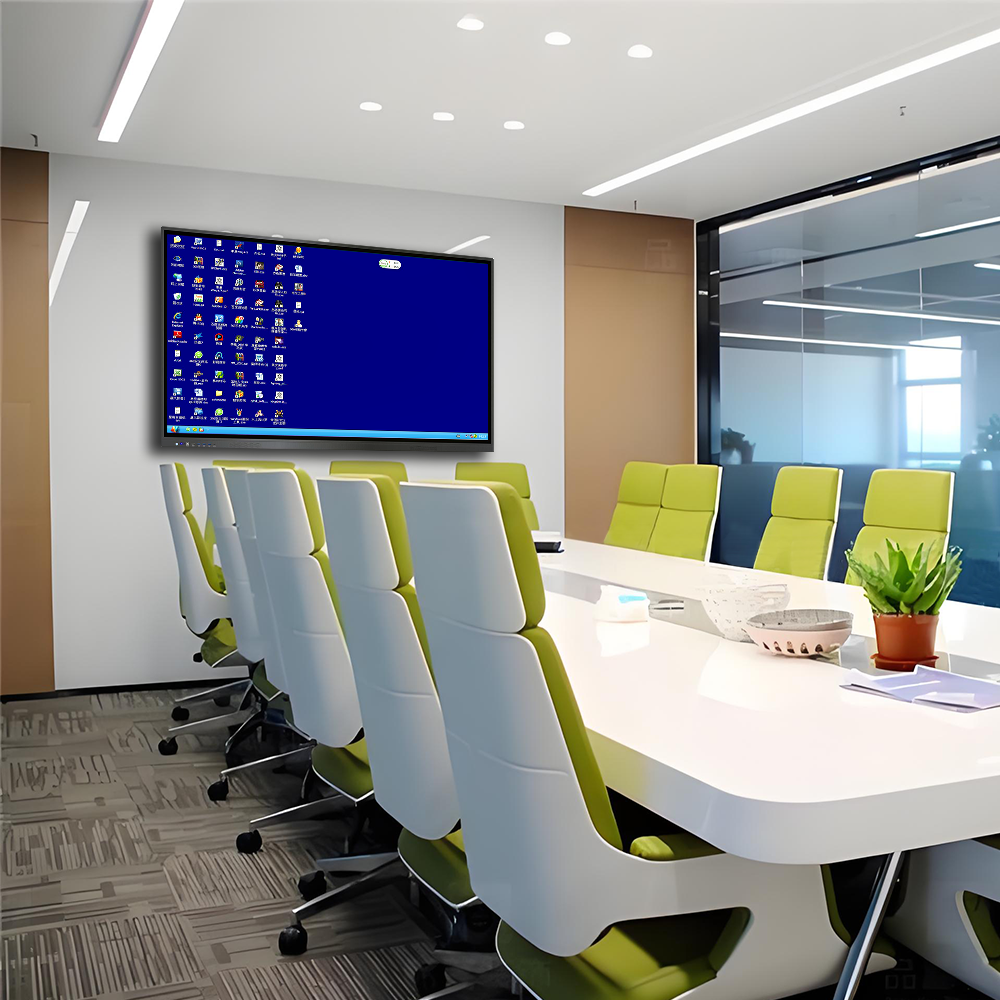

In general, the 86-inch touch digital interactive whiteboard with camera is a powerful, stable, and easy-to-operate digital education device, which is an ideal choice for education, conferences, exhibitions and other fields.
In addition, Educational interactive tablet, Conference interactive tablet, Training interactive tablet, etc. are all our company's main products. If you need them, please contact us.

Overview of specifications
Face plate Screen size 85"
Backlit type D-LED
Resolution ratio 3840*2160
Luminance ≥350cd/m²
Screen contrast 6400:1
Response time 6.5ms
Pixel point distance 0.4875mm x 0.4875mm (H×V)
Frame frequency 60 Hz
Angle of view 178°(H) / 178°(V)
Color saturation (x% NTSC) 72%
Visual area 1872(H) × 1053(V) (mm)
Color degree 1.07B(8bit)
Life span 30,000hrs
System Properties System version Android 13.0
CPU 4*A76(Max:2.4GHz)+Quad-4*A55 (Max:1.8GHz) (Max:1.8GHz)
GPU ARM Mali-G610 MC4 (Max:1.0GHz)
Internal cache capacity (RAM) 4GBDDR4
Internal Storage Capacity (ROM) 32GB Standard
Power parameters Voltage 100 V ~ 240 V/AC, 50/60 Hz
Maximum power (without OPS) ≦326W
OPS source 19V(DC)/5A
Power parameters Standby power consumption <0.5W
Power supply (AC) input *1
Front interface Switch button * 1 Light sense is optional
USB (shared) * 3 Standard USB Type-A interface
Type-c USB*1    Standard USB2.0 Type-C interface
HDMI IN*1    Standard HDMI Type-A interface, and the HDMI input is displayed
TOUCH_OUT*1 Standard USB2.0 Type-B interface
Structure Net weight    70Kg±1.5Kg
Rough weight    78Kg±1.5Kg (Heavy-duty carton)
Bare machine size (length * width * thick) 1934.8mm*1149.1mm*89.6mm
Packaging size (length * width * height) 2080mm * 1280mm * 205mm (heavy duty carton)
VESA hole site 4-M8 screw hole 500mmx400mm
Housing Material (face frame / rear housing) Aluminum profile / sheet metal
Shell color (face frame / rear shell)    Black (upper / lower silver / all silver optional)
Language OSD menu Simplified Chinese / Traditional / English / Korean
Main specifications and parameters

Touch parameters


Touch specifications
Infrared touch box
Glass specifications
General Glass / anti-glare toughened glass
response speed
≤6ms
Touch accuracy
The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm

Touch parameters

Touch the diameter
≥3mm
input mode
Finger or special pen
Number of theoretical clicks
Infinite times
Interface type
USB 2.0  full speed
Touch parameters
4.75~5.25V
Interface type
≤2 W

Display:
85-inch Z8 conference all-in-one machine
