98 inch Infrared touch one machine

7 month ago
17 0
Product details
Product Description:

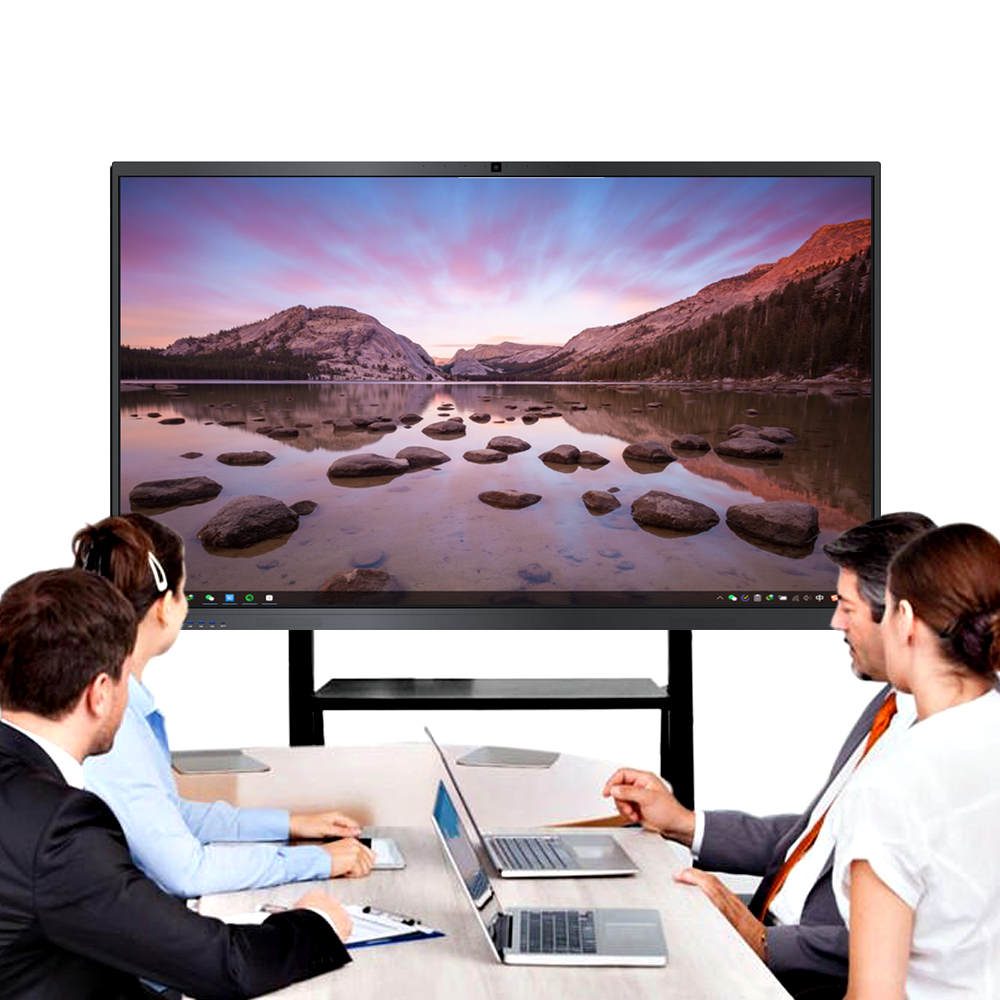

The 98-inch interactive conference whiteboard with camera is a high-end conference equipment that provides a high-definition display and intelligent interactive functions, allowing users to communicate and collaborate more efficiently in meetings.

This whiteboard is equipped with a high-definition camera, which can realize video conferencing and remote collaboration, allowing users to communicate and exchange ideas anytime and anywhere. At the same time, it also supports multi-touch and handwriting input, allowing users to freely draw graphics, write, and annotate on the whiteboard, achieving a more free and flexible interactive experience.

In addition, the 98-inch large screen can provide a clearer and more intuitive display effect, allowing users to see the content and details of the meeting more clearly. At the same time, it also supports wireless projection and multiple interface connections, which can easily connect to other devices for display and sharing.

In general, the 98-inch interactive conference whiteboard with camera is a high-end conference equipment with powerful functions, easy operation, and free interaction, which can meet various different meeting needs and improve the efficiency and quality of meetings.
In addition, Educational interactive tablet, Conference interactive tablet, Training interactive tablet, etc. are all our company's main products. If you need them, please contact us.

Main specification parameters

1.  Overview of specifications


Faceplate Screen size 98"
Backlit type D-LED
Resolution ratio 3840*2160
Luminance ≥350cd/m²
Screen contrast 1200:1
Response time 6ms
Pixel point distance 0.5622 mm x 0.5622 mm (H×V)
Frame frequency 60 Hz
Angle of view 178°(H) / 178°(V)
Color saturation (x% NTSC) 72 %
Visual area 2158.85(H)x1214.35(V)mm
Color degree 1.07B(8bit)
Life span 30,000 hrs
Programme Slug RK3588
System Properties System version Android 13.0
CPU 4*A76(Max:2.4GHz)+Quad-4*A55 (Max:1.8GHz) (Max:1.8GHz)
GPU ARM Mali-G610 MC4 (Max:1.0GHz)
Internal cache capacity (RAM) 4 GB DDR4
Internal Storage Capacity (ROM) 32 GB Standard
Power parameters Voltage 100 V ~ 240 V/AC, 50/60 Hz
Maximum power (without OPS) ≦449W
OPS source 19V(DC)/5A
Power parameters Standby power consumption <0.5W
Power supply (AC) input *1
Built-in camera / pickup mic Maximum effective pixel 3840 * 3380 (13 megapixels, downward compatible
Camera dual system follow recognition Including 8 built-in array sound pickup mic, support the camera module
Pickup valid receiving distance 10 m (high sensitivity [-38 dB of 94 dB SPL @ 1 KHz]
Signal-to-noise ratio of the pick up 61dB of(94 dB SPL@1KHz,A-weighted)
Support function Echo cancellation / beamforming / removal conference room mixing to maintain voice reduction and voice recognition / automatic gain-AGC gentle high voice enhanced bass provides a consistent near and far call experience
Front interface Switch button * 1    (Light sense optional)
USB(Shared) * 3 Standard USB Type-A interface
Type-c USB*1 Standard USB2.0 Type-C interface
HDMI IN*1 Standard HDMI Type-A interface, and the HDMI input is displayed
TOUCH_OUT*1 Standard USB2.0 Type-B interface
Structure Net weight 110Kg±1.5Kg
Rough weight 120Kg±1.5Kg(Heavy Carton)
Bare machine size (length * width * thick) 2218.4mm*1321.7mm*93.2mm
Packaging size (length * width * height)    2325mm*1445mm*220mm(Heavy Carton)
VESA hole site    4-M8 screw hole 800mmx500mm
Housing Material (face frame / rear housing) Aluminum profile / sheet metal
Shell color (face frame / rear shell) Black (upper / lower silver / all silver optional)
Touch parameters Touch specifications Infrared touch box
Glass specifications General Glass / anti-glare toughened glass is available
Response speed    ≤6ms
Touch accuracy The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm
Touch parameters Touch diameter ≥3mm
Input mode Finger or special pen
Number of theoretical clicks Infinite times
Interface type USB 2.0  full speed
Operating voltage 4.75~5.25V
Power wastage ≤2 W

Display:
98-inch Z8 conference all-in-one machine with built-in camera
