XM-6760V100 built-in-camera--86

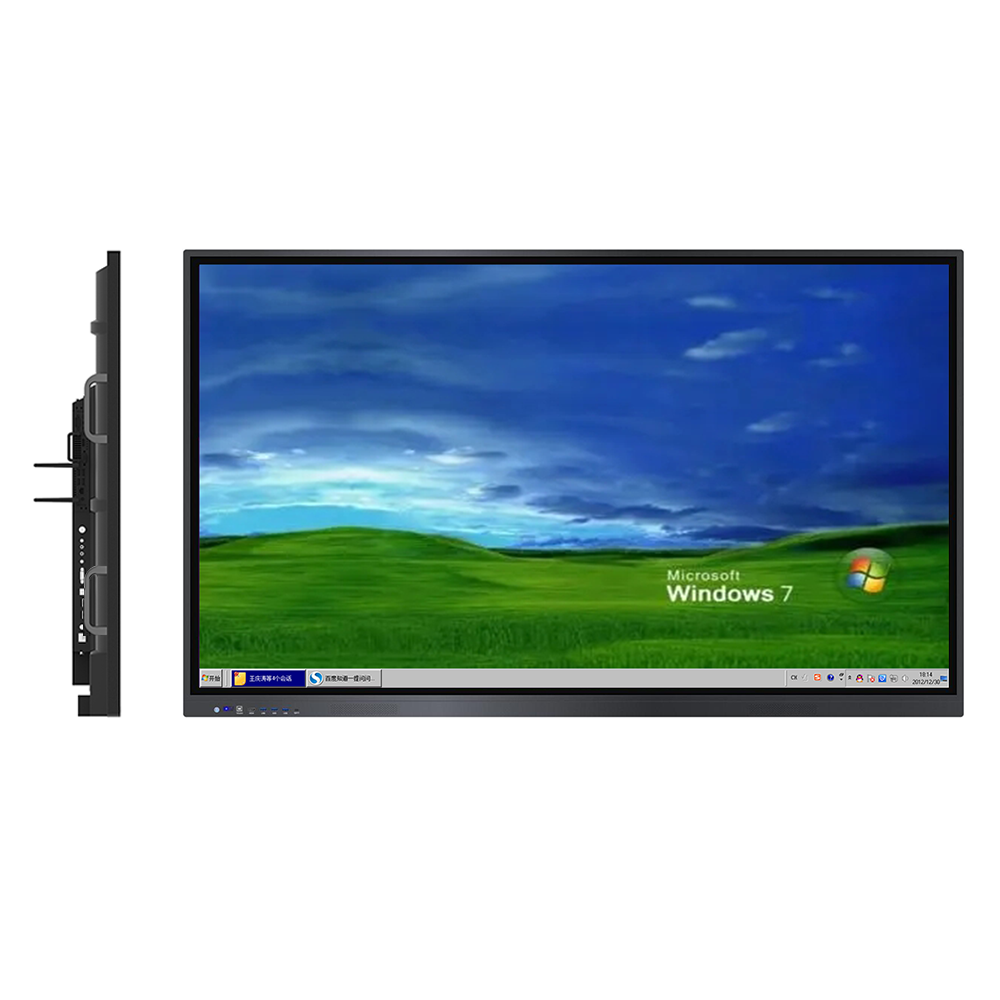

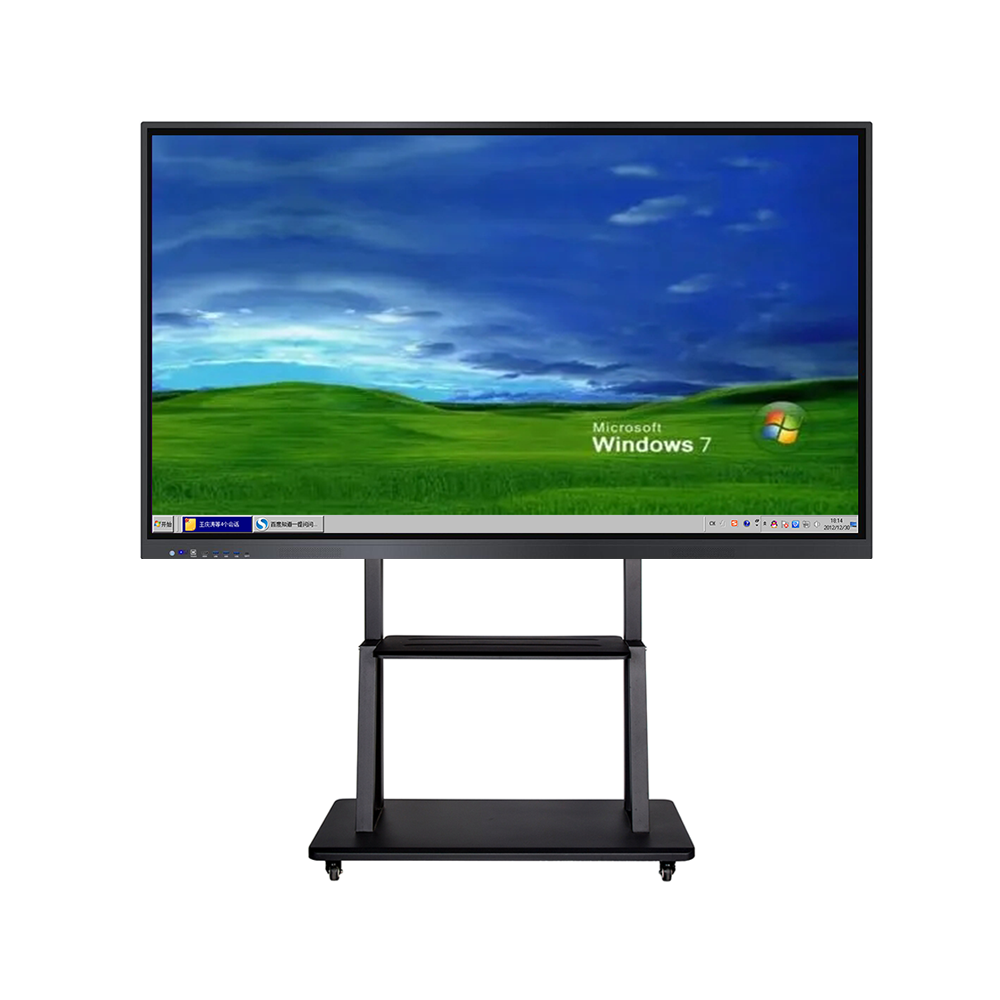

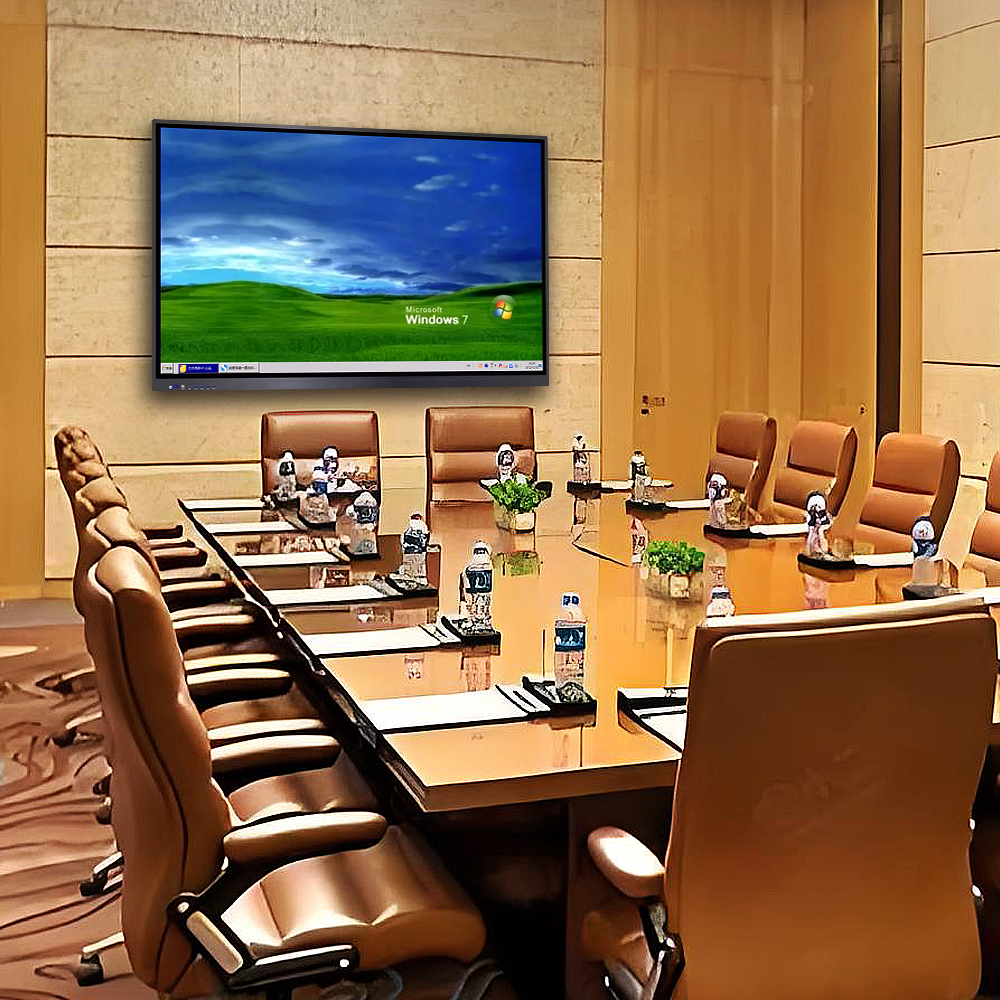

The 98 Inch Interactive Conference Board is a large display device designed for conference rooms in business, education and government agencies. It integrates multiple functions, including high-definition display, intelligent conference system, multimedia insertion, remote video conferencing, etc.

Advantages:
High-resolution display: 98-inch screens usually have extremely high resolutions, 4K or higher, and can provide clear and delicate picture quality, suitable for displaying high-quality images and video content.

Internal multi-function: Such devices usually have built-in whiteboard software, video conferencing software, document presentation functions, etc., and can conduct conference discussions, file sharing, remote collaboration and other operations without connecting to other devices.

Intelligent interaction: Supports functions such as hand pad recognition and voice control, making the operation more intuitive and convenient. Users can control the display content, switch pages to zoom in and out, and other operations through simple gestures or voice commands.

Network access and remote collaboration: It has wireless network access capabilities such as Wi-Fi and Bluetooth, and supports non-connection with mobile devices such as smartphones and tablets, which facilitates remote participants to participate in meetings in real time and improves the efficiency of national team collaboration.

Our Interactive Whiteboard is our main product, and the Interactive Conference Board has multiple sizes to choose from 55 Inch Interactive Conference Board to 98 Inch Interactive Conference Board.

Overview of specifications
Face plate	Screen size	98"
	Backlit type	D-LED
	Resolution ratio	3840*2160
	Luminance	≥350cd/m²
	Screen contrast	1200:1
	Response time	6ms
	Pixel point distance	0.5622×0.5622 mm (W×H)
	Frame frequency	60 Hz
	Angle of view	178°(H) / 178°(V)
	Color saturation (x% NTSC)	72%
	Visual area	2158.85(W)×1214.35(H) mm
	Color degree	1.07B(8bit)
	Life span	30,000hrs
System Properties	System version	Android 11.0
	CPU	Quad-core ARM Cortex-A55
	GPU	Mali-G52 MP2(2EE)
	Internal cache capacity (RAM)	4GBDDR4
	Internal Storage Capacity (ROM)	32GB Standard
Power parameters	Voltage	100 V ~ 240 V/AC, 50/60 Hz
	Maximum power (without OPS)	≦449W
	OPS source	19V(DC)/5A
Power parameters	Standby power consumption	<0.5W
	Power supply (AC) input	*1

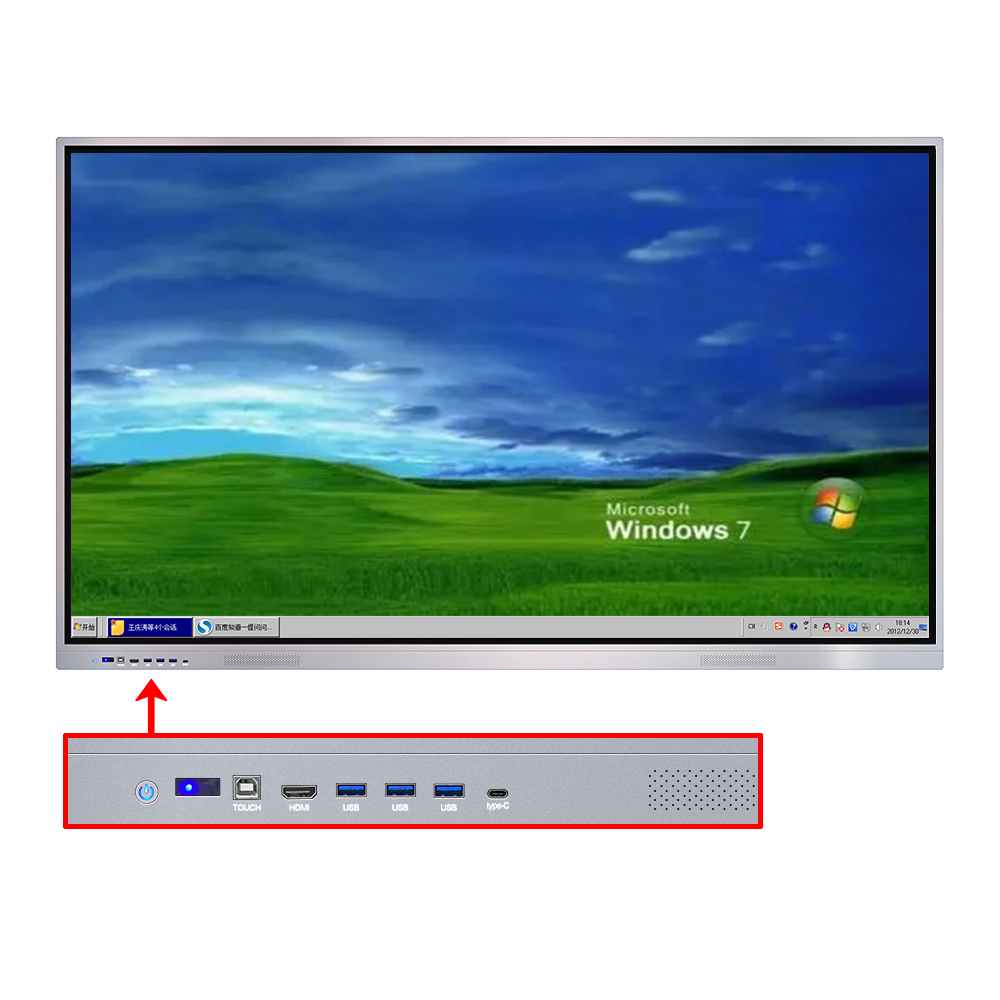

Front interface	Switch button * 1	Light sense is optional
	USB (shared) * 3	Standard USB Type-A interface
	Type-c USB*1	Standard USB3.0 Type-C interface
	HDMI IN*1	Standard HDMI Type-A interface, and the HDMI input is displayed
	TOUCH_OUT*1	Standard USB2.0 Type-B interface
Structure	Net weight	110Kg±1.5Kg
	Rough weight	120Kg±1.5Kg(Heavy Carton)
	Bare machine size (length * width * thick)	2218.4mm*1306.7mm*93.2mm
	Packaging size (length * width * height)	2325mm*1445mm*220mm(Heavy Carton)
	VESA hole site	4-M8 screw hole 800mmx500mm
	Housing Material (face frame / rear housing)	Aluminum profile / sheet metal
	Shell color (face frame / rear shell)	Black (upper / lower silver / all silver optional)
Language	OSD menu	Simplified Chinese / Traditional / English / Korean
Main specifications and parameters
Touch parameters	Touch specifications	Infrared touch box
	Glass specifications	General Glass / anti-glare toughened glass
	response speed	≤6ms
	Touch accuracy	The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm
Touch parameters	Touch the diameter	≥3mm
	input mode	Finger or special pen
	Number of theoretical clicks	Infinite times
Interface type	USB 2.0  full speed
Touch parameters	4.75～5.25V
Interface type	≤2 W
