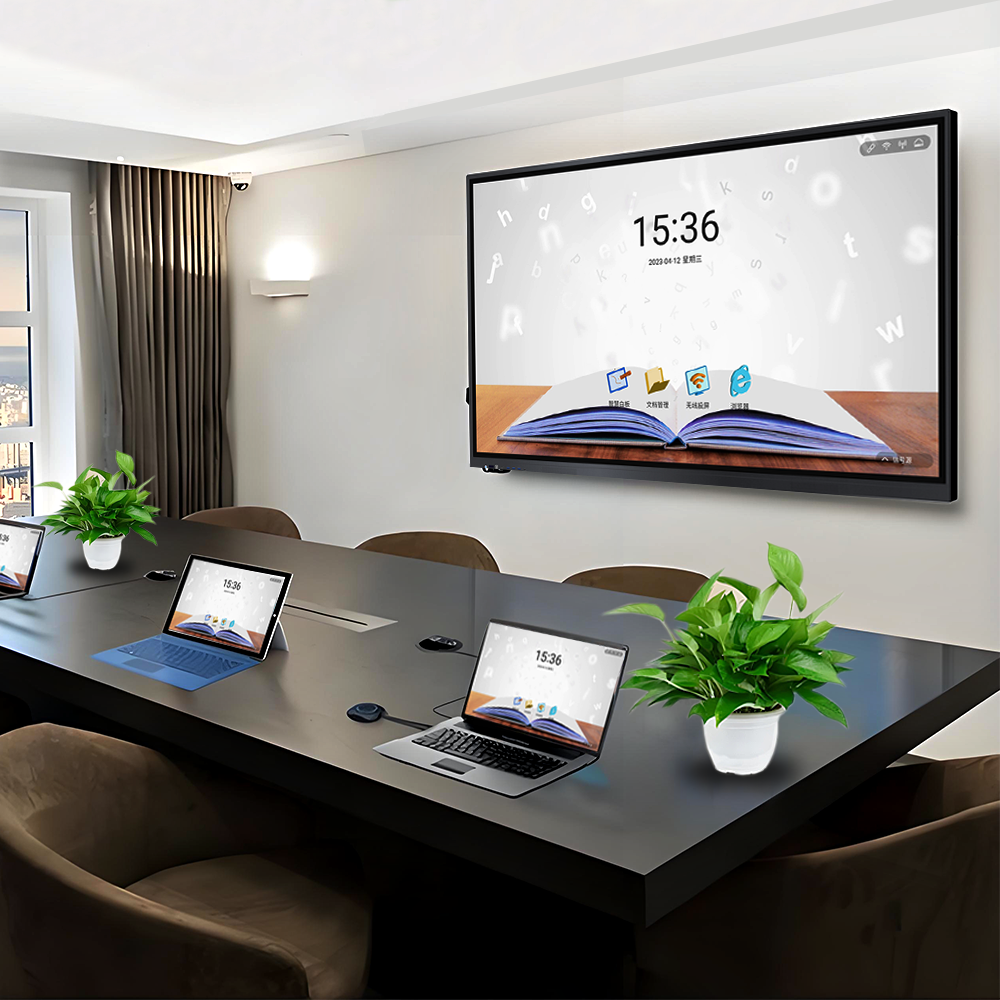

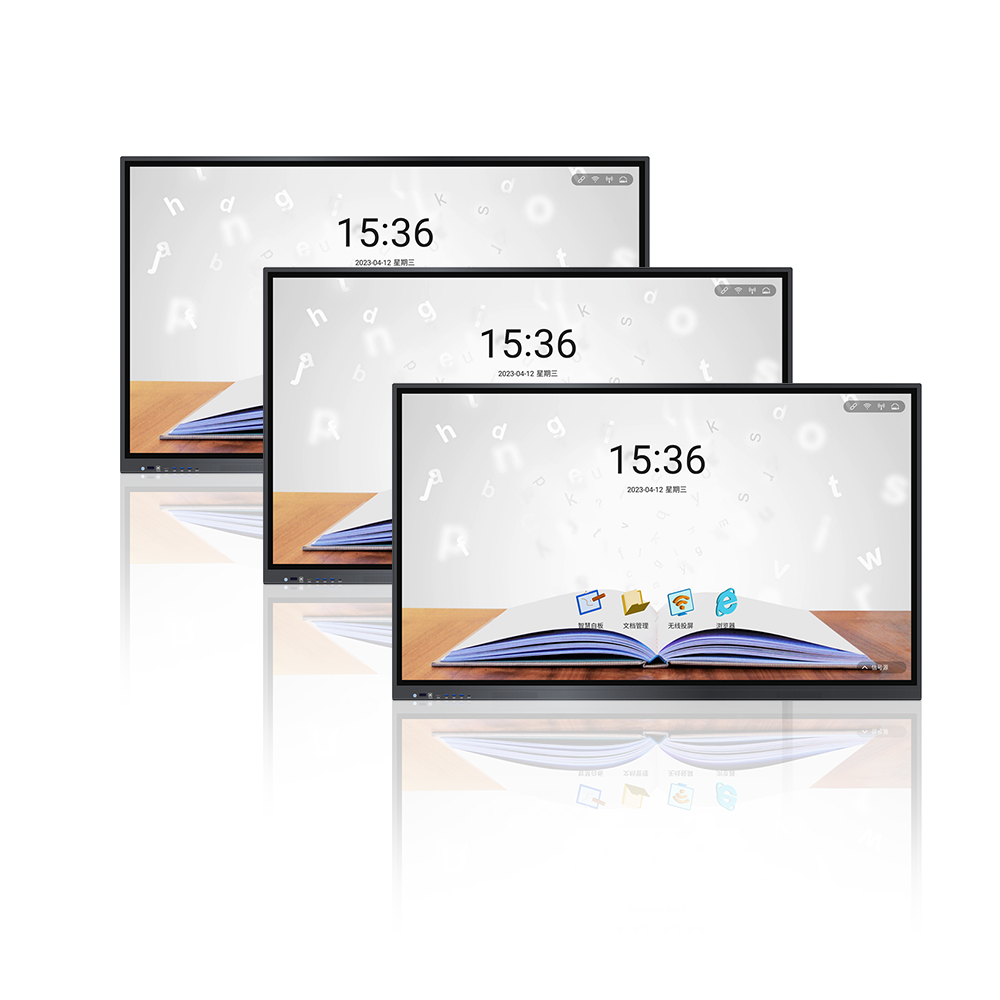

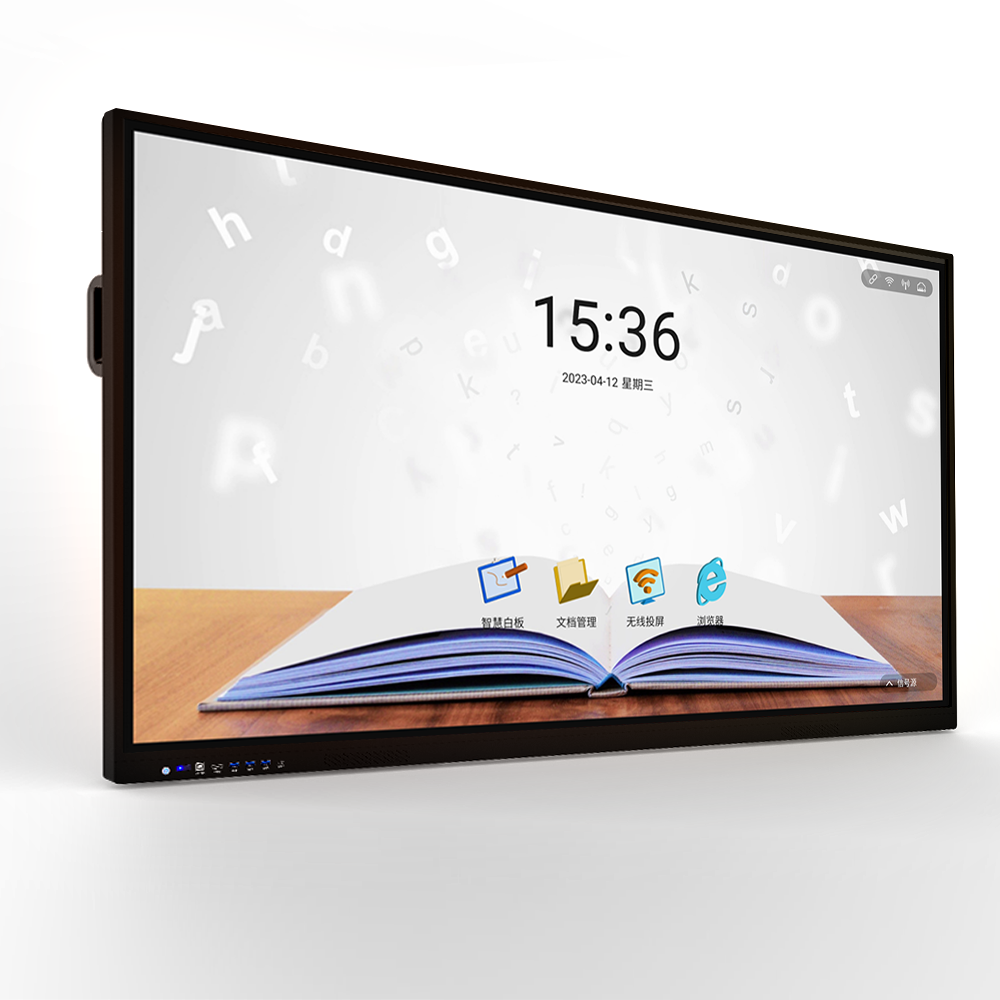

55-inch Z8 all-in-one conference machine (YS982)
7 month ago
Main functions and features
HD display: supports high-resolution display, providing clear and realistic image and video playback experience
Wireless projection: supports multi-device wireless connection without physical cables, facilitating users to share content from laptops, mobile phones and other devices
Audio processing: built-in high-quality microphones and speakers, supporting echo cancellation and noise suppression, ensuring clear and natural sound in the conference room
In addition,Memory Blackboard, Training Interactive Board etc, Smart Blackboard are all our company's main products. If you need them, please contact us.
| Overview of specifications | ||
| Face plate | Screen size | 55" |
| Backlit type | D-LED | |
| Resolution ratio | 3840*2160 | |
| Luminance | ≥350cd/m² | |
| Screen contrast | 5500:1 | |
| Response time | 6ms | |
| Pixel point distance | 0.315 mm x 0.315 mm (H×V) | |
| Frame frequency | 60 Hz | |
| Angle of view | 178°(H) / 178°(V) | |
| Color saturation (x% NTSC) | 72% | |
| Visual area | 1209.6（H）x680.4（V）mm | |
| Color degree | 1.07B(8bit) | |
| Life span | 30,000hrs | |
| System Properties | System version | Android 11.0 |
| CPU | Quad-core ARM Cortex-A55 | |
| GPU | Mali-G52 MP2(2EE) | |
| Internal cache capacity (RAM) | 4GBDDR4 | |
| Internal Storage Capacity (ROM) | 32GB Standard | |
| Power parameters | Voltage | 100 V ~ 240 V/AC, 50/60 Hz |
| Maximum power (without OPS) | ≦96W | |
| OPS source | 19V(DC)/5A | |
| Power parameters | Standby power consumption | <0.5W |
| Power supply (AC) input | *1 | |
| Front interface | Switch button * 1 | Light sense is optional |
| USB (shared) * 3 | Standard USB Type-A interface | |
| Type-c USB*1 | Standard USB3.0 Type-C interface | |
| HDMI IN*1 | Standard HDMI Type-A interface, and the HDMI input is displayed | |
| TOUCH_OUT*1 | Standard USB2.0 Type-B interface | |
| Structure | Net weight | 33Kg±1.5Kg |
| Rough weight | 40Kg±1.5Kg(Heavy Carton) | |
| Bare machine size (length * width * thick) | 1273.4mm*773mm*92.4mm | |
| Packaging size (length * width * height) | 1395mm*901mm*190mm(Heavy Carton) | |
| VESA hole site | 4-M8 screw hole 400mmx400mm | |
| Housing Material (face frame / rear housing) | Aluminum profile / sheet metal | |
| Shell color (face frame / rear shell) | Black (upper / lower silver / all silver optional) | |
| Language | OSD menu | Simplified Chinese / Traditional / English / Korean |
| Main specifications and parameters | ||
Touch parameters |
Touch specifications |
Infrared touch box |
| Glass specifications |
General Glass / anti-glare toughened glass | |
| response speed |
≤6ms | |
| Touch accuracy |
The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm | |
Touch parameters |
Touch the diameter |
≥3mm |
| input mode |
Finger or special pen | |
| Number of theoretical clicks |
Infinite times | |
| Interface type |
USB 2.0 full speed |
|
| Touch parameters |
4.75～5.25V |
|
| Interface type |
≤2 W |
|
