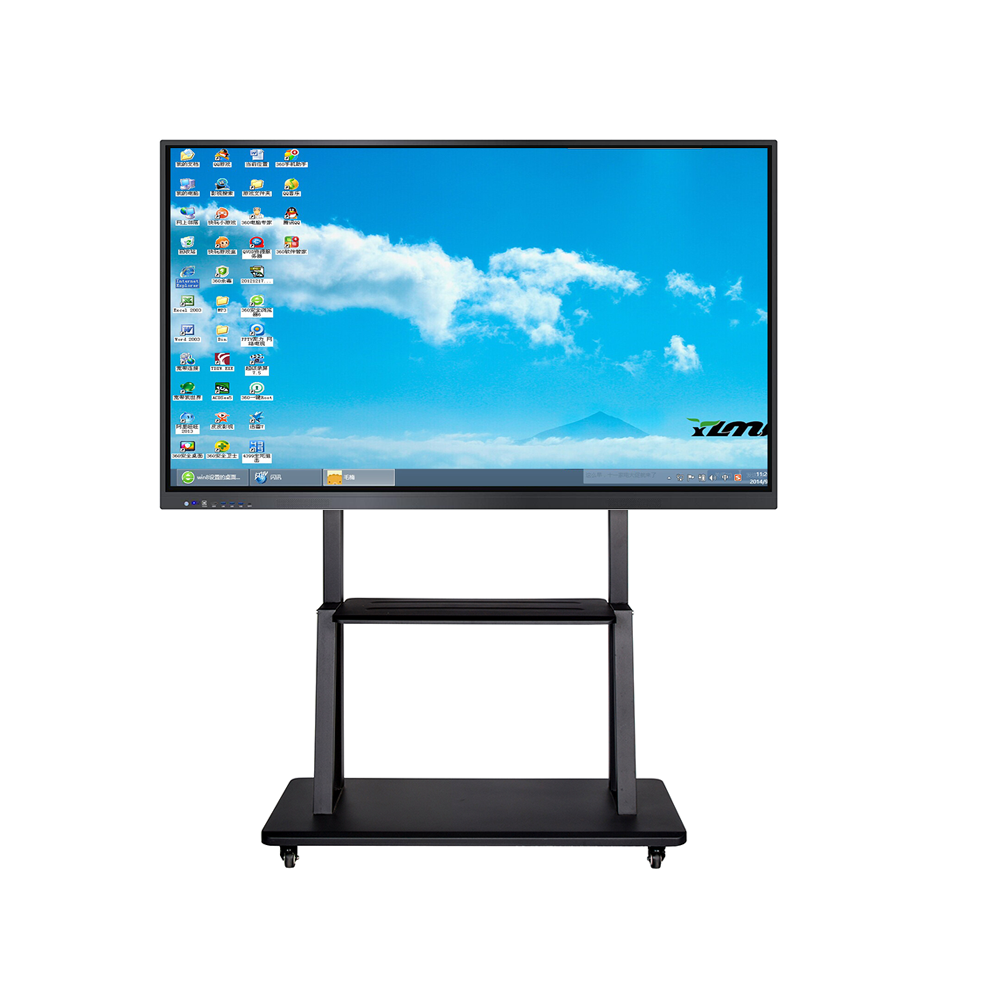

75-inch Z8 all-in-one conference machine (YS982)

7 month ago
18 0
Product details
75-inch interactive whiteboard

1: Support 4K Ultra HD
2: Equiped with Android writing software
3: Plug-in computer module (OPS)
4: Android & Windows dual operating system
5: Smart siderbar menu
6: Slim Edge Design
7: Pure aluminum alloy frame, explosion proof tempered galss
8: All channel Note function
9: Wireless screencast (Optional)
10: Multi-point screen, smooth experience

What is an interactive whiteboard?

An interactive whiteboard, smart whiteboard or IWB (interactive whiteboard), is a technologically advanced tool used primarily in meeting rooms, classrooms and presentation environments. It is a large digital screen that combines the functionality of a traditional whiteboard with computer interactivity. Here are its key features and capabilities:

Touchscreen Interaction: An interactive whiteboard allows users to control computer applications and annotate digital content directly on the whiteboard using a finger or a special electronic pen (also known as a stylus). This enables real-time interaction with presentation materials, documents, images or web pages.

Connectivity: They typically connect to a computer via USB, HDMI or wireless connections and often require companion software to facilitate the interactive experience. This connection can project the computer's display onto the whiteboard surface.

Annotation and Collaboration: Users can write, draw, highlight, erase and manipulate digital content just as they would on a regular whiteboard, but with the added benefit of being able to write, draw, highlight, erase and manipulate digital content as they would on a regular whiteboard, but with the added benefit of being able to write, draw, highlight, erase and manipulate digital content as they would on a regular whiteboard. Notes taken during a meeting can be saved, shared or printed, enhancing collaboration and record keeping.
75-inch Z8 conference all-in-one machine75-inch Z8 conference all-in-one machine75-inch Z8 conference all-in-one machine

In addition, Educational interactive tablet, Conference interactive tablet, Training interactive tablet, etc. are all our company's main products. If you need them, please contact us.

Overview of specifications
Face plate Screen size 75"
Backlit type D-LED
Resolution ratio 3840*2160
Luminance ≥350cd/m²
Screen contrast 5000:1
Response time 6ms
Pixel point distance 0.42975 mm x 0.42975 mm (H×V)
Frame frequency 60 Hz
Angle of view 178°(H) / 178°(V)
Color saturation (x% NTSC) 72%
Visual area 1650.24×928.26 mm (H×V) mm
Color degree 1.07B(8bit)
Life span 30,000hrs
System Properties System version Android 11.0
CPU Quad-core ARM Cortex-A55
GPU Mali-G52 MP2(2EE)
Internal cache capacity (RAM) 4GBDDR4
Internal Storage Capacity (ROM) 32GB Standard
Power parameters Voltage 100 V ~ 240 V/AC, 50/60 Hz
Maximum power (without OPS) ≦228W
OPS source 19V(DC)/5A
Power parameters Standby power consumption <0.5W
Power supply (AC) input *1
Front interface Switch button * 1 Light sense is optional
USB (shared) * 3 Standard USB Type-A interface
Type-c USB*1    Standard USB3.0 Type-C interface
HDMI IN*1    Standard HDMI Type-A interface, and the HDMI input is displayed
TOUCH_OUT*1 Standard USB2.0 Type-B interface
Structure Net weight    54Kg±1.5Kg
Rough weight    60Kg±1.5Kg(Heavy Carton)
Bare machine size (length * width * thick) 1710mm*1022.6mm*89.6mm
Packaging size (length * width * height) 1850mm*1150mm*205mm(Heavy Carton)
VESA hole site 4-M8 screw hole of 500mmx400mm
Housing Material (face frame / rear housing) Aluminum profile / sheet metal
Shell color (face frame / rear shell)    Black (upper / lower silver / all silver optional)
Language OSD menu Simplified Chinese / Traditional / English / Korean
Main specifications and parameters

Touch parameters


Touch specifications
Infrared touch box
Glass specifications
General Glass / anti-glare toughened glass
response speed
≤6ms
Touch accuracy
The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm

Touch parameters

Touch the diameter
≥3mm
input mode
Finger or special pen
Number of theoretical clicks
Infinite times
Interface type
USB 2.0  full speed
Touch parameters
4.75~5.25V
Interface type
≤2 W

Display:
75-inch Z8 conference all-in-one machine
