1 Pole 12 Positions PCB Mount Rotary Switch

8 month ago

26 0 

7 year

Product details

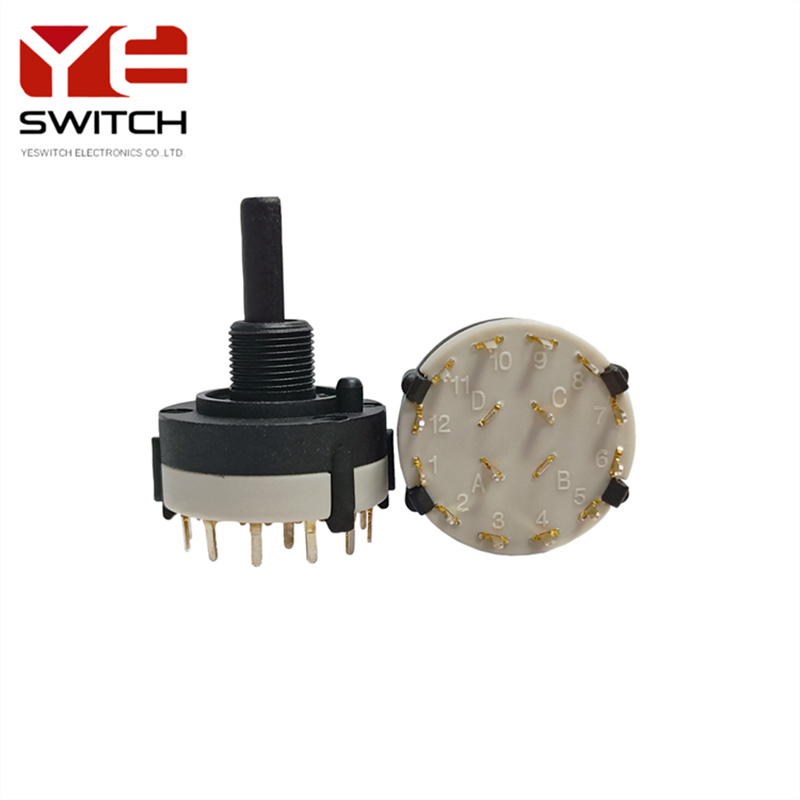

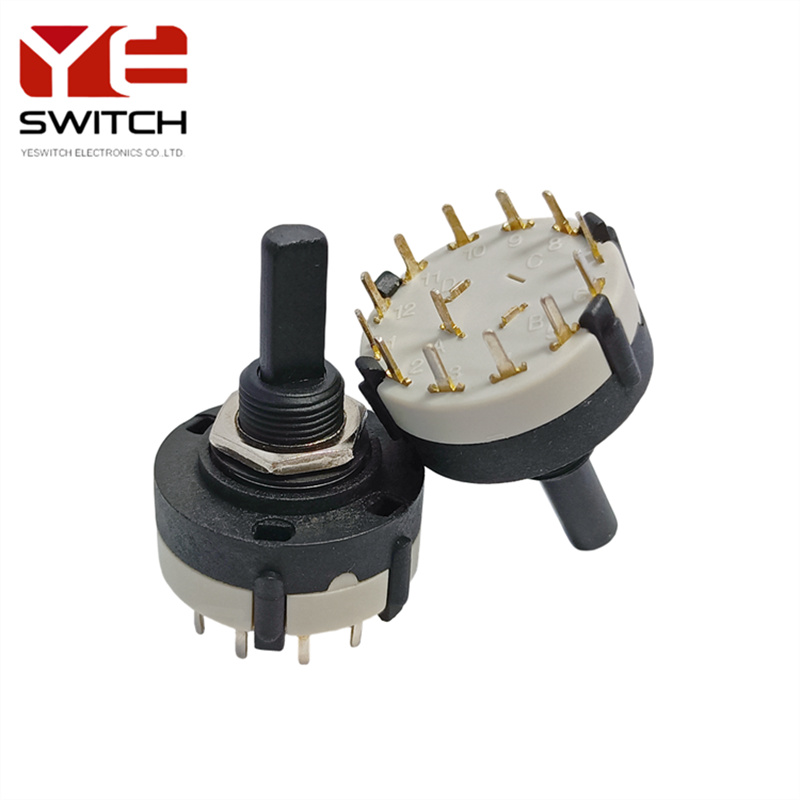

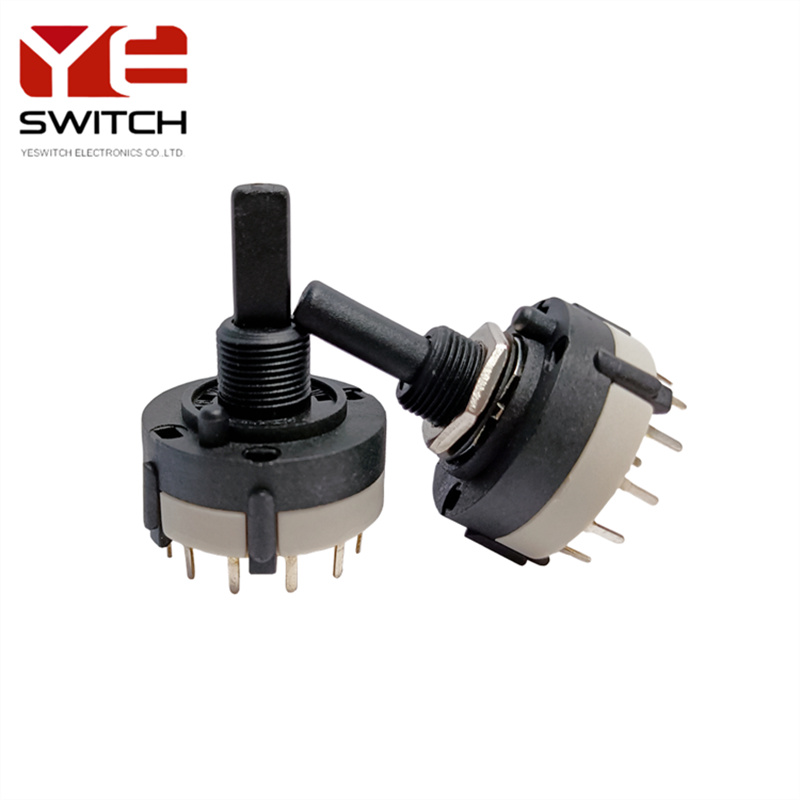

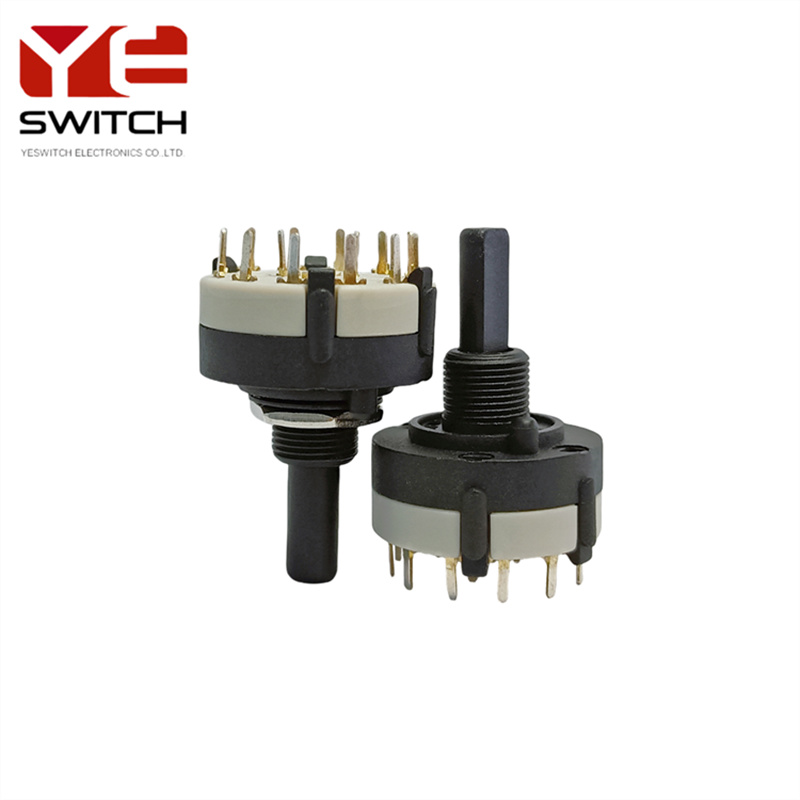

SR26 Series 1 Pole 12 Positions PCB Mount Rotary Switch

The SR26 series 1 pole 12 position rotary switch is an analog rotary switch with adjustable position limiting pins,offering users the flexibility to customize it for various applications.The switch enables quick mode changes and can control various functions.The rotary switches are universal compatibility makes it suitable for a wide range of applications,and it seamlessly connects to any unused analog input on the products.

This kind of rotary switch is small in size and easy to install.And the rotary switches electrical life can reach 10,000 cycles.It is very durable.We have adopted the design of PCB terminal and solder terminal, which can meet the needs of different customers.In use,we provide a variety of height of the actuator length as the standard to adapt to different application scenarios.

The SR26 series rotary switch types are widely used in various electronic devices, such as lighting equipment adjustment,signal selection of audios,industrial equipment control,exact machinery control,public audio system,automobile,communication equipment,white goods market and other markets.

SPECIFICATION

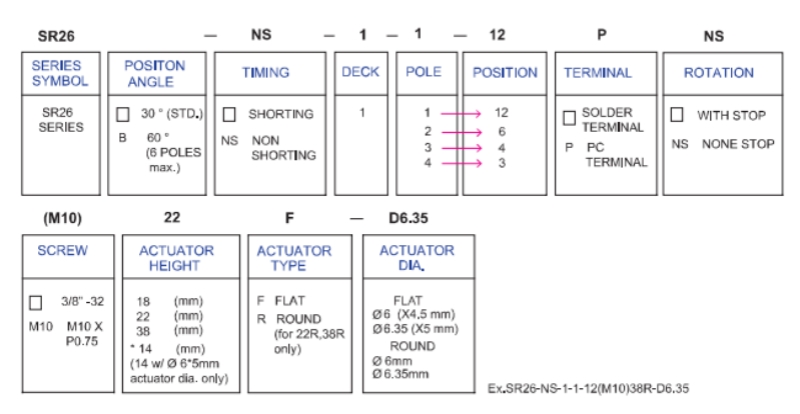

Model No.:SR26 Series
Rating:0.3A DC30V/1A
Contact Resistance:≤25m Ohms initial
Insulation Resistance:DC 500V 100M Ohma Min
Dielectric Strength:AC 500V for 1 minute
Electrical Life:10,000 cycles
Terminal:Solder,PC
Timing:Shorting,non-shorting

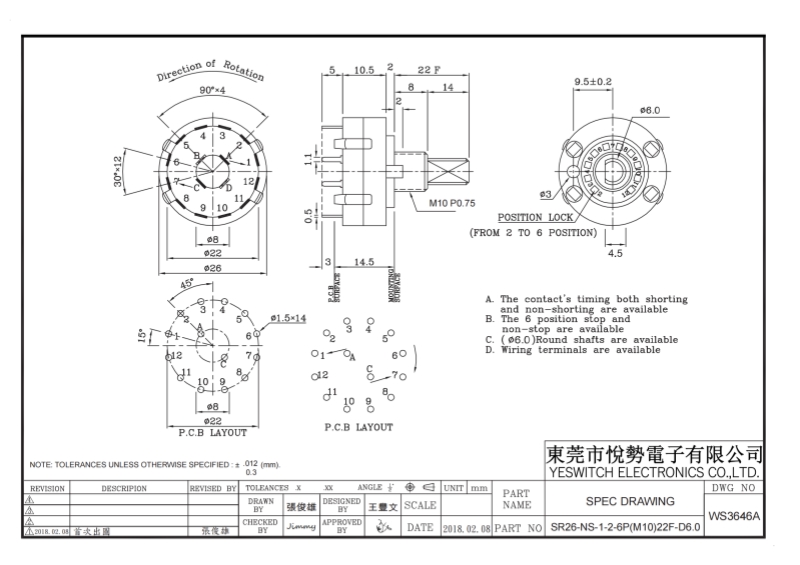

Actuator Height:18mm,22mm,38mm
Actuator Type:Flat,Round
Function:1P2T,2P6T,3P4T,4P3T,6P2T
