Product Description

Could Smart Glass use for outdoor

Smart Glass using for outdoor, Curtain Wall, need to use a Double Glazing Low e Switchable Smart Glass,it could block most of the UV, Smart Film Tint could work under 100 degrees, tends to be our most popular option worldwide offering a cost-effective solution where the liquid crystal Switchable coating is bonded directly to a toughened glass panel. Double Glazing Intelligent Glass, also known as Smart Glass, switches from frosted to clear at the flick of a switch

This means that the Switchable coating can be simply applied to any type of face or thickness of glass (including fire-rated), creating a solution with optimum clarity and performance. Another major factor is a reduction in manufacturing lead-time, making it the ideal choice for all time-critical projects.

Our standard toughened Intelligent Tempered Tougheded Glass (single glazed) uses toughened/tempered glass in thicknesses 5mm, 6mm, 8mm, 10mm, 12mm and 15mm. The 5mm and 6mm glass are often used by DGU/IGU manufacturers to build into their own sealed units.

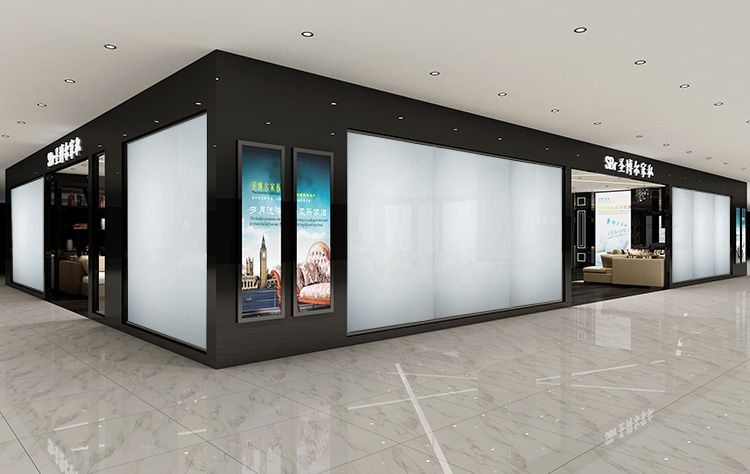

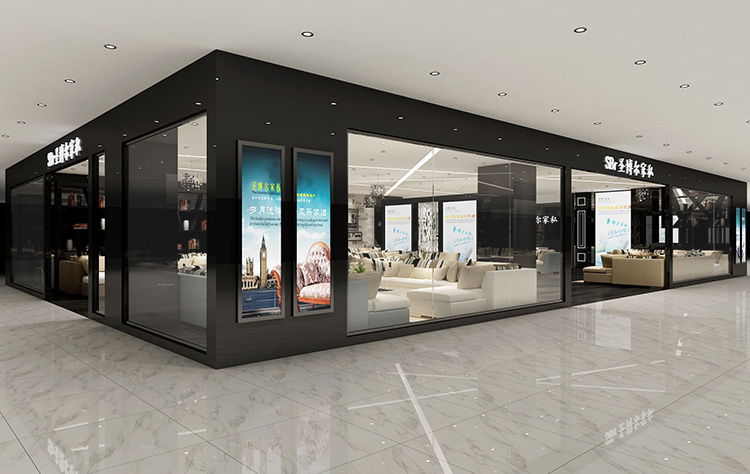

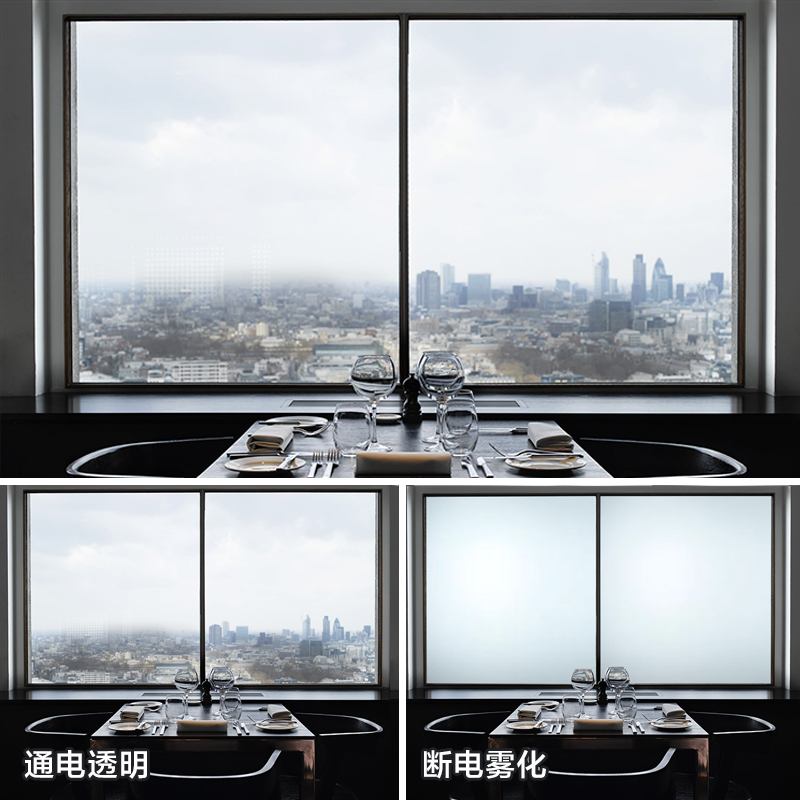

ON-OFF mode control the glass from being clear (transparent) to frosted (opaque). In its frosted state, the Switchable layer acts as an electronic blind providing privacy and security for any glass, window or partition.

Smart Film technical diagram

Technical Principle

Smart Film In the natural state, the liquid crystal molecules inside it are arranged randomly, the refractive index of liquid crystal is lower than that of the polymer outside, and the incident light scatters in the polymer and is milky white, that is, opaque.After electrification, the droplets in the dispersed liquid crystal polymer are rearranged, and the liquid crystal changes from disorder to directional order, so that the refractive index of the liquid crystal is the same as that of the polymer, and the incident light can completely pass through, forming a transparent state. Intelligent dimming glass can be based on different occasions, such as mood, functional requirements can change the mood of the glass in a flash, the function such as demand can change glass appear a performance in - instantly, truly achieve the "the effect of light with me to move, it also is the magical thing about this state of the user can conveniently control switch, switch or remote control, slightly press can shape the privacy, effectively protect the individual privacy space.

Product Parameters

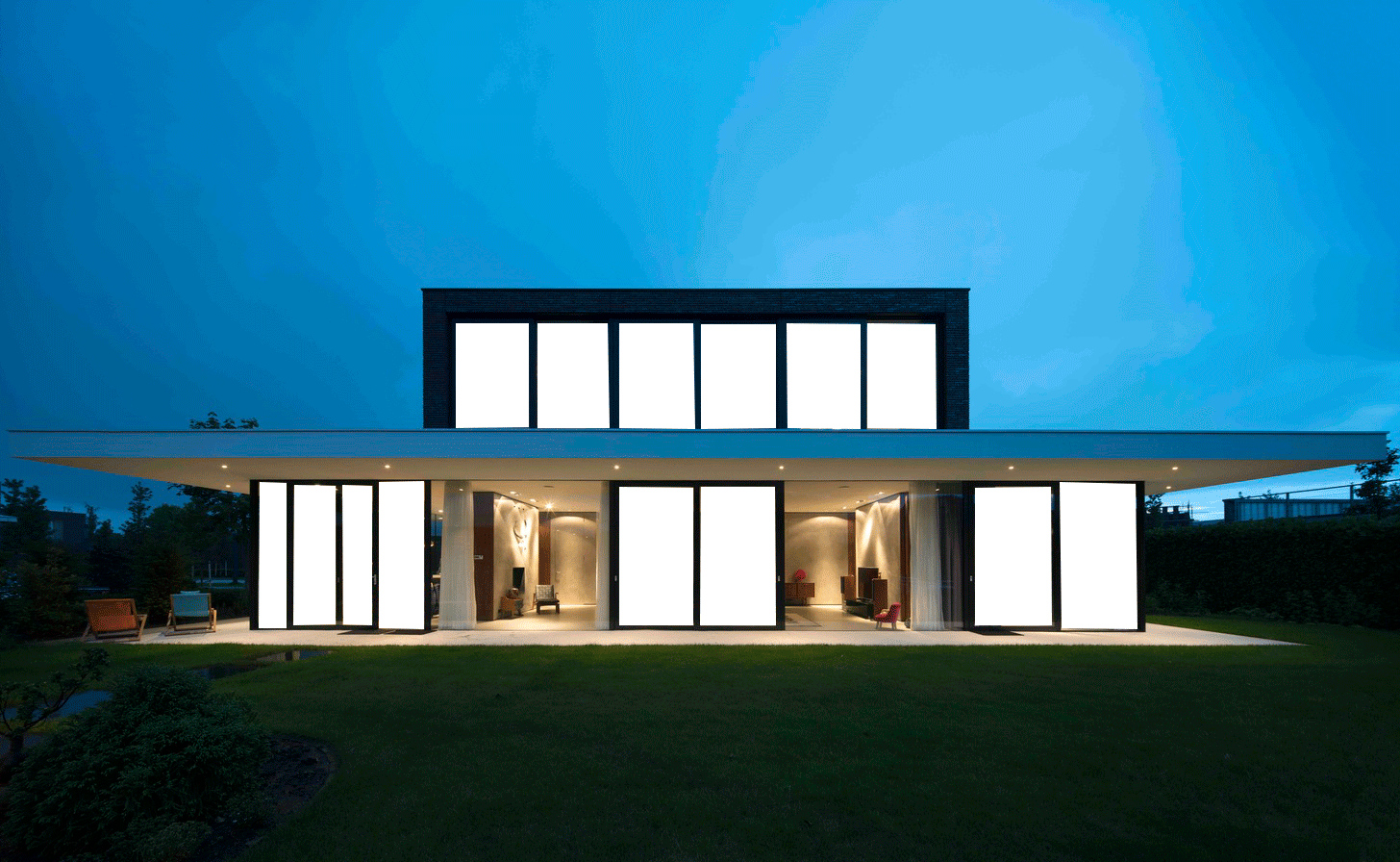

Application

Factory

After sales & clients comments

FAQ

1.Does Smart Film Privacy Film blocks harmful UV rays?

Yes, it can block over 98% of the harmful UV rays.

2.Is smart film energy efficient?

Yes, it's a green product that only consumers 6-8 W/㎡.

3.Can customers install Smart Film by themselves?

Yes, we offer a complete installaion kit if needed， meanwhile，we supply instruction video for customer preview.

4.How can I purchase or get a quote?

Please send inquiries to us. You can also add WhatsApp or Wechat. WeChat/WhatsApp ID: 0086-13711583005.

5.What is the difference between self-adhesive PDLC film and  PDLC film?

Self-adhesive PDLC film can be pasted on the normal existing flat glass directly. PDLC film is the material which can be processed to smart PDLC glass. It must be putting into two pieces of glass, by EVA films’ bonding so as to form a sandwich structure.

6.Do you offer Curved Smart Glass?

Yes, we customized Smart Glass according to customers' requirements.

7.Can you project on Intelligent Glass and Smart Film?

Yes, Low Iron Switchable Smart Glass and Smart Film can be used as a rear projection screen.
