Product Description
Smart Glass also called PDLC Switchable Glass, Clear Switchable Smart Glass, and Electric PDLC Glass. Electric atomized glass is a kind of glass that uses electricity to adjust the line of sight of light. It is made of laminated Switchable Film and tempered glass. Synthesis by vacuum and laminating furnace. It has the function of "transparent when power is on, and atomization when power is off". When the PDLC FilmPower Supply is turned on, the ITO in the Switchable Film is conductive, and the liquid crystal molecules are arranged in a regular and orderly manner, making the glass appear transparent and transparent; when the power is turned off When, the liquid crystal molecules in the dimming film will present an irregular dispersion state, which prevents light from entering and makes the glass appear opaque.
Smart transparent film technical diagram
High Quality PDLC Film, PDLC Glass
Switchable Glass(SG) consists of float glass, EVA, and Yuguang Smart Film(STF) that form a kind of laminated glass. The scientific principles lie in the STF, when it is powered off, the liquid crystal molecules fall into a random state,that diffuse light passing through the sandwich structure and to provide instant privacy. When it is powered on, the voltage drive the liquid crystal molecules align along the direction perpendicular to the film, then visible light go through STF and turns transparent.
Switchable Film (SF)
STF is a sort of light modulating material comprised of polymer dispersed liquid crystal and flexible ITO film. When it is powered off, visible light scatters through the STF and the film turns opaque. When it is powered on, visible light transmits the STF and the film turns transparent. STF can be used in SA-STF or STG.
STG consists of toughened glass, EVA, and STF that form a kind of laminated glass.
Product Parameters
|
Item |
Mode | Specification | |
| Optical Parameter | Visible Light Transmittance |
Power on |
>83% |
|
Power off |
>53% |
||
|
Parallel Light Tansmittance |
Power on |
75% |
|
|
Power off |
<2% |
||
|
Haze |
Power on |
<4% |
|
|
Power off |
>95% |
||
|
Viewangle |
Power on |
>150° |
|
|
Electrical Parameter |
Operating Voltage |
Power on |
AC48V-65V/ 50Hz |
|
Response Time |
Power off-on |
<200ms |
|
|
Power Dissipation |
Power off-on |
6-8 W/㎡ |
|
|
Size Parameter |
Thickness |
0.38mm |
|
|
Maximum Size |
6000mm*2000mm |
||
|
Operating Parameter |
Operating Temperature |
-30°C-50°C |
|
|
Storage Temperature |
-40°C-70°C |
||
|
Service Times |
Power on |
>12 years |
|
|
Switching Times |
|
>2 millions |
|
Application

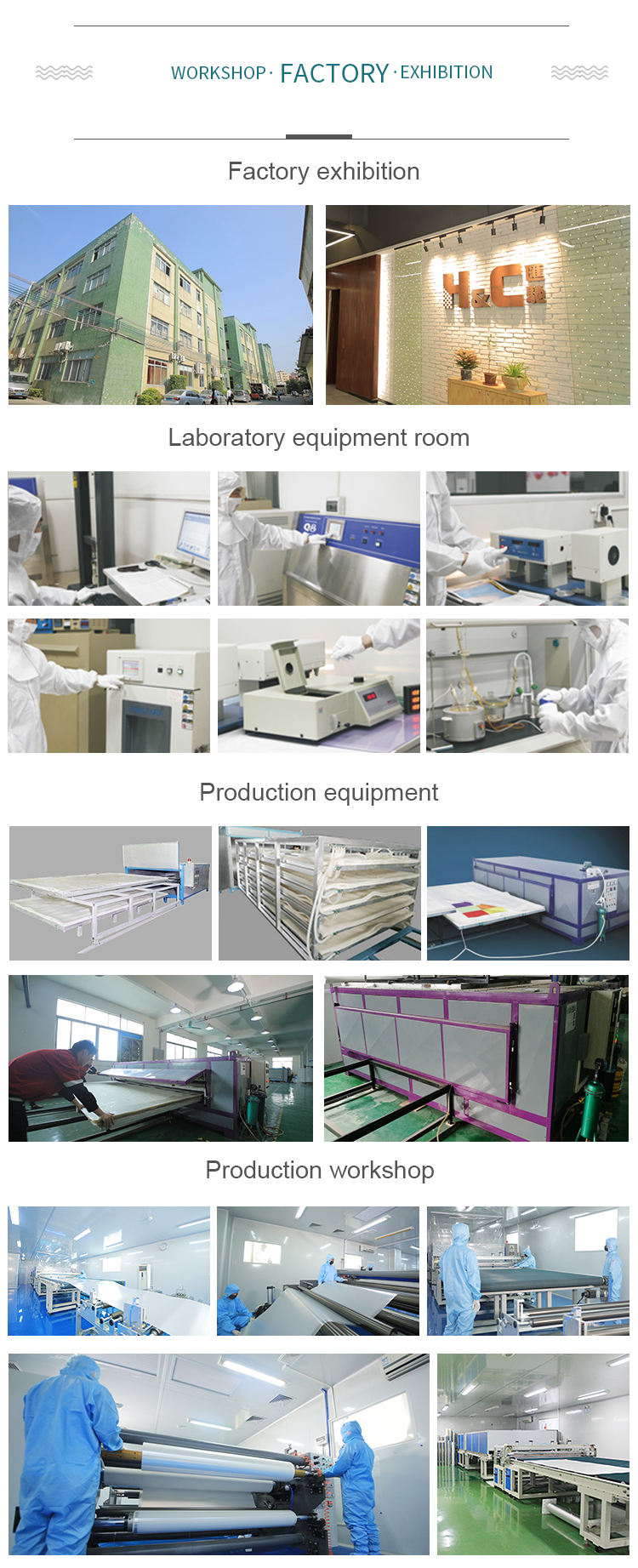

Factory
After sales & clients comments
FAQ
1.Does smart film privacy film blocks harmful UV rays?
Yes, it can block over 98% of the harmful UV rays.
2.Is smart film energy efficient?
Yes, it's a green product that only consumers 6-8 W/㎡.
3.Can customers install smart film by themselves?
Yes, we offer a complete installaion kit if needed， meanwhile，we supply instruction video for customer preview.
4.How can I purchase or get a quote?
Please send inquiries to us. You can also add WhatsApp or Wechat. WeChat/WhatsApp ID: 0086-13711583005
.
5.What is the difference between self-adhesive PDLC film and PDLC film?
Self-adhesive PDLC film can be pasted on the normal existing flat glass directly. PDLC film is the material which can be processed to smart PDLC glass. It must be putting into two pieces of glass, by EVA films’ bonding so as to form a sandwich structure.
6.Do you offer smart glass?
Yes, we customized smart glass according to customers' requirements.
7.Can you project on smart glass?
Yes, smart glass can be used as a rear projection screen.
