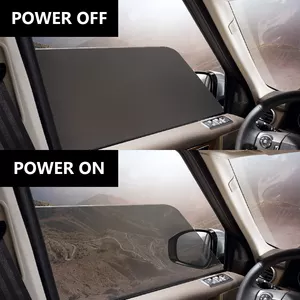

Finished installation of car film
4 year ago
Product Description
Car Switchable Smart FilmSmart Tint film applies to any new or existing smooth glass surface. Easily control our Smart Tint Film from clear to frosted (opaque) with the click of a button or command from your smart phone. Smart Tint PDLC Intelligent Film is private frosted and opaque when powered off and transparent clear when powered on Electric Smart Film consists of two layers of PET-ITO conductive film and the intermediate liquid crystal film. Where in the Car TintingFilm mainly consists of liquid crystal droplets and outer layer of high polymer. When the power is off, the liquid crystal droplets are in disordered arrangement state, when parallel light passes through the polymer and irradiate to the liquid crystal material, because of refractive index of the liquid crystal droplets is lower than the other outer polymers, light in the surface of liquid crystal droplets is diffused and scattered .the whole film becomes opaque, appears frosted. When energized, two PET-ITO conductive film functions as planar electrodes, which makes the liquid crystal droplets orderly arranged perpendicular to the film surface, whereby the parallel light passes through the liquid crystal layer without being reflected and refracted , and light transmits to whole film, andCar Switchable Smart Film appears transparent.
Smart transparent film technical diagram
High Quality PDLC Film, PDLC Glass
Switchable Transparent Glass(STG) consists of float glass, EVA, and Yuguang Smart Transparent Film(STF) that form a kind of laminated glass. The scientific principles lie in the STF, when it is powered off, the liquid crystal molecules fall into a random state,that diffuse light passing through the sandwich structure and to provide instant privacy. When it is powered on, the voltage drive the liquid crystal molecules align along the direction perpendicular to the film, then visible light go through STF and turns transparent.
Switchable Film (SF)
STF is a sort of light modulating material comprised of polymer dispersed liquid crystal and flexible ITO film. When it is powered off, visible light scatters through the STF and the film turns opaque. When it is powered on, visible light transmits the STF and the film turns transparent. STF can be used in SA-STF or STG.
STG consists of toughened glass, EVA, and STF that form a kind of laminated glass.
Product Parameters
|
Item |
Mode | Specification | |
| Optical Parameter | Visible Light Transmittance |
Power on |
>83% |
|
Power off |
>53% |
||
|
Parallel Light Tansmittance |
Power on |
75% |
|
|
Power off |
<2% |
||
|
Haze |
Power on |
<4% |
|
|
Power off |
>95% |
||
|
Viewangle |
Power on |
>150° |
|
|
Electrical Parameter |
Operating Voltage |
Power on |
AC48V-65V/ 50Hz |
|
Response Time |
Power off-on |
<200ms |
|
|
Power Dissipation |
Power off-on |
6-8 W/㎡ |
|
|
Size Parameter |
Thickness |
0.38mm |
|
|
Maximum Size |
6000mm*2000mm |
||
|
Operating Parameter |
Operating Temperature |
-30°C-50°C |
|
|
Storage Temperature |
-40°C-70°C |
||
|
Service Times |
Power on |
>12 years |
|
|
Switching Times |
|
>2 millions |
|
Application
Factory
After sales & clients comments
FAQ
1.Does Smart Film privacy film blocks harmful UV rays?
Yes, it can block over 98% of the harmful UV rays.
2.Is smart film energy efficient?
Yes, it's a green product that only consumers 6-8 W/㎡.
3.Can customers install Smart Film by themselves?
Yes, we offer a complete installaion kit if needed， meanwhile，we supply instruction video for customer preview.
4.How can I purchase or get a quote?
Please send inquiries to us. You can also add WhatsApp or Wechat. WeChat/WhatsApp ID: 0086-13711583005
5.What is the difference between self-adhesive PDLC film and PDLC film?
Self-adhesive Smart Film can be pasted on the normal existing flat glass directly. PDLC Smart Film is the material which can be processed to Switchable Glass. It must be putting into two pieces of glass, by EVA films’ bonding so as to form a sandwich structure.
6.Do you offer Smart Glass?
Yes, we customized PDLC Smart Glass according to customers' requirements.
7.Can you project on Intelligent Glass?
Yes, smart glass can be used as a rear projection screen.
