How much do Switchable Glass and Smart Film cost?


Before you can determine whether smart glass windows are suitable for your home, you need to know their prices.


There are several variables that may affect the final cost of these windows, such as how many windows you have,

their size, the type of electrochromic glass, Clear Switchable Smart Glass and other special features they have.


Because this technology is relatively new and not widely used, the cost of installing new windows is estimated to

be around $90-150 per square meter.


In addition, you can also choose Adhesive Smart Film treatment methods on existing windows. These methods are

also beneficial and cost up to $50-70 US dollars per square meter.


Although there are many benefits to using smart glass windows, especially in terms of energy saving and convenience,

these high costs are enough to discourage people.


However, people hope that with the advancement of technology, the cost of materials, and the popularity of installation,

Pdlc Switchable Electrochromic Glass will become something that every family can afford.


 PDLC-How-Horz

Smart transparent film technical diagram

White Self-adhesive PDLC Smart Glass Film


Product Parameters

Item
Mode Specification
Optical Parameter Visible Light Transmittance Power on
>83%
Power off
>53%
Parallel Light Tansmittance
Power on
75%
Power off
<2%
Haze
Power on
<4%
Power off
>95%
Viewangle
Power on
>150°
Electrical Parameter
Operating Voltage
Power on
AC48V-65V/ 50Hz
Response Time
Power off-on
<200ms
Power Dissipation
Power off-on
6-8 W/㎡
Size Parameter
Thickness
0.38mm
Maximum Size
6000mm*2000mm
Operating Parameter
Operating Temperature
-30°C-50°C
Storage Temperature
-40°C-70°C
Service Times
Power on
>12 years
Switching Times

>2 millions

White Self-adhesive PDLC Smart Glass Film

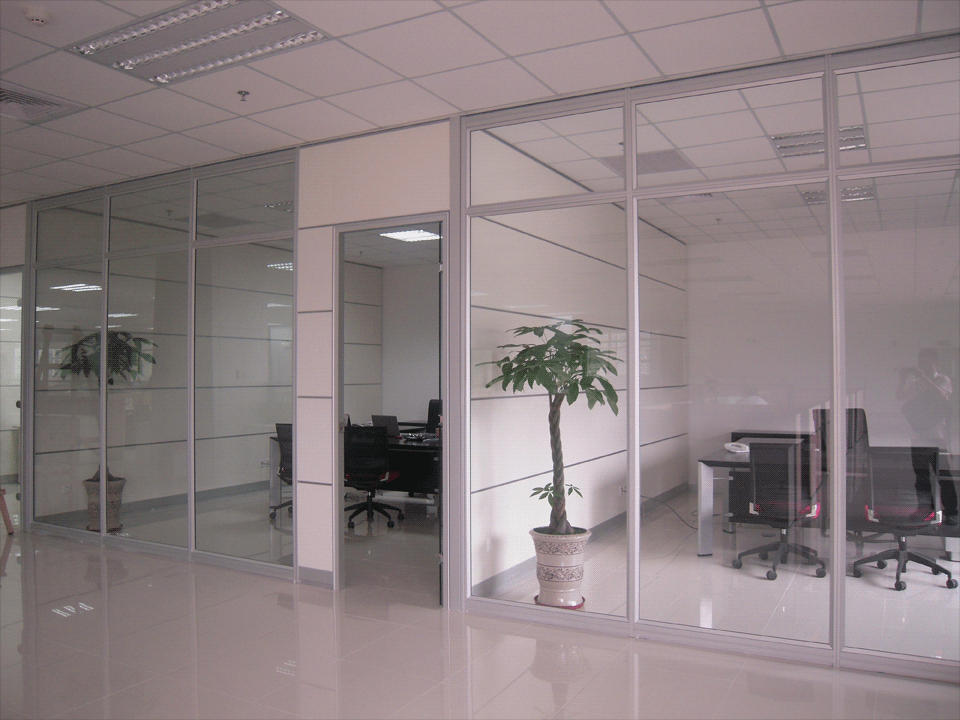

Application


Yuguang smart glass


Yuguang PDLC smart film

Yuguang PDLC smart film

Yuguang PDLC smart film

White Self-adhesive PDLC Smart Glass Film


Factory

Yuguang PDLC smart film


After sales & clients comments

Yuguang PDLC smart film

FAQ

1.Does smart film privacy film blocks harmful UV rays?

Yes, it can block over 98% of the harmful UV rays.


2.Is smart film energy efficient?

Yes, it's a green product that only consumers 6-8 W/㎡. White Self-adhesive PDLC Smart Glass Film


3.Can customers install smart film by themselves?

Yes, we offer a complete installaion kit if needed, meanwhile,we supply instruction video for customer preview.


4.How can I purchase or get a quote?

Please send inquiries to us. You can also add WhatsApp or Wechat.
PDLC Smart Film WeChat/WhatsApp ID: 0086-18927438513


5.What is the difference between self-adhesive PDLC film and  PDLC film?

Self-adhesive PDLC film can be pasted on the normal existing flat glass directly. PDLC film is the material which can be processed to smart PDLC glass. It must be putting into two pieces of glass, by EVA films’ bonding so as to form a sandwich structure.White Self-adhesive PDLC Smart Glass Film.


6.Do you offer smart glass?

Yes, we customized smart glass according to customers' requirements.


7.Can you project on smart glass?

Yes, smart glass can be used as a rear projection screen Extra Transparency Self Adhesive Switchable Film
