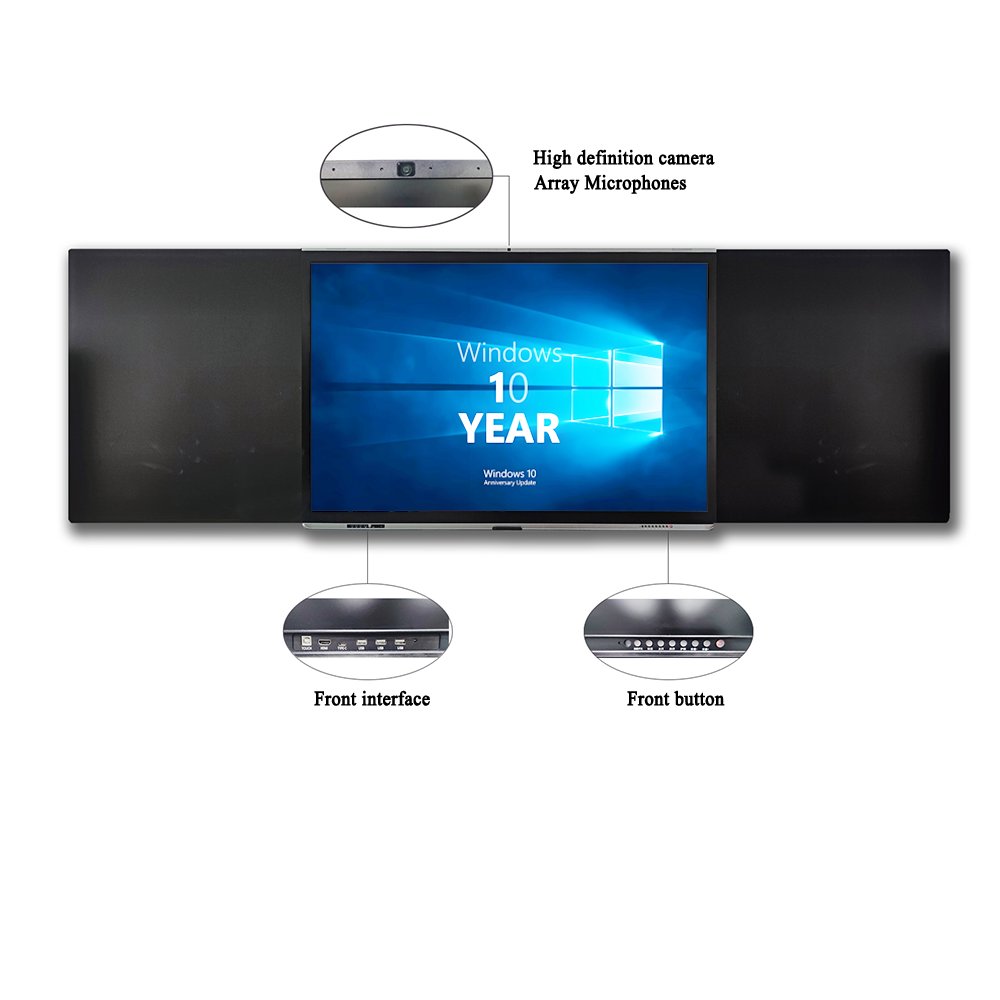

Nano Smart Blackboard 2
7 month ago
1. Adopt modular computer scheme, standard 80-pin OPS-C computer interface, and no external connection, which is convenient for teachers to use and maintain.
2. Chipset: Intel ® H110 or above; processor: a CPU of Inter CoreI5 or above, basic frequency of 2.50GHz or above,
Memory size 8 GDDR memory; hard drive: 256 GSSD SSD.
3, computer module CPU four-core and four-thread processor, support three-level cache 6MB.
4, support support WIFI / 5G and limited network Gigabit Ethernet card.
5. Support 2 USB3.0 ports, 4 USB2.0 ports, support 1 HDMI port and 1 VGA port.
6. Support regular boot, quickly restore and backup, and support network wake-up / PXE function.
7, support Msata system disk, quick start, one-key restore, enhance user experience.
8, support Windows 11 / Windows10 / Windows 7 / Linux and other professional legitimate operating system.
| Show | Screen size | 86" |
| Screen supplier | BOE/C SOT | |
| Backlit type | D-LED | |
| Resolution ratio | 3840*2160 | |
| Luminance | 350cd/m² | |
| Screen contrast | 1200:1 (difference in OC contrast, subject to actual) | |
| Response time | 8ms | |
| Pixel point distance | 0.4935 mm x 0.4935 mm | |
| Frame frequency | 60 Hz | |
| Angle of view | 178°(H) / 178°(V) | |
| Color saturation (x% NTSC) | 70 % | |
| Visual area | 1896 (horizontal) mm 1067 (vertical) mm | |
| Color degree | 1.07B(8bit) | |
| Life span | 50,000 hrs | |
| Main board parameters | Slug | GK6760V100 |
| System version | Android 12 | |
| CPU architecture | 8 core ARM Cortex-A55 | |
| The CPU working main frequency | 1.2GHz | |
| The CPU, and the core number | Eight core | |
| GPU | Mali-G52 MP2(2EE) | |
| Internal cache capacity (RAM) | DDR 44G | |
| Internal Storage Capacity (ROM) | Emmc 32G | |
| Power dissipation | Source | 100-240V, 50/60Hz |
| Overall power consumption (including OPS) | ≤400W | |
| Standby power consumption | ≦0.5W | |
| OPS source | 19V(DC)/5A （≤120W ） | |
| Upper horn power | 8Ω /8W*2 | |
| Lower horn power | 8Ω /20W*2 | |
| Camera | Built-in camera + microphone | 48 million support AI portrait Recognition 4K HD camera + eight array voice microphone (optional) |
| Net weight | 85KG | |
| Rough weight | 110KG | |
| Bare machine size (length * width * height) | 4210mm (length) * 109mm (width) * 1198mm (height) (including auxiliary plate) | |
| Packaging size (length * width * height) | 2420mm (length) * 320mm (width) * 1400mm (height) (including auxiliary plate) | |
| VESA hole site | 400(V)×800(H) | |
| Housing Material (face frame / rear housing) | Aluminum profile / sheet metal | |
| Secondary board material (frame / frame) | Aluminum honeycomb panel / aluminum profile | |
| Shell color (face frame / rear shell) | All black | |
| Structure | Working temperature | 0℃ ~ 40℃ |
| Storage temperature | -10℃ ~ 60℃ | |
| Working humidity | 20% ~ 80% | |
| Storage Humidity | 10% ~ 60% | |
| Maximum service time (hours * days) | 18Hours*7days |
