YESWITCH 12mm Metal Push Button Switch

8 month ago

27 0 

7 year

Product details

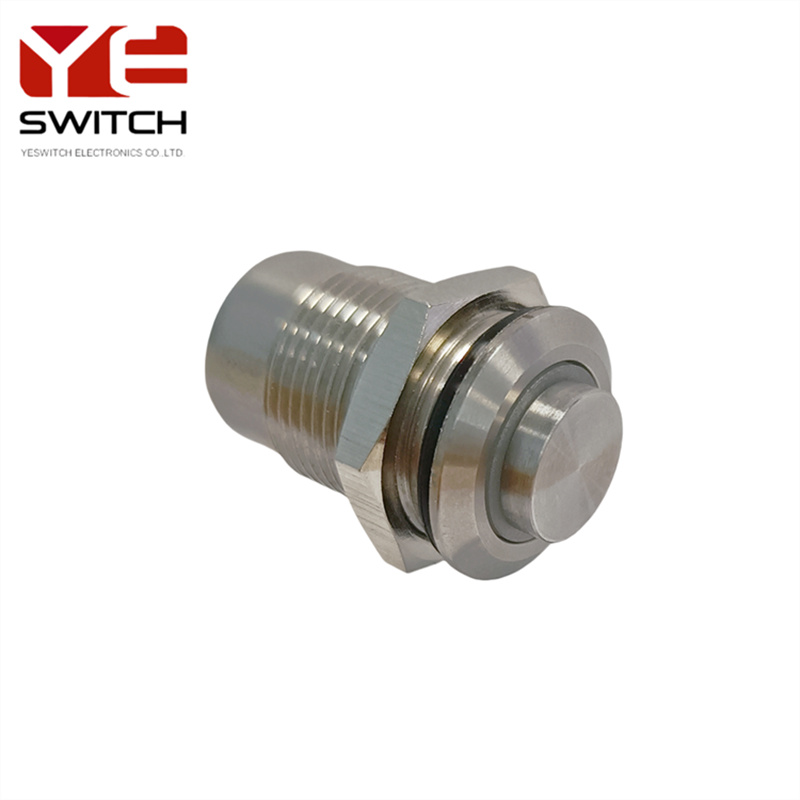

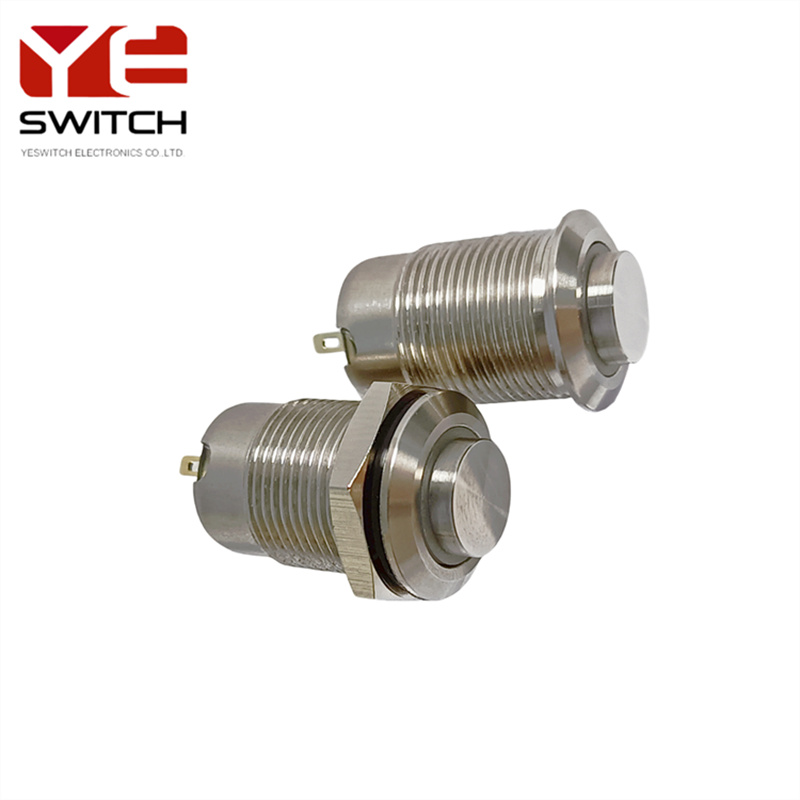

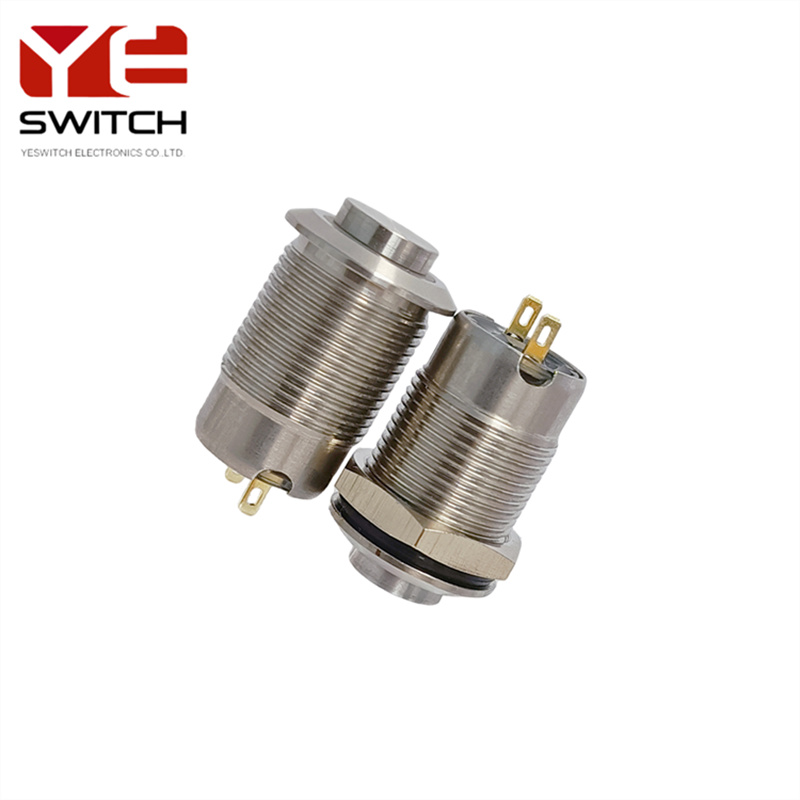

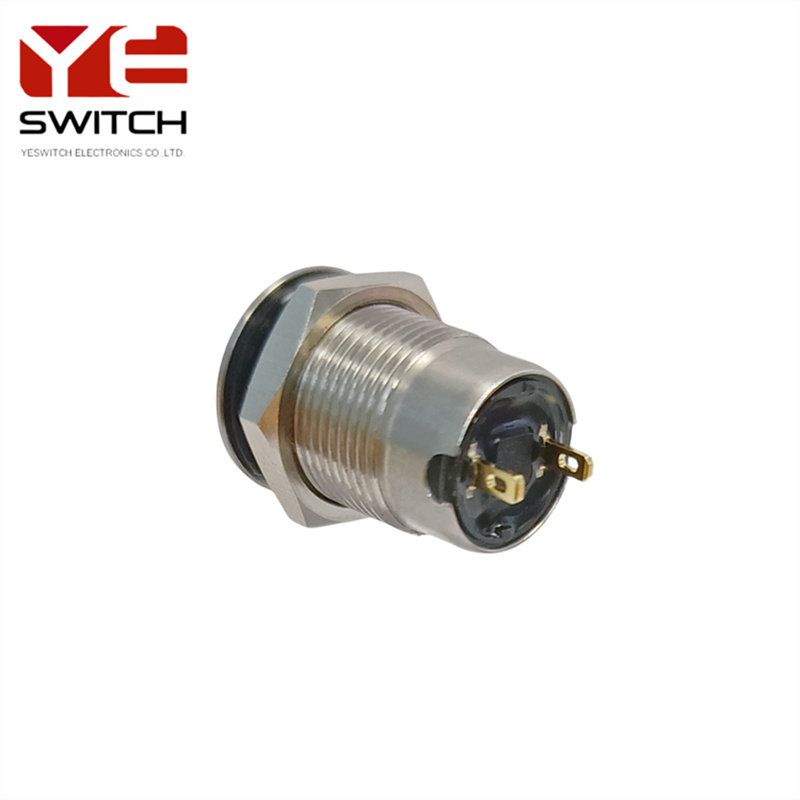

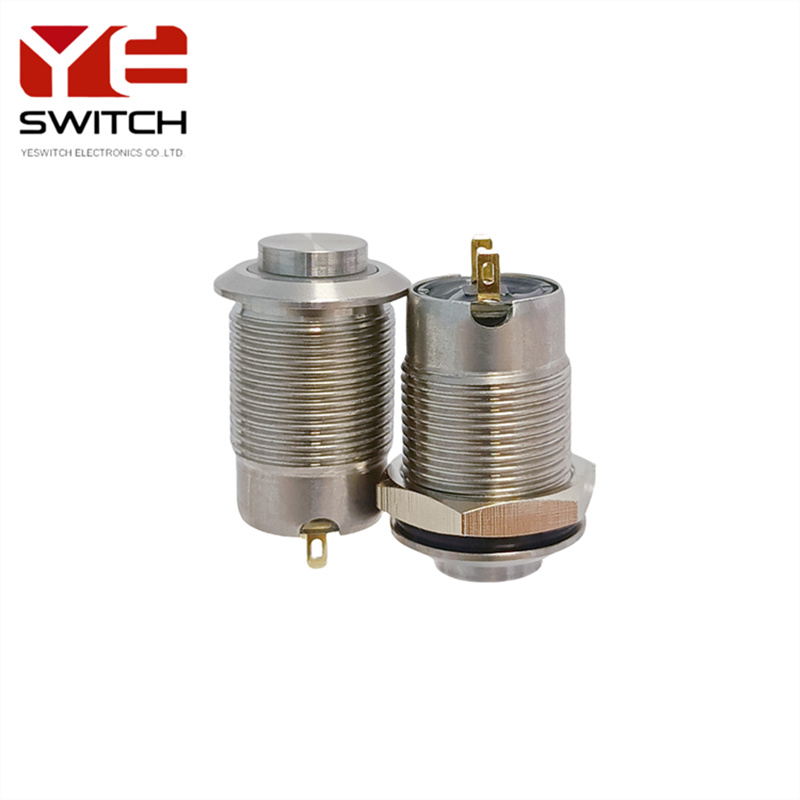

YESWITCH 12mm Metal Push Button Switch For doorbell

The IP67 metal waterproof push button switch features a compact 12mm design,making it perfect for use in a wide variety of applications.The metal push button switch is incredibly durable and easy to install,making it an ideal choice for those seeking a reliable, high-performance switch.

The push button switches have mechanical Life up to 500,000 cycles.The 12mm automotive switches use brass,gold flash over silver contact and the automotive push button switch with stainless steel has a reset OFF-(ON) function. At the same time, automotive push button switches also provide two options with and without LED,which can meet the needs of different users.

With rating 24VDC,this automotive switches can withstand higher currents and voltages and automotive push button switches widely used in ships, automobiles, aircraft, household appliances, medical equipment and other environments.

As a leading manufacturer in the push button switch industry,YESWITCH has worked tirelessly to provide customers with the highest quality products available. The waterproof metal switch 12mm is no exception, boasting top-notch construction and reliable performance that is unmatched by other switches on the market.

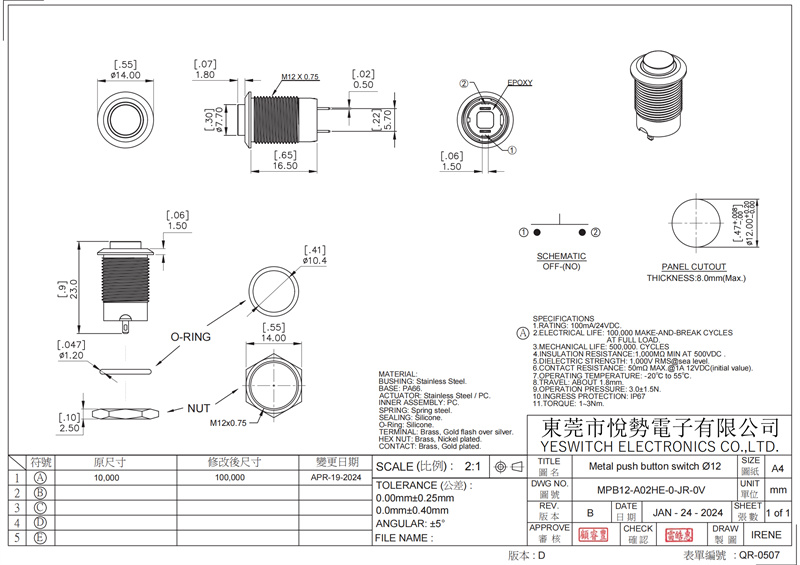

SPECIFICATIONS

RATING: 100mA24VDC
ELECTRICAL LIFE: 100.000 MAKE-AND-BREAK CYCLESAT FULL LOAD
MECHANICALLFE:500.000.CYCLES
INSULATION RESISTANCE:1.000MQ MIN AT 500VDC
DIELECTRIC STRENGTH: 1.000V RMS@sea level
CONTACT RESISTANCE: 50mQ MAX.@1A 12VDC(initial value)
OPERATING TEMPERATURE: -20 to 55 Degree
TRAVEL: ABOUT 1.8mm
OPERATION PRESSURE: 3.0+1.5N
INGRESS PROTECTION: IP67
TORQUE: 1-3Nm.

MATERIAL

BUSHING: Stainless Steel
BASE:PA66
ACTUATOR: Stainless Steel/PC
INNER ASSEMBLY: PC
SPRING: Spring steel
SEALING: Silicone
O-Ring: Silicone
TERMINAL: Brass, Gold flash over silver
HEX NUT: Brass, Nickel plated
CONTACT: Brass, Gold plated
FUNCTION:OFF-(ON)
