HM-TC3040LT hot stamping machine

8 month ago

12 0 

9 year

Product details

Manual Paper Gilding Machine

The manual hot stamping machine is a hot stamping machine with a relatively simple structure, and it uses human power as the power source. Although the market share is shrinking day by day, it is still widely used in the proofing workshop of some factories and the testing of bronzing paper, the production of gifts with small orders, the production of fake baits in fishing sports, and the inspection of some paper packaging industries.
The manual hot stamping machine and the pneumatic hot stamping machine use the same heating device and temperature control device, and the automatic hot stamping paper winding device. The hot stamping process uses human power to push the hot plate down and touch the product to achieve hot stamping, and the operation and adjustment are more convenient.

Samples

386

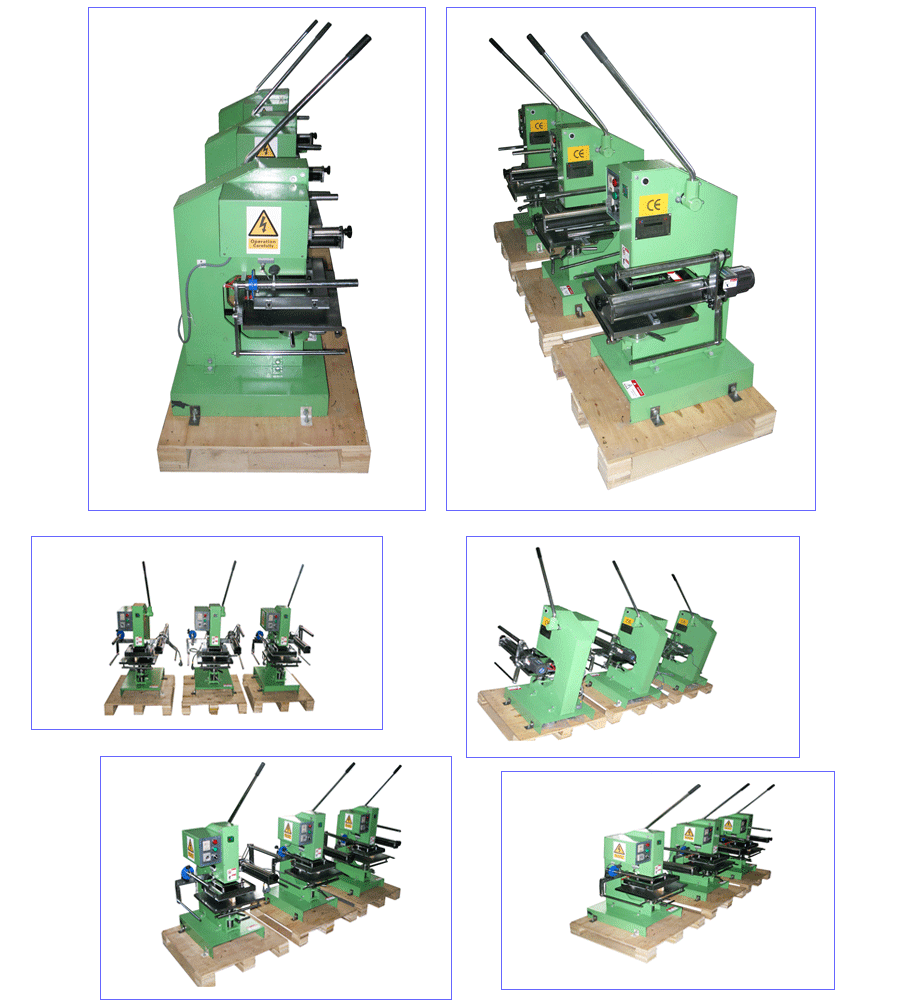

Machine store

393

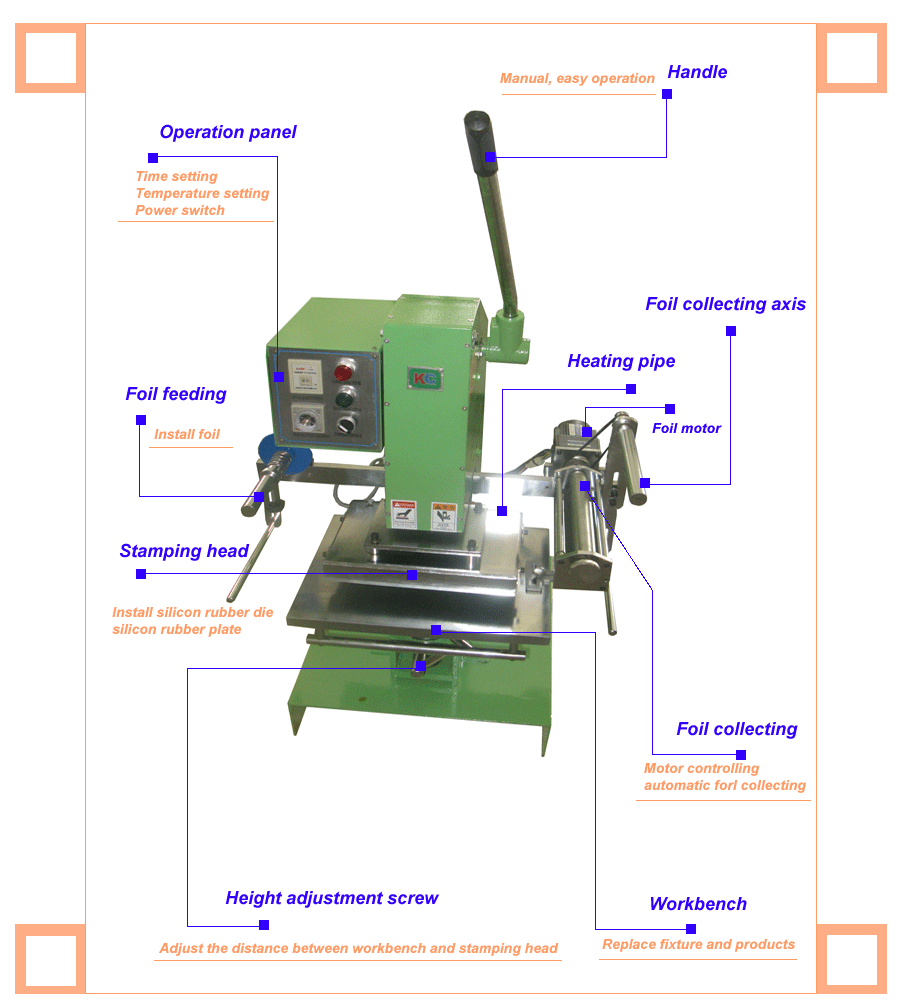

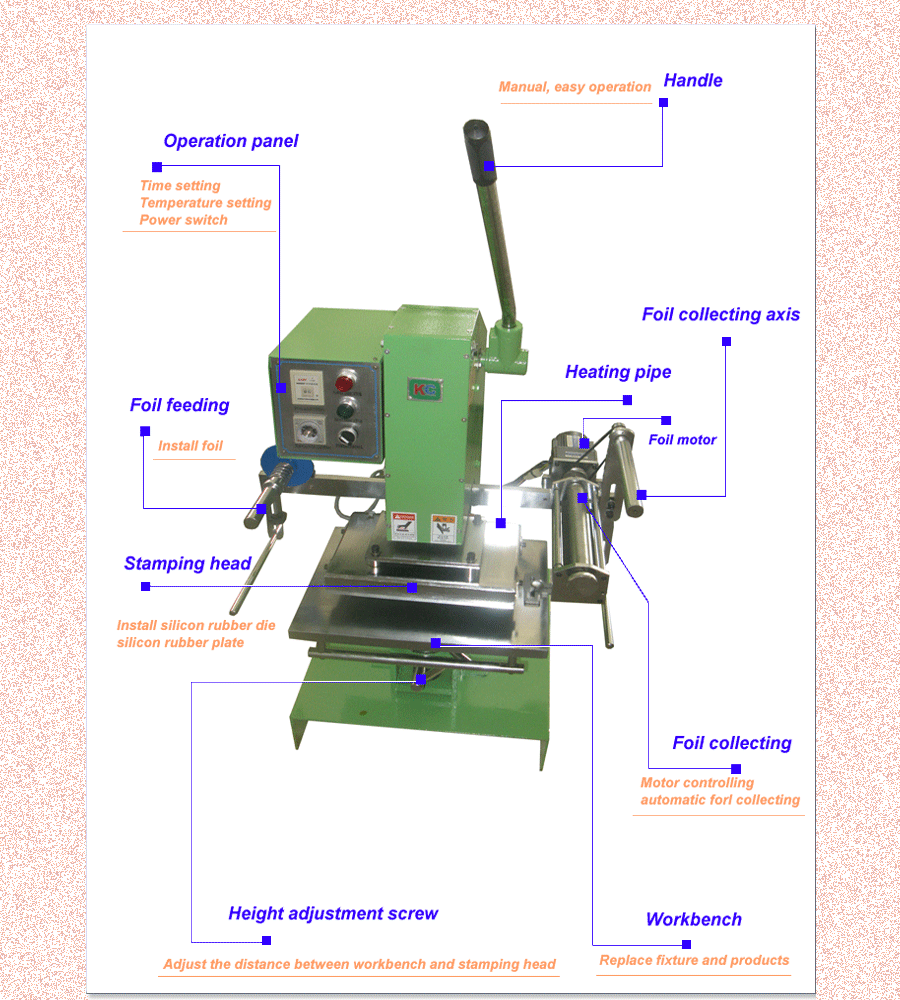

Structure

Machine description

Manual paper gilding machine is used to decorate paper with gold or silver or other metal color. Manual hot stamping machine, it is easy to operate, the 4000 KG pressure could meet requirement of stamping on many kinds of materials.Adjusting the worktable up or down, so it could stamping on different height products. 300*400 mm worktable is big enough for manual hot foil stamping machine. If you want to do some sample, or you want do some DIY gift, this machine is your choice. Gilding process makes the paper more shiny, and it looks more elegant, more wealth.

Manual Paper Gilding Machine//Usage

- - Gilding - paper, leather, wood, plastic, glass,
  - Baked - wood products, baked painting, gift box packaging;
  - Embossing - paper, leather, cloth.
  - Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
  - Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
  - Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.

- - Paper Gilding, Leather Impression, Wood ware Baking
  - Paper Concave-convex embossing, Cloth hot stamping,
  - Plastics Bronzing ,Glass and metal Heat transfer.

Manual Paper Gilding Machine//Technical Parameters

ITEM	HM-TC3030LT	HM-TC3035LT	HM-TC3040LT	HM-TC3045LT
Size of Hot Plate(mm)	300×300	300×350	300×400	300×450
Work Table Size(mm)	420×500	420×500	420×500	420×500
Max. Pressure(mm)	4000	4000	4000	4000
Max. Head Stroke(mm)	40	40	40	40
Heater Capacity(W)	1200	1200	1200	1200
Temperature adjustment	0-300℃	0-300℃	0-300℃	0-300℃
Gross weight (Kg)	160 kg	180 kg	220 kg	260 kg
Package(mm)	840×840×1140
Works supply	1 phase 220V power supply

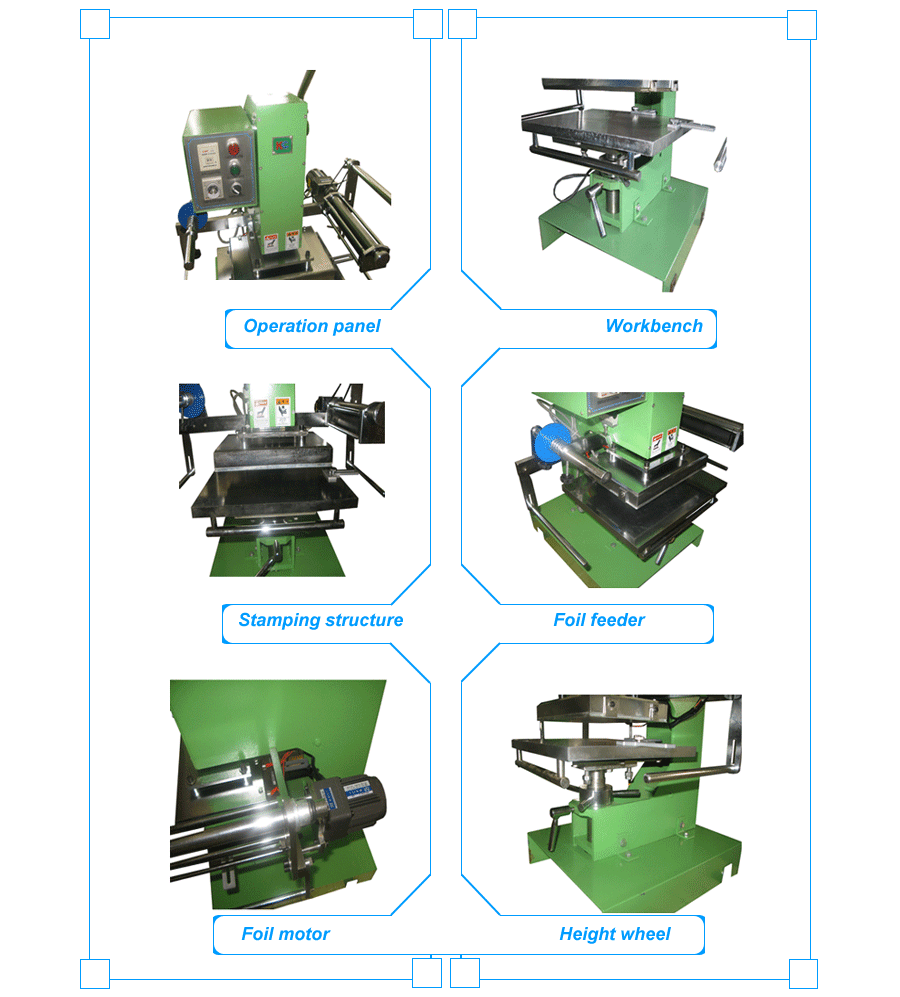

Manual Paper Gilding Machine //Details

Manual Paper Gilding Machine //Advantage

Table can be manually pulled out for easy product to take on and off;
Table can be back-front, rotate adjustment, quick easy safe operation;
Stamping plate with screw height adjustment control, precision and stability;
Automatic temperature control system, temperature can be set freely;
Stamping time can be adjusted;
Automatic Stamping foil feeding, Foil collection, foil collection time can be adjusted;
Heating pipe heating systems, long life, easy to replace;
Manual stamping operation, self-locking mechanism Pressing constant pressure;
High-strength steel plate and cast gilt table, flatness
