Belt Vacuum Packaging Machine for Chicken Packing

7 month ago

4 0 

Zhucheng Tongxi Commercial And Trade Co.,Ltd.

10 year

Product details

Vacuum Packaging Machine Introduction

Vacuum packaging machine is a device used to seal products in plastic bags from which the air has been removed, creating a vacuum inside the package. This process is also known as vacuum sealing. Based on different products with different packaging requirements ,vacuum packing machines can have different styles.

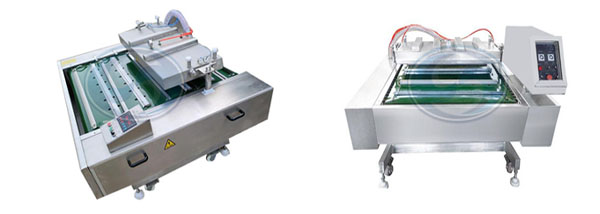

Rolling Vacuum Packaging Machine

Rolling vacuum packaging machine is a medium-sized vacuum packaging equipment, which is mainly used in meat product packaging and aquatic product packaging industries. This type of machine uses a conveyor belt system to move products through the packaging process efficiently. So,it is also called continuous blet vacuum packaging machine.

Features of the Rolling Belt Vacuum Packaging Machine

(1) The machine adopts intelligent digital display temperature control system to control the sealing temperature, high sealing strength, good sealing.

(2) Its body is made of 304 stainless steel, and the execution parts of the equipment are pneumatic control system, which simplifies the mechanical structure.

(3) The sealing machine adopts the pneumatic vacuum sealing method, and the electrical equipment adopts the independently developed programmable logic computer board controller, which improves the production efficiency and service life of the equipment.

Machine's Parameters

Over Dimension	176019401120mm	Vacuum Chamber Size	1220605100mm
Max Packing Length	240mm	Vacuum Model	200m³/h

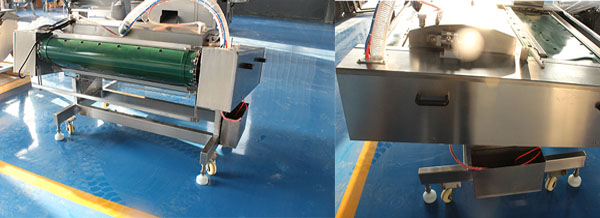

Structure of the Continuous Rolling Belt Vacuum Packaging Machine
The composition of such a machine includes the upper cover of the vacuum chamber, the transmission belt, the frame and transmission, the electrical appliances and the vacuum system.The vacuum pump is usually installed outside the machine, while the drive system and electrical system are located inside the boxes on both sides of the machine.

Working Principle and Videos

Conveyor Belt-----Vacuum Chamber -----Sealing-----Output

1.When packing,the product moves through the Continuous Rolling Belt Vacuum Packaging Machine on a conveyor belt, which allows for a continuous flow of items being packaged.

2. As the product moves along the belt, it enters a chamber where air is removed from the package, creating a vacuum. This process helps in extending the shelf life of the product by removing oxygen that can cause spoilage.

3. After the air is removed, the package is sealed, often using heat sealing technology, to keep the vacuum intact and protect the product.

4. The vacuum-sealed product then moves out of the chamber and continues down the conveyor belt until it reaches its final position or is removed from the belt.

Use Applicaiton

This machine is particularly useful for packaging foods like meats, cheeses, and vegetables, as well as non-food items that benefit from vacuum packaging, such as pharmaceuticals or electronics. It helps prevent spoilage, reduces oxidation, and can enhance the appearance and quality of packaged goods.
