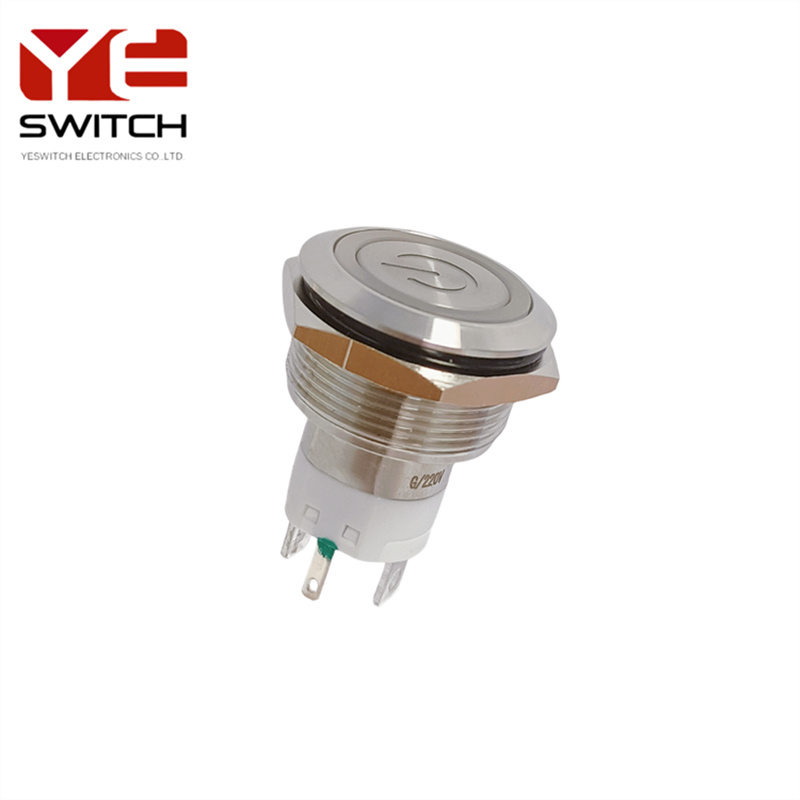

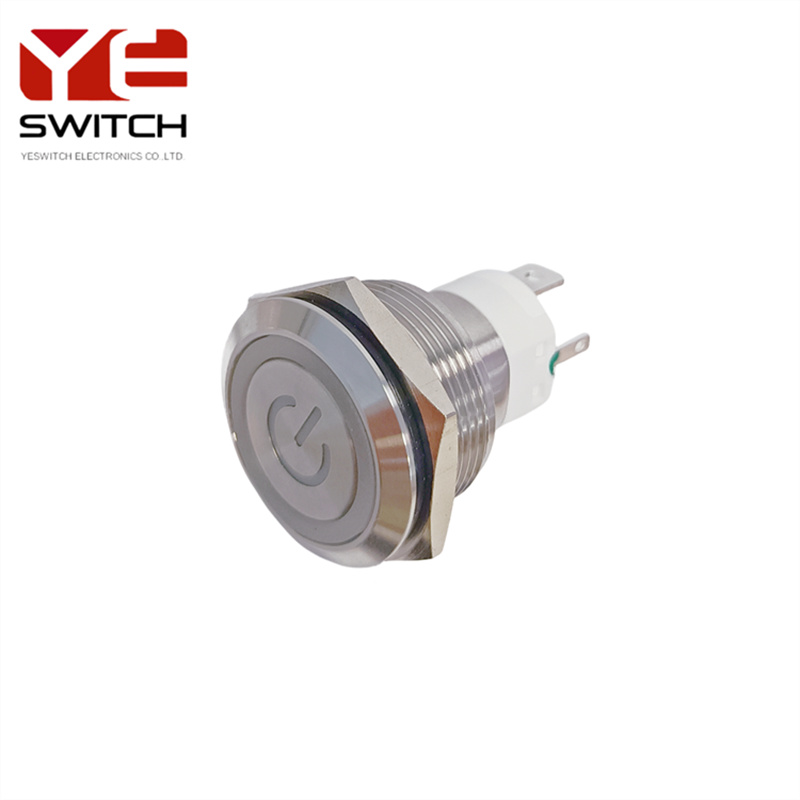

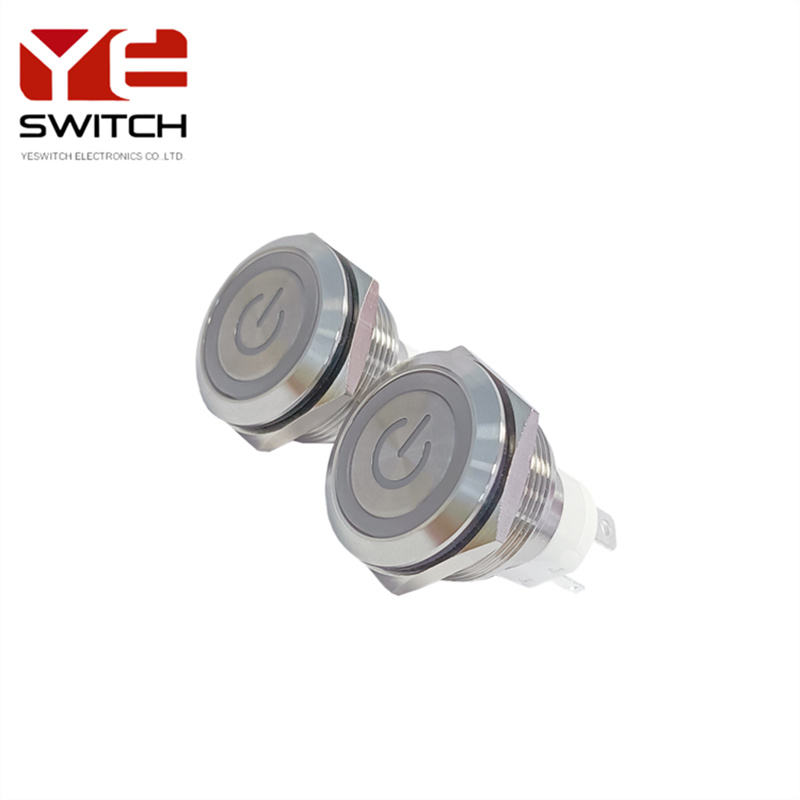

YESWITCH 22mm 16A IP67 Metal Push Button Switch

YESWITCH 22mm 16A high current IP67 rated metal push button switch with UL certification.A compact and powerful high-current waterproof push button switch that combines exceptional performance with a premium look and feel. Constructed with a shell made of stainless steel, the metal switches exude durability and sophistication, making it a reliable choice for any application.The anti-vandal switches flat-headed design, coupled with the latching type operation,ensures comfortable and secure operation.

With a remarkable capacity to handle 16A/250VAC, this miniature waterproof push button switches deliver outstanding power in a compact design.The metal push button switch features a 16/19/22/25/30mm mounting diameter and is built to withstand harsh environments with its IP67 waterproof rating, ensuring complete protection against water, dust and moisture. Additionally, it boasts an IK08 rating, making water-proof metal switches highly resistant to impact and mechanical stress.

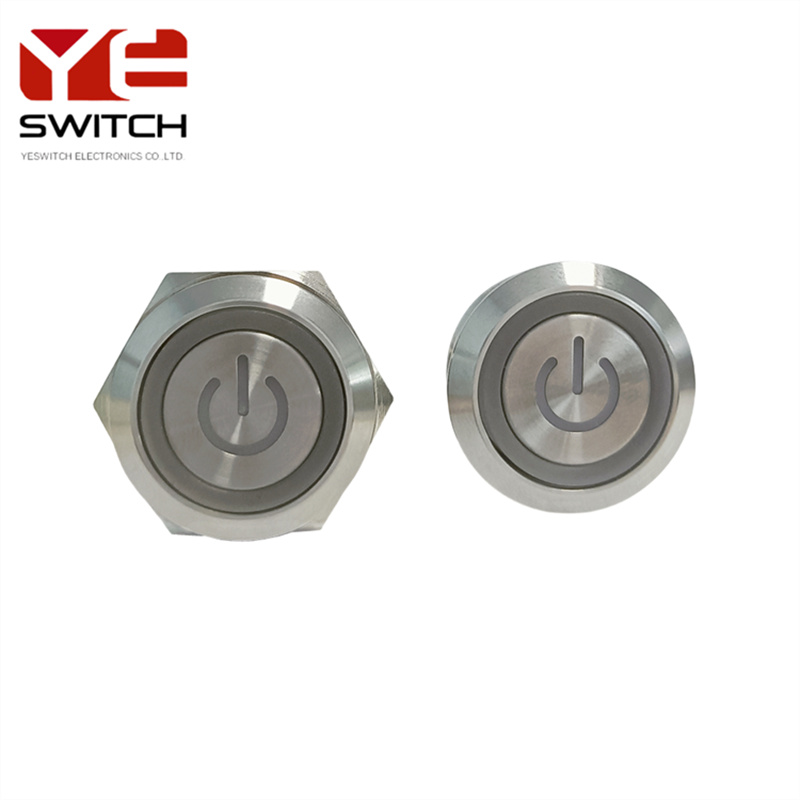

Stay informed with the integrated annular (ring+power) plus luminous line LED indication, providing clear visual feedback on the switch's status.

Upgrade your control system with the 16A PBM series and experience the perfect combination of power, durability, and elegance. With its compact size, high current capacity, and premium design, this metal push button switch is a standout choice for any application that demands reliable performance and exceptional quality.

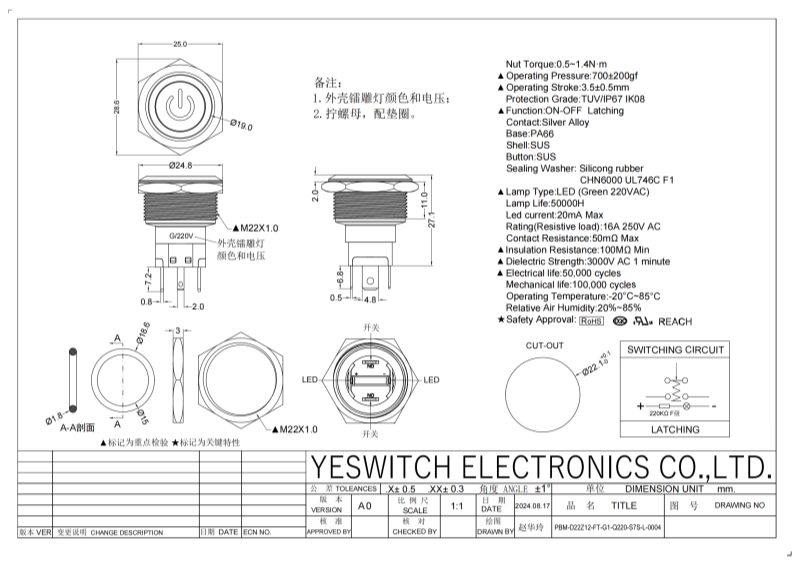

SPECIFICATION

Model No.:PBM-D22Z12-FT-G1-Q220-S7S-L-0004
Nut Torque:0.5~1.4Nm
Operating Pressure:700±200gf
Operating Stroke:3.5±0.5mm
Protection Grade:TUV/IP67 IK08
Function:ON-OFF Latching
Contact:Silver Alloy
Base:PA66
Shell:sus
Button:SUS
Sealing Washer: Silicone rubber CHN6000 UL746CF1
Lamp Type:LED(Green 220VAC)
Lamp Life:50000H
Led current:20mA Max
Rating(Resistive load):16A 250V AC
Contact Resistance:50m ohm Max
Insulation Resistance:100m ohm Min
Dielectric Strength:3000VAC 1 minute
Electrical life:50,000 cycles
Mechanical life:100,000 cycles
Operating Temperature:-20~85 Degrees
Relative Air Humidity:20%~85%
