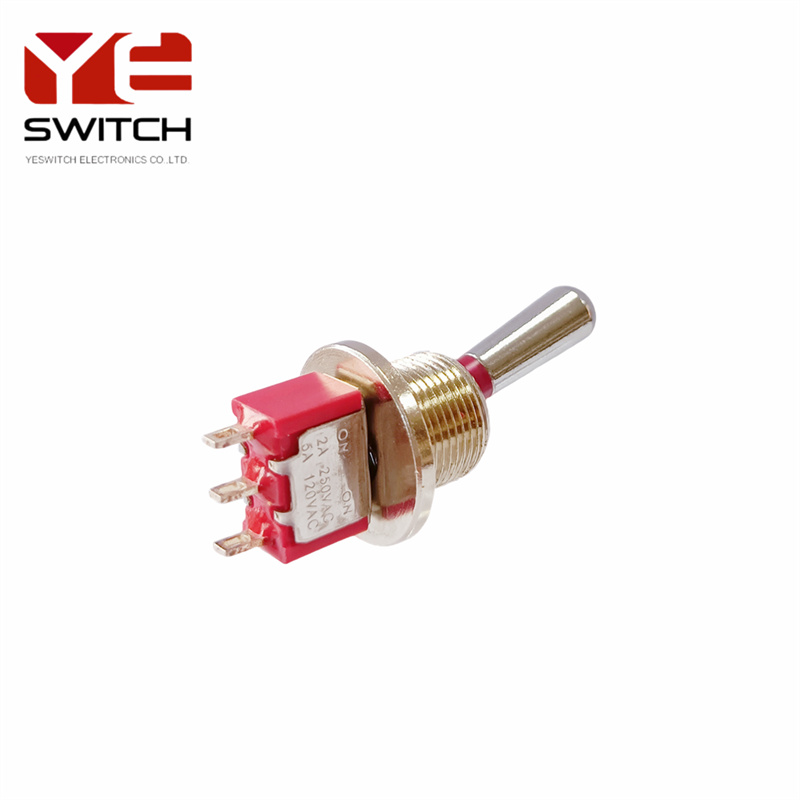

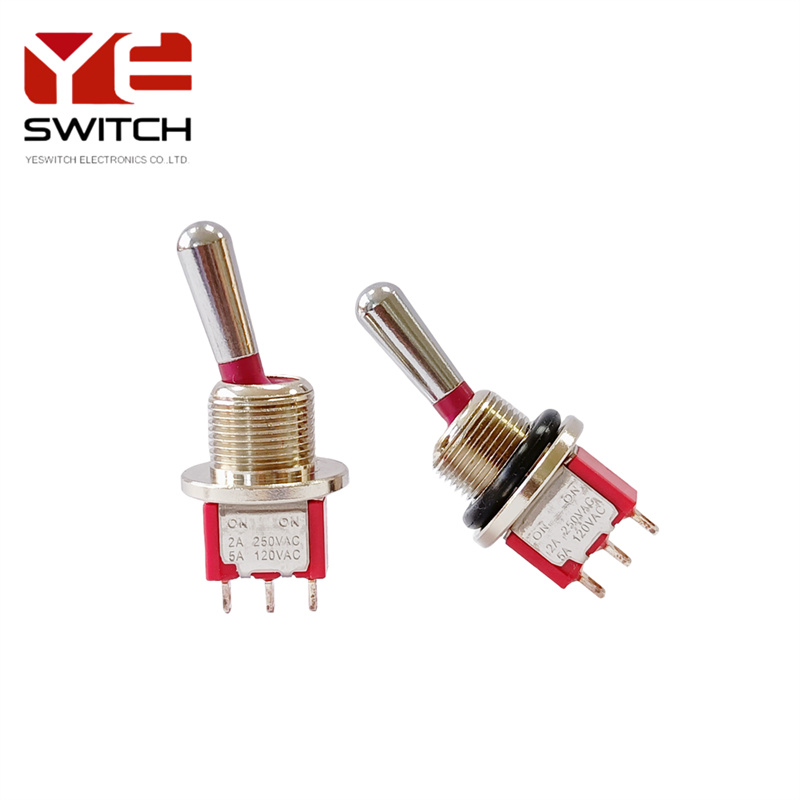

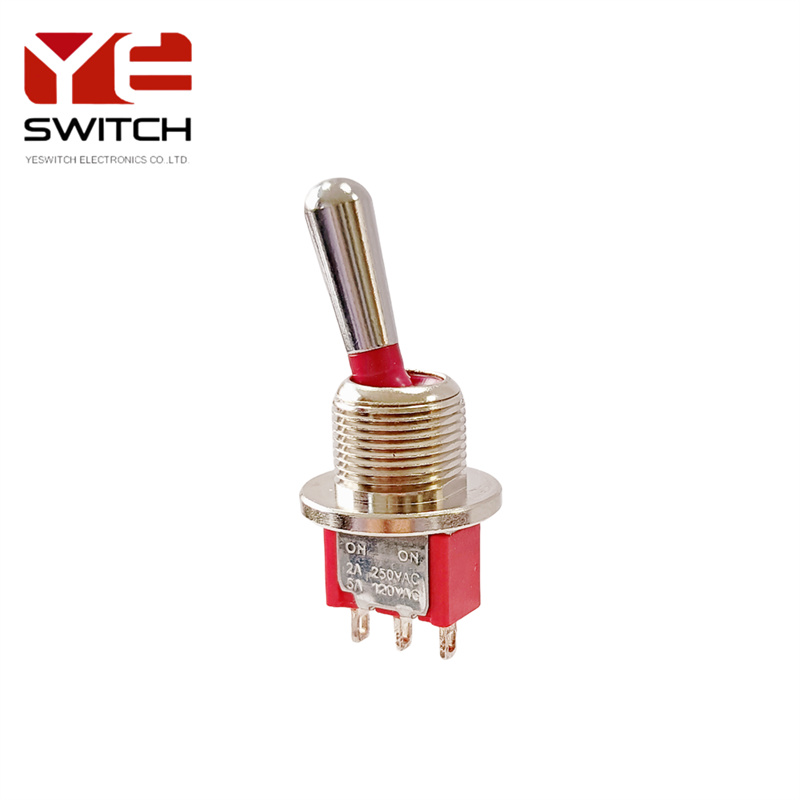

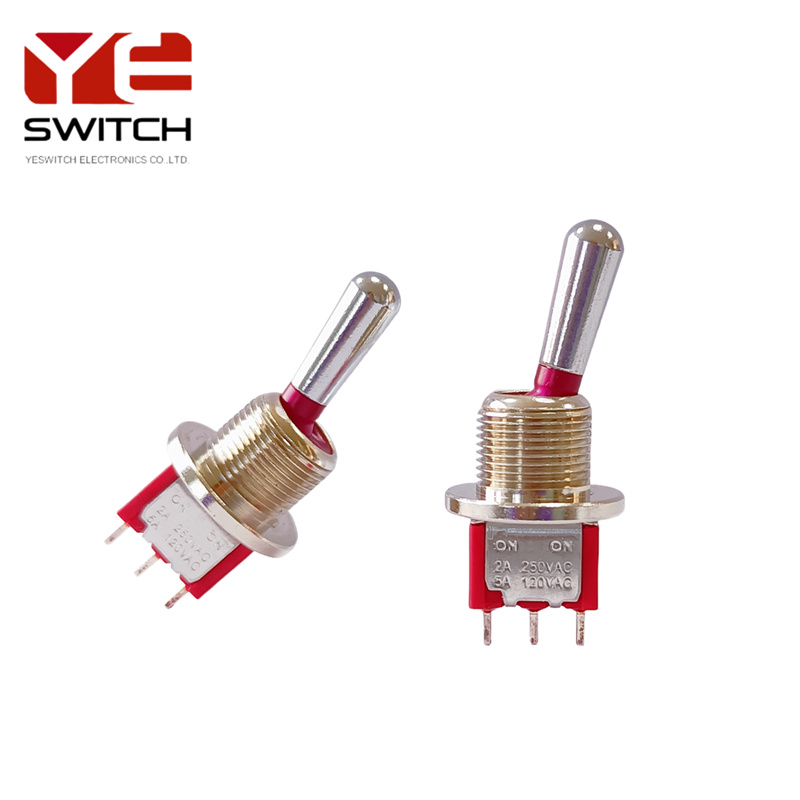

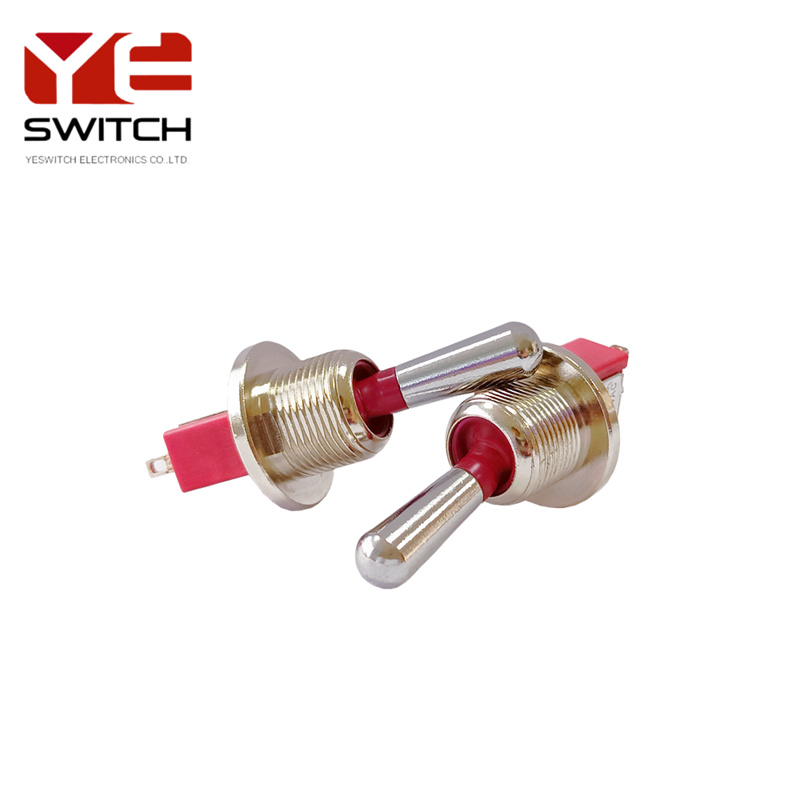

1M Series SPDT Miniature Splash Proof Toggle Switches

5 month ago

25 0 

7 year

Product details

1M Series SPDT Miniature Splash Proof Toggle Switches

As a delicate and practical electronic component, the miniature toggle switch not only has excellent functional characteristics, but also actively responds to the global trend of environmental protection and safety. Its UL certification indicates that the product has reached internationally recognized high standards in electrical safety, providing users with reliable safety protection. UL certification is an important pass for products to enter the international market. It ensures that the switch can meet strict safety requirements during design, manufacturing and use.

At the same time, the miniature toggle switch complies with the RoHS specification, which is the EU directive on restricting the use of certain hazardous substances in electrical and electronic equipment. This means that in the production process, the use of hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls and polybrominated diphenyl ethers is strictly avoided, thereby reducing potential harm to the environment and human body, reflecting the manufacturer's high sense of responsibility for environmental protection.

In terms of material selection, in order to further protect the earth, the toggle switches adopt a halogen-free design.

Halogen compounds may release toxic gases at high temperatures, while the use of halogen-free materials can effectively reduce this risk, especially in extreme cases such as fire, reducing secondary damage to the environment and personnel. This move is not only in line with the current environmental protection trend, but also a positive contribution to future sustainable development.

In addition, the ON-ON toggle switch also has a splash-proof design, which enables it to resist the intrusion of moisture and dirt to a certain extent, increasing the safety and reliability of use. This feature makes it widely used in a variety of application scenarios such as medical equipment and mechanical equipment. In medical equipment, splash-proof toggle switches can effectively prevent short circuits or failures caused by liquid splashing, ensuring the stable operation of medical equipment and the safety of patients; in mechanical equipment, it can improve the durability and ease of operation of the equipment, and adapt to various complex working environments.

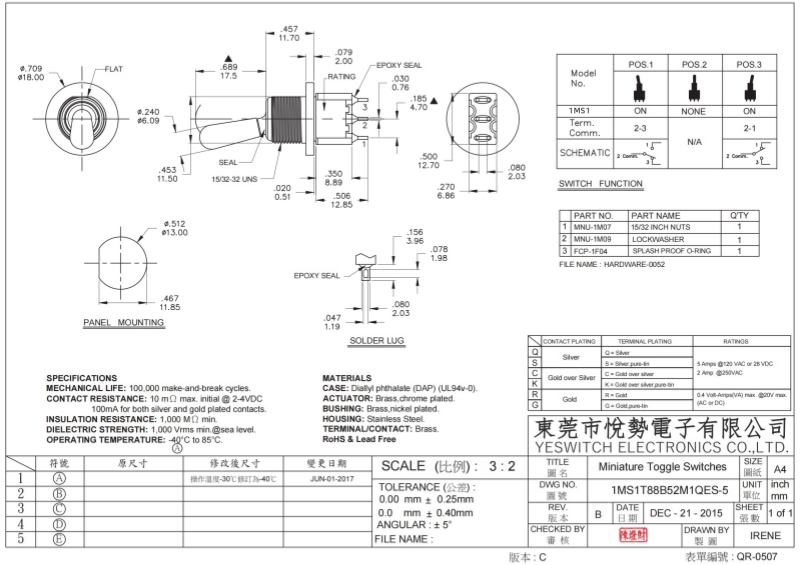

SPECIFICATIONS

MECHANICAL LIFE:100,000 make-and-break cycles.
CONTACT RESISTANCE:10 m ohm max, initial @ 2-4VDC
100mA for both silver and gold plated contacts.
INSULATON RESISTANCE: 1,000 M ohm min.
DIELECTRIC STRENGTH: 1,000 Vrms min.@sea level.
OPERATING TEMPERATURE: -40 to 85 degrees.

MATERIALS

CASE: Diallyl phthalate (DAP)(UL94v-0).
ACTUATOR: Brass,chrome plated.
BUSHING: Brass,nickel plated.
HOUSING: Stainless Steel.
TERMINAL/CONTACT: Brass.
UL,RoHS,Lead-free
