Waterproof 12mm Momentary Push Button Switch

9 month ago

21 0 

7 year

Product details

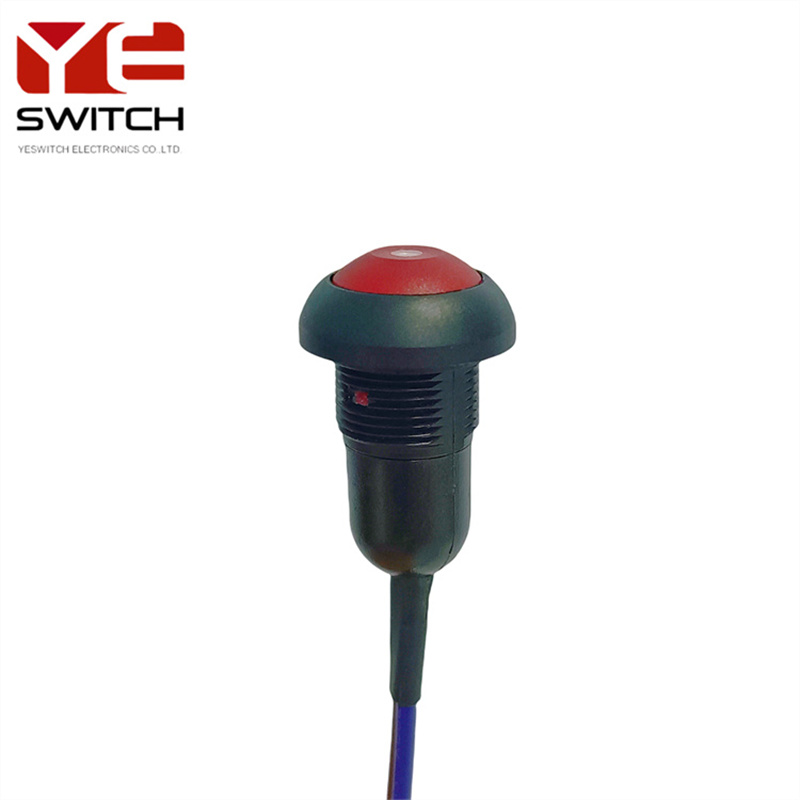

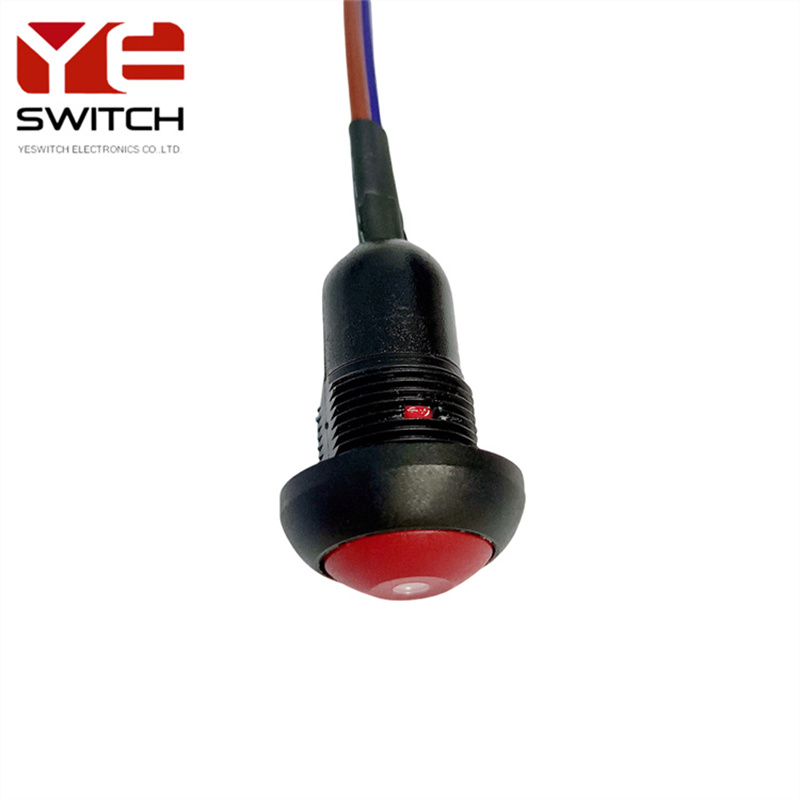

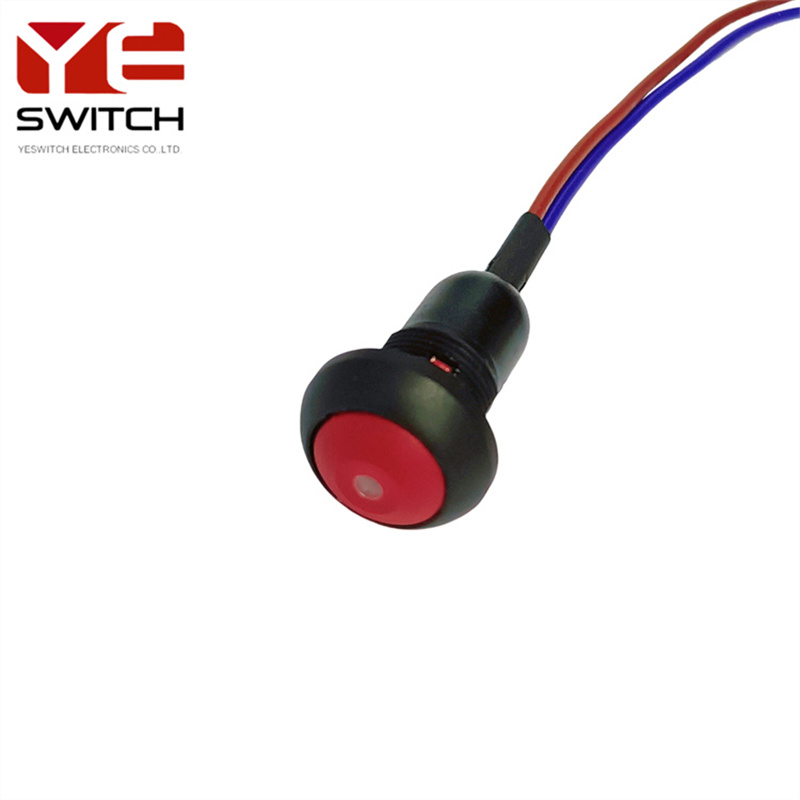

Waterproof 12mm Momentary Mini Round Push Button Switch with Wire

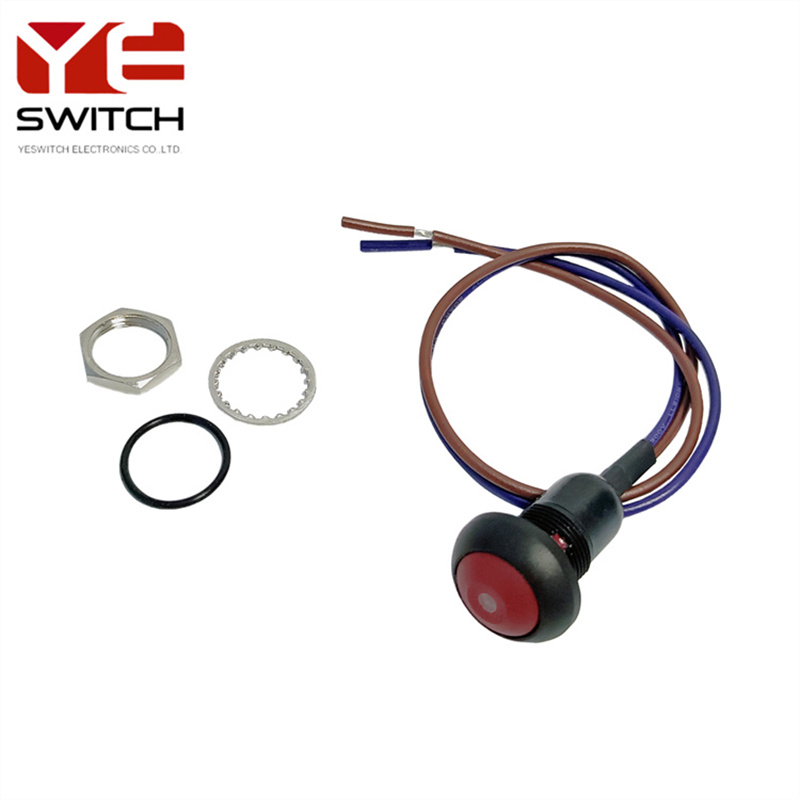

The waterproof 12mm mini round push button switch is engineered for momentary functionality.Simply push and hold to turn it ON, and release to turn it OFF.This feature provides precise control in various applications.With its wire design,this waterproof push button switch is exceptionally easy to install,eliminating the need for complex wiring.This saves time and reduces unnecessary costs associated with additional components.

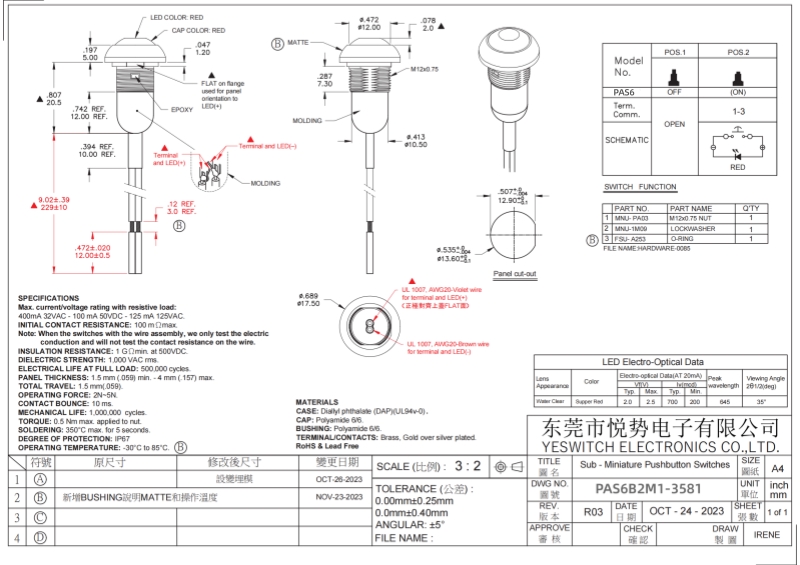

The push button switches designed with a 12mm mounting cut hole and a head diameter of 17.5mm,this mini round automotive push button switches fit seamlessly into a range of equipment and control panels,ensuring a neat and professional appearance.The switch boasts a commendable rating of 400mA at 32VAC,guaranteeing reliable and efficient operation. Additionally,the push button switches feature a contact resistance of 100mΩ,further enhancing its performance and longevity.

The waterproof 12mm mini round push button switch are ideal for demanding applications in harsh environments where water, moisture or dust are problematic.Such as communications,data entry,hand-held control modules,outdoor controls,mass transport controls,instrumentation and industrial.

SPECIFICATIONS

Max.current voltage rating with resistive load:400mA 32VAC-100 mA 50VDC -125 mA 125VAC
INITIAL CONTACT RESISTANCE: 100 mΩmax.
Note: When the switches with the wire assembly, we only test the electricconductlon and will not test the contact reslstance on the wire.
INSULATON RESISTANCE: 1 GRmin. at 500vDc.
DIELECTRIC STRENGTH: 1.000 VAC rms.
ELECTRICAL LIFE AT FULL LOAD: 500,000 cycles.
PANEL THICKNESS: 1.5 mm (.059) min.-4 mm (.157) max.
TOTAL TRAVEL: 1.5 mm(059).
OPERATING FORCE: 2N~5N.
CONTACT BOUNCE:10 mS.
MECHANICAL LIFE:1.000,000 cycles

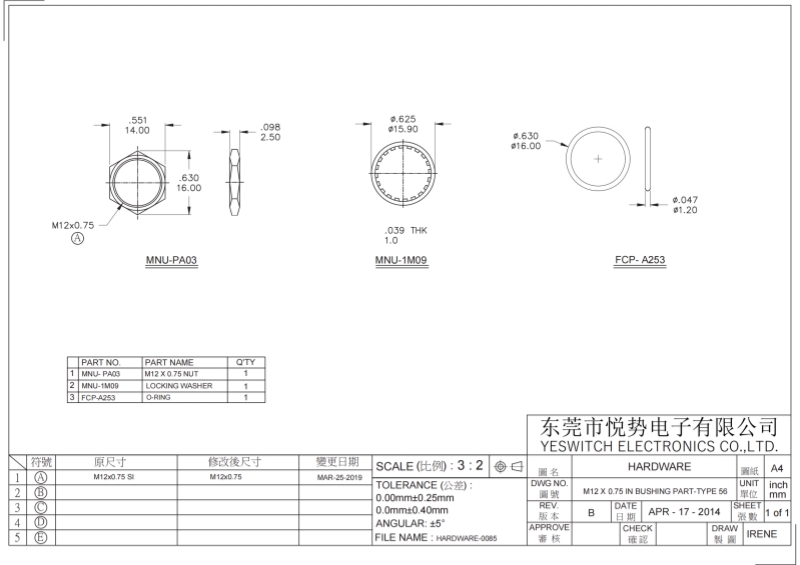

TORQUE: 0.5 Nm max. applied to nut.
SOLDERING: 350'C max.for 5 seconds.
DEGREE OF PROTECTION:IP67
OPERATNG TEMPERATURE: -30°C to 85°C.

MATERIALS

CASE: Diallyi phthalate (DAP)(UL944.0).
CAP: Polyamide 6/6.
BUSHING: Poiyamide 66.
TERMINAL/CONTACTS: Brass,Gold over silver plated.
