Use of terminal blocks
6 month ago
Product Parameters

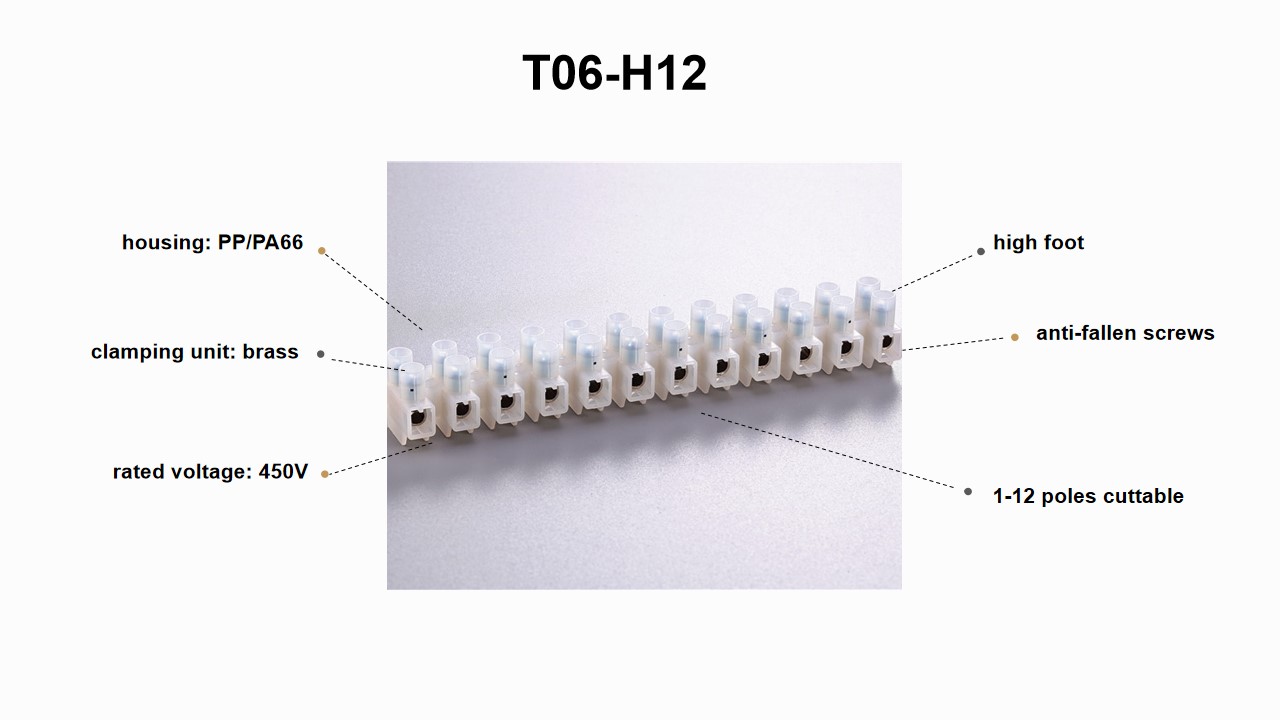

| Item No. | T06-H12 T06-H12W | ||
| Electrical Data | |||
| IEC/EN | UL | ||
| Rated Voltage (V) | 450 | 300 | |
| Rated Current (A) | 32 | FW1: 30 | |
| FW2: 20 | |||
| Ambient Temperature | Polyamide 66 (V2) | T110 | 105℃ |
| Polyamide 66 (V0) | T135 | 115℃ | |
| Connection Data | |||
| IEC/EN | UL | ||
| Cross Section | Solid conductor | 1.0-4.0mm² | AWG 12-20 |
| Stranded conductor | 1.0-4.0mm² | AWG 12-20 | |
| Flexible conductor | 1.0-4.0mm² | - | |
| Strip length (mm) | 7 | ||
| Means of connection | screw fixed | ||
| Screw | M3 | ||
| Rewirable | √ | ||
| Number of terminals | multiway | ||
| Number of connection points | 1-12 | ||
| Means of Fixing | |||
| screw fixed | |||
| Materials | |||
| Insulation Materials | Designation | Polyamide 66 | |
| Flammability class | UL 94V-0 | UL 94V-2 | |
| Clamping Unit | brass, stainless steel (wire protector) | ||
| Compatible Products | |||
| Junction boxes | 410, 415, TB-02 | ||
| Packing Quantity (pcs/carton) | |||
| 500 | |||
