How to adjust the servo motor encoder to zero?

6 month ago

1 0 

Jinan Keya Electron Science And Technology Co., Ltd.

6 year

Product details

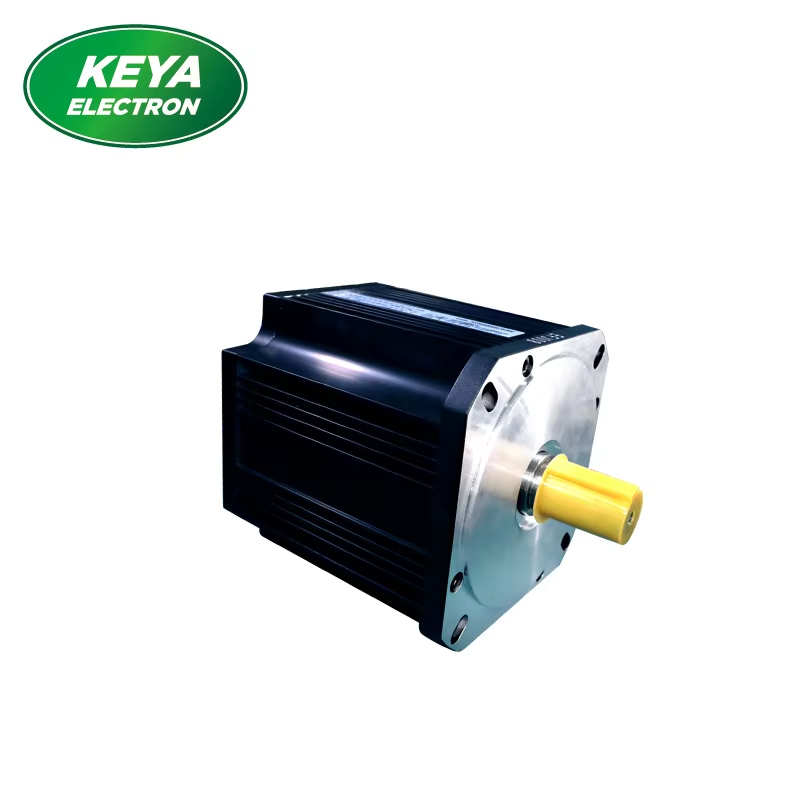

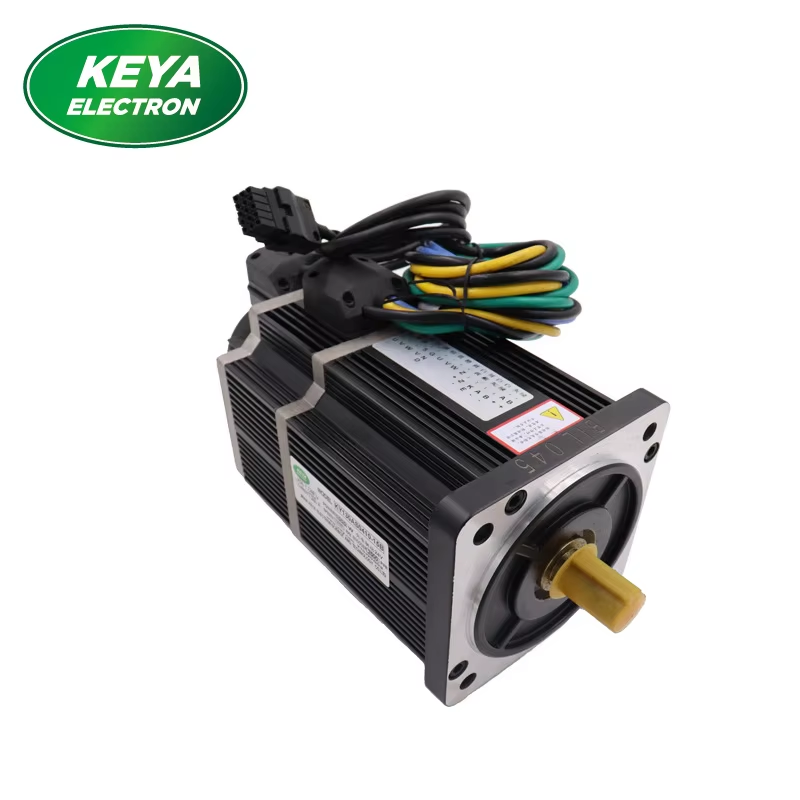

48v 3000w bldc servo motor with encoder and brake

Model:KY130AS0430-30B

The 48V 3000W BLDC servo motor with encoder and brake is a high-performance motor designed for precision control applications. This brushless DC motor operates efficiently at 48V, delivering 3000W of power for smooth and reliable operation. The integrated encoder provides accurate position feedback, allowing for precise control and positioning in various applications. Additionally, the built-in brake ensures quick and secure stopping when needed.

BLDC motors, short for brushless DC motors, offer several advantages over traditional brushed motors. They operate using electronic commutation, eliminating the need for brushes and resulting in lower maintenance requirements and longer lifespan. BLDC motors are known for their high efficiency, smooth operation, and precise control, making them ideal for applications requiring accurate speed and position control.

In summary, the 48V 3000W BLDC servo motor with encoder and brake combines power, precision, and reliability, making it a versatile choice for a wide range of industrial and automation applications.

Specification

Rated voltage	48V
Rated power	3000W
Rated current	78A
Rated speed	3000rpm
Rated torque	9.55N.m
Peak torque	28.5N.m
Motor length	130mm
Encoder	incremental encoder(optional)
Brake	48V
Weight	16kg

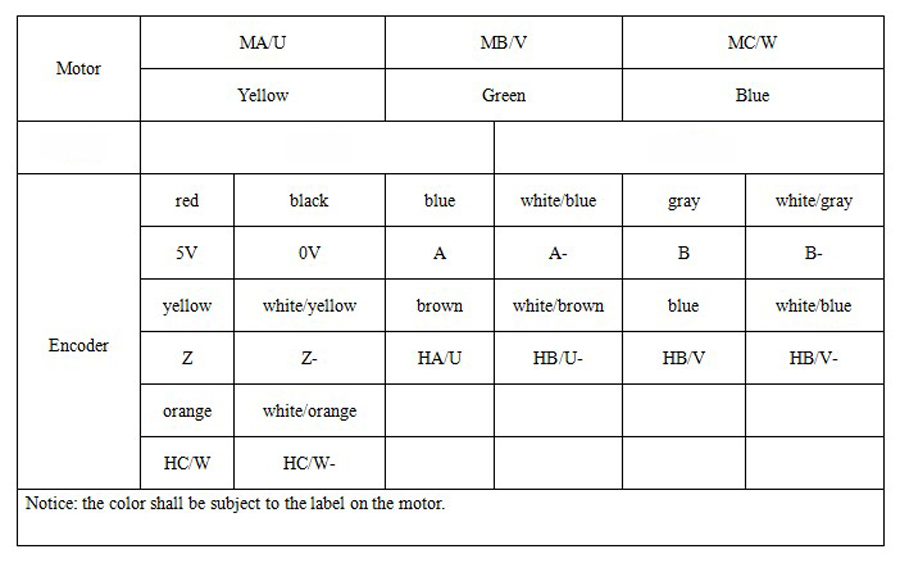

Connect Cable

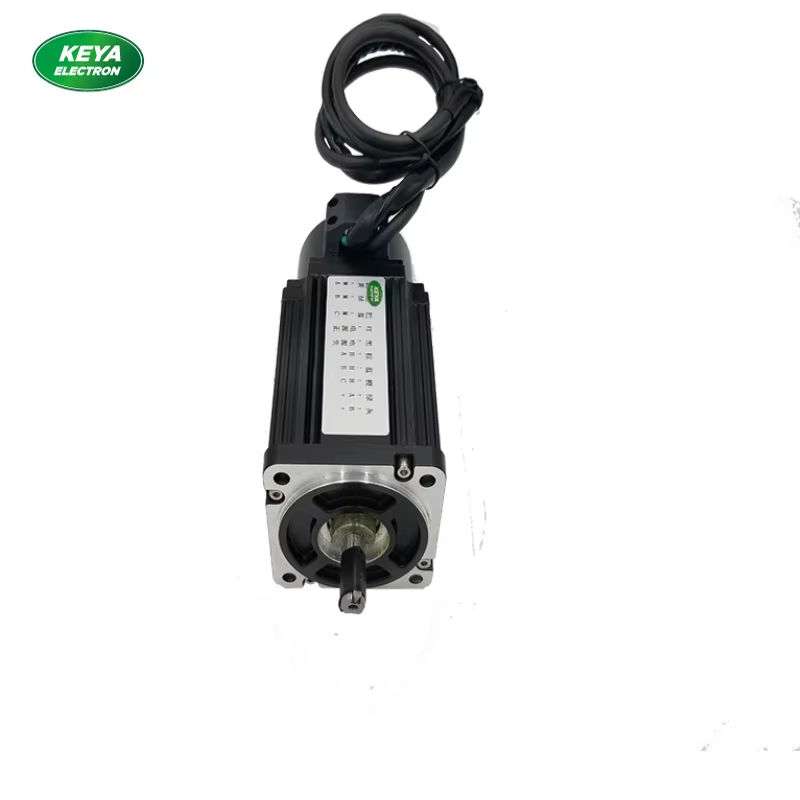

Bldc Servo 800w

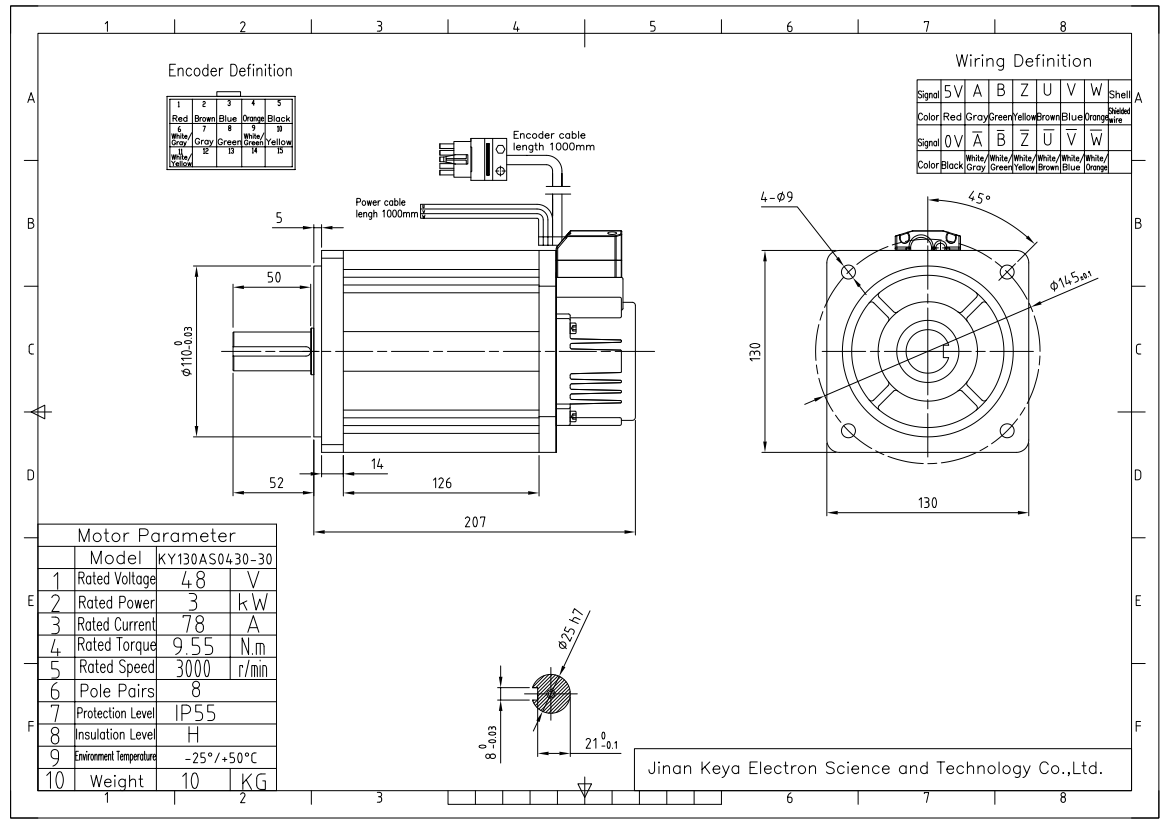

Drawing

48v 3000w 3000R

servo motor with brake drawing as below:

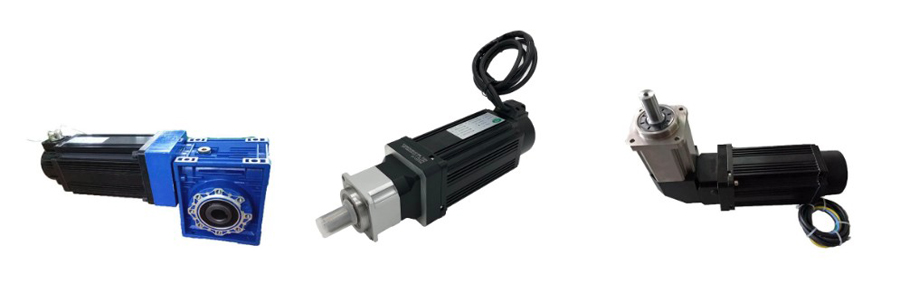

Motor With Gearbox

We also can provide the matched gearbox with the high power servo motor for sale together, to reduce the speed and get the higher torque.

Gear box range: line planetary gearbox, right angle planetary gearbox, worm gearbox, if you need other gearbox, kindly advise.

dc servo Motor
