YESWITCH IP67 Electronic Joystick Handle Rocker Switch

5 month ago

10 0 

7 year

Product details

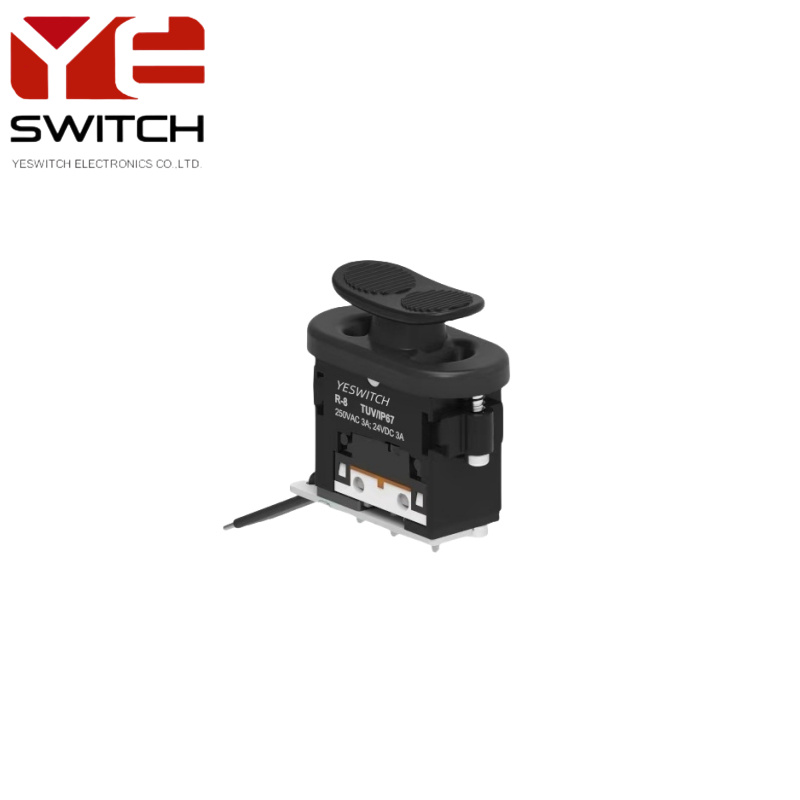

YESWITCH IP67 Electronic Joystick Handle Rocker Switch

This is a rocker switch specifically designed for electronic control handles of engineering vehicles, agricultural machinery, and handheld devices. With an IP67 protection rating, this rocker switch boasts exceptional dust and waterproof performance, enabling it to withstand harsh outdoor working environments and ensure stable operation of the equipment.

Functional Features:

Momentary or Latching Function: The rocker switches offer both momentary (reset) and latching (self-locking) functions to cater to diverse application scenarios. The momentary function is suitable for operations requiring brief signal triggering, while the latching function is ideal for operations needing a sustained state.

2NO2NC Contact Configuration: Equipped with two normally open (NO) and two normally closed (NC) contacts, the waterproof rocker switch provides flexible circuit connection options, accommodating a wide range of complex circuit control requirements.

Automotive-Grade Quality: The IP67 rocker switch meets automotive-grade standards, characterized by high reliability, long lifespan, and excellent electrical performance, making it well-suited for the demanding working conditions of engineering vehicles and agricultural machinery.

Performance Parameters:

Mechanical Lifespan: Exceeding 1 million cycles, ensuring the switch maintains good performance and stability during long-term use.

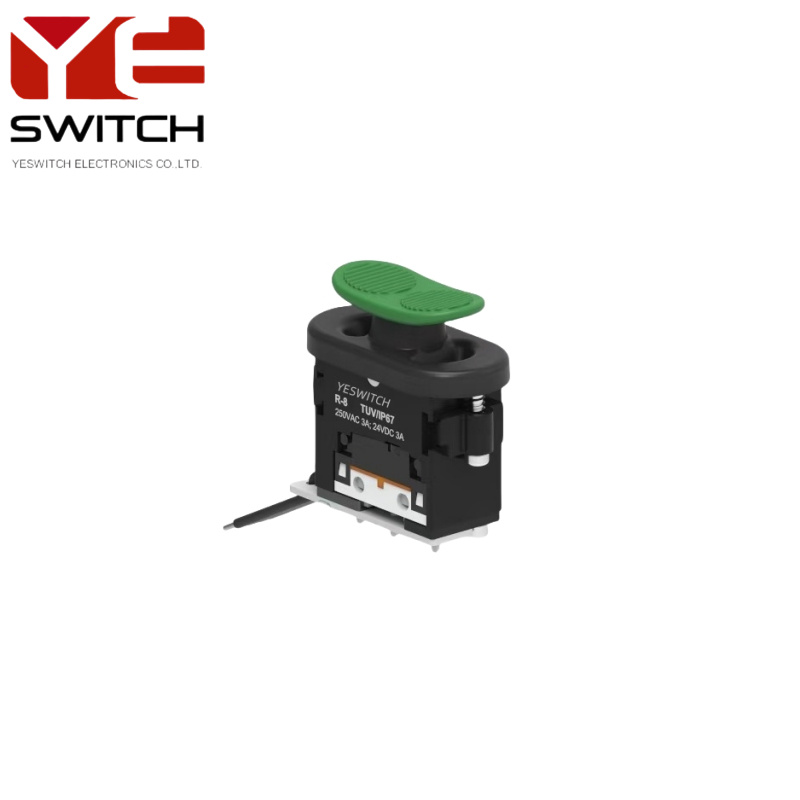

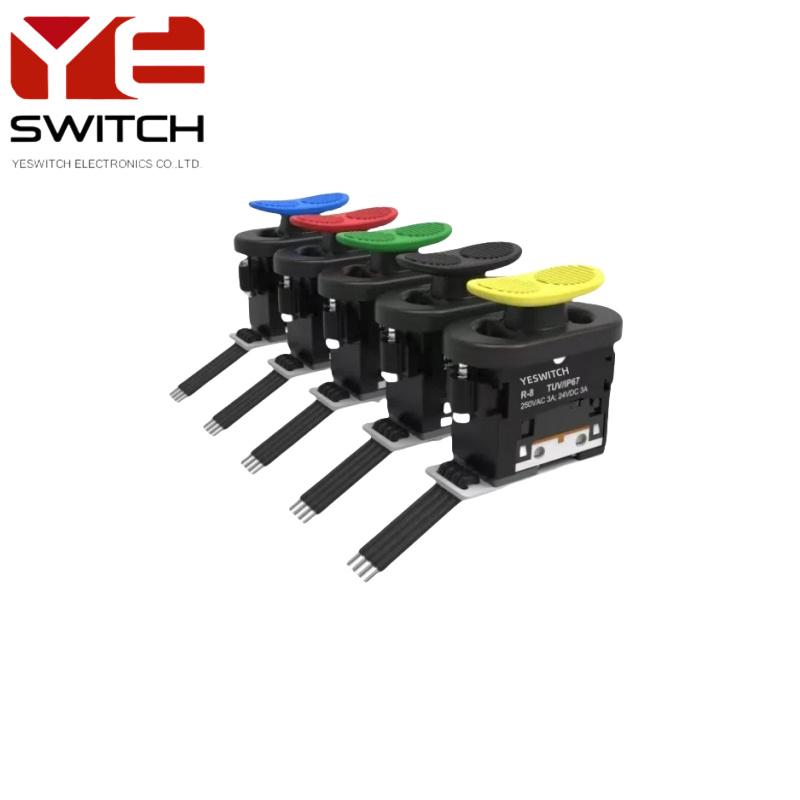

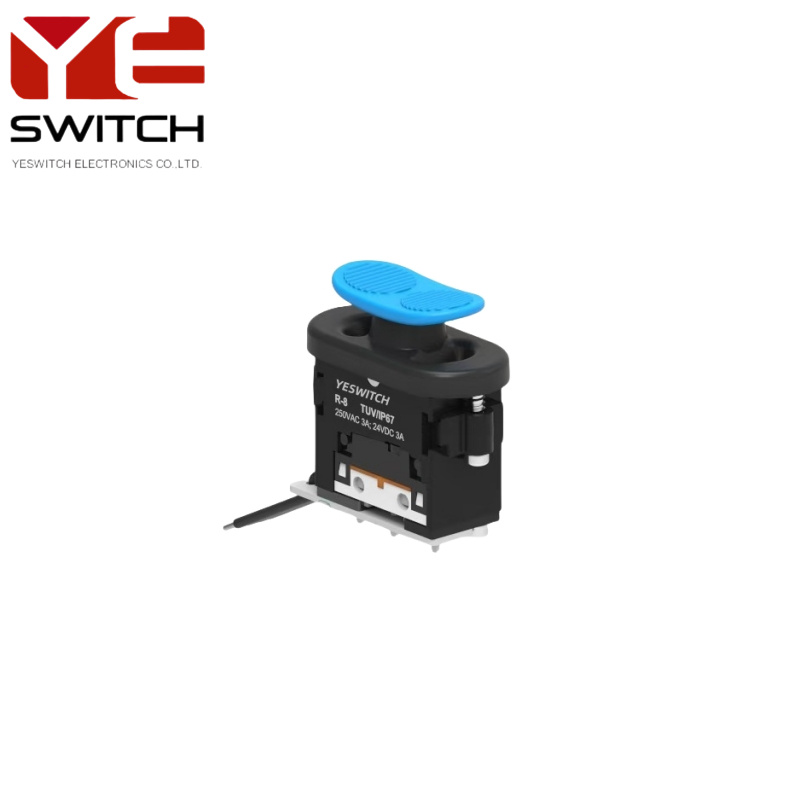

Multiple Button Color Options: A variety of button colors are available for user selection, satisfying the personalized needs of different equipment or users.

Application Fields:

Engineering Vehicles: Such as excavators, loaders, rollers, etc., for controlling crucial operations like starting, stopping, and steering.

Agricultural Machinery: Including tractors, harvesters, seeders, etc., for achieving automated control and operation of the equipment.

Handheld Devices: Like electric tools, detection instruments, etc., providing convenient switch control functionality.

This IP67 engineering machinery automotive rocker switch, with its outstanding protection rating, flexible functional configuration, high reliability, and long lifespan, has become the ideal choice for electronic control handles of engineering vehicles, agricultural machinery, and handheld devices. It not only meets the requirements of various harsh working environments but also provides users with a more convenient and safe operational experience.

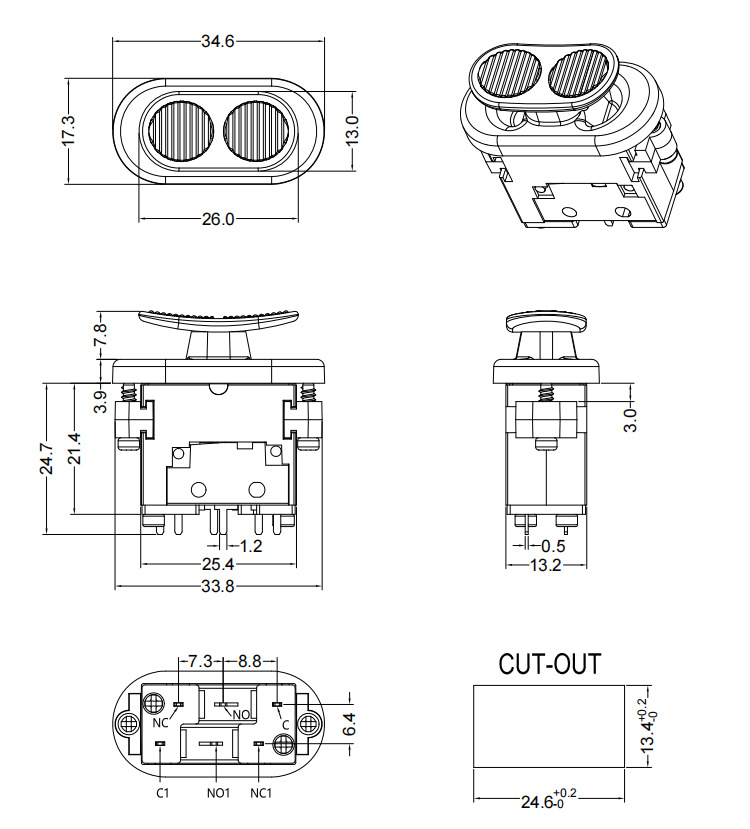

SPECIFICATIONS

Operating Types:Rocker Switches
Contact Rating:3A 125V/250VAC ,3A 12V/24V DC
Contact Configuration: ON-OFF-ON,( 65649005,ON)-OFF-(ON)
Operating Temperature:-25~ +85 Degrees(no freezing) keep the air flowing around the illuminated push button
Operating Humidity:45 ~ 85%RH(no condensation)
Mechanical Life:50,000 Cycles min
Electrical Life:300,000 Cycles min
Contact Resistance:50m ohm max
Insulation Resistance:100M ohm min
Dielectric Strength:3000 VAC 50Hz
Vibration Resistance:50Hz Amplitude 1.0mmp-p

MATERIALS

BUSHING:PA66
BASE:PA66
ACTUATOR:PC,PA66
INNER ASSEMBLY :POM/PA66.
SPRING:Spring steel.
TERMINAL:Brass,with silver or gold plated.
