48V 4000W DC SERVO MOTOR

 high torque 48V 1500r 5KW Brushless dc servo motor

A DC servo motor is a type of electric motor that is designed to provide precise control of angular position, velocity, and acceleration. It operates on direct current (DC) and is typically used in applications where accurate control of movement is essential, such as robotics, CNC machinery, and automation systems.

Key features of DC servo motors include:

1. Feedback Mechanism: DC servo motors often incorporate a feedback system, such as an encoder or a potentiometer, which provides real-time information about the motor's position and speed. This feedback allows for precise control and adjustments.

2. Closed-Loop Control: The feedback mechanism enables closed-loop control, where the motor's performance is continuously monitored and adjusted based on the desired output. This results in high accuracy and responsiveness.

3. High Torque at Low Speeds: DC servo motors can deliver high torque even at low speeds, making them suitable for applications that require strong starting torque and smooth operation.

4. Speed Control: By varying the voltage or current supplied to the motor, the speed can be easily controlled, allowing for versatile applications.

5. Compact Design: Many DC servo motors are designed to be compact and lightweight, making them easy to integrate into various systems.

Overall, DC servo motors are widely used in applications that require precise motion control, making them essential components in modern automation and robotics.







Related Products

Model		Voltage	Power	Rated speed	Rated current	Rated torque	Peak torque	Length	Shaft Dia	Weight
Frame	Unit	V	W	RPM	A	N.m	N.m	mm	mm	kg
60*60mm	KY60AS0201-30	24	100	3000	5.4	0.31	0.95	147	⌀11	1.4
	KY60AS0202-30	24	200	3000	10.4	0.63	1.89	147	⌀11	1.4
80*80mm	KY80AS0202-15	24	200	1500	10.4	1.27	3.8	142.5	⌀14	2.3
	KY80AS0402-15	48	200	1500	5.2	1.27	3.8	142.5	⌀14	2.3
	KY80AS0204-15	24	400	1500	21.3	2.55	7.65	185	⌀14	3.5
	KY80AS0404-15	48	400	1500	10.4	2.55	7.65	185	⌀14	3.5
	KY80AS0204-30	24	400	3000	21	1.27	3.8	142.5	⌀14	2.3
	KY80AS0404-30	48	400	3000	10.4	1.27	3.8	142.5	⌀14	2.3
	KY80AS0407-30	48	700	3000	19.4	2.2	6.5	185	⌀14	3.5
110*110mm	KY110AS0405-15	48	500	1500	14	3.1	10.8	199	⌀14	6
	KY110AS0205-15	24	500	1500	26	3.1	10.8	223	⌀14	6.6
	KY110AS0408-15	48	800	1500	21	5	17.9	223	⌀14	6.6
	KY110AS0207-15	24	750	1500	39	4.7	16.6	246	⌀19	7.6
	KY110AS0408-25	48	800	2500	22	3	10.5	223	⌀14	6.6
	KY110AS0410-15	48	1000	1500	26	6.3	22	246	⌀19	7.6
	KY110AS0210-15	24	1000	1500	52	6.3	22	293	⌀22	10.2
	KY110AS0412-25	48	1200	2500	31	4.5	15.7	246	⌀19	7.6
	KY110AS0415-15	48	1500	1500	39	9.5	28	293	⌀19	10.2
	KY110AS0415-30	48	1500	3000	30	4.7	14.1	246	⌀19	7.6
	KY110AS0420-25	48	2000	2500	55	7.6	26	293	⌀22	10.2
130*130mm	KY130AS0410-15	48	1000	1500	26	6.3	22	186	⌀25	7.6
	KY130AS0415-15	48	1500	1500	37.5	9.5	28	207	⌀28	13
	KY130AS0430-15	48	3000	1500	73	19.1	57	273	⌀28	14.2

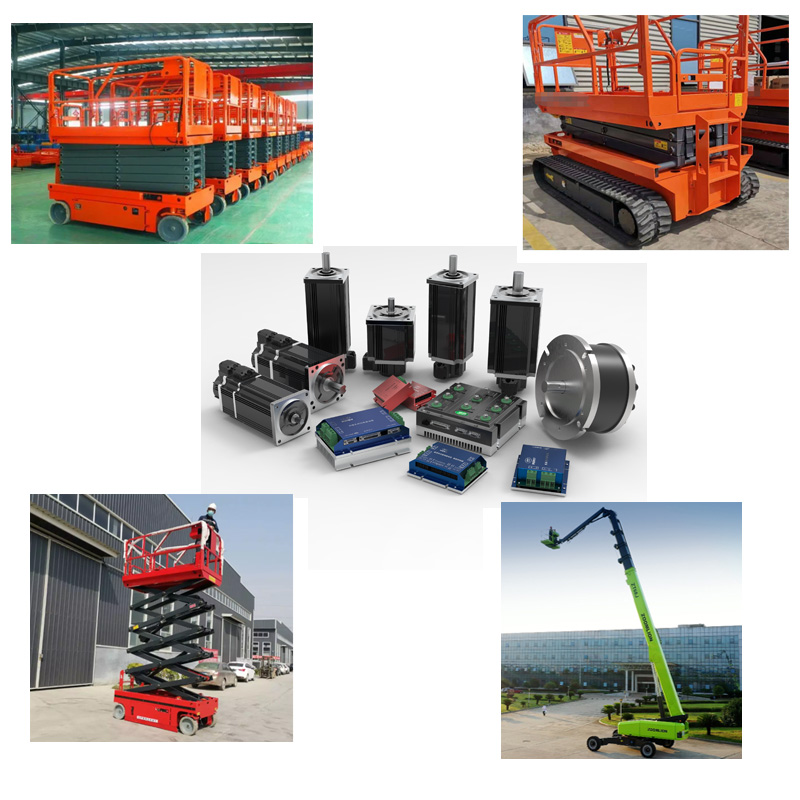

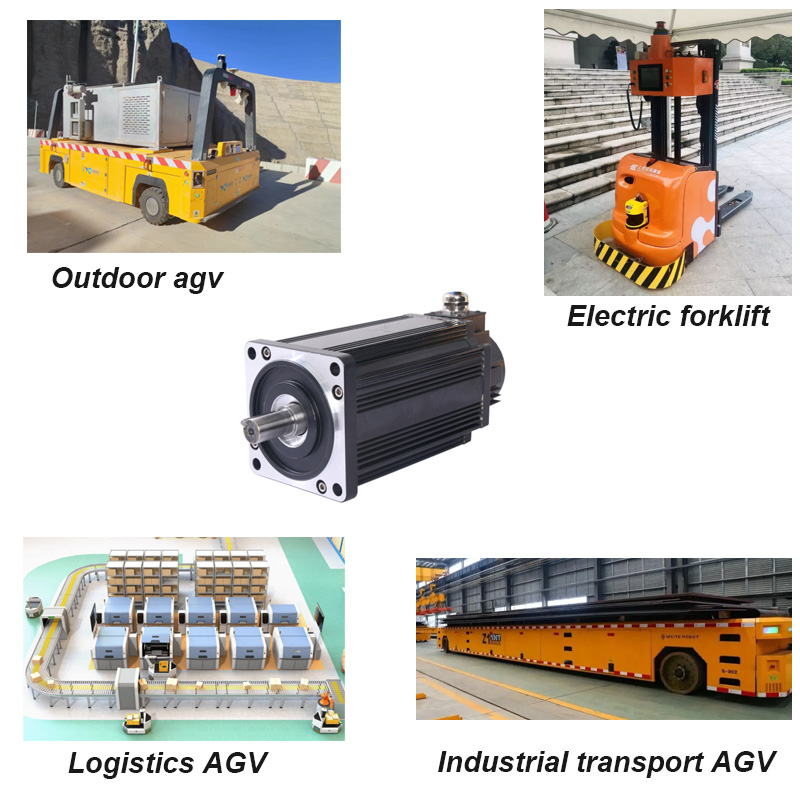

Product Application

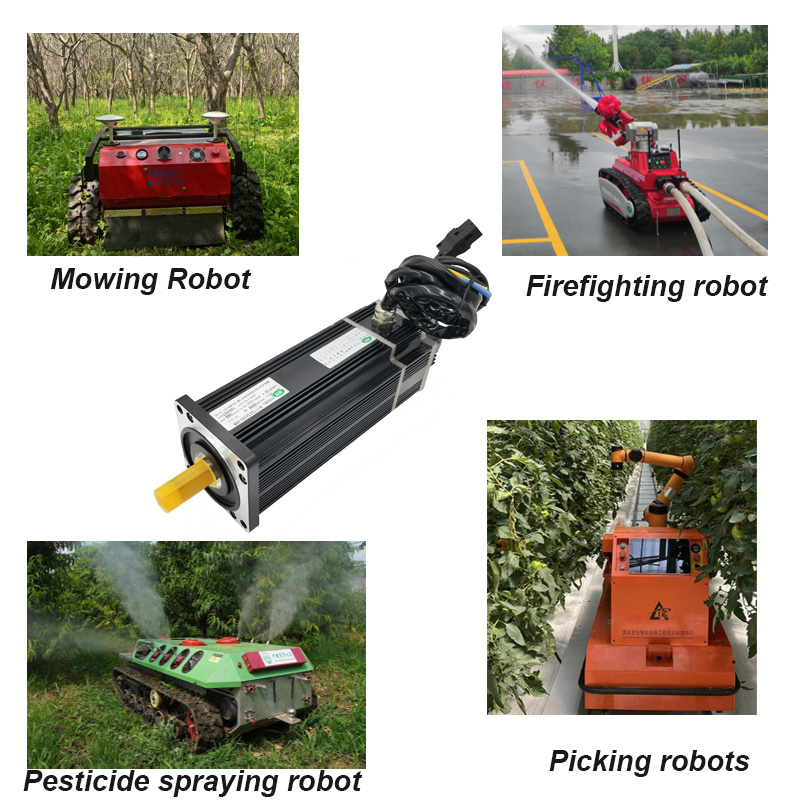

The sinusoid communication brushless servo motor 24v 400w be widely used in mobile robot, for example, crawler robot chassis, inspection robot, automatic guided vehicle, fire fighting robot, self-guided vehicle.
