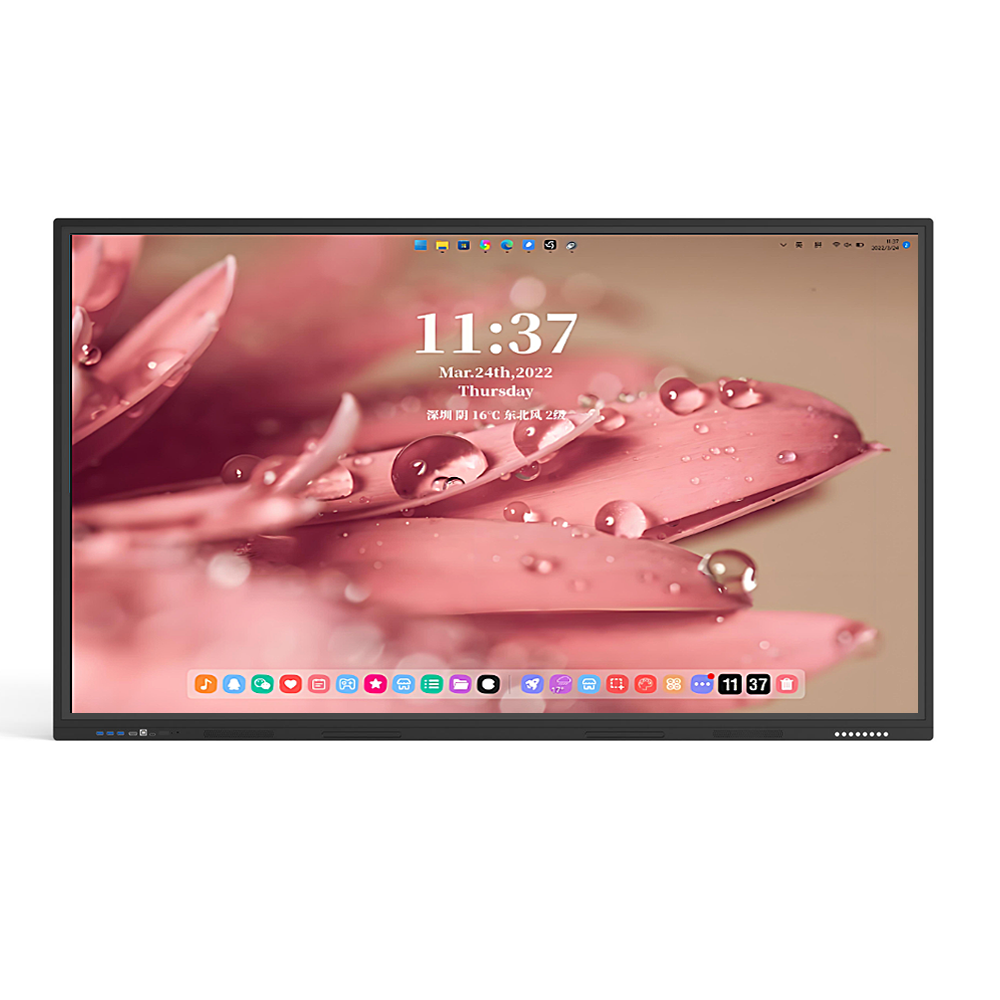

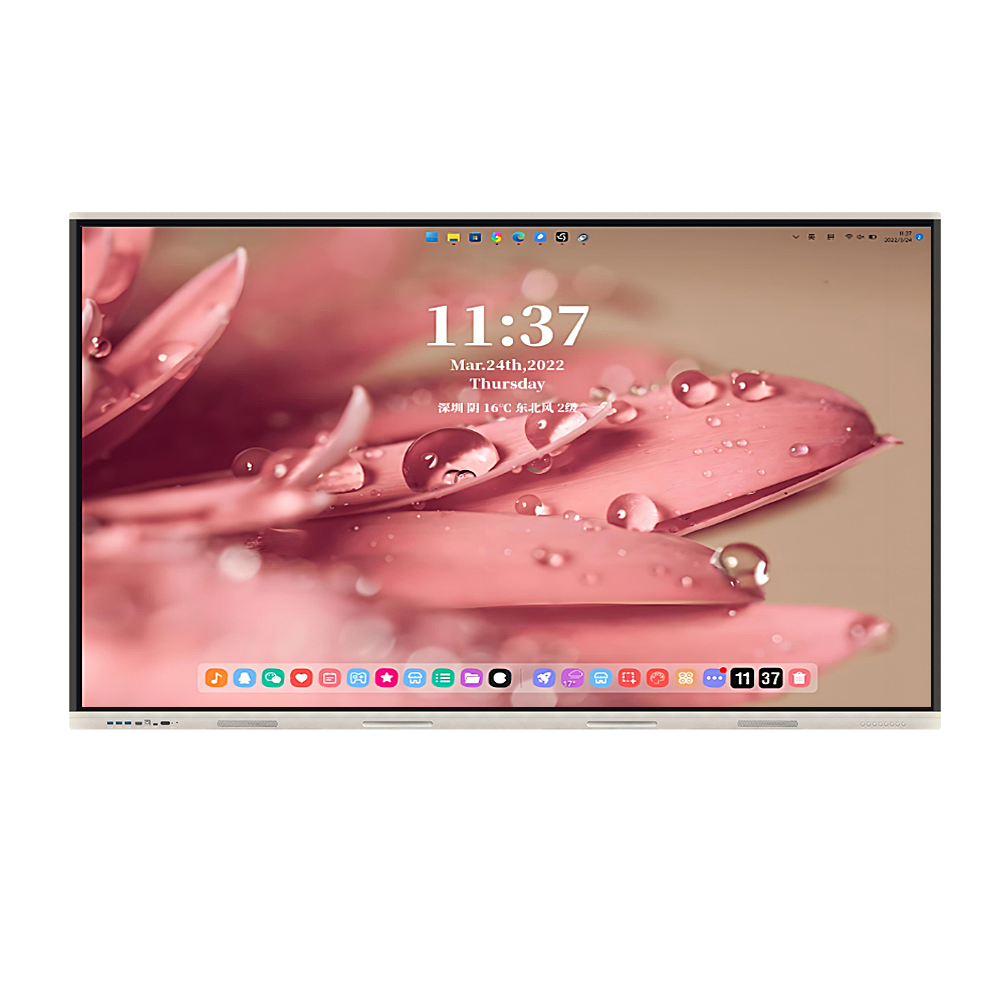

Multimedia All-in-One PC 9

Major Function:

1. Multi-theme system theme, provide conference, education, science and technology, welcome template, enterprise, government, medical, education, advertising and other more than ten industry template applications, support multi-person sign-in, save, scan code sharing.
2, the signal source dynamic preview, static and dynamic wallpaper, can be clicked after the quick preview, change at will, and support custom wallpaper function.
3, a variety of energy saving ways, support screen dormancy, screen saver mode, timing on and off.
4. It can monitor the temperature value of the whole machine in real time, and the temperature can be displayed on the Android home page, prompting different colors. Automatic close the whole machine when the temperature of the whole machine is too high.
5, multi-screen interaction, support 4 ios, android, pc, mac and other devices random screen.
6. Intelligent channel identification, automatically jump after inserting the signal source, and prompt the inquiry dialog box.





Name	Size	65"	75"	85"	86"	98"
Show	Display Area HV (mm)	1425mm ×803mm	1654mm ×931mm	1874mm ×1057mm	1895mm ×1066mm	2160mm ×1215mm
	optimum resolution	3840×2160 pixels
	Refresh the frequency	60Hz
	luminance	300-350cd/m2
	contrast ratio	1200:1 / 5000:1 (OC)
	Visual Angle	1780(H/V)
	Show color	8bit 16.7M/1.07B (10bit)
	backlight	DLED
	colour gamut ntsc	72%
Surface	Body material	Aluminum alloy face frame, oxidation sandblasting process
	Front frame color	Black [standard], can be customized silver black or other colors
	Front frame glass	Physical tempered grade 7 explosion-proof glass / anti-glare explosion-proof grade 7 tempered glass
	Front box pen slot	The two magnetic grooves on the front
Touch parameters	Identification principle	Infrared recognition
	Touch embedding mode	Built-in integrated type
	The way of writing	Finger, touch pen or other 2mm non-transparent object (full screen writing)
	Number of touch points	At 20 o'clock
	Touch resolution	32767*32767
	Touch precision	±1mm
	Single refers to the response speed	＜8ms
	Touch number	The theoretical number is infinite
	drivers	System automatic identification, no drive
	support system	windowsXP /7/8/10/11，Android，MacOS，Linux
	working temperature	-10~+50 ℃
	communication mode	USB 2.0/USB 3.0
Complete machine power consumption	The power of the machine	≤260W	≤340W	≤400W	≤400W	≤530W
	OPS power	≤110W	≤110W	≤110W	≤110W	≤110W
	working voltage	100~240V AC, 50/60Hz
	Standby power consumption	≤0.5W
	Sound channel stereo	2.0
	Dual-channel power	20W / 8 Euro 2 speakers
Size weight	Standard bare machine size length * width * height (mm)	1485×108×887	1707×108×1013	1953×108×1151	1953×108×1151	2220×98×1307
	Camera bare machine size: length * width * height (mm)	1485×108×900	1707×108×1026	1953×108×1164	1953×108×1164	2220×98×1320
	Overall machine package dimensions length * width * height (mm)	1600×200×1000	1880×210×1150	2100×215×130	2100×215×1300	2370×255×1520
	VESA stent hole position (mm)	400(V)×500(H)	400(V)×600(H)	400(V)×800(H)	400(V)×800(H)	400(V)×900(H)
	Wall hanging thickness (mm)	23mm	30mm	36mm	36mm	36mm
	net weight	33KG	47KG	59KG	60KG	87KG
	rough weight	41KG	60KG	75KG	76KG	108KG
	Single outlet wooden box size: length * width * height (mm)	1670×265×1160 (with base support)	1950×265×1310 (with base support）	2270×275×1460 (With bottom support)	2270×275×1460 (With bottom support)	2450×310×1650 (With bottom support)
	Weight (including wooden box)	70KG	90KG	110KG	110KG	160KG
