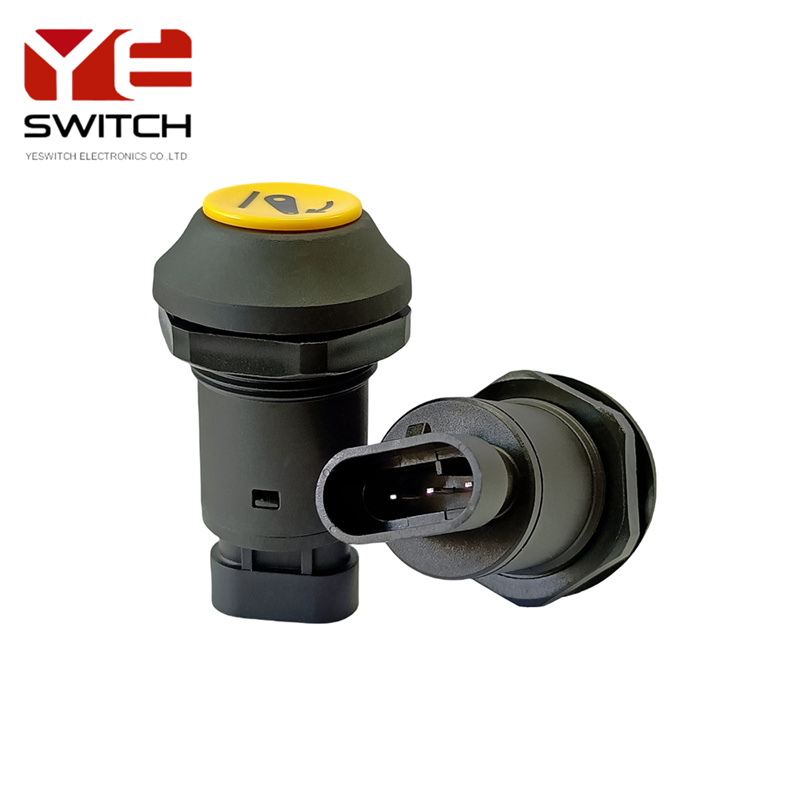

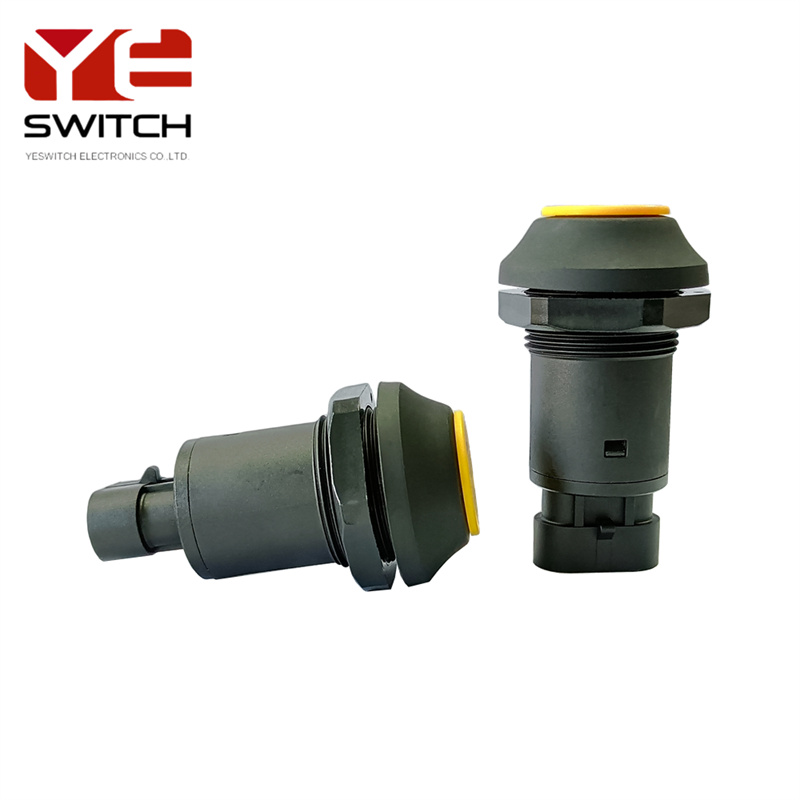

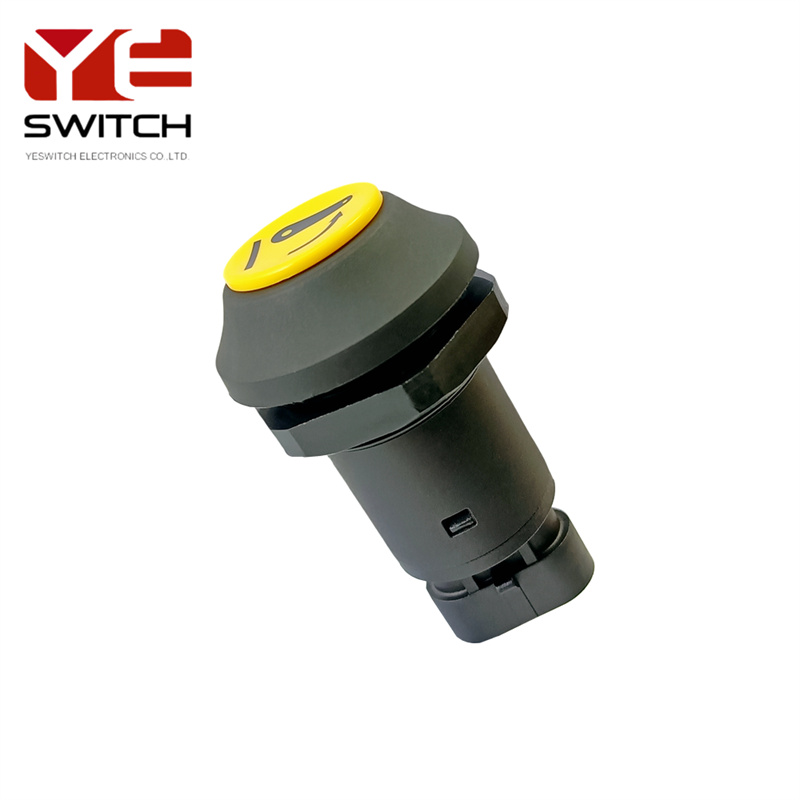

YESWITCH M30 IP67 Agricultural Machinery Push Button Switch

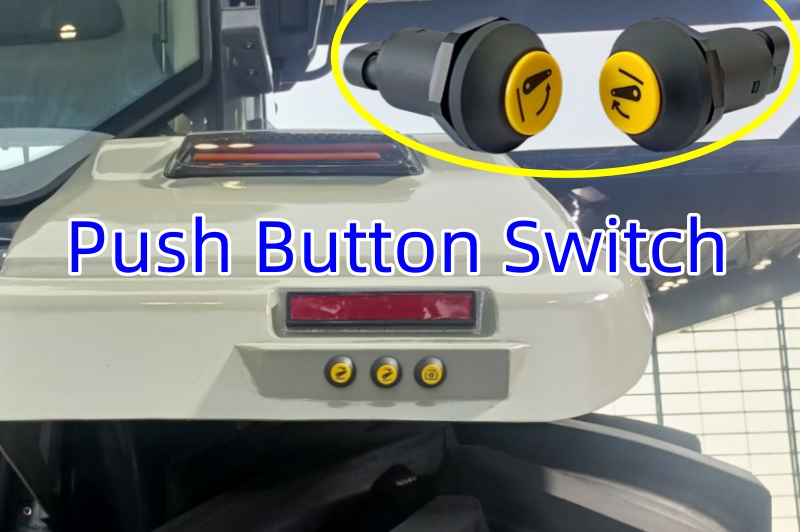

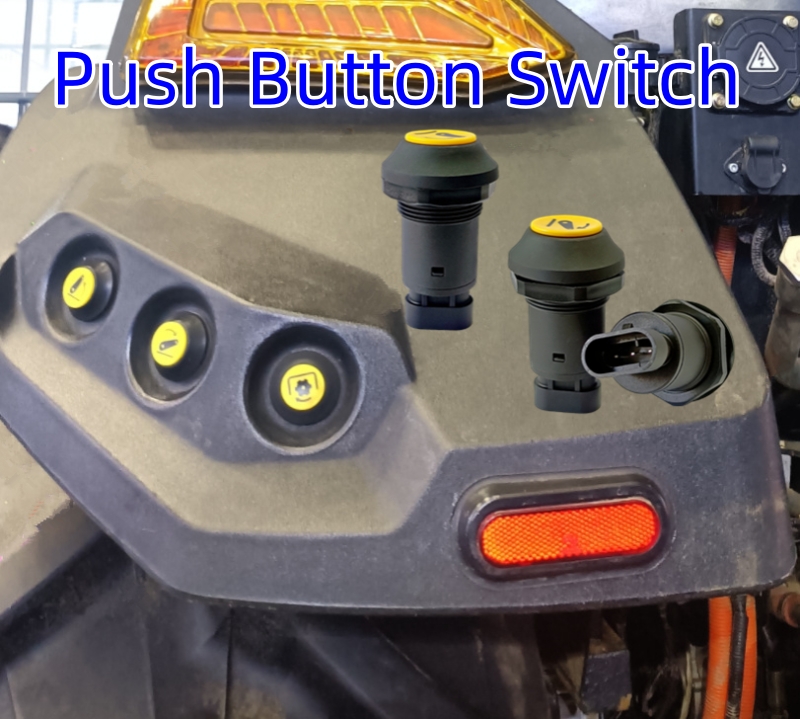

This robust push button, equipped with a super seal connector, is specially designed for various applications that need to withstand harsh environmental challenges. Its design philosophy aims to ensure stable and reliable operation under all extreme conditions. The M30 push button switch demonstrates high applicability in the automotive engineering sector, particularly as an indispensable key component for precise control of hydraulic functions.

The switching element of this switch is completely isolated from the mechanical structure, an innovative design that effectively protects it from dust, dirt, and moisture. Thanks to its IP67 protection class, the switching element maintains excellent stability and durability even in the most severe environments.

Furthermore, this waterproof push button switch adopts a magnetic actuation principle, contributing to its extended service life. It also features wear-free reed contacts that can easily handle low current switching demands, further enhancing the product's reliability and durability. For scenarios requiring operation in harsh environments, we have specifically developed a momentary push button switch with internal electronics sealed to the IP67 protection standard, ensuring the product's outstanding performance and long-term stability.

To cater to the individualized needs of different applications, we offer a variety of button colors and symbols for customization. Additionally, this waterproof push button switches support multiple connector types, accommodating the connection requirements of various devices and systems, thereby providing users with great convenience and flexibility.

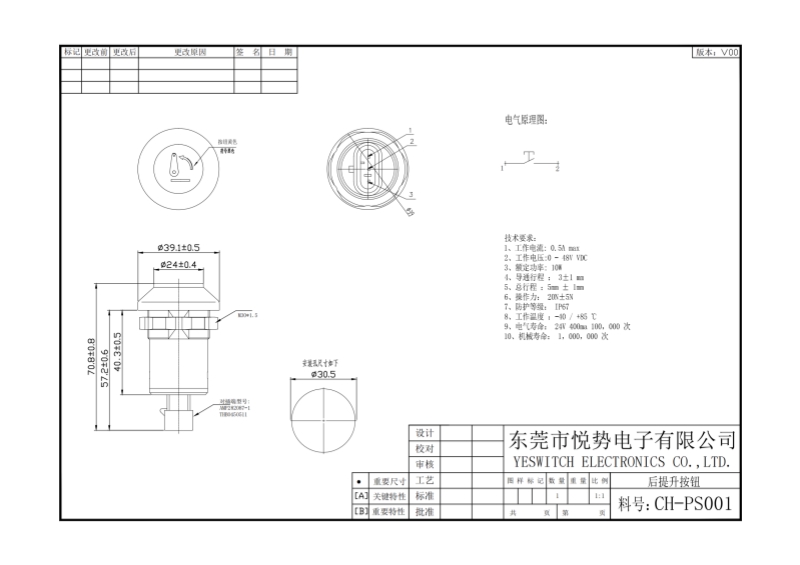

SPECIFICATION

SWITCH CURRENT:0.5A MAX
SWITCH VOLTAGE:0-48VDC
SWITCH POWER:10W/VA
CONDUCTION TRAVEL:3MM±1MM
TOTAL TRAVEL:5MM±1MM
OPERATING FORCE:20N±5N
TEMPERATURE RANGE:-40 TO 85 DEGREES
INGRESS PROTECTION:IP67
ELECTRICAL LIFE:24V 400MA 100,000 CYCLES
MECHANICAL LIFE:1,000,000 CYCLES
