Red 5mm Oval LED with Red Diffused Lens

5 month ago

8 0 

Shenzhen Best LED Opto-electronic Co.,Ltd / BESTSMD CO LIMITED(HK)

8 year

Product details

5.2x3.8mm Oval-shaped LED Red Diffused Lens ;

There are 4 kinds of brightness level in this red diffused oval-shaped LED. Common brightness, high brightness, super brightness and ultra brightness. In this 546FRD62D2L10, we produce it with high brightness type. At the same time, there is flangeless on the lens and pins. Then we can put the LED on the PCB board as deep as you need.

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	70	mw
Pulse Forward Current	IFP	100	mA
Forward voltage	IF	≤70	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	110	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	260	℃
Electro-Stati-Discharge(HBM)	ESD	2000	V
Service lige under normal conditions	Time	60000	H
Warranty	Time	2	Years
Antistatic bag	Piece	1000	Bag

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	2.0	2.2	2.4	V	IF=20mA
Luminous Flux	IV	800		1400	mcd	IF=20mA
Dominant Wavelength	λD	620 624 630				IF=20mA
Half Width	λ△		18		nm	IF=20mA
Viewing Half Angle	2θ1/2		X: 100 Y: 40		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

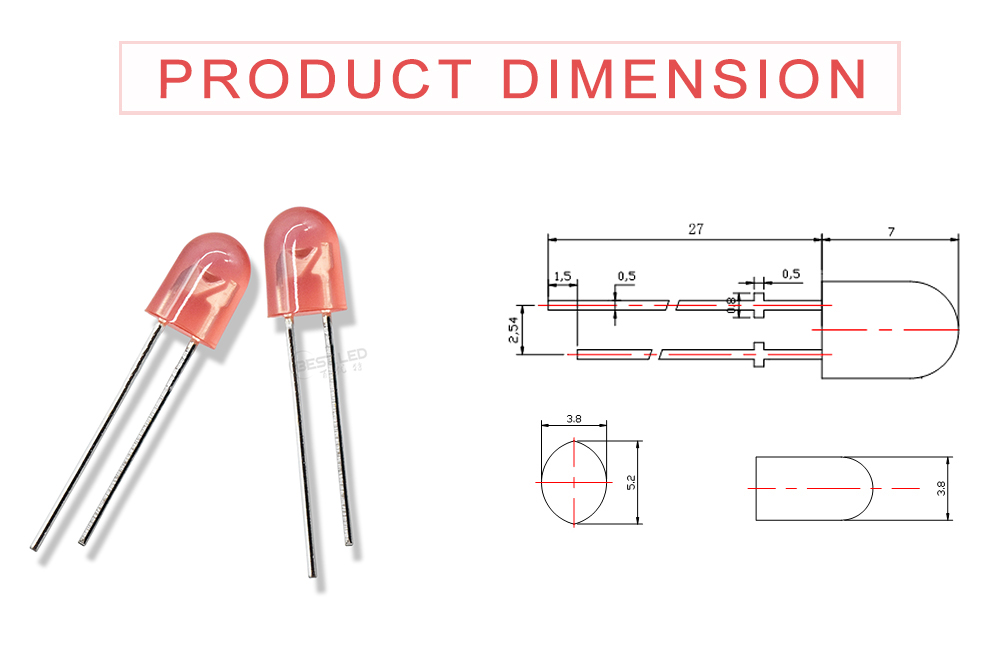

Size of Oval-shaped LED:

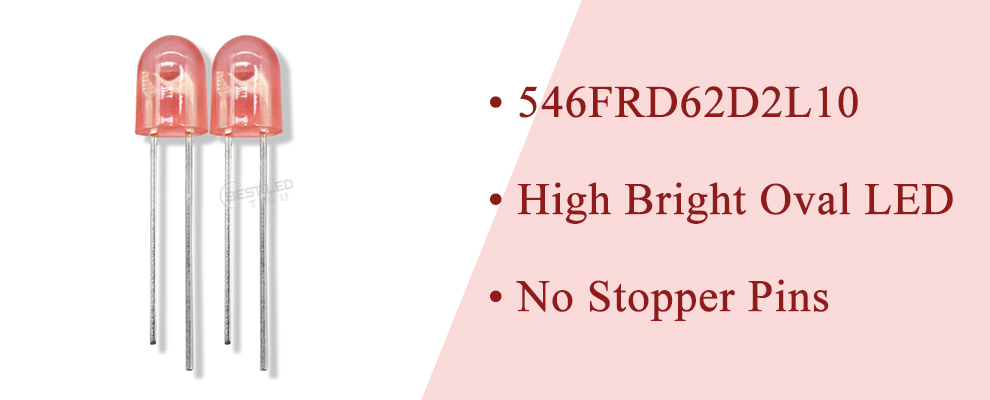

Size of 546FRD62D2L10 High Bright 5.2x3.8mm Oval Red Led Diffused Flangeless pins

*This size are also available in Red through-hole LED, Yellow LED, Amber LED, Green Through-hole LED and blue through-hole LED*

Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;

Production progress:

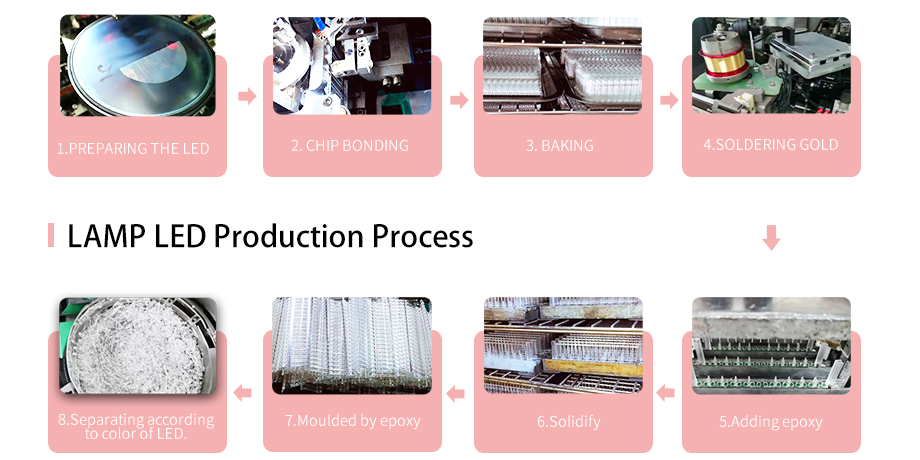

Through-holel LED production progress
