Product details

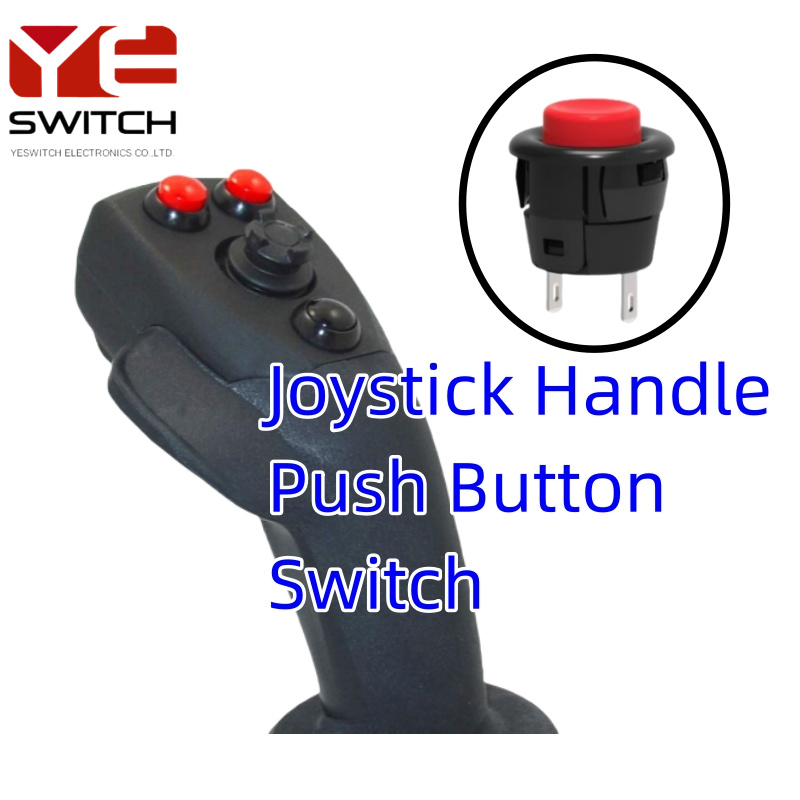

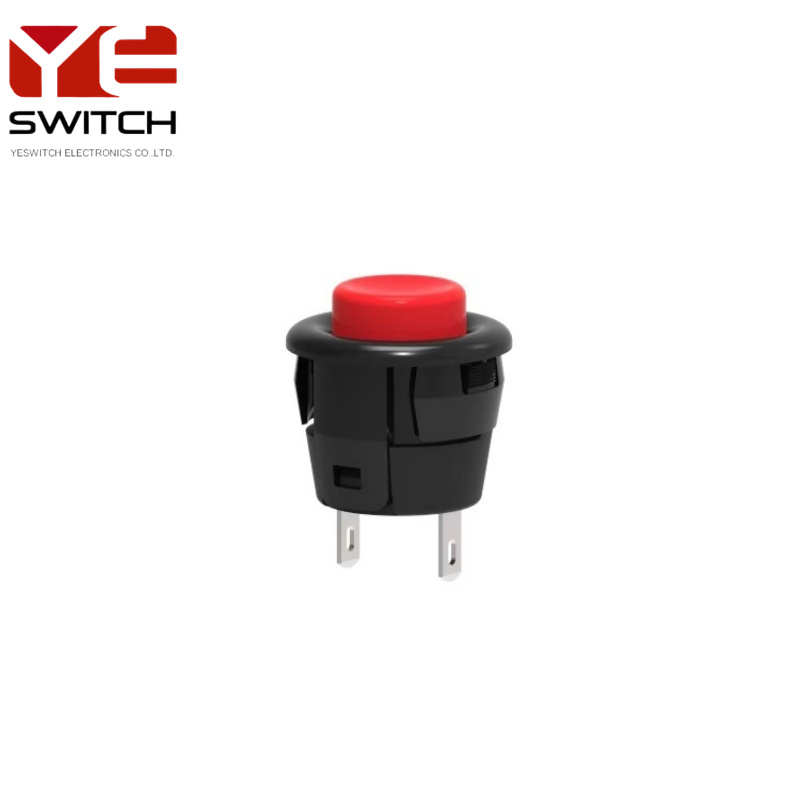

YESWITCH 18mm Momentary Joystick Handle Push Button Switch

The 18mm momentary push button switch is specifically designed for various harsh environments, integrating multiple high-performance features and flexibility, making it suitable for a wide range of industrial and agricultural equipment control applications. Below is a detailed overview of its characteristics and applications:

Size & Installation: With a compact 18mm diameter design, it is easy to install in limited spaces. The snap-in installation method simplifies the installation process, enhancing convenience and stability.

Function Type: It features a normally open (NO) function, meaning the push button switch contacts are open when not operated and only close the circuit when the button is pressed, suitable for applications requiring clear operational instructions.

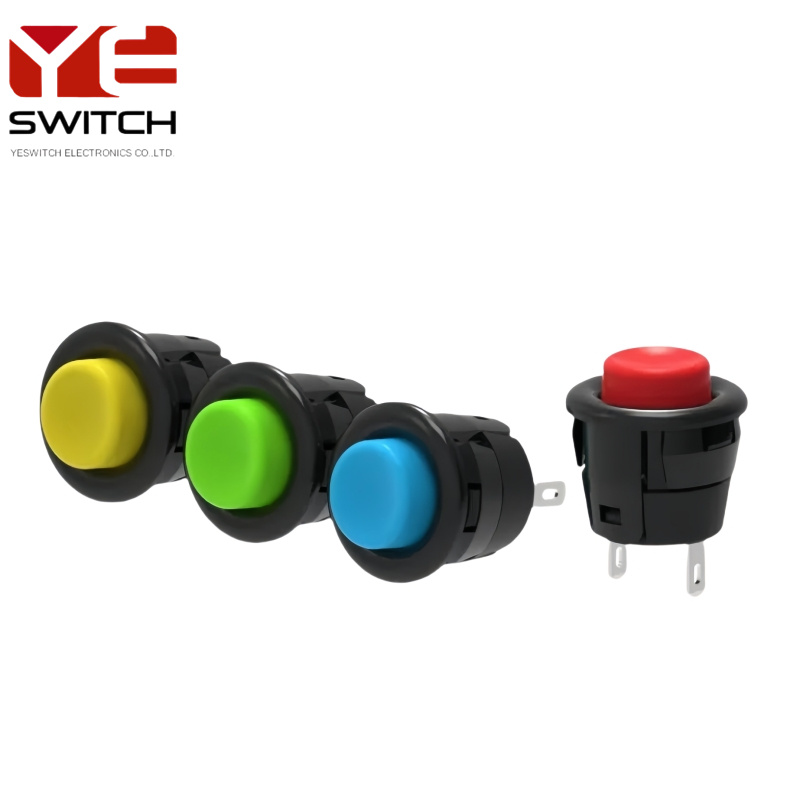

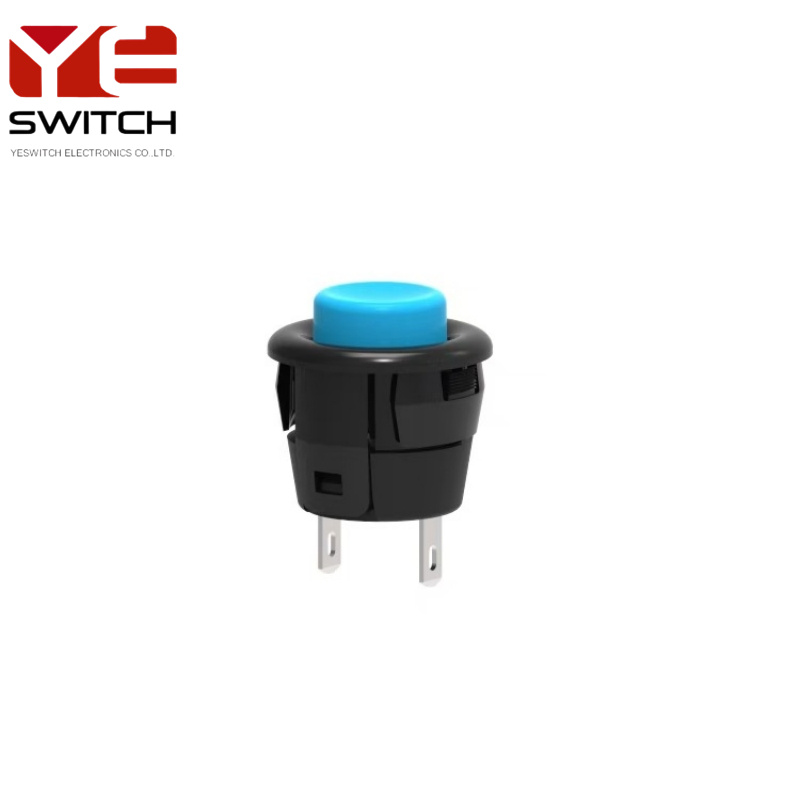

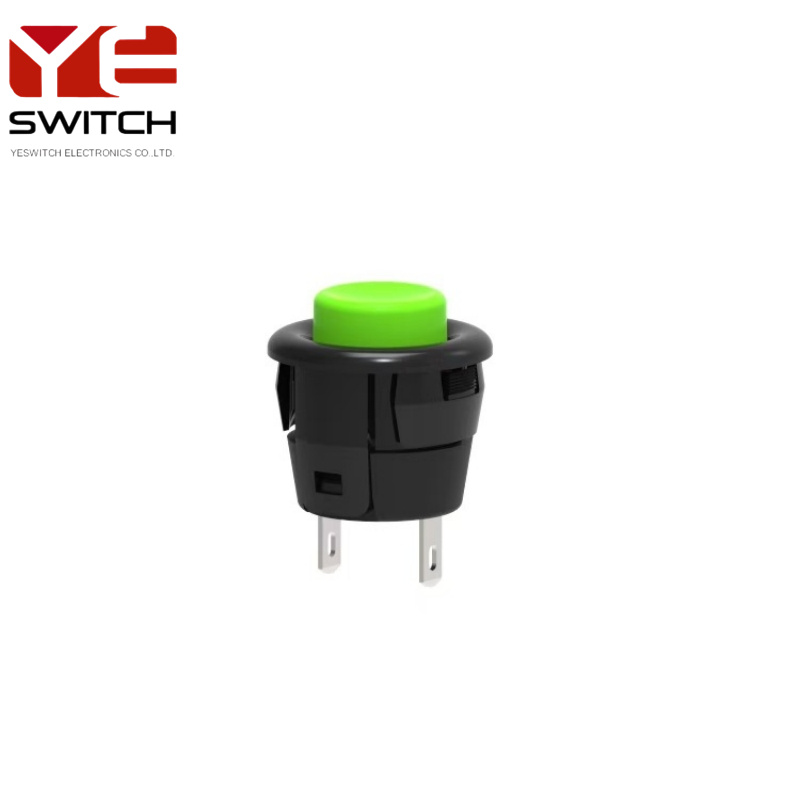

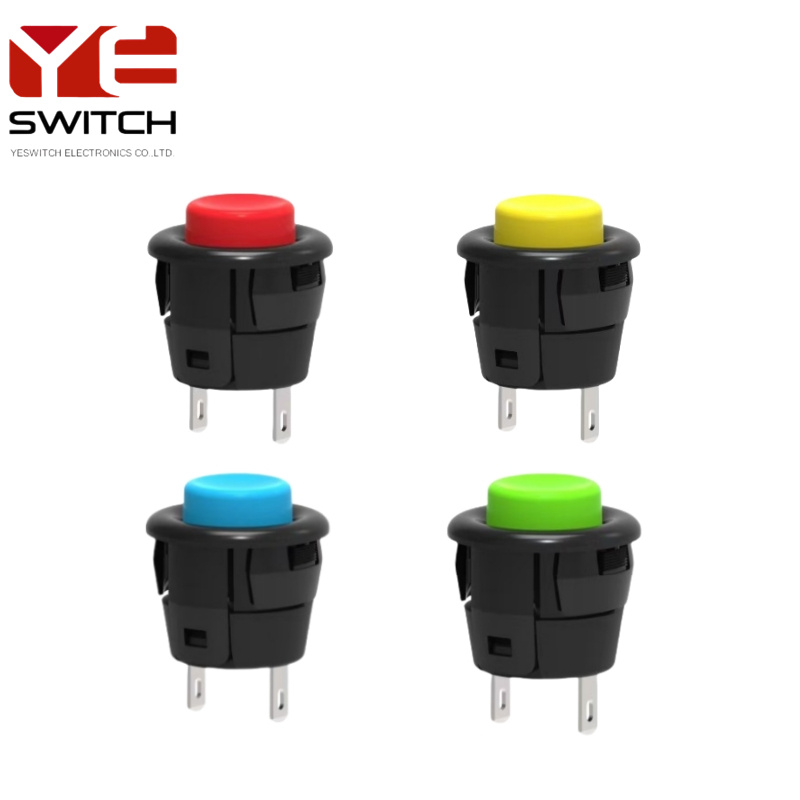

Colorful Buttons: Multiple plastic button colors are available, not only aesthetically pleasing but also allowing for differentiation based on device functions or user preferences, enhancing operational intuitiveness and device recognizability.

Protection Level: The sub-miniature push button switch meets the IP40 standard, effectively preventing the ingress of solid objects larger than 1mm, making it suitable for dusty industrial environments.

Mechanical Life: With a mechanical life exceeding 1 million operations, it ensures reliability and durability under long-term and high-frequency use, reducing maintenance costs and replacement frequency.

Application Areas

Engineering Vehicles: Such as excavators, loaders, and rollers, for controlling key functions like starting, stopping, steering, and work equipment operation, ensuring precise and safe operation.

Agricultural Machinery: Suitable for tractors, harvesters, seeders, etc., to control the starting and stopping of various mechanical components, improving agricultural production efficiency and work quality.

Handheld Devices: Such as electric tools, detection instruments, and remote control boxes, facilitating easy portability and quick execution of control commands by operators, enhancing work efficiency and flexibility.

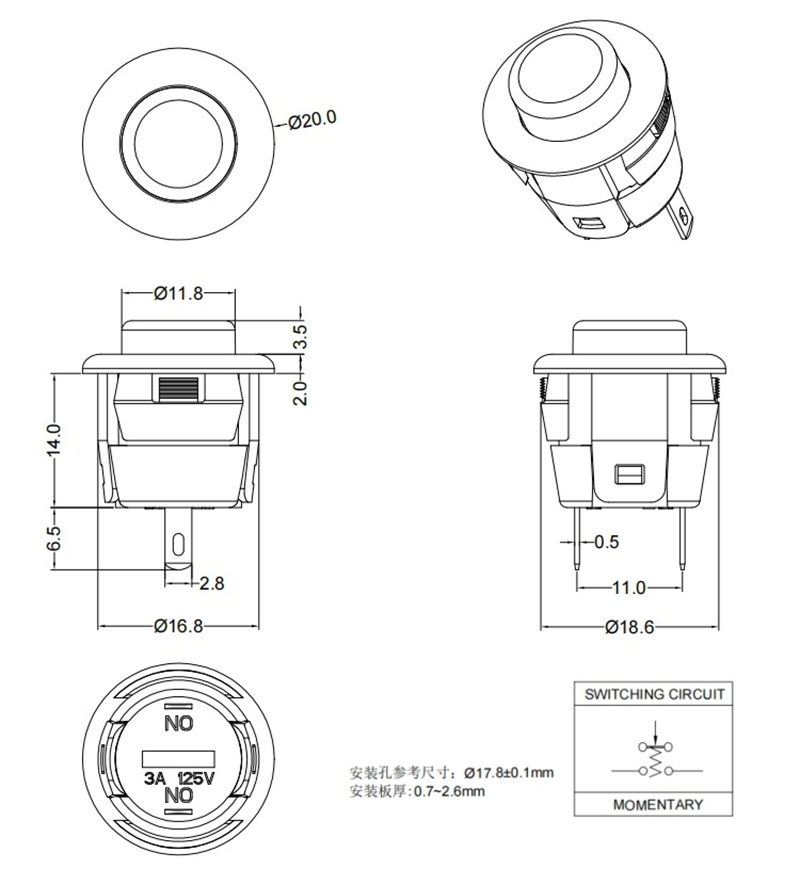

SPECIFICATIONS

PB-18 Series
Panel Thickness:Ø18.10mm
Contact Rating:lth 3A/250VAC resistive load 3A/24VDC
Mechanical Life:1,000,000 cycles
Electrical Life:200,000 cycles make-and-break cycles
Travel:About 3.0mm
Operation Pressure:About 8N
Contact Resistance:50 m ohm max.
Insulation Resistance:100m ohm min.
Dielectric Strength:1500 Vrms @sea level.
Operating Temperature:-20 to 85 Degrees
Protection Grade:IP40

MATERIALS

Bushing : PA66
Base : PBT/PA66
Actuator : PC/PA66
Inner Assembly: POM / PA66.
Terminal : Brass,with silver or gold plated.
Hex Nut : Nickel plated brass
Spring : Spring steel.
Sealing: Silicone
O-Ring : Silicone
