Product details

Epoxy resin sheet is a composite material composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant (self-extinguishing).It has characteristics of high strength, excellent electrical properties and chemical resistance.

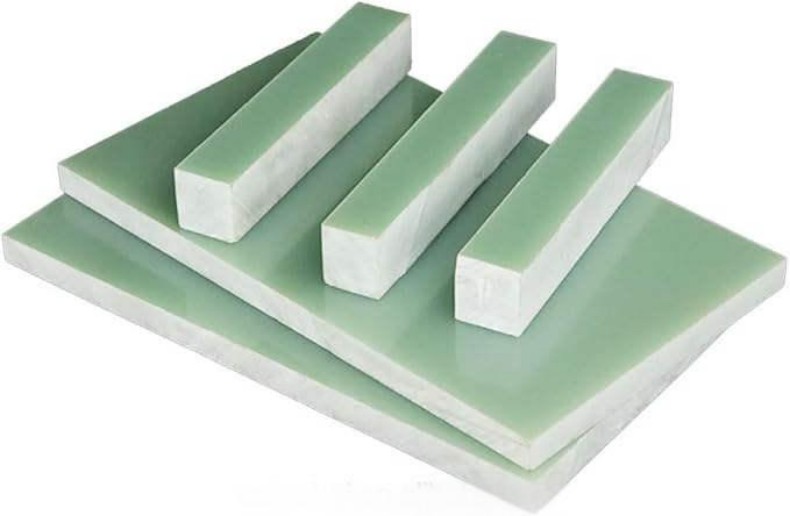

Epoxy Fiber Glass G10 Sheet

Epoxy Fiber Glass G10 Sheet is a NEMA grade designation for glass-reinforced epoxy laminate material. FR4 material fiberglass epoxy insulation sheet is a composite material composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant (self-extinguishing).

"FR" stands for flame retardant, and denotes that the material complies with the standard UL94V-0.

FR4 fiberglass epoxy insulation sheet is a popular and versatile high-pressure thermal plastic laminate grade with good strength to weight ratios. With near zero water absorption, fiber glass epoxy sheet is most commonly used as an electrical insulator possessing considerable mechanical strength. The material is known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions. These attributes, along with good fabrication characteristics, lend utility to this grade for a wide variety of electrical and mechanical applications.

The material is known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions. These attributes, along with good Processing characteristics, lend utility to this grade for a wide variety of electrical and mechanical applications.

1、Good flatness, smooth surface, no pits, standard thickness tolerances.

2、Low water absorption, good moisture resistance and good dielectric properties .

3、Stable electrical insulating properties, good electrical performance in dry or wet conditions.

4、High mechanical strength, good processability Punching, Drilling, Machining and Cutting is available.

5、Good mechanical workability.

6、In high temperature electric performance is stable.

7、High mechanical properties and dielectric properties.

Applications:

Used in mechanical, electrical and electronic insulation structure parts.

Used in Chemical machine parts.

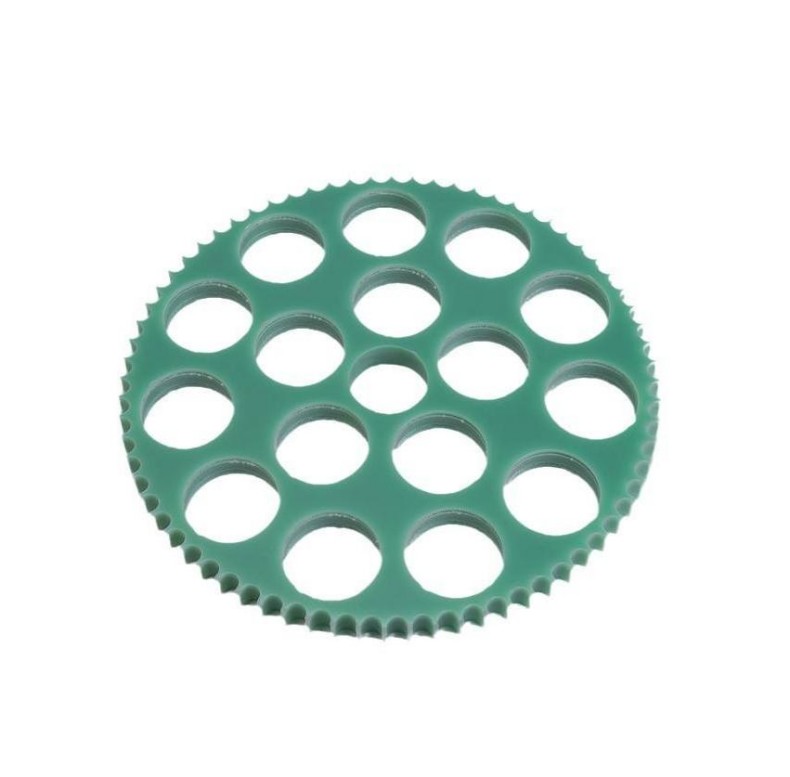

Used in General machines parts and gear, generators, Pads, base, baffle,Generator, transformer, fixture, inverter, motor.

Processing customized:

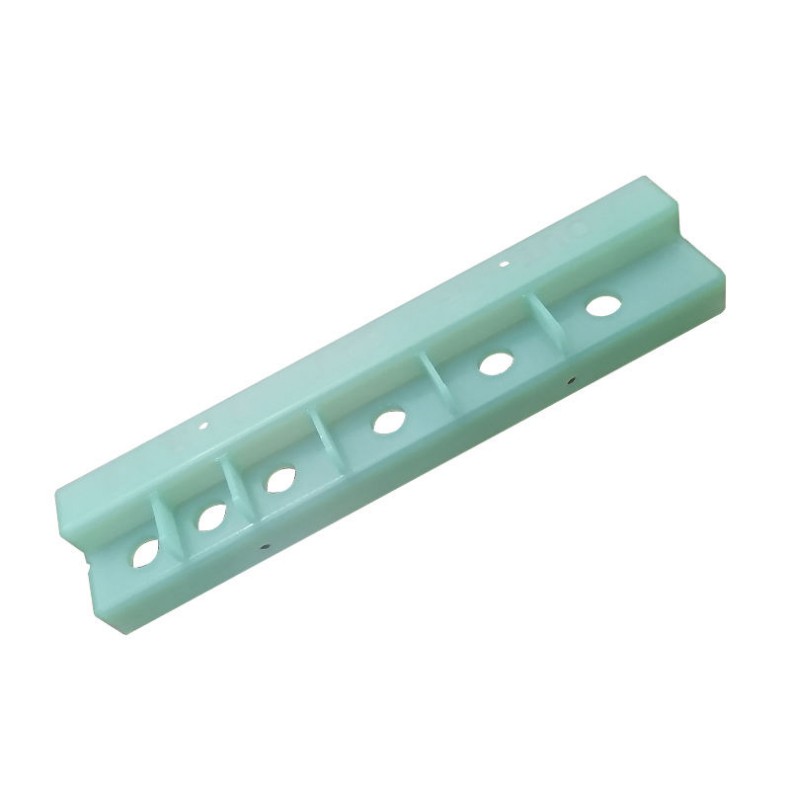

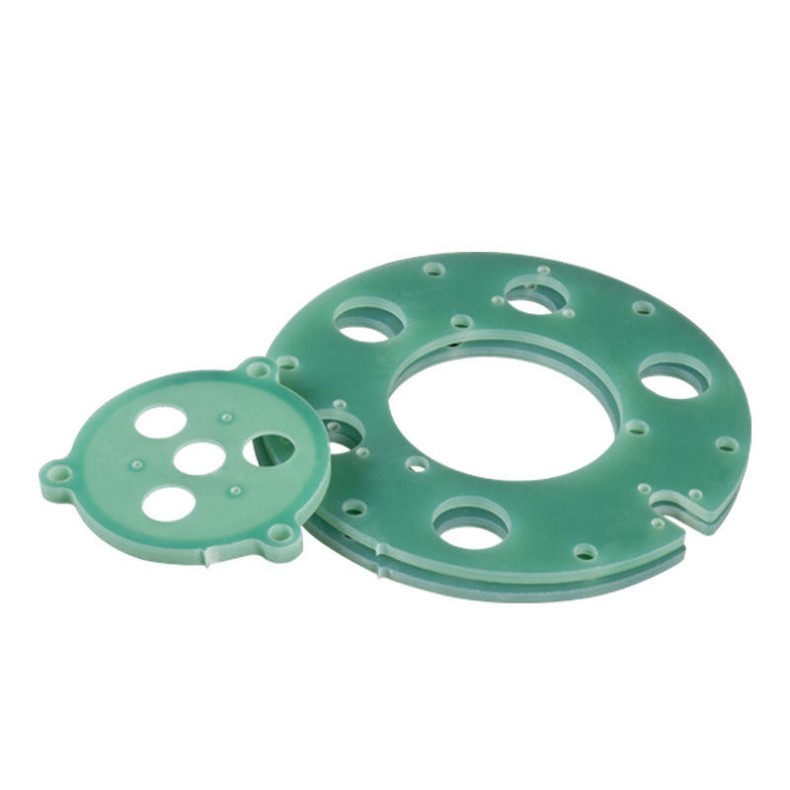

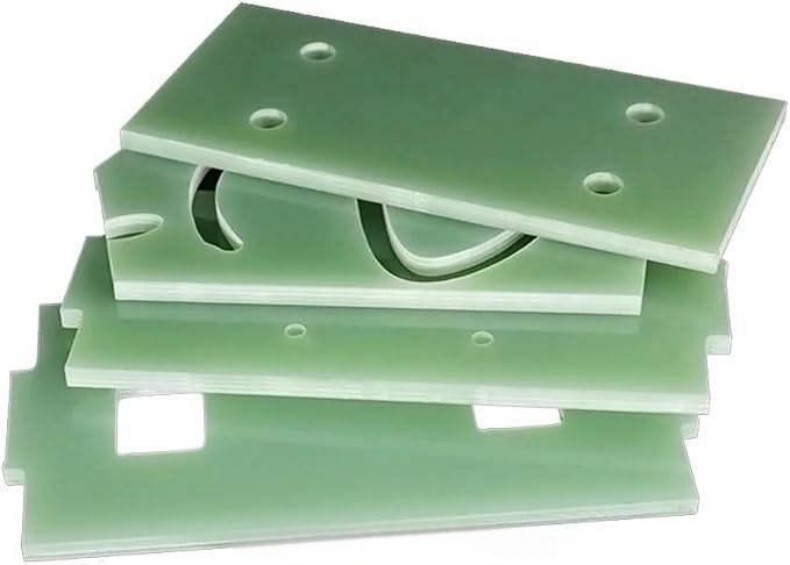

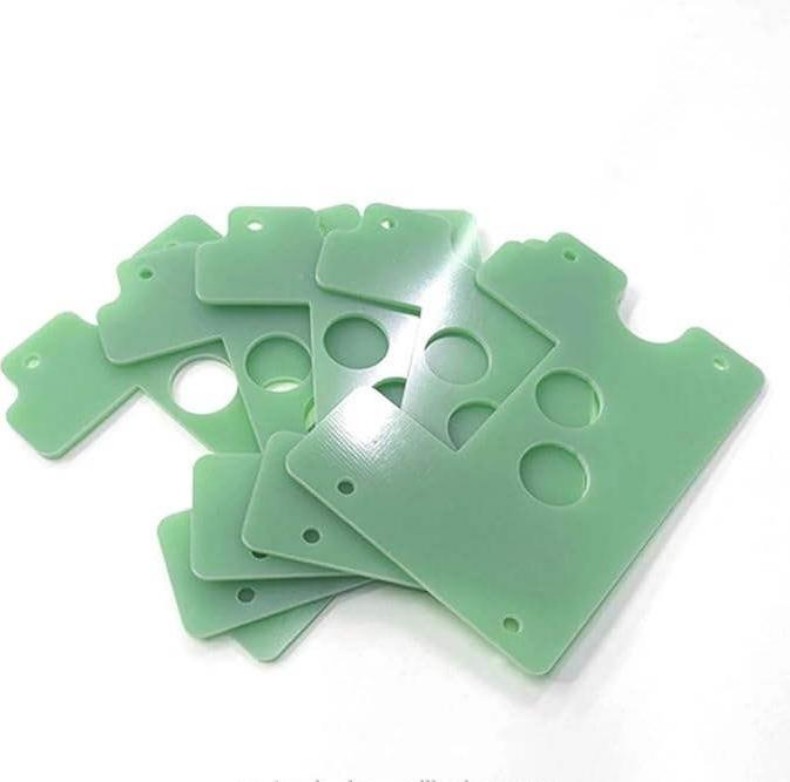

Factory direct sale, different sizes and parts are available.Please contact with our sales department directly with supplied CAD or 3D drawings, our professional engineering team will quote for you.
