Fully automatic curved surface hot stamping machine
5 month ago
The Latest Design Automatic Syringe Hot Foil Stamping Machine is a device specifically designed for hot foil stamping on the surface of syringes. It combines advanced automation technology, precise control system, and efficient hot foil stamping process, which can accurately stamp various patterns, texts, or logos on the surface of the syringe, enhancing the beauty and added value of the product.

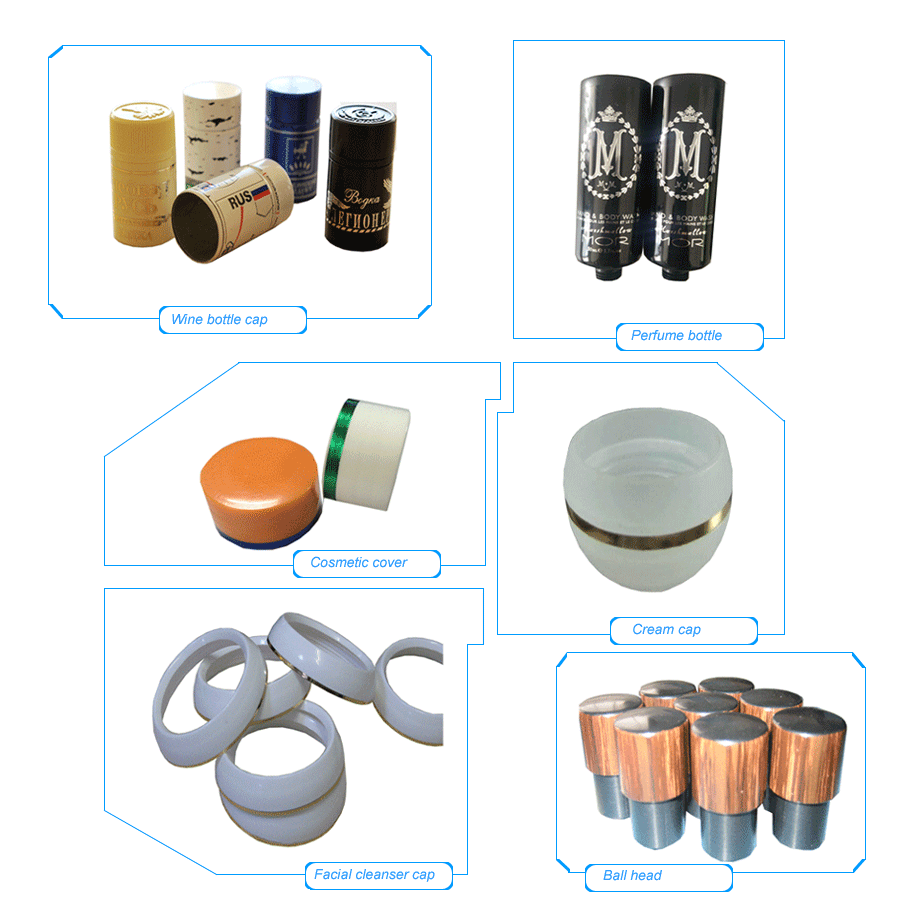

Application- printed Samples show
Machine structure
|
ITEM |
Standard Items |
Q |
|
1 |
100mm stainless steel conveyor ( Customized on customer products) |
1 |
|
2 |
Feeding robot |
1 |
|
3 |
5 stations rotating workbench |
1 |
|
4 |
IR Heating system |
1 |
|
5 |
Independent Stamping Plate adjustment device |
1 |
|
6 |
Fixture for samples |
8 |
|
7 |
Automatic foil feeding and collecting device |
|
|
8 |
High accurate Splitter |
|
|
9 |
World brand electronic control components |
1 |
|
10 |
PLC Operation system |
1 |
|
11 |
Automatic positioning system |
1 |
|
12 |
Safety cover |
1 |

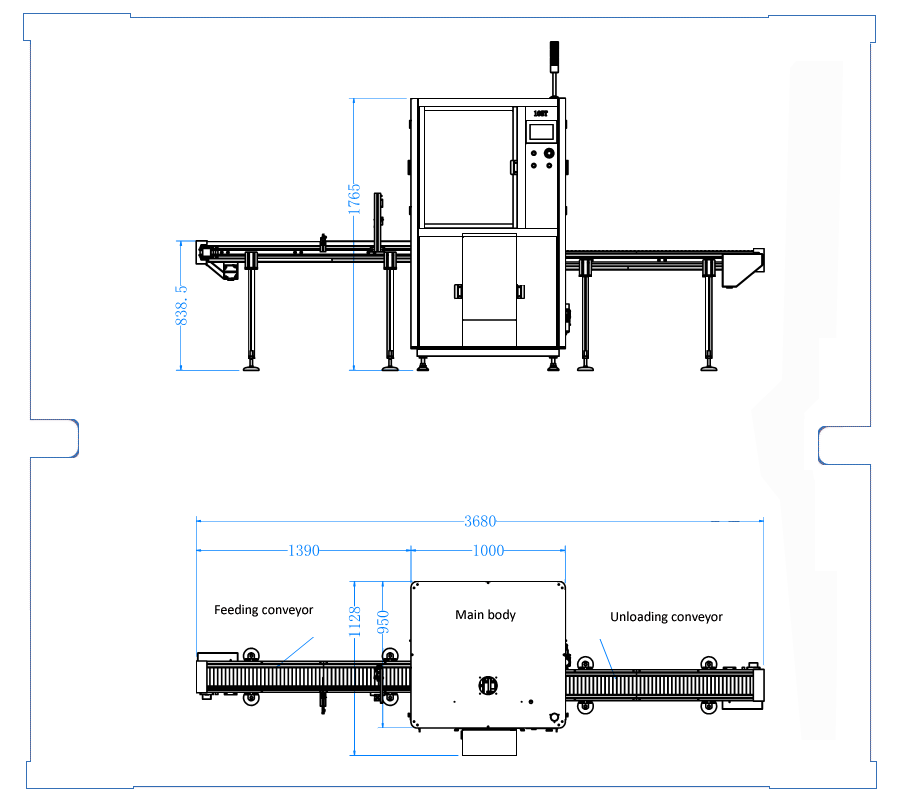

Install size
Machine detailscon configuration
Ø Inovance servo motor + Taiwan TBI screw drive ironing head;
Ø Non-hot feeding and anti-fooling sensor device for positioning;
Ø Japanese OMRON touch screen and Japanese Panasonic PLC control system;
(brands can also be made according to customer requirements)
Ø Main motor and gearbox are made in Italy TRANSTECNO;
Ø The turntable and fixture are all high-precision grinding;
Ø Adopt Japan SMC and Taiwan AirTAC solenoid valve and cylinder;
Ø Imported Texaco precision splitter;
Ø Prevent the phenomenon of abrasion during the working process of the product;
Ø The machine is equipped with a set of jigs
