DMG MORI Machining Center is doing lightweight milling process
3 month ago
Fused silica glass, with its large transparency range, low thermal expansion, high resistance to optical damage, high refractive index homogeneity, and ease of polishing has found use as an vital optical material in applications as varied as space shuttle windows, optical fiber, optical flat, optical window and deep UV lens optical components and telescope mirror blank. Based upon customer demand, MG-Optics offers Fused Silica made from the following substrate materials JGS1,JGS2,Corning7980 etc.

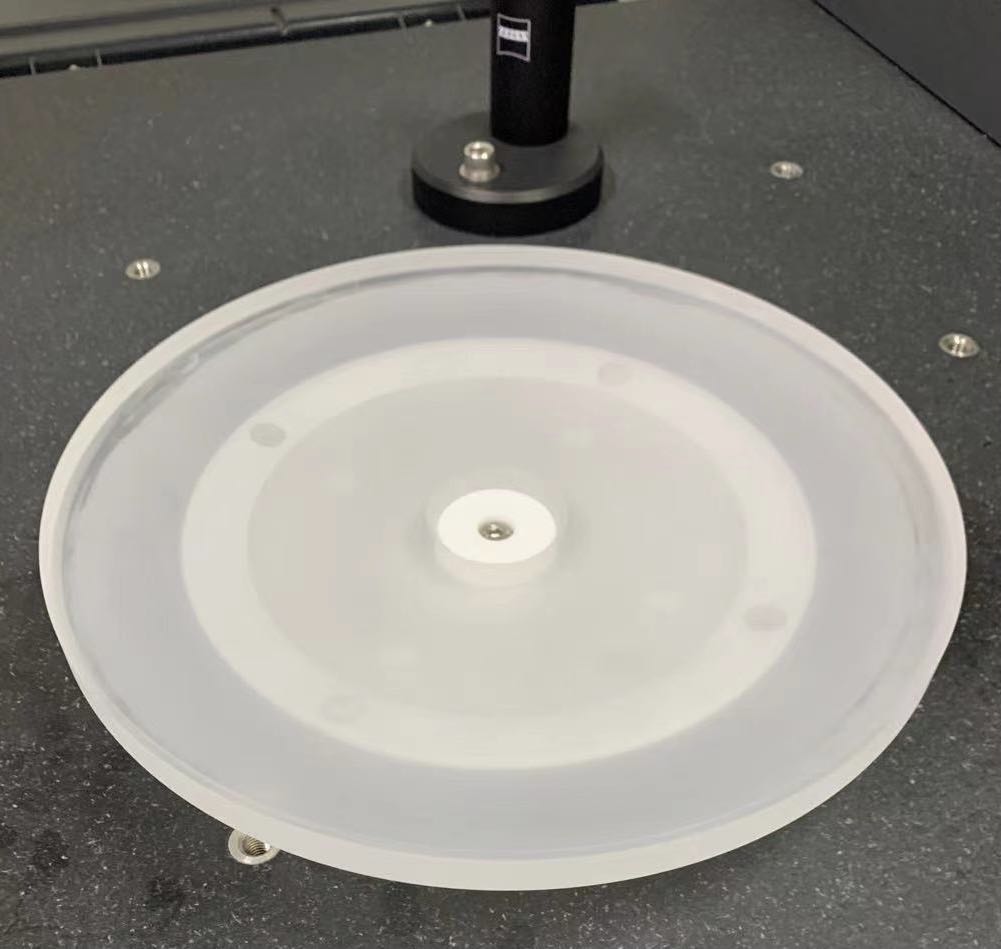

The picture shows one of fused silica blank product with the following information.
Product Specification
|
MATERIAL |
FUSED SILICA JGS1 |
TEST REPOPT |
|
OUTER DIAMETER |
340mm +/- 0.1 mm |
CMM test report |
|
THICKNESS |
50mm +/- 0.1 mm |
CMM test report |
|
CENTER HOLE |
50mm +/- 0.5 mm |
CMM test report |
|
TOP CHAMFER FINISHEING |
D20 machined |
DMG Mori 125P |
Custom Specification
|
MATERIAL |
Fused silica JGS1, JGS2, Corning7980 |
TEST REPOPT |
|
OUTER DIAMETER |
Customer specified |
CMM test report |
|
THICKNESS |
Customer specified |
CMM test report |
|
CENTER HOLE |
Customer specified |
CMM test report |
|
TOP CHAMFER FINISHEING |
D20 machined |
DMG Mori 125P |
|
Surface finish |
For optical blank, up to um grade |
CMM test report |
Custom Ordering Information
If you are interested with our products, Just send us your drawings or specifications, we will begin preparing a quotation for you.
If you do not have ideas about which material should be chosen for your optical system you can also contact us.
Contact with our professional technician engineer now!
