Product details

CNC Machine Tools Accessories CAT40-FMB1-1/4 Tool Holder

We're Pingyuan Best Machine Tools., Co., Ltd., the high-stop cnc system gear manufacturer and provider from china. our merchandise line is over a hundred fashions, particularly consist of: collet chuck , device holder tool , collet , spanner , pull stud and nuts , and so on. collet chuck additionally consist of many requirements and fashions like: iso collection, BT30 series, BT40 collection, hsk collection, nbt collection and cat collection, and many others.

Product Description

Brand Name	BESTMYT
Model Number	CAT40-FMB1-1/4” Tool Holder
Color	Silver and Black
Materials	20/40 CrMnTi Alloyed case hardened steel,black-finished and precisely grind.
Taper tolerance	<AT3 Grade
Precision	0.002 mm
Surface Roughness	>0.8mm
Roundness	<0.8μm
Carbonizing depth	08mm±0.2mm
Hardness	HRC58-62
Balance	G 2.5 / 25000rpm
Quality control	100% inspection
Warranty	3 years
Service	Customized OEM/ODM
Usage	Suitable for tap working on drill, lathe,boring machine,milling machine and CNC machine center and so on.
Applicable cutters	vertical disc cutter, sets of type of milling cutter, face milling cutter, milling cutter, three face milling cutter .Mechanical spindle and cutting tools and other accessories.

Product Features

1.The holder is made of imported high strength material and has high wear resistance after special treatment.
2.Special tool holder for machining center or CNC machine.
3.First put the collet into the nut,then the drill bit into collet, and finally tighten the nut to lock the holder.
4.According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm,the precise precision is G2.5/20000rpm.
5.Collet has spring ,sealed-up ,tapping ,etc.

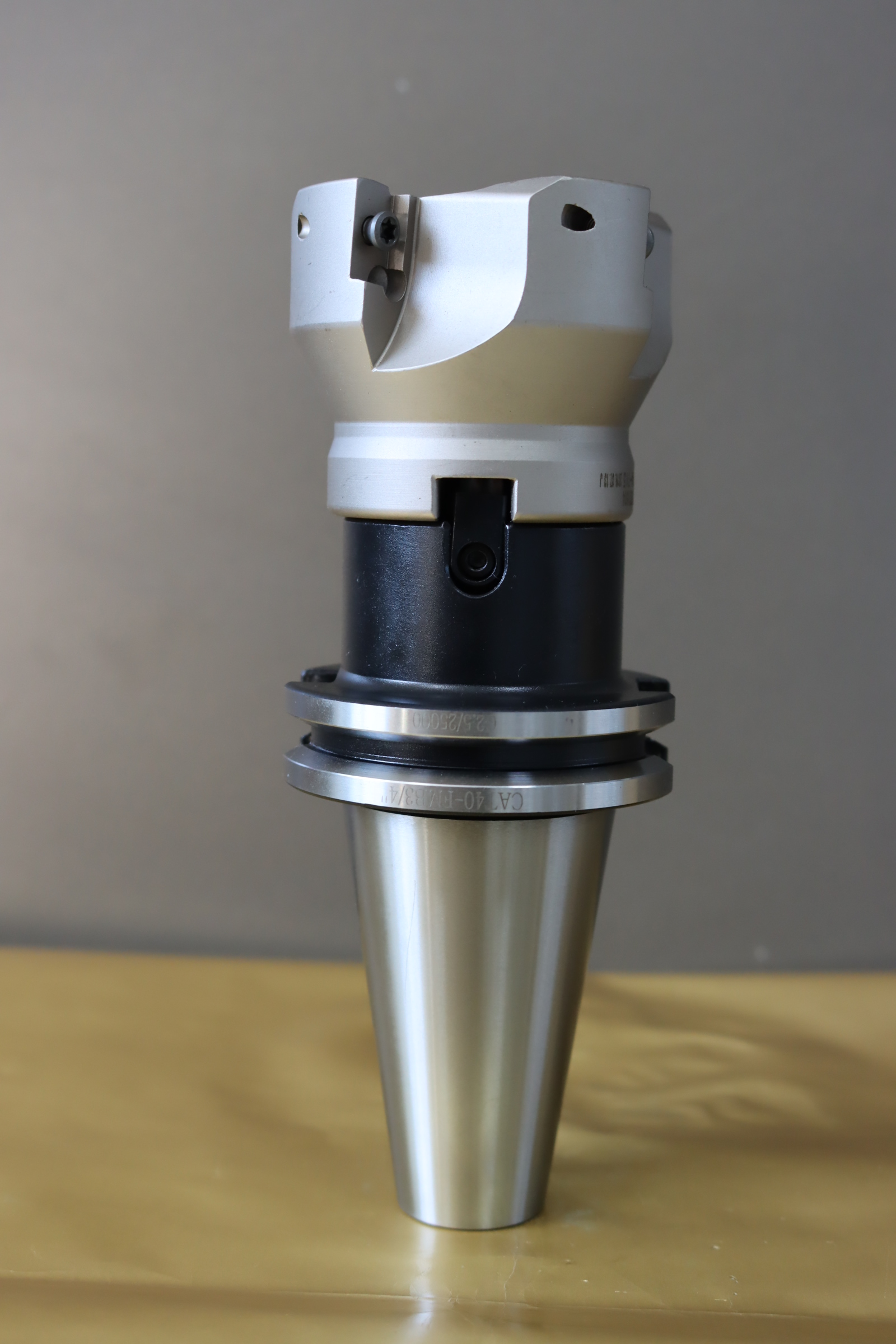

CAT40-FMB3 (1)

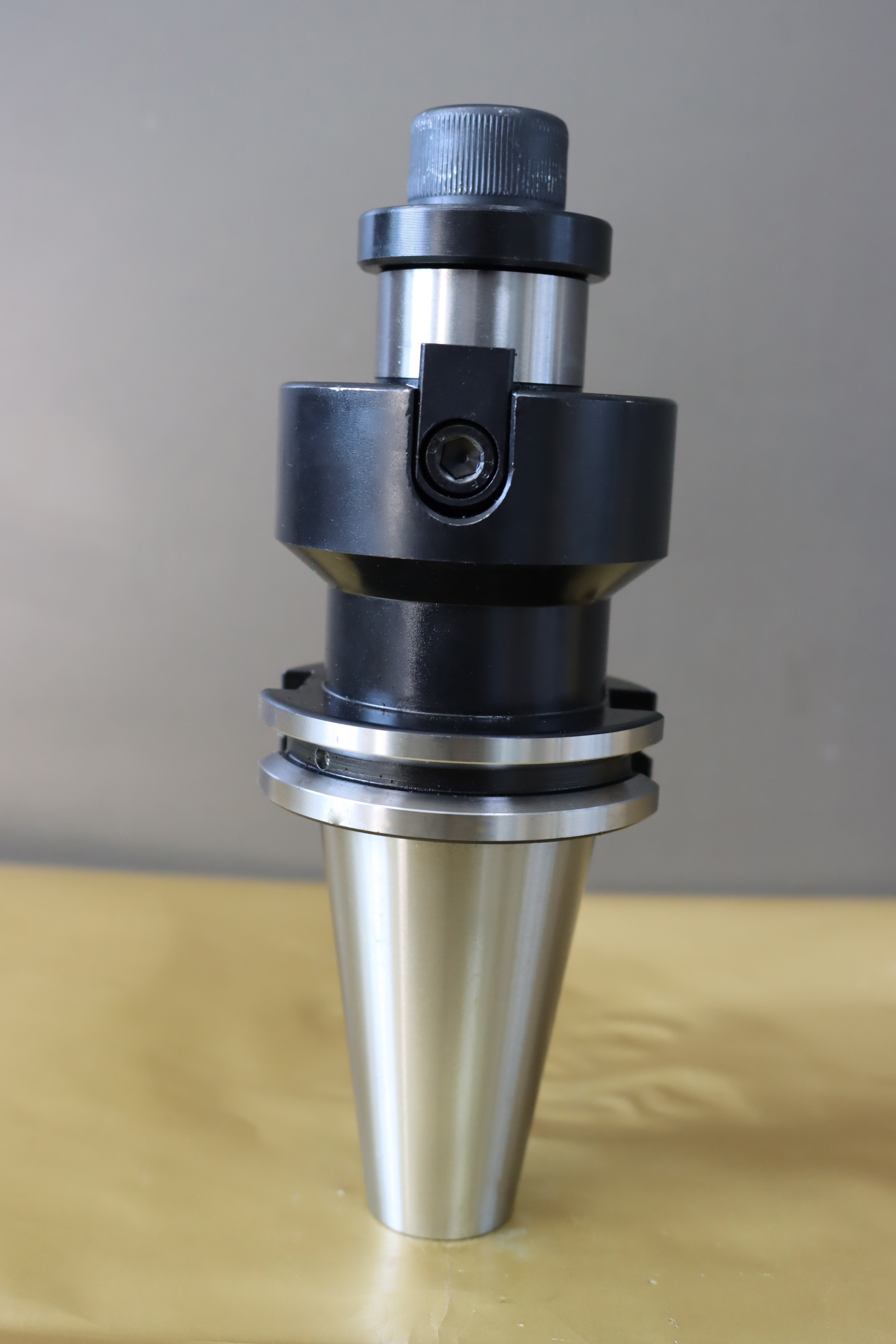

CAT40-FMB1-1-4 1
