50-250 PVC Pipe extrusion with film wrapped
4 year ago
PVC 3 layer 2 colour pipe extrusion line PVC 3 layer 2 colour pipe making machine
Diameter Range (mm): 50 75 90 110 140 160 200 240 wall thickness by request
Main Extruder Motor Power: 37kw
Line Space Occupation: 28mx4mx3m
Capacity: 180-250kg/h
Introduction of complete extrusion line :
The complete extrusion line including SJZ65/132 twin screw extruder,die head 50 63 75 90 110 140 160 200 240mm,SJ25/25 color strip extruder,vacuum calibration tank.3 caterpillar haul off,planetary cutter,film wrapped machine,pipe socket machine and so on.
Features:
High automation
Stable running
Lower maintenance
High quality product
Main Technical Datas and images for 3 layer PVC pipe production line :
Screw Feeder
To feed material into extruder

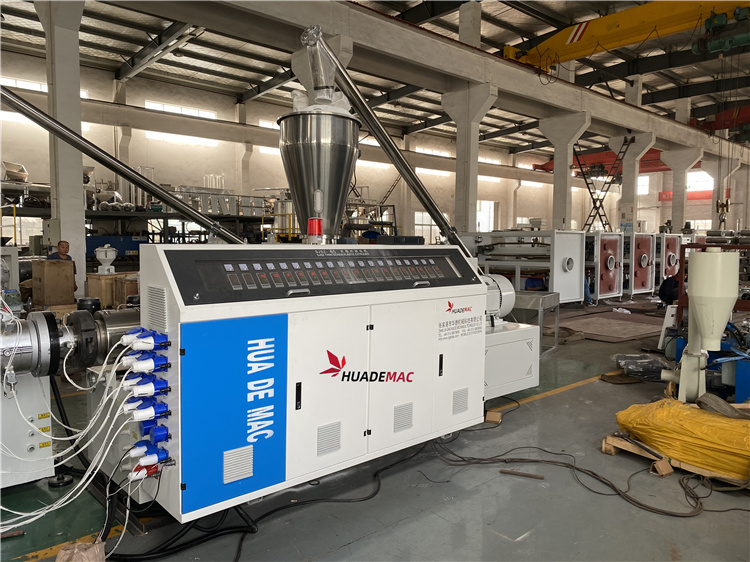

SJZ65/132 conical twin screw Extruder
• Capacity: 200-250kgs/h
• Motor power: 37kW
• Material of screw & Barrel: 38CrMoAl & Bimetallic
• World famous brand electrical component such as Siemens, Schneider, ABB etc
•High torque gearbox with adopts NSK/SKF bearing;
• Siemens motor achieved global after service;
• Bimetallic screw and barrel;
• PID automatic temperature controller .
Die head (including bush,pin and calibration sleeves )
40Cr material
Size :50 63 75 90 110 160 200mm
Complete set include extrusion die head, Slotting & water ring type calibration sleeve
Materials: 40Cr Steel
Structure: Spiral or Basket
Single cavity design
Co-extrusion multi-layers design

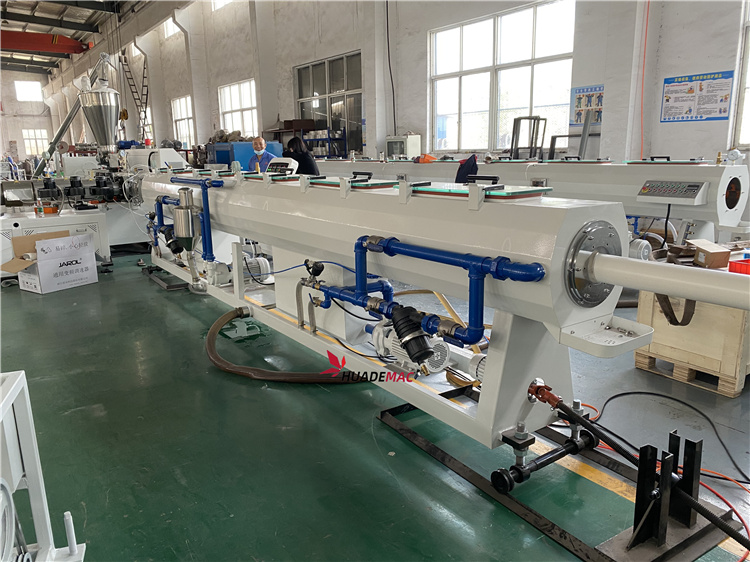

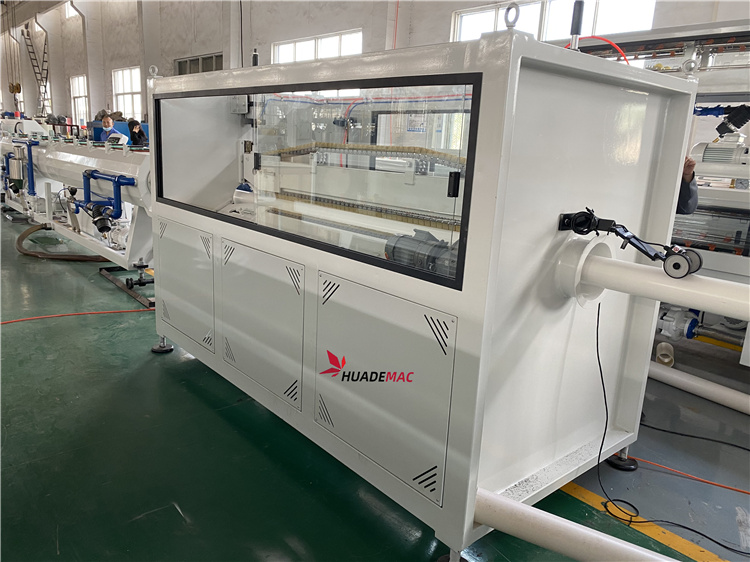

Vacuum Calibration tank
Tank materials: 4mm 304 S. S.Materials
Length 6000mm
High pressure and stable water jet.
Pressure protection design
4kw water pump and 4kw vacuum pump
3 Caterpillar haul-off
Upper and lower caterpillar is driven separately by the frequency inverter
High friction fact and anti-wear out silicon rubber Pads
Metering counter device
Planetary cutter

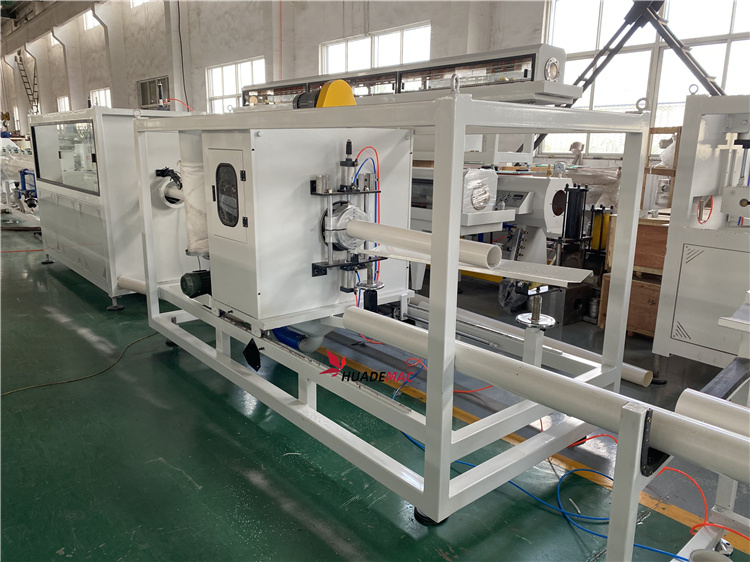

• Planetary saw cutter enter knife by hydraulic drive
• Cutting saw: steel alloy, specific for cutting U-PVC pipe.
• Equipped cast aluminum compacted block for accurate cutting
• Synchronous control
• Chamfering function for optional
Stacking
Stainless steel 304 as touching material
Discharge driving by air cylinder

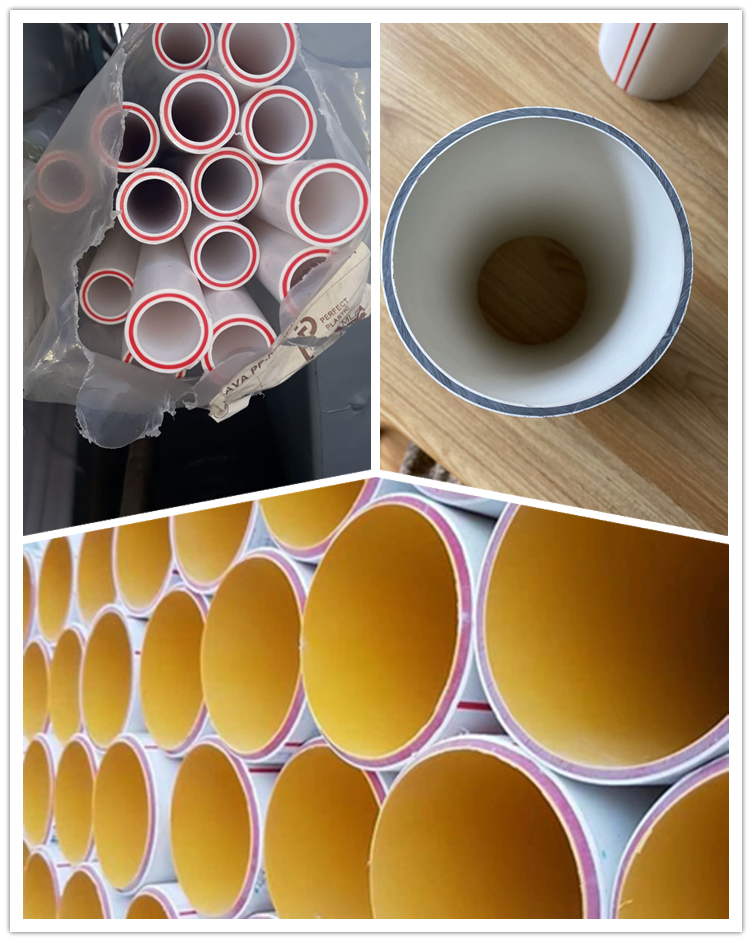

Final product show :
Complete extrusion line :
