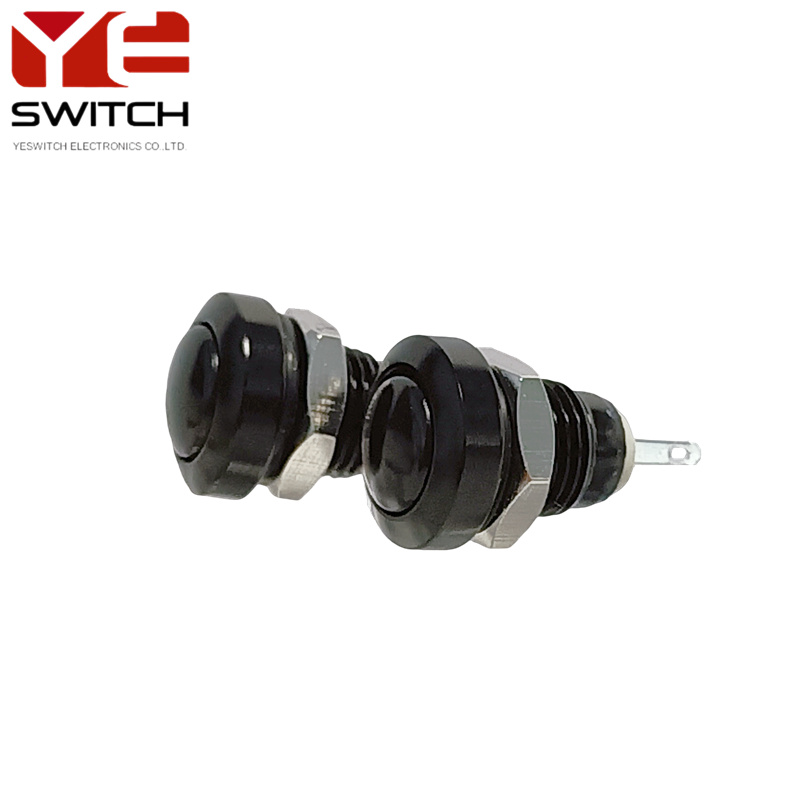

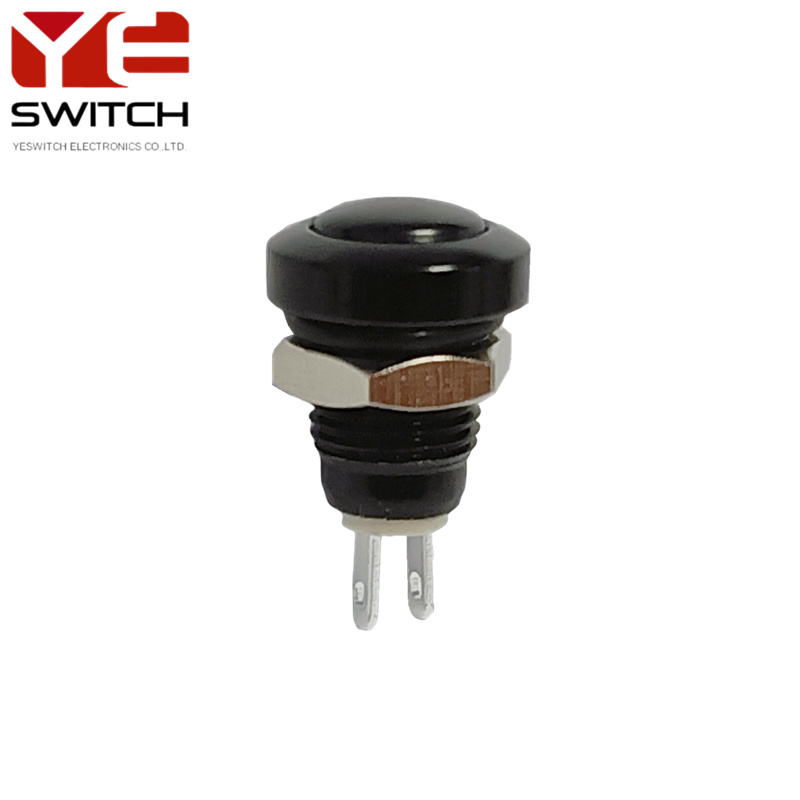

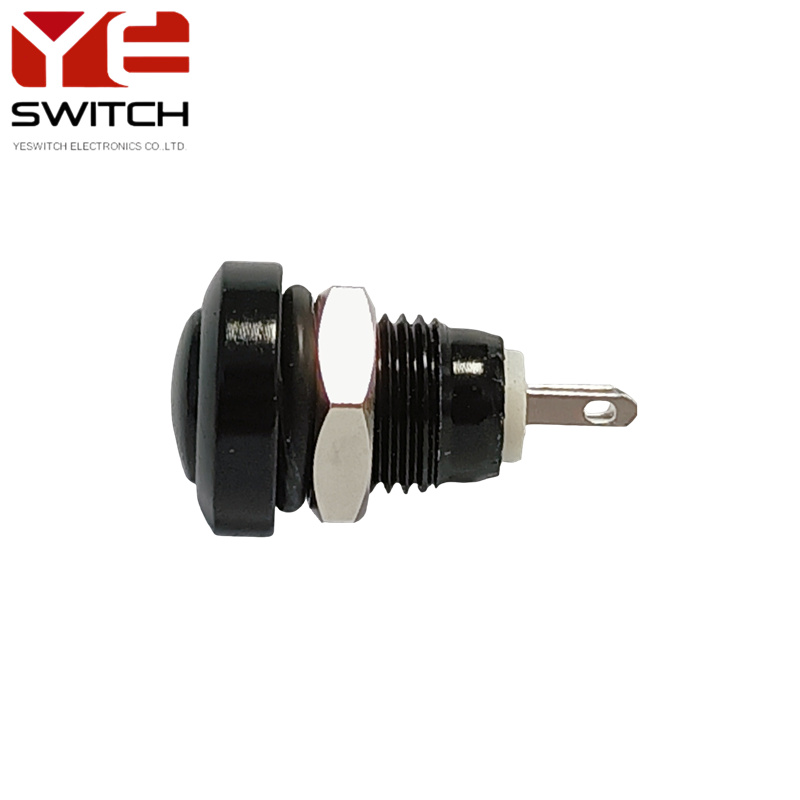

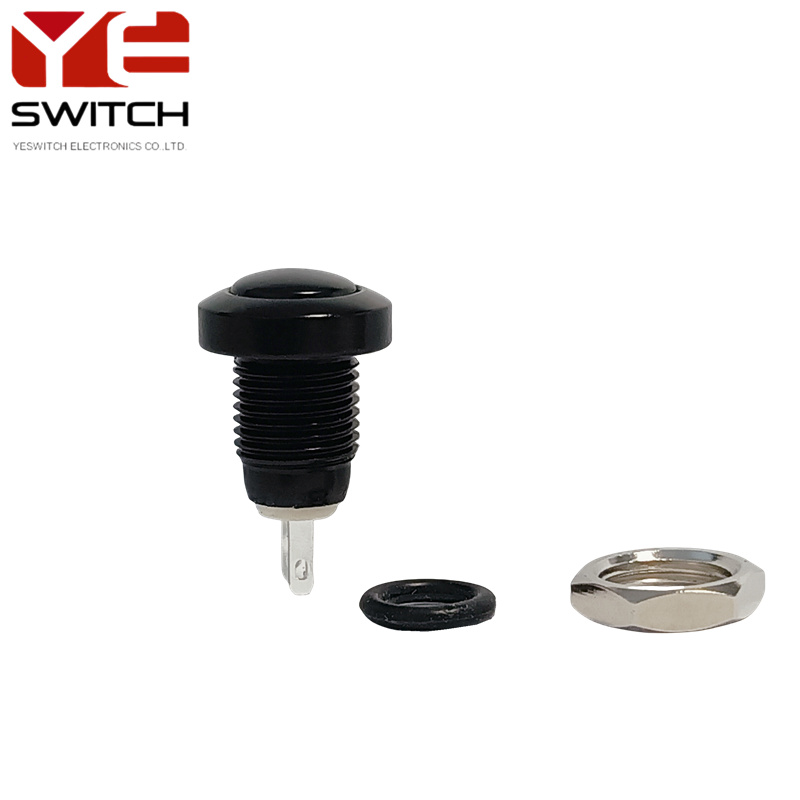

YESWITCH 8mm IP65 Momentary Metal Push Button Switch

YESWITCH 8mm momentary metal push button switch which is dustproof and waterproof IP65 grade.Waterproof push button switch to make your device more secure. 8mm waterproof metal switch, dome button design, comfortable grip, suitable for a variety of scenarios. 8mm metal switch adopts stainless steel and corrosion resistance.And the metal push button switch using nut installation, more convenient and reliable.

8mm IK08 dustproof and waterproof metal switch which is suitable for outdoor waterproof equipment, medical equipment, alarm equipment, lighting fixtures and so on.And 8mm automotive button switch mechanical life of 1 million cycles long life, use rest assured. In any case, the button switch operating temperature -25~85 degrees Celsius, a wide range of applications to meet your various needs.

Choose YESWITCH 8mm IP65 dust and waterproof metal push button switch to make your device smarter and more powerful. Whether outdoors or indoors, this button switch gives you the best experience.A variety of styles, colors, specifications for your choice.

SPECIFICATION

Nut Torque:2~3N
Operating Stroke:1.8mm
Rating:0.1A 24VDC
Contact Resistance:50mΩ Max
Insulation Resistance:2MΩ Min
Mechanical life:100,000 cycles
Operating Temperature:-25°C~85°C
Relative Air Humidity:45%~85%
Protection Grade:IP65,IK08
Function:Momentary

MATERIAL

Base:PA66/H59,Nickel-plated
Shell:SUS
Button: SUS
Terminal:H62,Silver
