X7 Series ON-OFF IP67 Waterproof Rocker Switch

8 month ago

7 0 

7 year

Product details

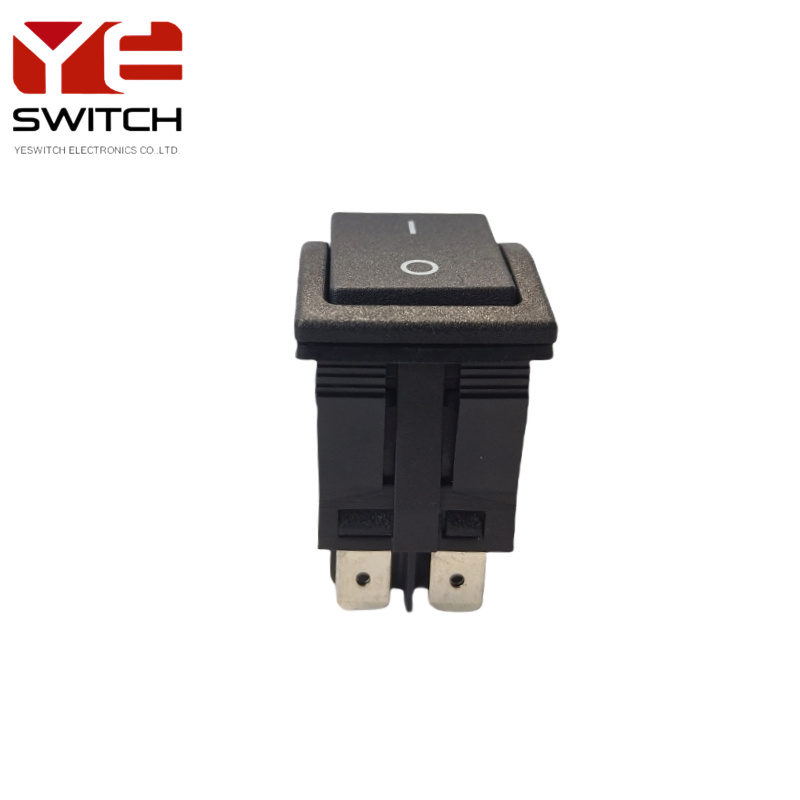

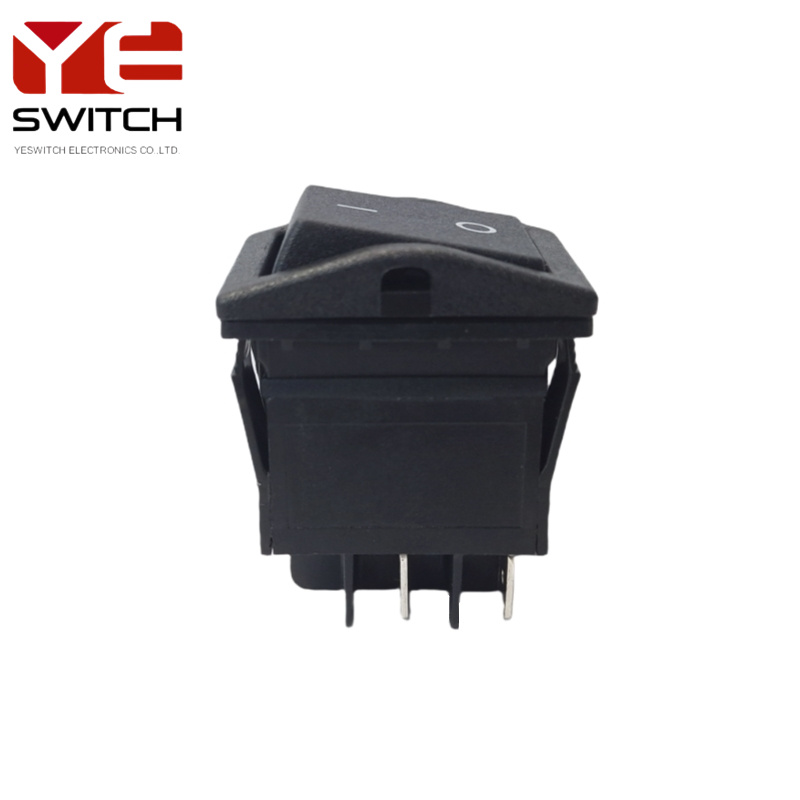

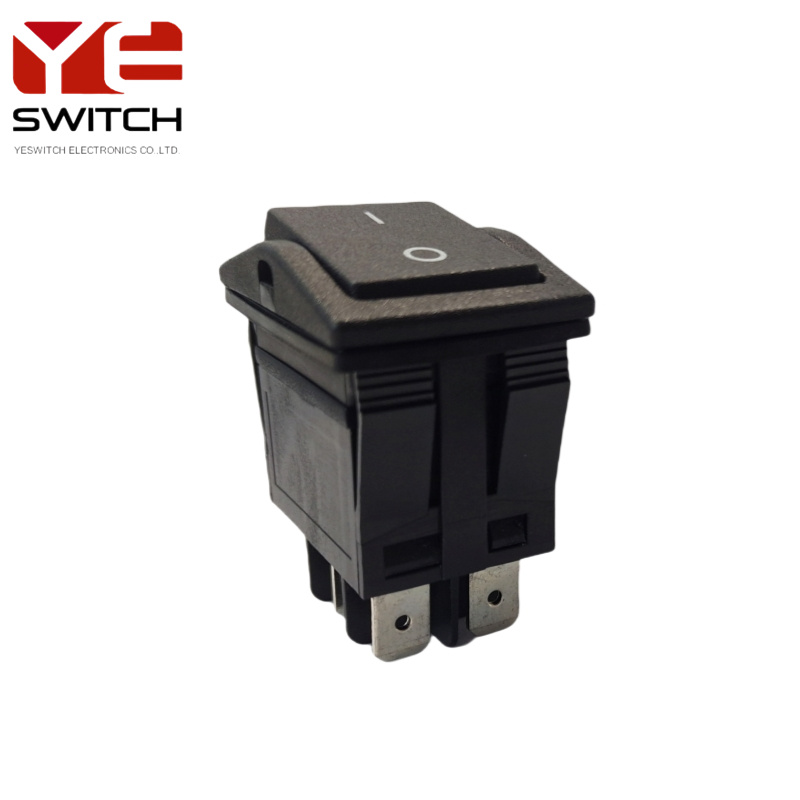

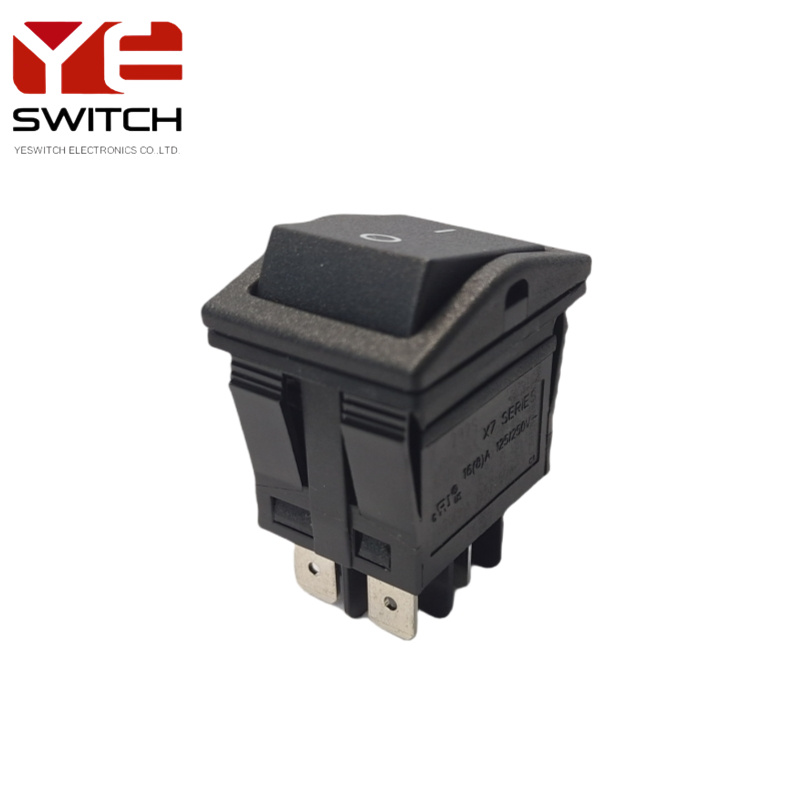

X7 Series ON-OFF IP67 Full Waterproof Rocker Switch

Rocker Switch X7 Series offer styling and comfort. Oversized actuator magnifies visual appeal and the ease of user experience.The X7 series rocker switch has a high current of rated for 6(8)A 125/250VAC with cURus, 20(8)A 125/250VAC with cURus,which can meet the needs of various electrical appliances.The rocker switch in non-illuminated versions featuring customizable,curved actuators.These custom rocker switches come with multiple color and marking options for the actuator.

The rocker switch is UL listed and rated to IP67 standards for total protection from dust and waterproof,which can effectively prevent water droplets, dust and other debris from entering the inside of the switch to ensure the normal use and safety performance of the switch.

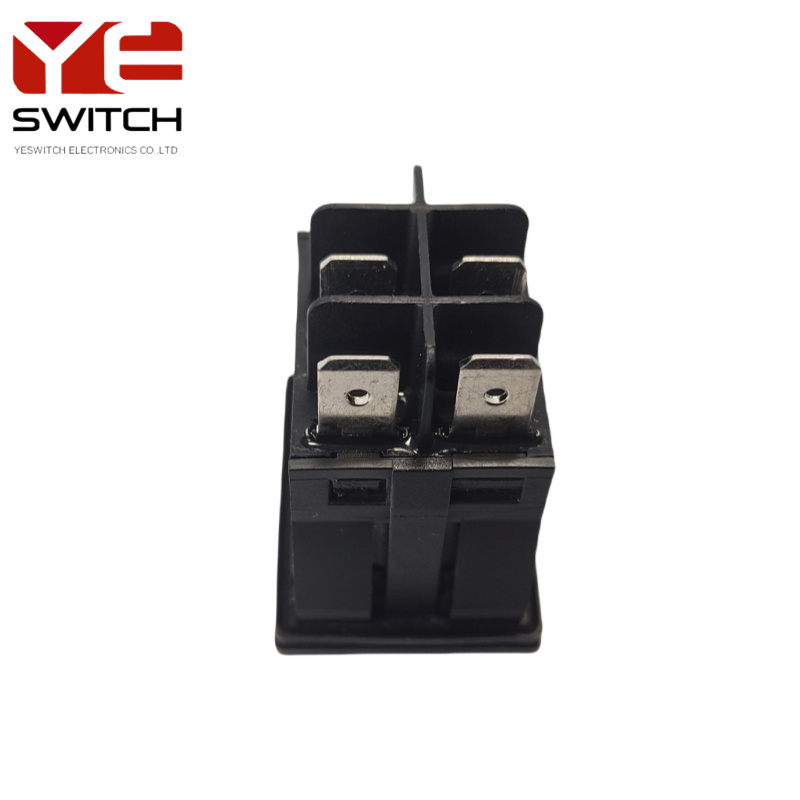

The rocker switch has double pole ON-OFF function and moisture and dust resistant.Terminals are quick connect,contacts are copper alloy or silver plated copper alloy,base and actuator are black nylon.

The full waterproof X7 rocker switches are recommended for use in industrial controls,van conversions,marine panels,automotive,motor controls,trucks,and buses.

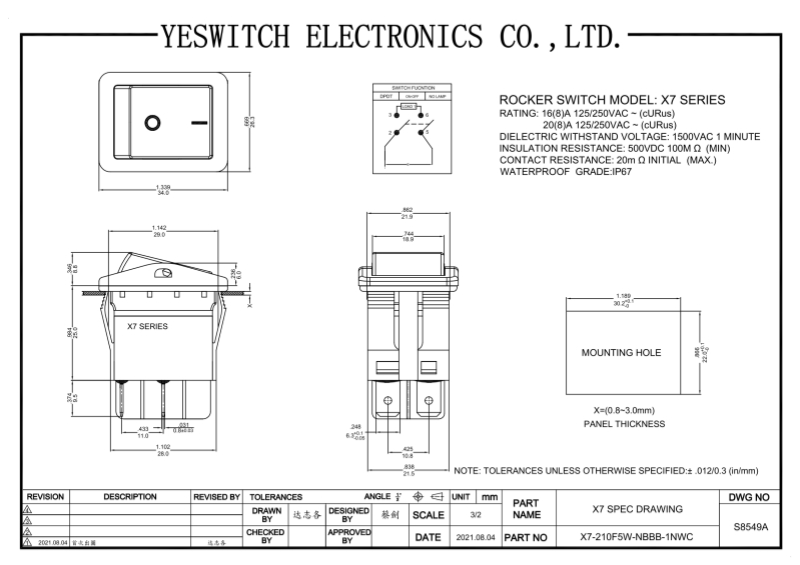

SPECIFICATION

MODEL: X7 SERIES
RATING:16(8)A125/250VAC-(cURus),20(8)A 125/250VAC~(cURus)
DIELECTRIC WITHSTAND VOLTAGE: 1500VAC 1 MINUTE
INSULATION RESISTANCE: 500VDC 100M Q(MIN)
CONTACT RESISTANCE: 20m Q INITIAL(MAX.)
WATERPROOF GRADE:IP67
POLE:DOUBLE POLE
TERMINAL TYPE:QUICK CONNECT
BASE COLOR:BLACK
ACTUATOR COLOR:BLACK
FUNCTION:ON-OFF
