3 or 4 layer PPH IPS pipe making machine

Plastic PPR multi-layers pipe production line

1.Application Hot water supply

2.Siemens PLC computer control
3.Pipe diameter: 20mm-63mm
4.Speed:12m/min



The glass fiber PPR Pipe making machine main components includes :PPR Extruder, Glass fiber Extruder, Marking line Extruder, Die head mould, Vacuum calibrating tank, Water cooling tank, haul off machine, Cutting machine, Electrical cabinet

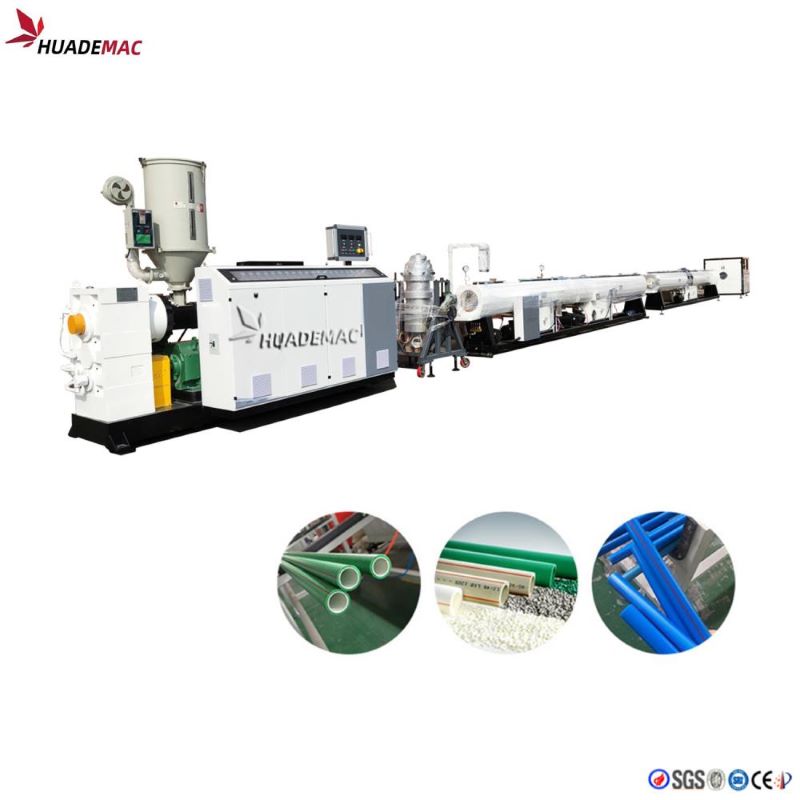

Plastic PPR multi-layers pipe production line photos

Extruder of Plastic PPR multi-layers pipe production line

SJ65/33 PE/HDPE PIPE EXTRUDER MAIN TECHNICAL PARAMETERS

1. Single screw extruder: model sj65 / 33
2. Cylinder and screw material: 38CrMoAlA, after nitriding and grinding, the depth of nitriding layer is more than or equal to 0.6mm, which has sufficient strength, wear resistance and corrosion resistance;
3. Cylinder and screw structure: barrier screw, asymmetric slotted barrel design.
4. The gearbox is equipped with strong thrust bearing and high torque output; the gear is made of special alloy, with hard tooth surface and gear grinding process; high quality, high torque and high speed gearbox; low heat, low noise, long life and hard tooth surface reducer is equipped with external cooling system
5. Temperature control table of OMRON
6. ABB or Siemens brand inverter
7. Schneider or Siemens AC contactor
8.  Siemens Bede motor
9. Diameter of screw: Φ 65mm
10. Length diameter ratio of screw: 33:1
11. Driving motor power: 55kW high speed screw
12. Gearbox: high torque, low noise, hard tooth surface grinding reducer is equipped with external cooling circulation system

13. Heating power of barrel: 5 × 4.5kw (cast aluminum heating ring)
14. Cooling power : 5 × 0.25kw forced air cooling
15. The output is 100-200kg / h

Packaging and Shipment of Plastic PPR mutil-layers pipe production line

Exhibition of HDPE MPP PPR plastic pipe making machine
