Waste bin screen printing machine

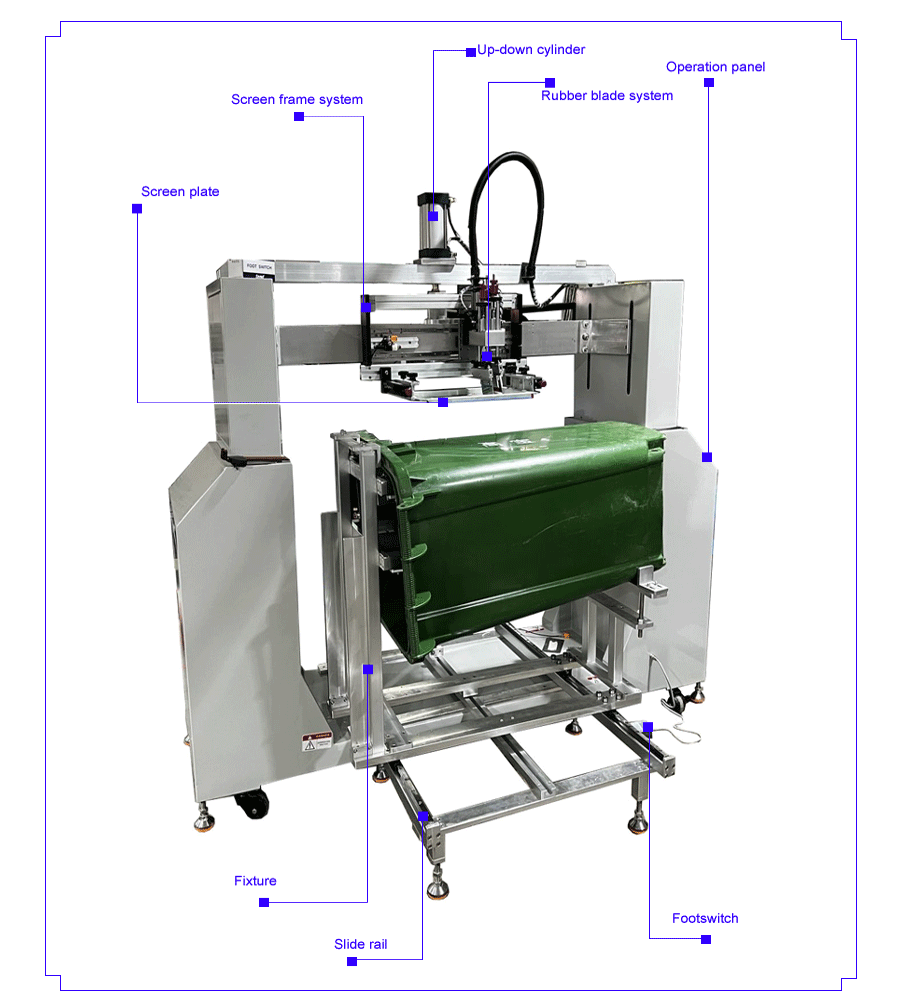

PS-3050PTB Precision screen printing machine for crash can //Structure

Working table

Manual slide table

Actions

Up-down of screen plate

To be printed

• Crash can, Wasten bin

Squeegee stroke

 500mm

PS-3050PTB  Precision screen printer for wasten bin  //Usage and characters

Guide

• It is a flat screen printing machine with Manual slide table, which can realize  waste bin and crash can .
• The product is placed on the table, and the table can bring the product to the printing position, printing, and then take out.

Application

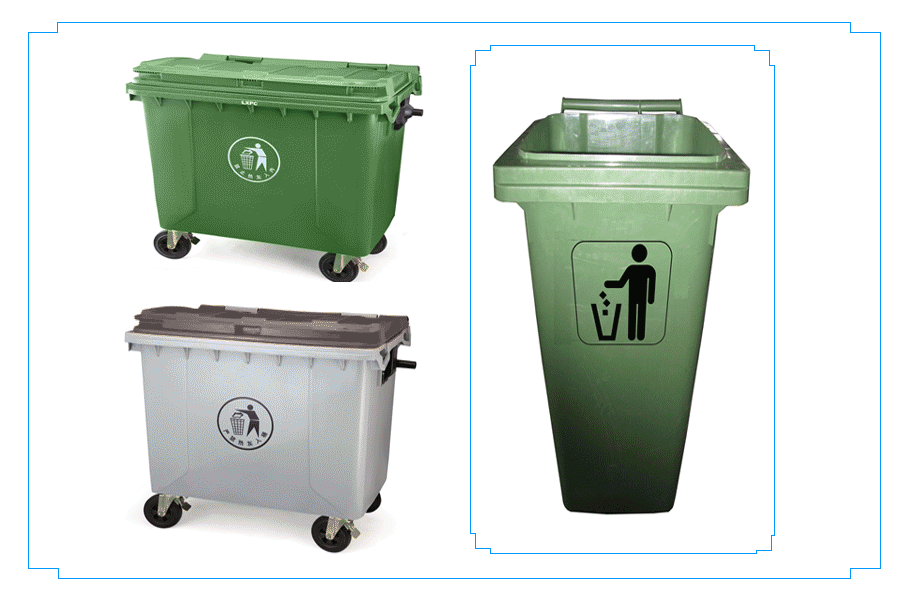

• Crash cans, Wasten bins, Transport crates

PS-3050PTB  Flat screen printing Machine FOR Crash can //Parameters

Technical parameters

PS-3050PTB  High-precision screen printer for crash cans

• Worktable area：400×1000mm
• Max printing area：300×500mm
• Max size of frame: 500×750mm
• Net weight：356kg.
• Colour Number: 1;
• Operating： PLC;
• Max object Height: 800mm;
• Range adjustment of working table: +-10mm.

Works supply

• 110V-220V Power supply.

Shipment parameters

• Outer dimension:2150×1760×2000mm;
• Net weight: 286KG;

• Pakcage dimension:2200×1450×2100mm;
• Gross weight: 356KG;
• CBM: 6.8184

H.S.CODE

8443192190

Certificate

CE

PS-3050PTB Flat Manual screen printing Machine for crash can //Advantage

Function

• Manual slide table, suitable for Crash can and wasten bin .
• Aluminum alloy frame, light and strong structure.
• Precise screen frame device ensure precise adjustment of mesh distance and ensure product stability.
• PLC and touch screen operating system
