inox cable 03
4 year ago

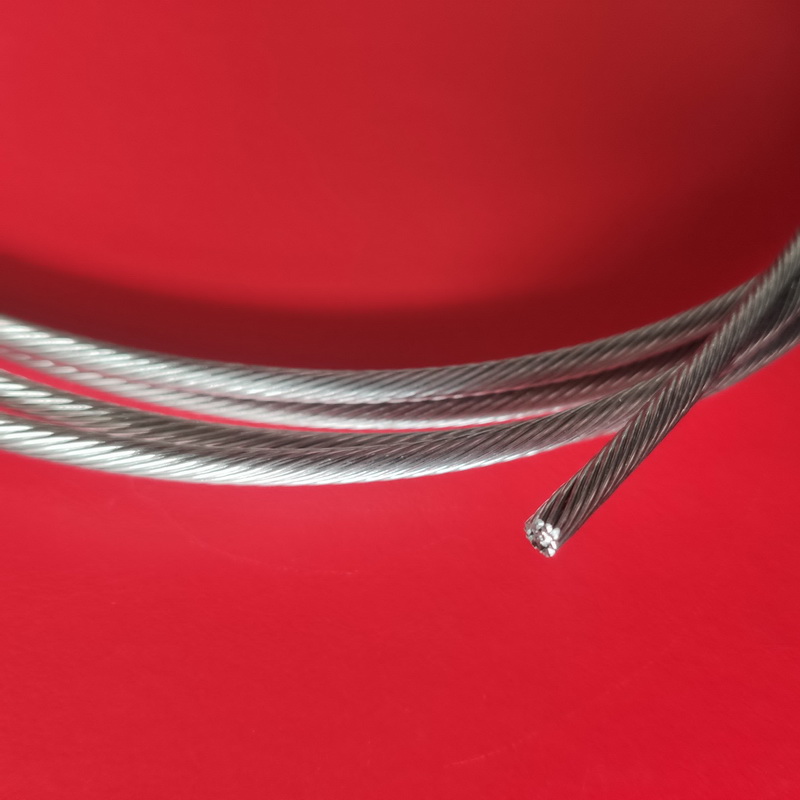

1. 1x19 304 Stainless Steel Wire Strand is usually used for catenary, guy wire, steel core, etc.

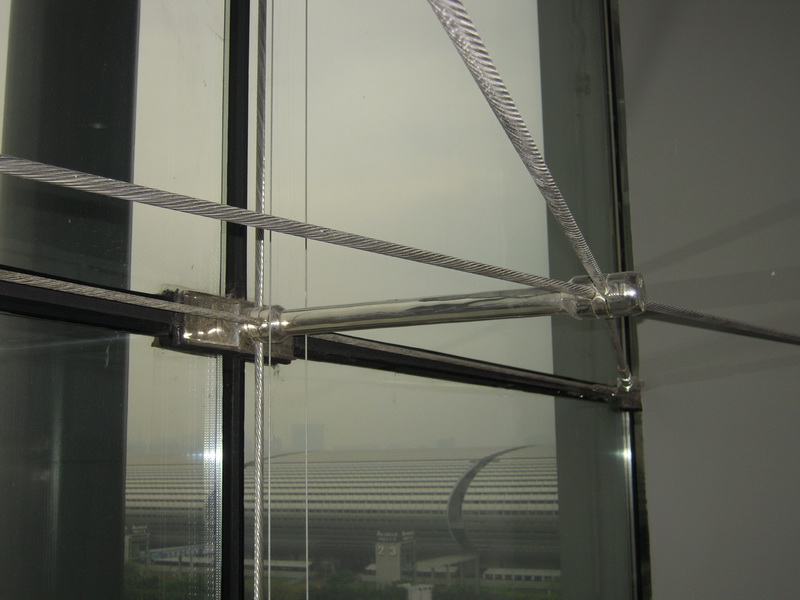

2. It can also be used as ground wire for overhead power transmission, blocking cables on both sides of the road or structural cables in building structures.
3. 1x19 Dia.2.5mm Stainless Steel Strand is a steel material twisted by multiple galvanized steel wires.
4. The lay length of the steel strand should not be greater than 14 times its diameter.
stainless steel wire
Stainless Rope, closed by 19 stainless steel wires, the tensile strength is 1570N/mm2, the wire rope is used for fishing, safety protection facilities, lifting wire rope slings, etc.
Material grade : 316 , 304 ( 1.4401 , 1.4301 )

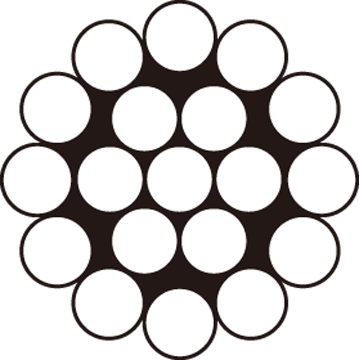

Structure: 1X19
Construction
Diameter
Approx.Weight
Min.Breaking
Load
1X19
（mm）
（kg/100m）
1770N/mm2
0.5
0.13
0.206
0.6
0.18
0.297
0.8
0.32
0.53
1.0
0.50
0.82
1.2
0.72
1.19
1.5
1.13
1.85
1.8
1.62
2.67
2.0
2.00
3.30
2.2
2.42
3.99
2.5
3.13
5.15
3.0
4.50
7.42
4.0
8.00
13.19
5.0
12.50
20.61
6.0
18.0
29.7
8.0
32.0
52.8
10.0
50.0
82.4
12.0
72.0
118.7
14.0
98.0
161.6
16.0
128.0
211.0
18.0
162.0
26.7
20.0
200.0
33.0
Standard : EN12385-4 or DIN3053

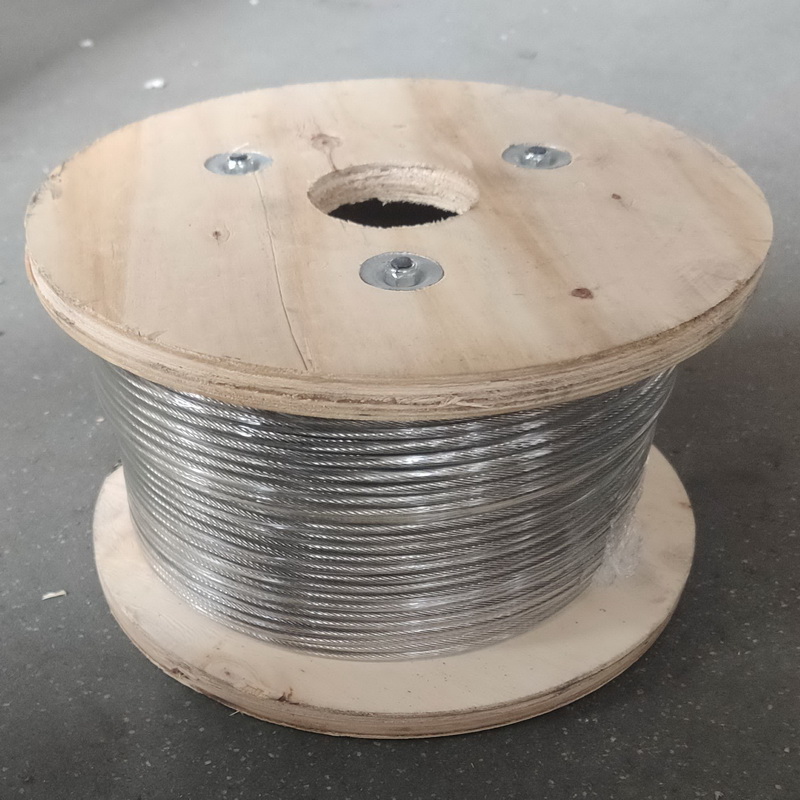

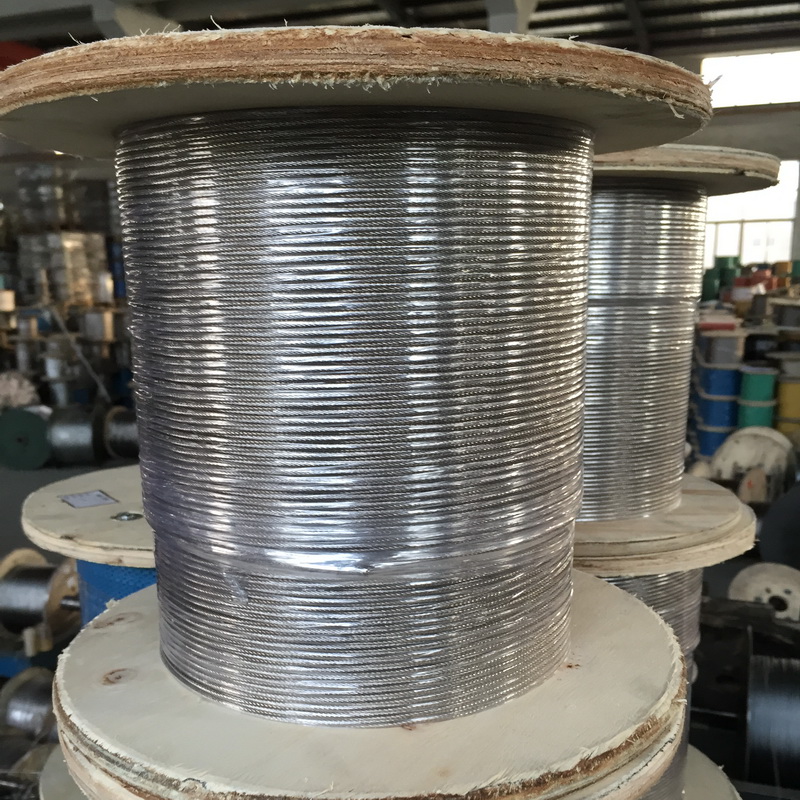

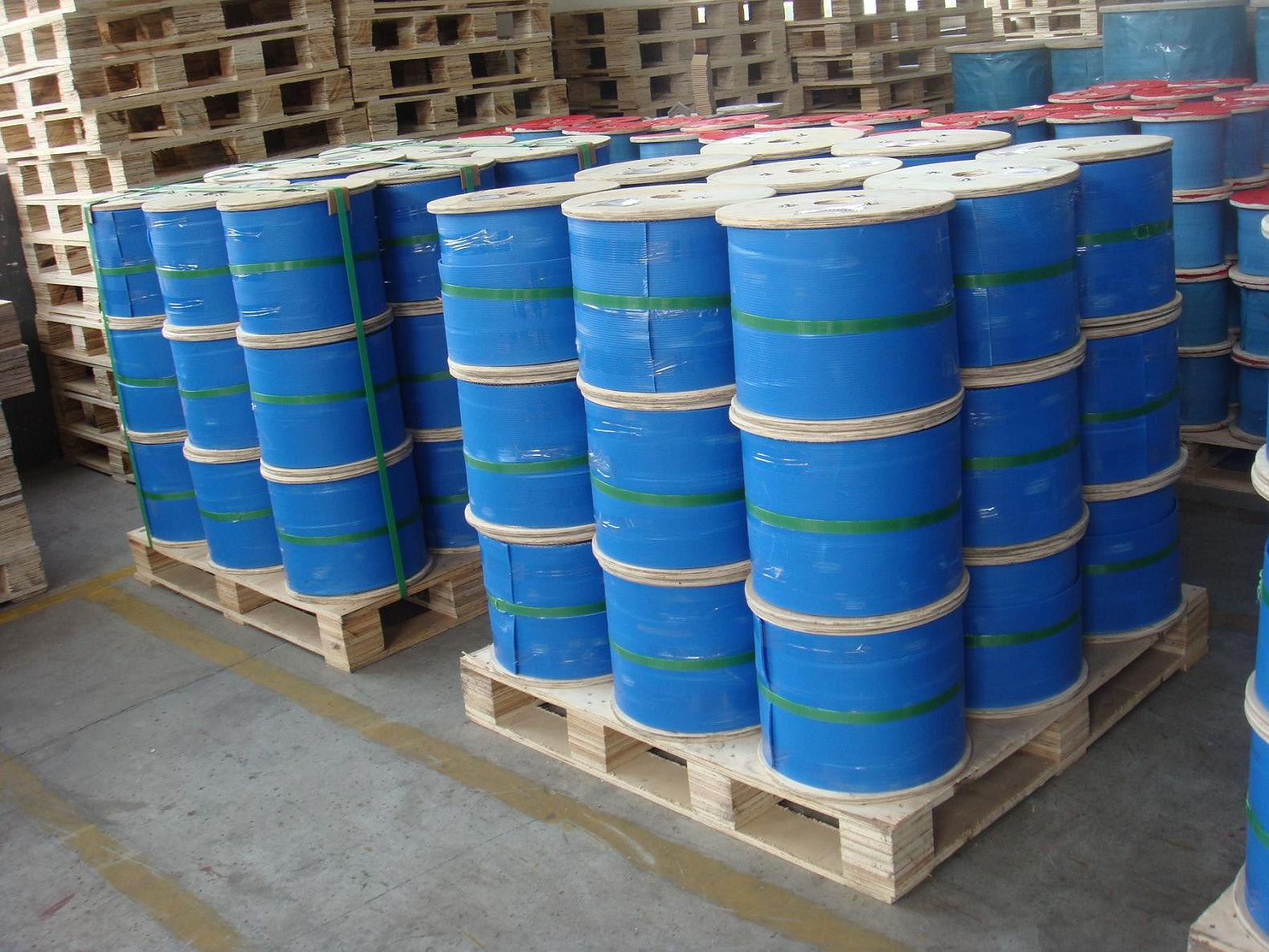

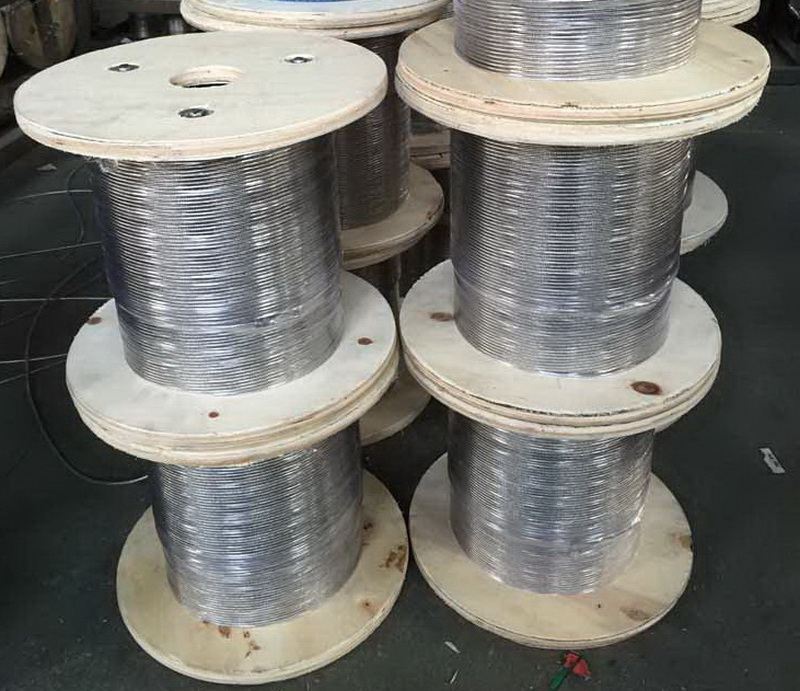

Packing Term : Plastic Spool , Wood reel or Coil
Length : 50m, 100m , 500m , 1000m, 2000m , 5000m
