Product details

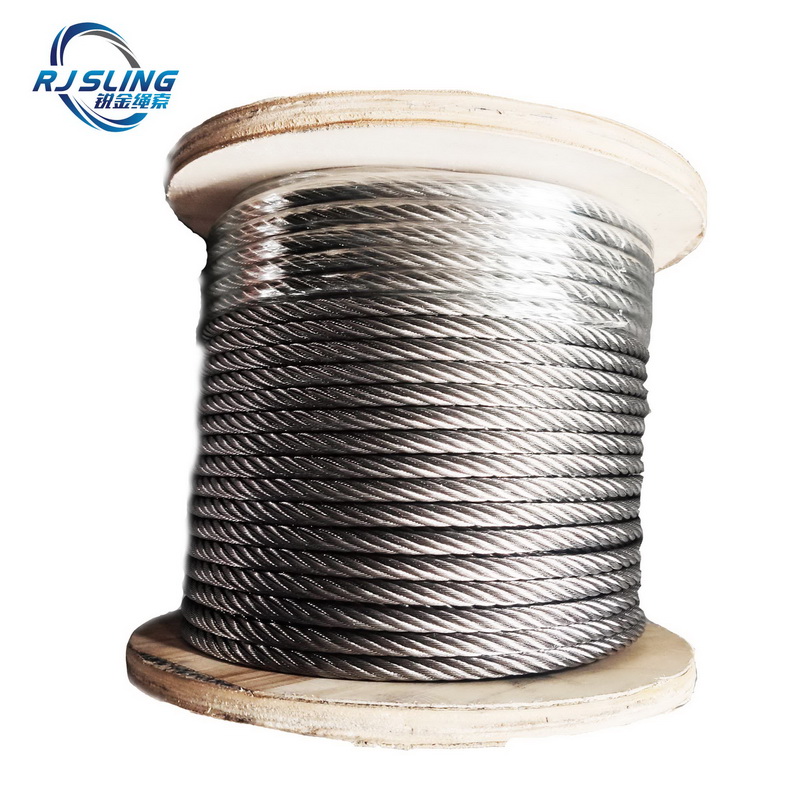

Stainless steel wire rope

aisi316 or Aisi304 6X36SW Dia.1.5mm to 28mm Stainless steel wire rope , closed with 6 strands and 36 stainless steel wires each strand ,The tesiles strength is 1570N/mm2, the steel wire rope use for safty protecting faclities , Automobile , Building industry , Lifting systerm and so on.

Material Grade : 316 , 304 ( 1.4401 , 1.4301 )

Construction : 6X36SW+IWRC , 6X36SW+FC

6X36SW+FC	Diameter	Approx.Weight	Min.Breaking Load
	（mm）	（kg/100m）	1570N/mm²	1770N/mm²
	6.0	13.86	18.70	21.00
	8.0	24.64	33.20	37.40
	10.0	38.50	51.80	58.40
	12.0	55.44	74.60	84.10
	14.0	75.46	101.50	114.00
	16.0	98.56	132.60	150.00
	18.0	124.74	168.00	-
	20.0	154.00	207.00	-
	22.0	186.34	251.00	-
	24.0	221.76	298.00	-
	26.0	260.26	350.00	-
	28.0	301.84	406.00	-

6X36WS+IWRC	Diameter	Approx.Weight	Min.Breaking Load
	（mm）	（kg/100m）	1570N/mm²	1770N/mm²
	6.0	15.30	20.10	22.70
	8.0	27.20	35.80	40.30
	10.0	42.50	55.90	63.00
	12.0	61.20	80.50	90.70
	14.0	83.30	109.50	124.00
	16.0	108.80	143.10	161.00
	18.0	137.70	181.00	-
	20.0	170.00	224.00	-
	22.0	205.70	271.00	-
	24.0	244.80	322.00	-
	26.0	287.30	378.00	-
	28.0	333.20	438.00	-

Standard : EN12385-4 or DIN3064

Packing Term :　Plastic Spool , Wood reel or Coil

Length : 50m, 100m , 500m , 1000m, 2000m , 5000m
