ground screw welding
3 year ago
Earth Screw Anchor is a necessary hardware for camping owning to its easy way of installation and light weight. There is no need of high twisting strength and you can operate earth screw anchor pretty well Attached with metal bar, it also can secure items such as plants, motorcycle, guyed structure.
There are many kind of Ground Screws:U Type Ground Screw,V steel tube ground screw,F Series Ground Screw,N Series Ground Screw,Ground Spike For Fence/pole anchor,Ground Anchor,Earth Auger Anchor.
Material of Screw Anchor:S 235 carbon steel.
Length of the U Ground Screw :685 mm,865 mm,1000 mm,1600 mm.
Diameter of pipe for Screw Anchor:68 mm,76 mm,according to clients' request.
Nut: M10/12/14/16 According to clients' request for Ground Screw Pile.
Continuous welding with auto welding machine to weld thread and blade for Ground Anchor .
Surface treatment:Hot dip galvanized,according to DIN EN ISO 1461-1999,thickness of coating zinc:more than 80 micron.
Production Chart of Galvanized Ground Screw:Cutting pipe length according to design,forming the pipe according to the design,welding nut,flange,blade and assemble,acid pickling and hot dip galvanized treatment,QC and packing,shipments .

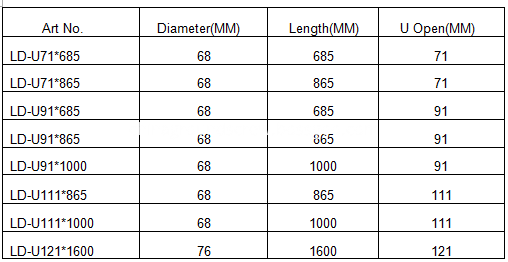

Common sizes as follow:
